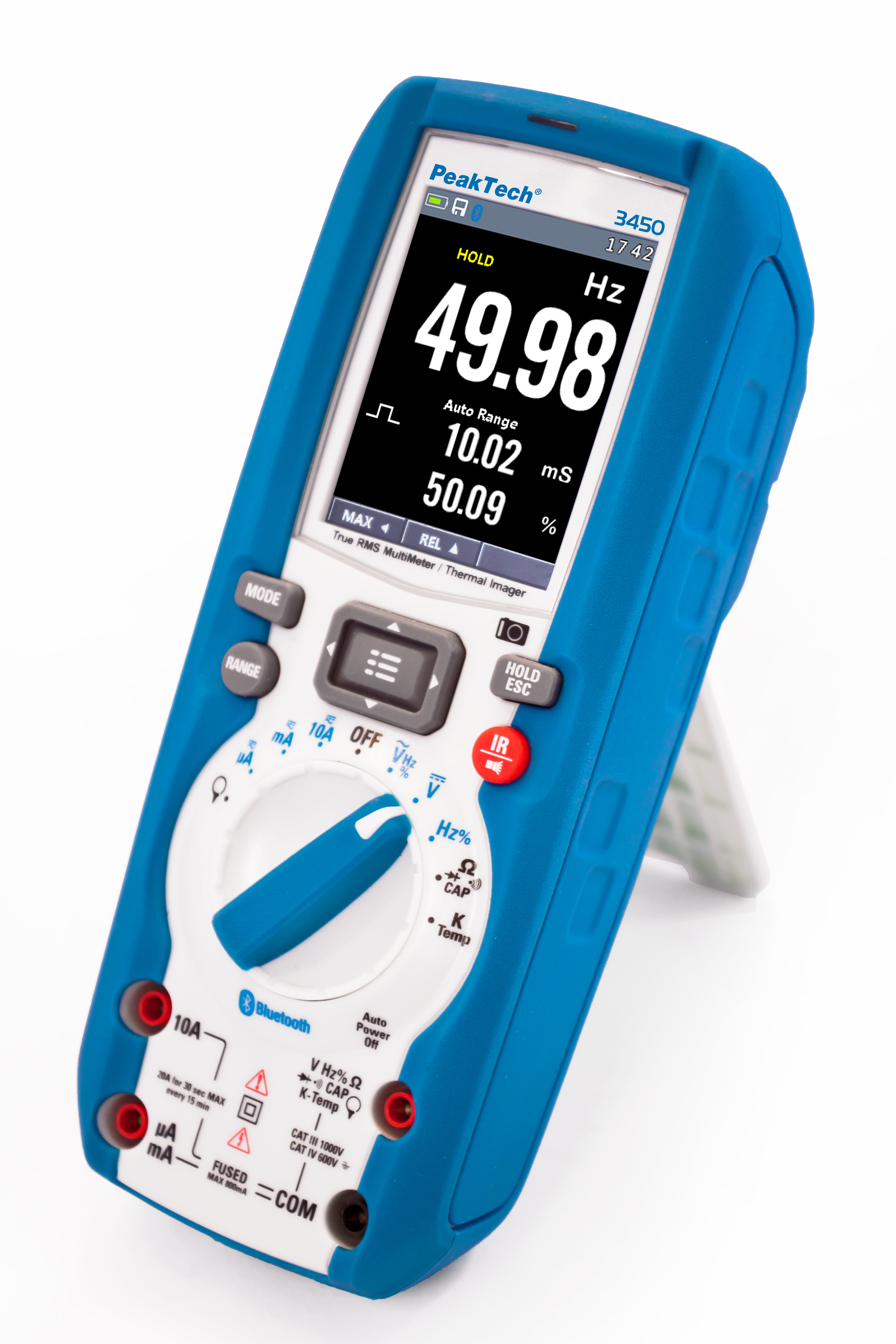

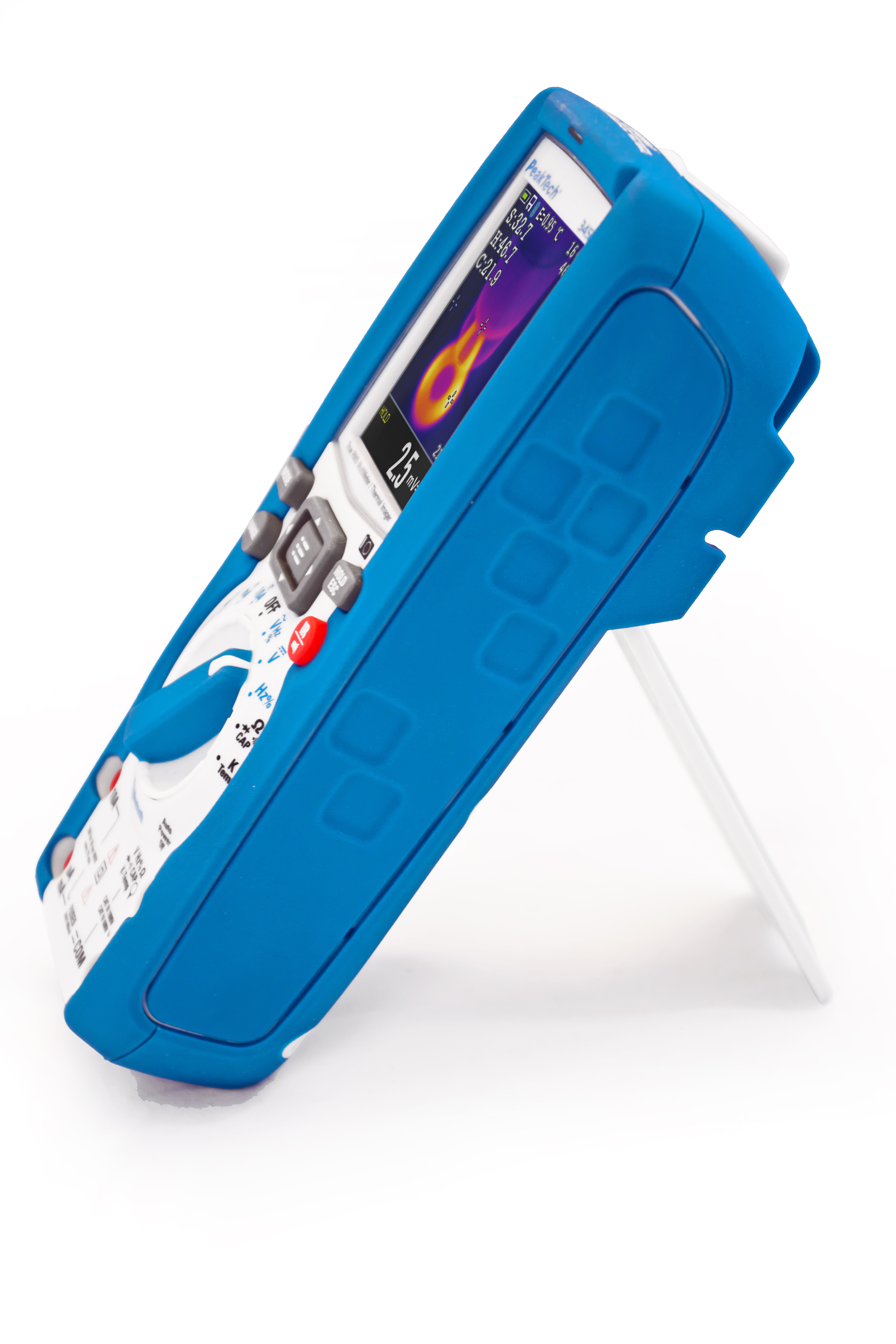

«PeakTech® P 3450» TrueRMS multimeter & thermal imaging camera

€699.50*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

Product number: P 3450

EAN: 4250569403330

Downloads

Product information "«PeakTech® P 3450» TrueRMS multimeter & thermal imaging camera"

This new combination of the latest True RMS graphic multimeter and responsive thermal imaging camera enables professional use in all areas of electrical engineering. The multimeter has many various functions to carry out precise measurements, which you can log automatically, save with a screenshot or record and process using an app for Android or iOS mobile devices. Switch the color TFT display between the pure multimeter display or a combined multimeter / thermal image display and use the graphical menu navigation to carry out all settings according to your requirements. The multi-meter display provides you with multi-line displays for current measured values, maximum / minimum or relative value measurements. The integrated thermal imaging camera offers a very fast sampling rate of 50 Hz to enable a smooth display when troubleshooting. The Thermal imaging camera of the PeakTech 3450 uses a thermal image resolution of 80 x 80 pixels. Use the graphic menu to switch between different color palettes (gray & inv. / Iron / rainbow, etc.), set the emission factor or activate the laser pointer to mark the measuring station.

IR FOV:	21° x 21°
IR Temp.:	-20°C ... 260°C
Basic Accuracy DC:	+/- 0,09%
Battery:	Li-Po 1500 mAh
Bluetooth:	■
Capacitance max.:	6 mF
Digital counts:	6.000
Display Type:	Color-TFT
IR sensitivity:	< 100 mK
IR thermal resolution:	80 x 80 Pixel
Ingress protection:	IP 65
LED-lamp:	■
Mains voltage:	110/240 V AC; 50/60 Hz
Memory (internal):	■
OHM resolution min.:	0,1 Ω
Over voltage category:	CAT III 1000 V, CAT IV 600 V
Range selection:	Auto
Screen size (TFT):	7 cm (2,8")
V AC resolution min.:	0,1 mV
V DC Auflösung min.:	0,1 mV
V DC max.:	1000V
A AC max.:	10A
Hz max.:	10 MHz
OHM max.:	60 MΩ
Temp. max.:	1000 °C
Temp. min.:	-40 °C
mA DC max.:	600mA
mV DC max.:	600 mV
µA DC max.:	6000 µA
V AC max.:	1000V
mV AC max.:	600 mV
A DC max.:	10A
mA AC max.:	600 mA
µA AC max.:	6000 µA

True RMS measurements up to 1000 V and 10 A AC
80 x 80 pixel thermal imager (50Hz) -20 ° C ... 260 ° C
Color display with 6,000 digits and backlight
Bluetooth interface and SD memory card
Graphic menu navigation and data logger with trend display
IP 65 dustproof and splashproof
Safety: EN 61010-1, CAT III 1000V / CAT IV 600V
Accessories: battery and charger, temperature sensor, carrying case, SD card, test leads, BT adapter, software and manual
