«PeakTech® P 5090» Temperature-/Humidity Meter, -50 ... +500°C

PDF Datasheet
Product number: P 5090
EAN: 4250569401299
Product information "«PeakTech® P 5090» Temperature-/Humidity Meter, -50 ... +500°C"

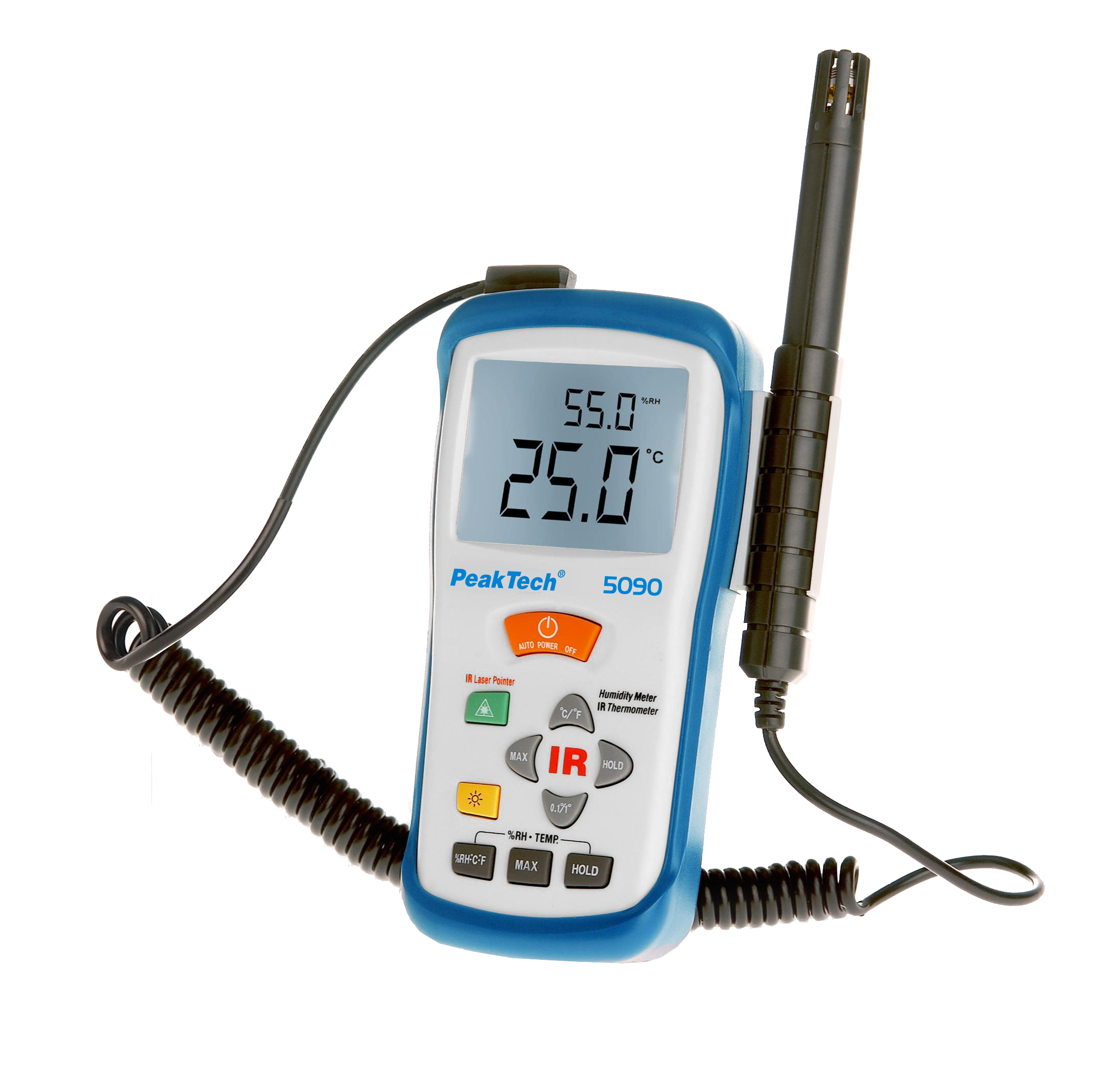

This digital temperature / humidity measuring device (with double-function LCD display for simultaneous display of humidity and temperature) enables use in the areas of refrigeration, air conditioning, plant construction, construction industry and for general heat treatment processes in the metal, electrical and chemical industries. With the laser it is possible to carry out a quick contactless temperature measurement from a safe distance on hot or moving objects or at measuring points that are difficult to access.
IR Temp.: -50°C ... 500°C
Air temperature: -20°C ... 60°C
Digital counts: 2.000
Display Type: LCD
Distance/Spot: 8:1
Emission factor: Fixed (0.95)
Relative humidity: 5 ... 95 % RH
  • 3 ½ digit 21 mm LCD-Doublefunction-Display with backlight
  • Emissivity settings: 0,95 fixed; Auto power off
  • Optical resolution 8:1 field of view
  • Switchable °C/°F units; MAX-Hold and data hold
  • built-in laser shows the target area (class 2)
  • Safety: EN 60825-1
  • Accessories: carrying case, holster, sensor probe, battery and manual
