«PeakTech® P 5600» Video Borescope, Color TFT, USB and SD card


PDF Datasheet
Product number: P 5600
EAN: 4250569403255
Product information "«PeakTech® P 5600» Video Borescope, Color TFT, USB and SD card"

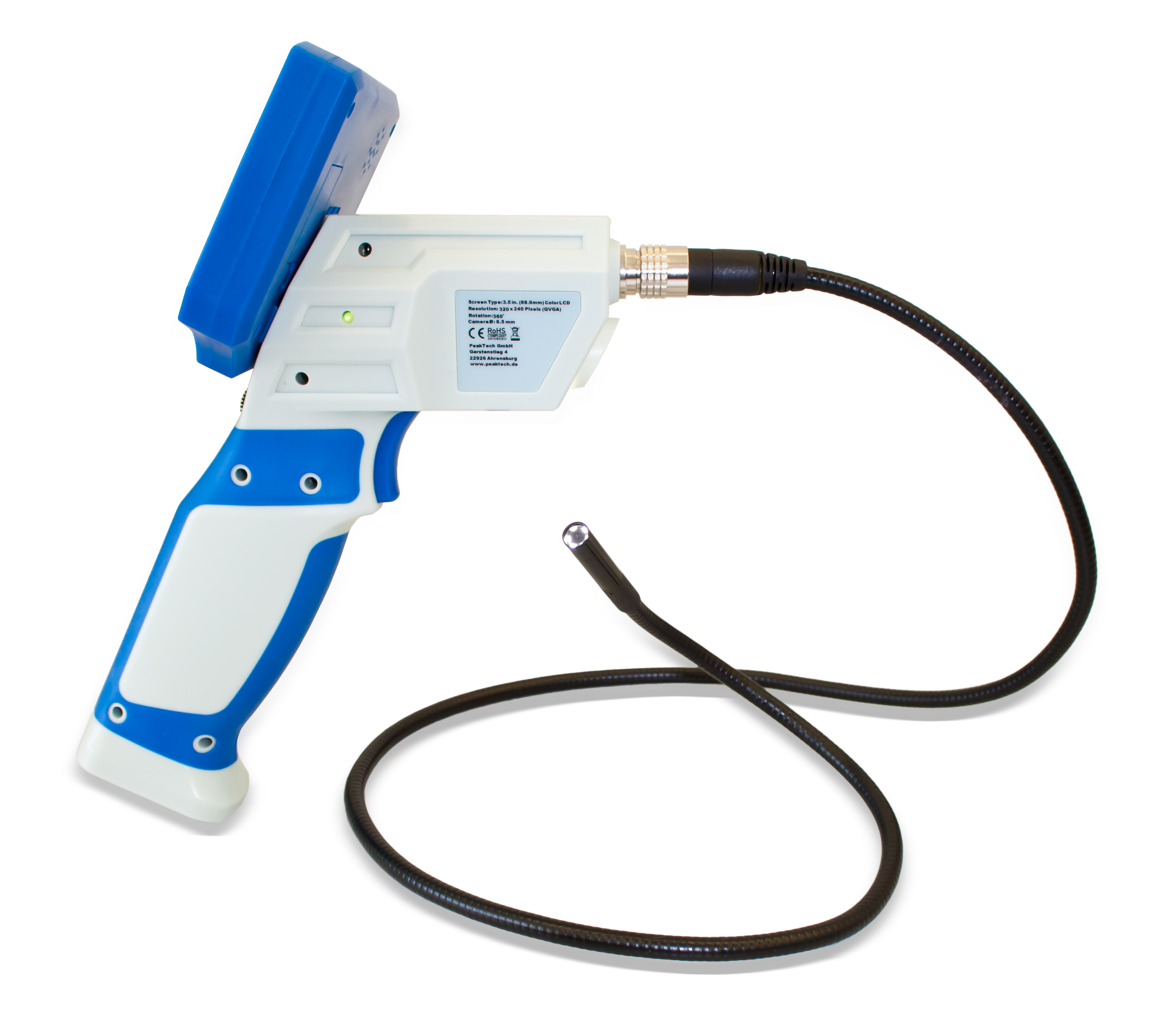

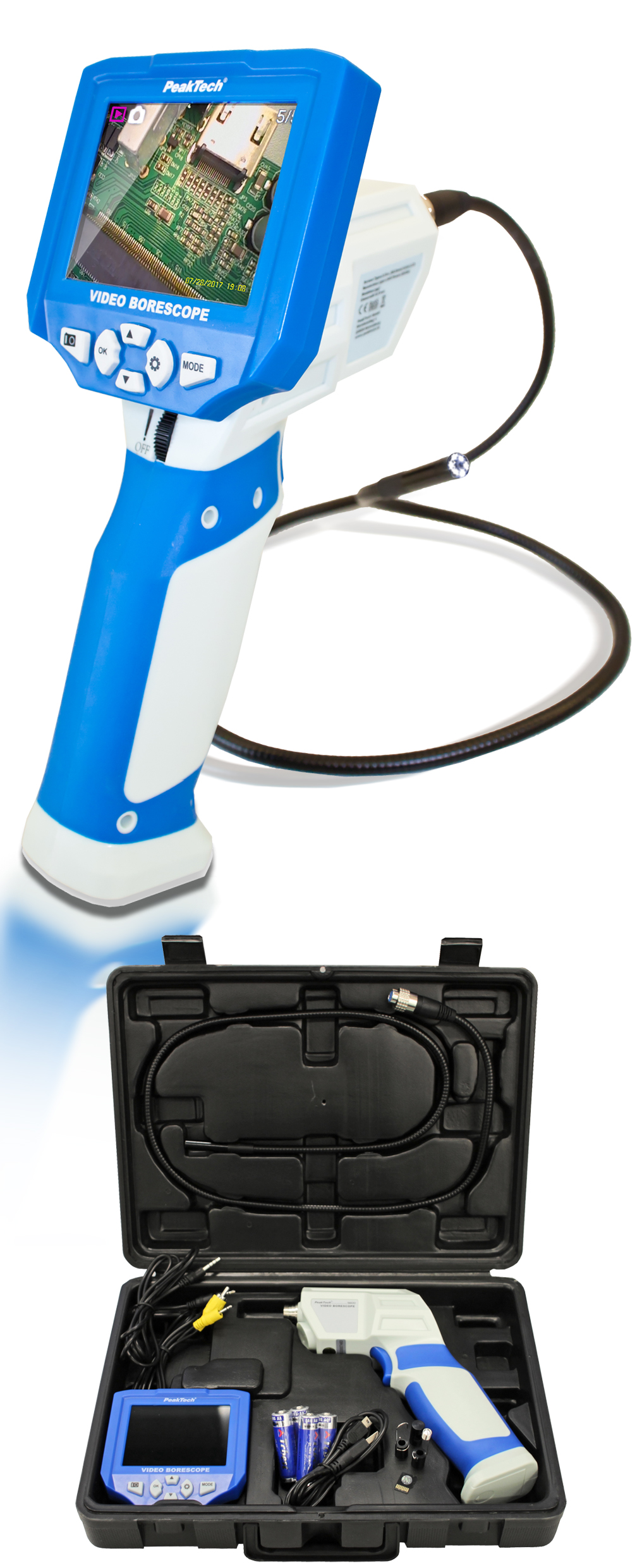

The PeakTech 5600 is used to locate objects such as connection terminals, electronic components, break points, constrictions, cracks or components at hard-to-reach, hidden locations. This video endoscope camera offers a variety of excellent technical properties, such as the detachable monitor connected by video cable or the high-resolution camera with 6 dimmable LEDs for lighting, which can take photos and videos. This data can be saved on an SD card. In addition, the diameter of the flexible camera is only 8.2 mm small enough to get through small openings. Suitable for all areas of application, the wide camera viewing angle of 60 ° and the automatic depth of field from 30 mm to almost "infinite" ensure a clear view of the subject.
Camera Ø: 8,2mm
Display Type: Color-TFT
Focal Length: 5 ~ 8 cm
Ingress protection: IP 67
Screen size (TFT): 8,9 cm (3,5")
Snap shot / Photo:
Video recording:
  • Detachable, wired 3,5“ color TFT display
  • HD 720p video recording and 3 megapixel photo function
  • 4 GB Micro-SD card for recording
  • 8,2 mm camera with 6 LEDs for dimmable lighting
  • Camera is dust- and waterproofed according to IP67
  • Additional LED flashlight function
  • Image can be mirrored in 4 steps
  • S-Video output for the display on TV

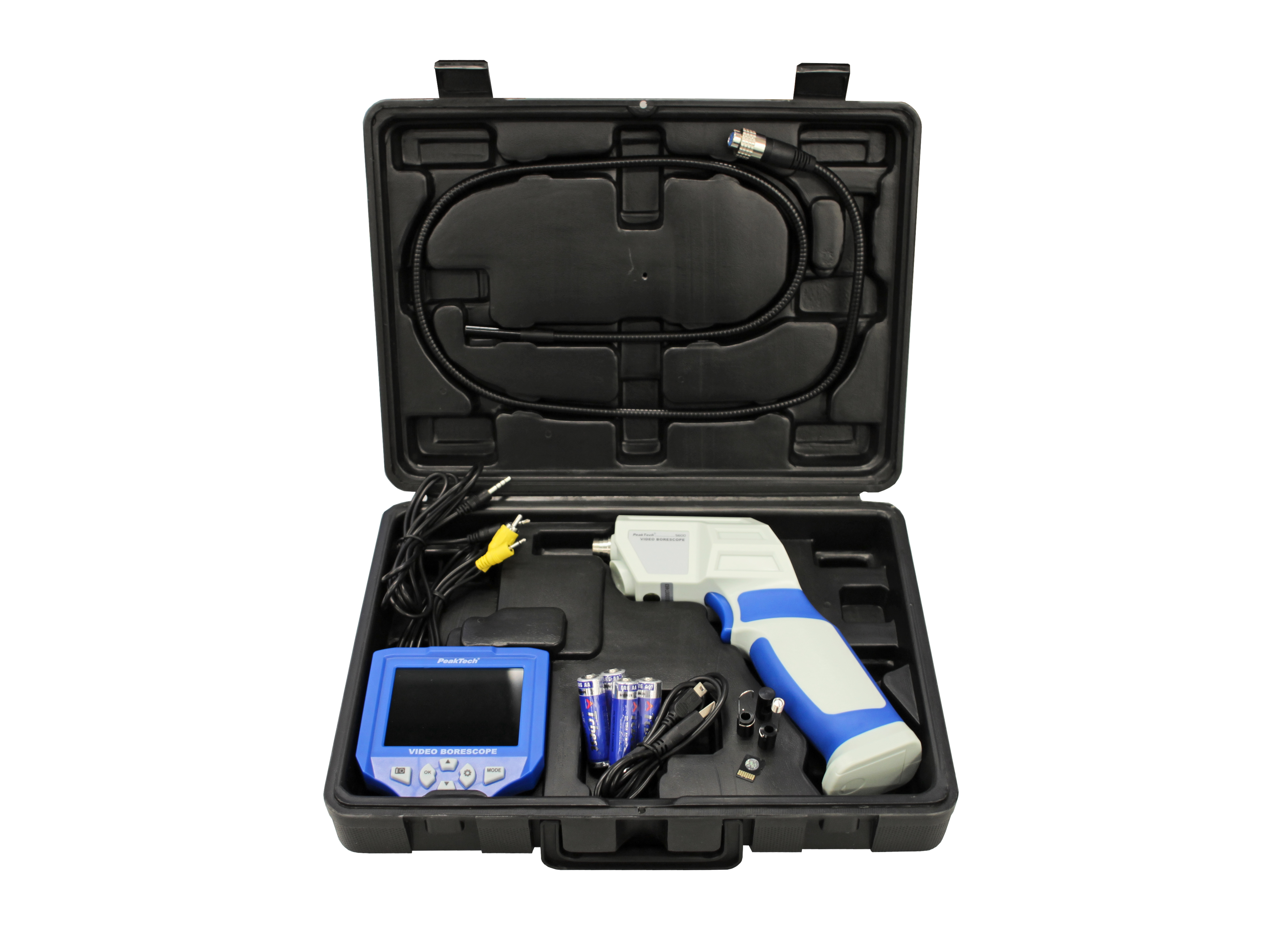

  • Accessories: Carrying Case, SD card, Video cable, USB cable, set of hooks consisting of hook, magnet and mirror, as well as batteries and manual
  • Additional accessories: 2 m camera with flex. gooseneck, Model: P 5601
«PeakTech® P 5601» additional camera with 2 meter gooseneck for PeakTech 5600
Flexible additional camera / replacement camera for the PeakTech 5600 endoscope camera.
