«PeakTech® P 1331» 100 MHz /4 CH, 1 GS/s PC Oscilloscope with USB&LAN


PDF Datasheet
Product number: P 1331
EAN: 4250569406829
Product information "«PeakTech® P 1331» 100 MHz /4 CH, 1 GS/s PC Oscilloscope with USB&LAN"
This powerful 4-channel oscilloscope is ideal for mobile use on a laptop or for permanent installation in control cabinets. For fast display of any incoming waveform, just press the Autoset button and the oscilloscope itself will search for the best possible display. With Autoscale, on the other hand, the scaling of the time base can be adjusted in a user-friendly way. Recorded waveforms can be saved directly to the hard disk as an image file, table or text using the included PC software. All oscilloscope functions are controlled via the comprehensive software. Various triggers, channel settings, measurement functions, sampling, cursor, pass/fail and mathematical functions can be set. Data transfer to the PC takes place via an isolated LAN connection or the USB interface, whereby the unit is directly supplied with the necessary voltage via USB.
Sampling 1 CH: 1 GS/s
Sampling 2 CH: 500 MS/s
Sampling 4 CH: 250 MS/s
USB: ■ (isoliert)
Bandwidth: 100 MHz
Channels: 4 CH
Hor. scale max.: 100 s/div
Hor. scale min.: 1 ns/div
Memory depth: 10.000.000 Points
Rise Time: < 3.5 ns
Vert. resolution: 8 Bit
Vert. scale max.: 5 V/div
Vert. scale min.: 2 mV/div
  • 4-channel 100 MHz PC oscilloscope with 1 GS/s sampling rate
  • Control via PC software
  • Memory length of 10 million points per channel
  • XY mode and FFT function
  • Isolated LAN connection for data transmission with power supply unit for voltage supply
  • USB connection for data transmission and power supply
  • Input voltage max.: 40 Vpp

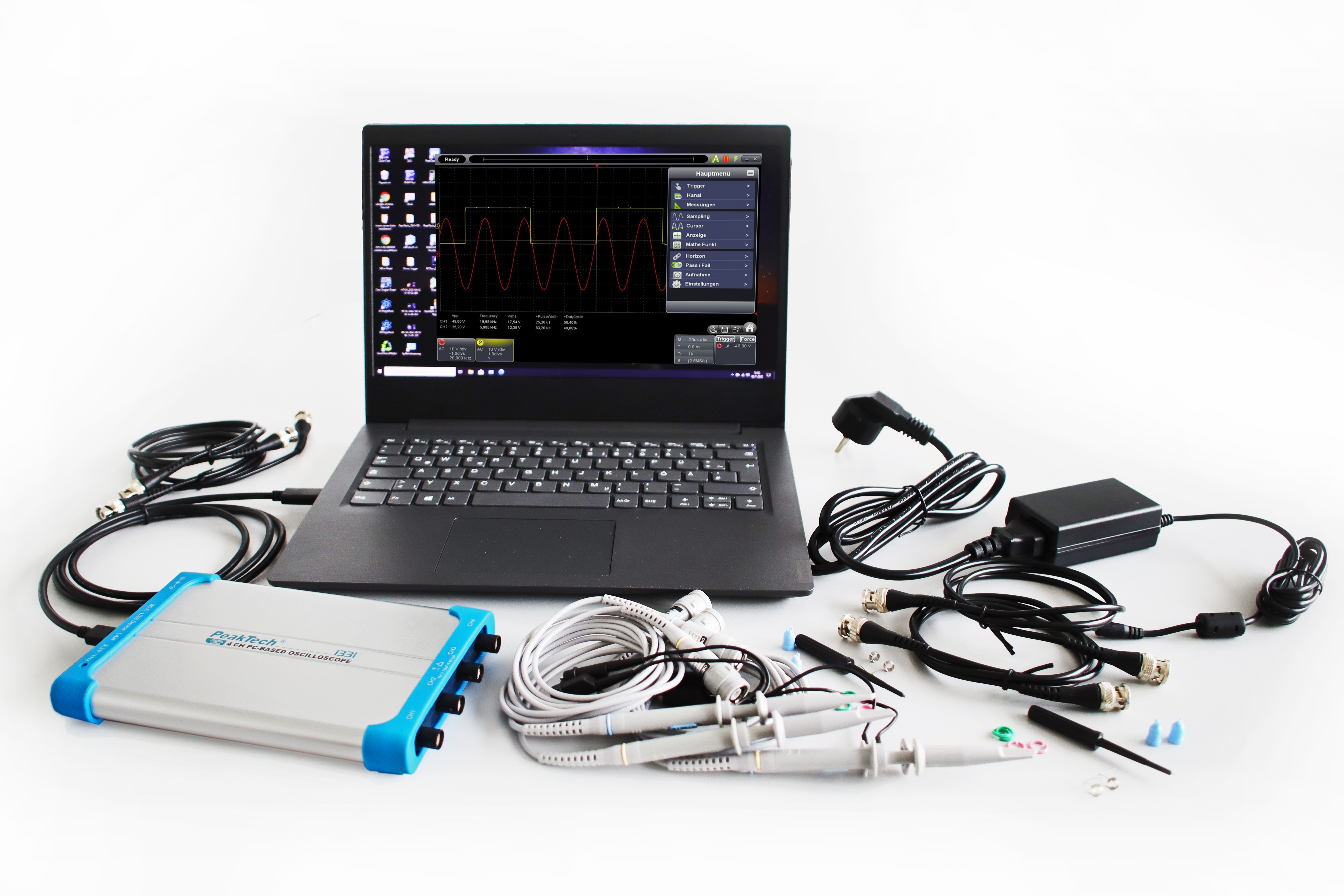

  • Accessories: probes, USB cable, BNC cable, mains adapter, operating instructions, software CD
