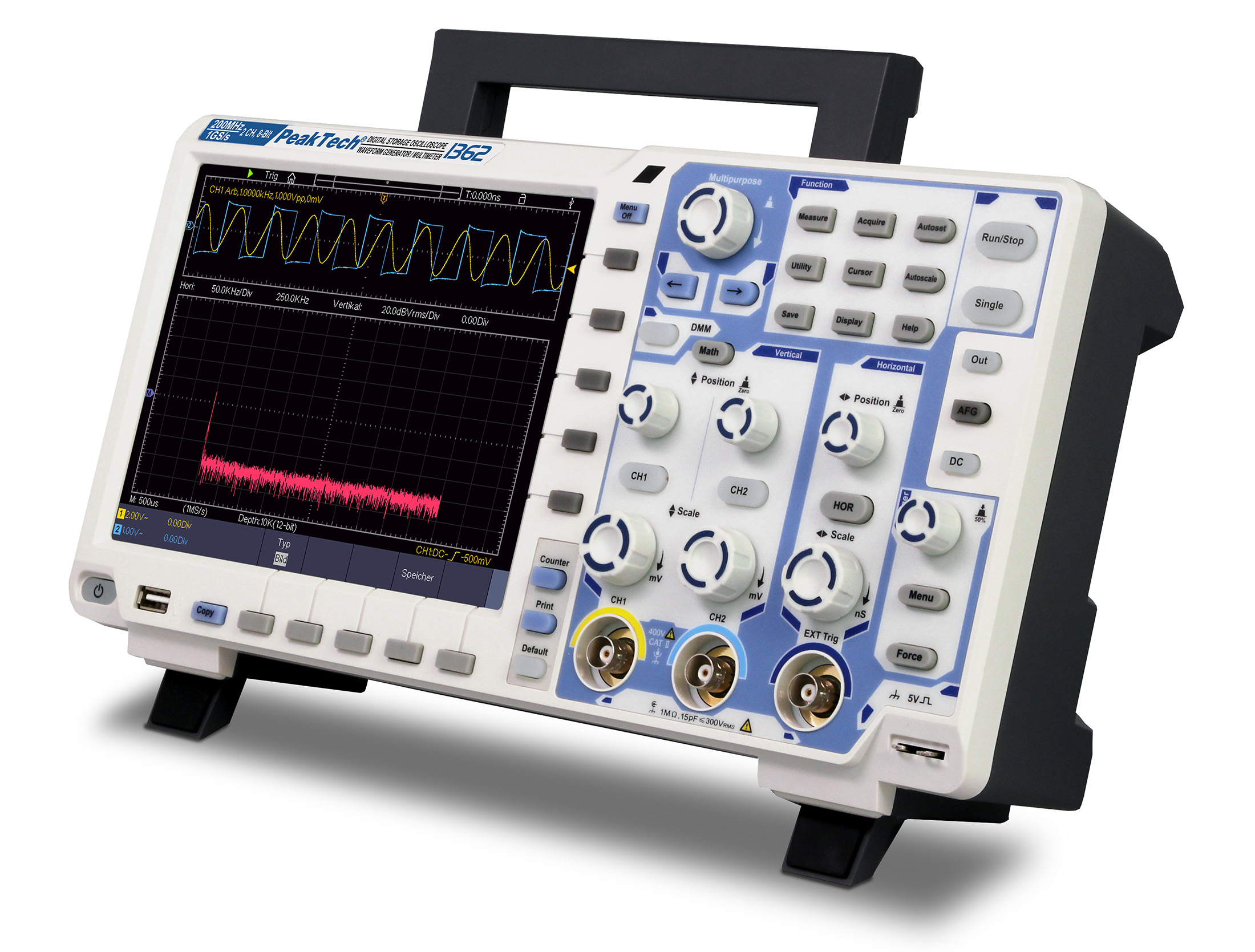

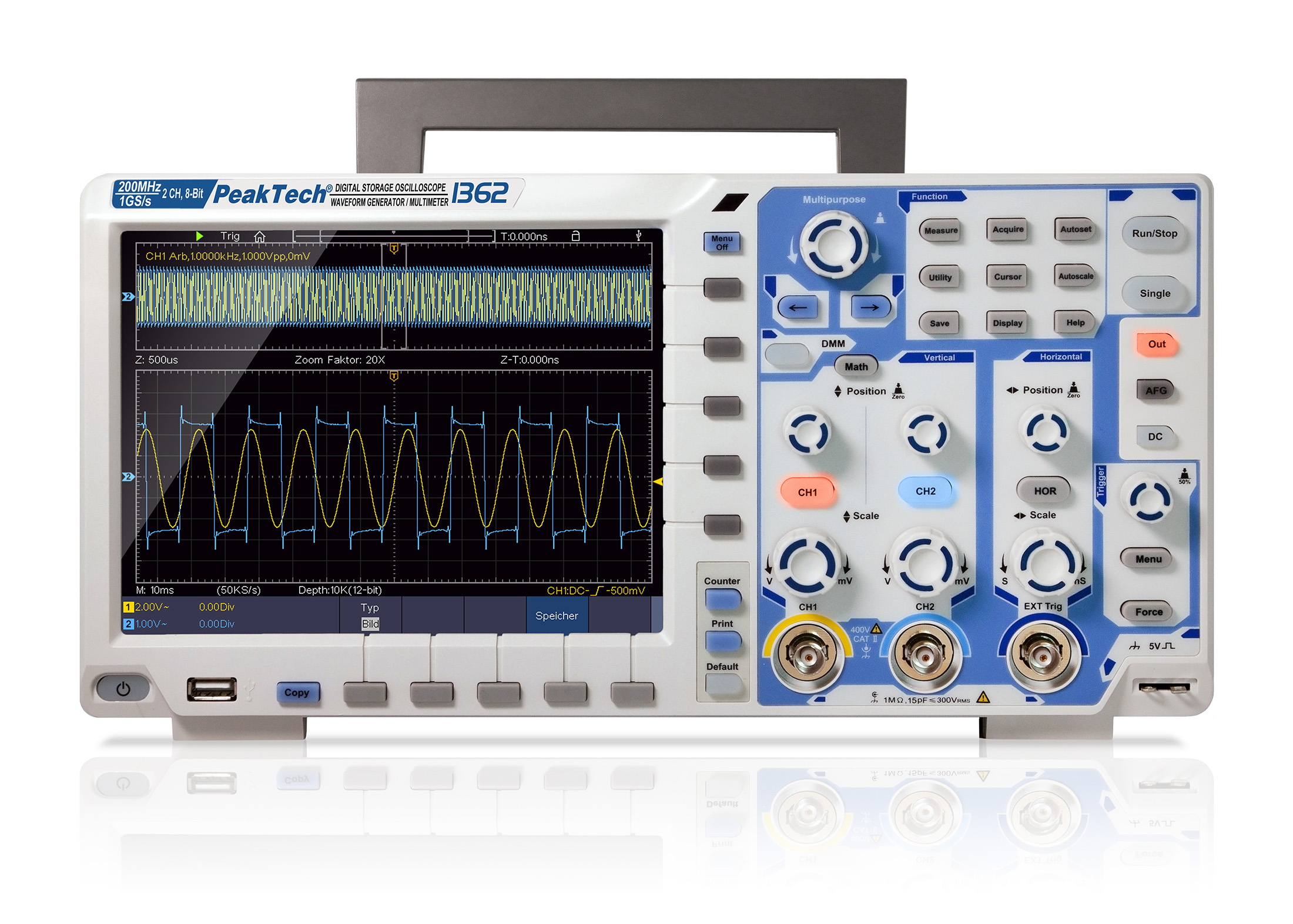

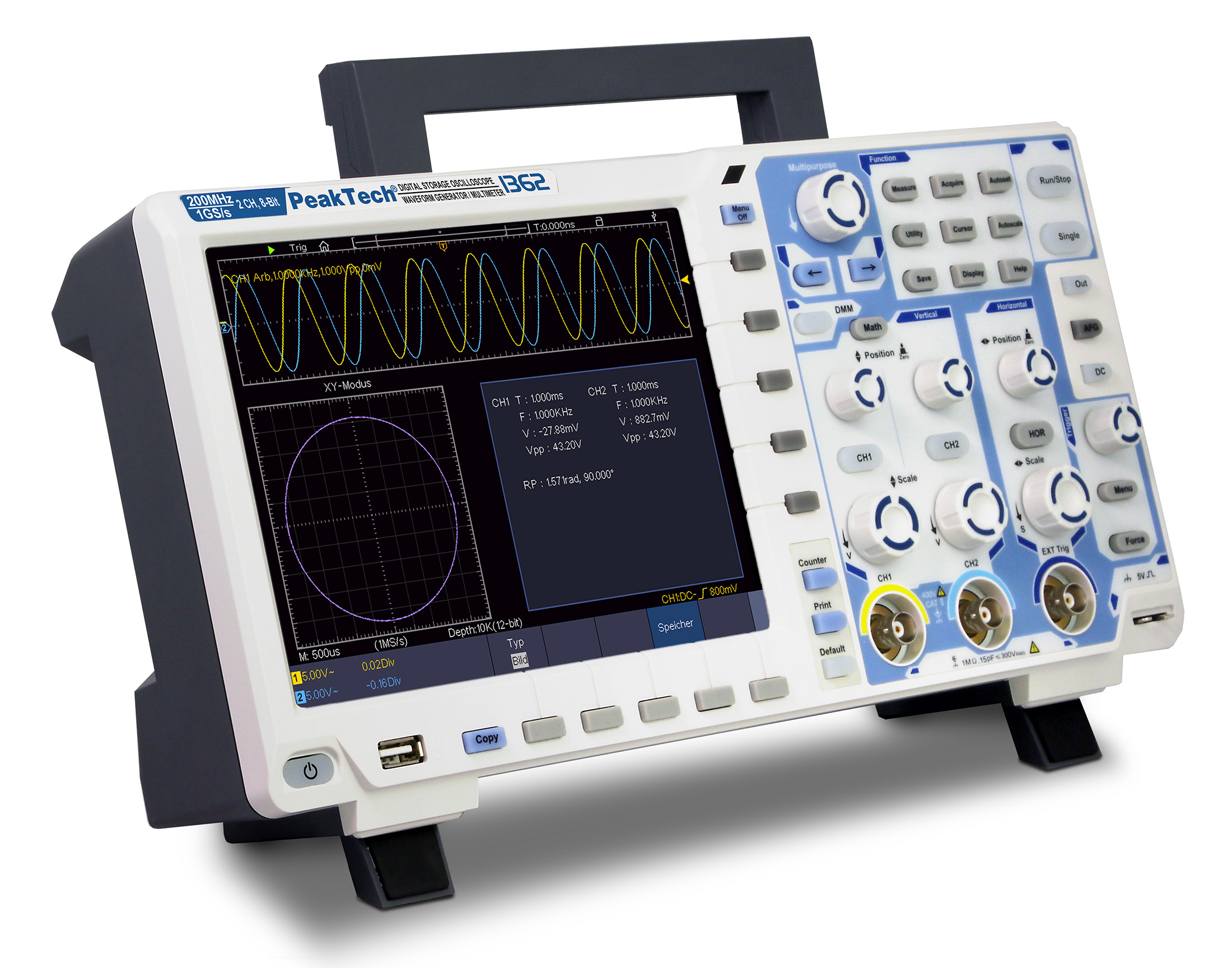

«PeakTech® P 1362» 200 MHz / 2 CH, 2 GS/s touchscreen oscilloscope


PDF Datasheet
Product number: P 1362
EAN: 4250569404467
Product information "«PeakTech® P 1362» 200 MHz / 2 CH, 2 GS/s touchscreen oscilloscope"
The PeakTech 1362 is a 200 MHz 2-channel digital storage oscilloscope of the latest generation with a high-resolution TFT touchscreen and extensive additional functions. It has a sampling rate of up to 2 GS/s and convinces with its high quality and easy handling with the best price / performance ratio. The many functions can be controlled with the function keys and rotary controls or via a comfortable touchscreen operation. For example, select the menus, time base, sensitivity, or active signal line displayed on the screen. The zoom function or file management with the keyboard field displayed can also be operated using the touchscreen. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner.
Sampling 1 CH: 2 GS/s
Sampling 2 CH: 1 GS/s
Bandwidth: 200 MHz
Battery: Li-Po 13200 mAh (optional)
Channels: 2 CH
Display Type: Touchscreen TFT
Hor. scale max.: 1000 s/div
Hor. scale min.: 1 ns/div
Mains voltage: 110/240 V AC; 50/60 Hz
Memory depth: 40.000.000 Points
Resolution: 800 x 600 Pixel
Rise Time: < 1.75 ns
Screen size (TFT): 20 cm (8")
Vert. resolution: 8 Bit
Vert. scale max.: 10 V/div
Vert. scale min.: 1 mV/div
Integr. AWG:
Integr. DMM:
  • 2-channel oscilloscope with 200 MHz analog bandwidth at max. 2 GS / s sampling rate
  • 20 cm (8 “) TFT touchscreen for user-friendly operation
  • Integrated 25 MHz / 1 CH arbitrary waveform generator
  • Integrated digital multimeter with 4000 counts

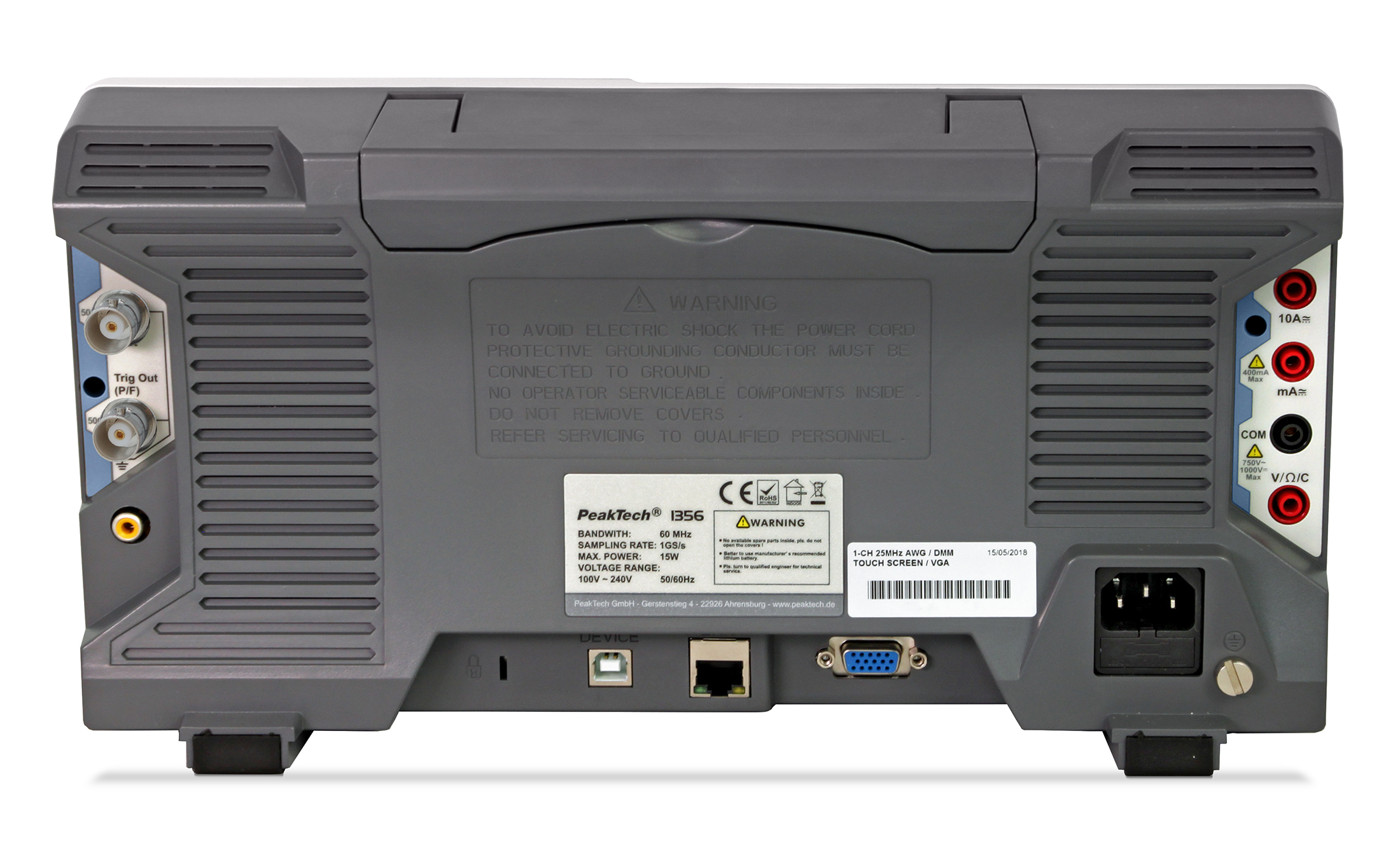

  • WiFi, LAN, USB host & USB device
  • CAN bus, RS-232, I2C, SPI decoder with event table
  • Recording length of max. 40 million points
  • Optional battery: "Akku 6" model
  • Safety: EN 61010-1; CAT II 400 V

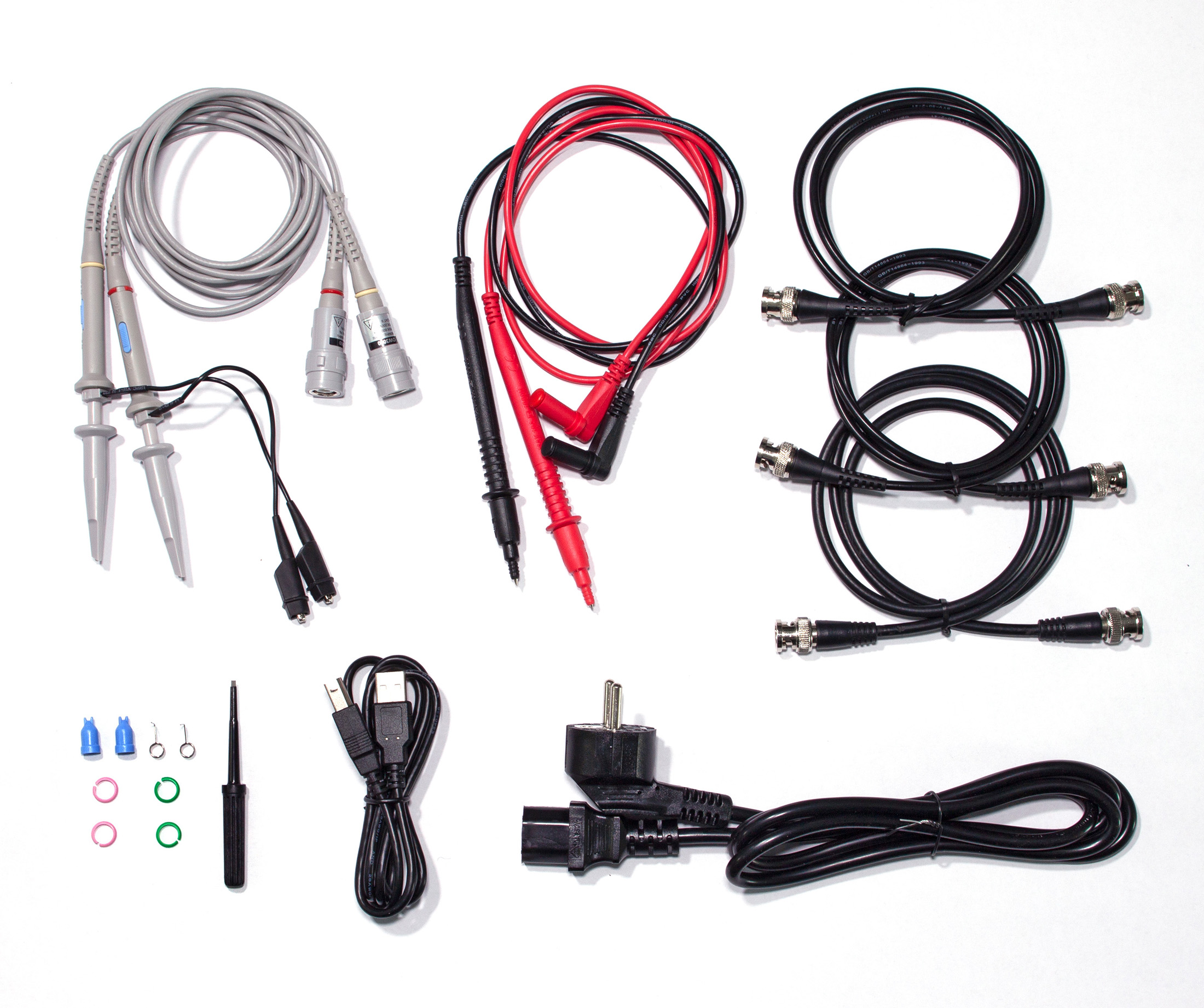

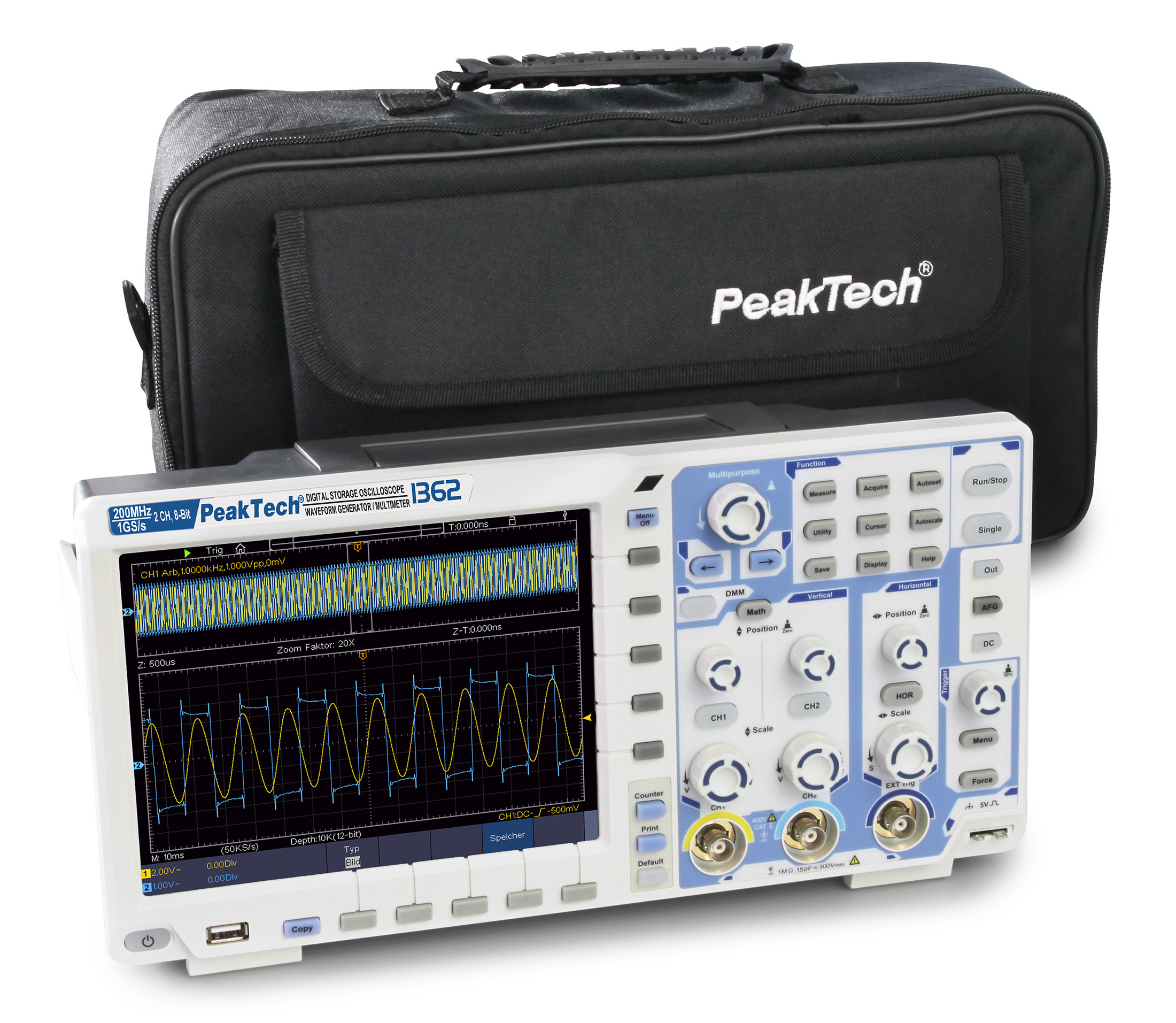

  • Accessories: USB cable, software CD for Windows, power cord, 2 probes, BNC cable, carrying case and manual
«PeakTech® AKKU 6» Li-Po Akku 3,7 V - 13200 mA/h für PeakTech 1360
Lithium-polymer and lithium-ion batteries are manufactured using the latest technology and have a high charging capacity, very low self-discharge, a very low memory effect and a high number of charging cycles. Charging takes place directly in the device, so that no external charging station is required.
