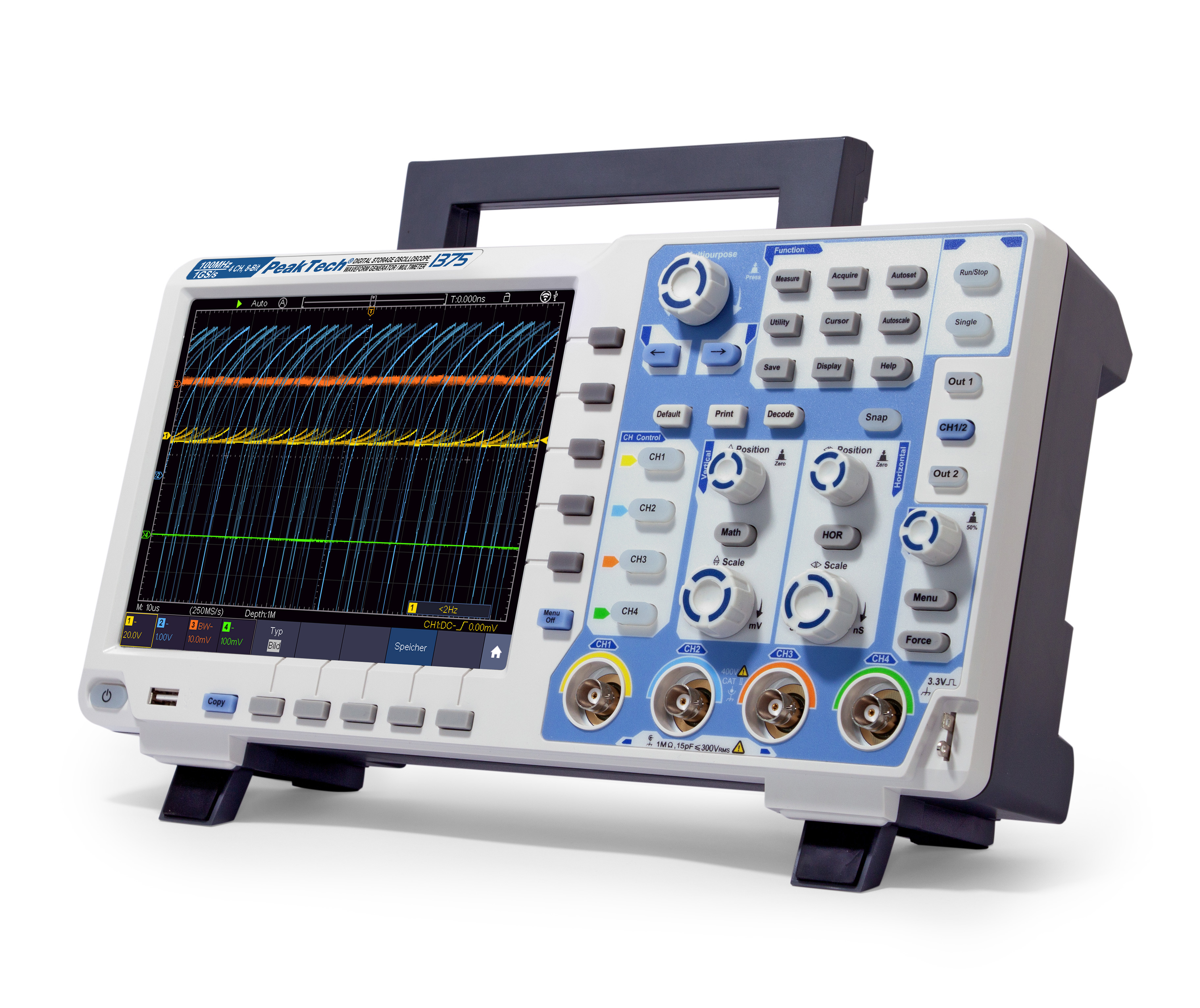

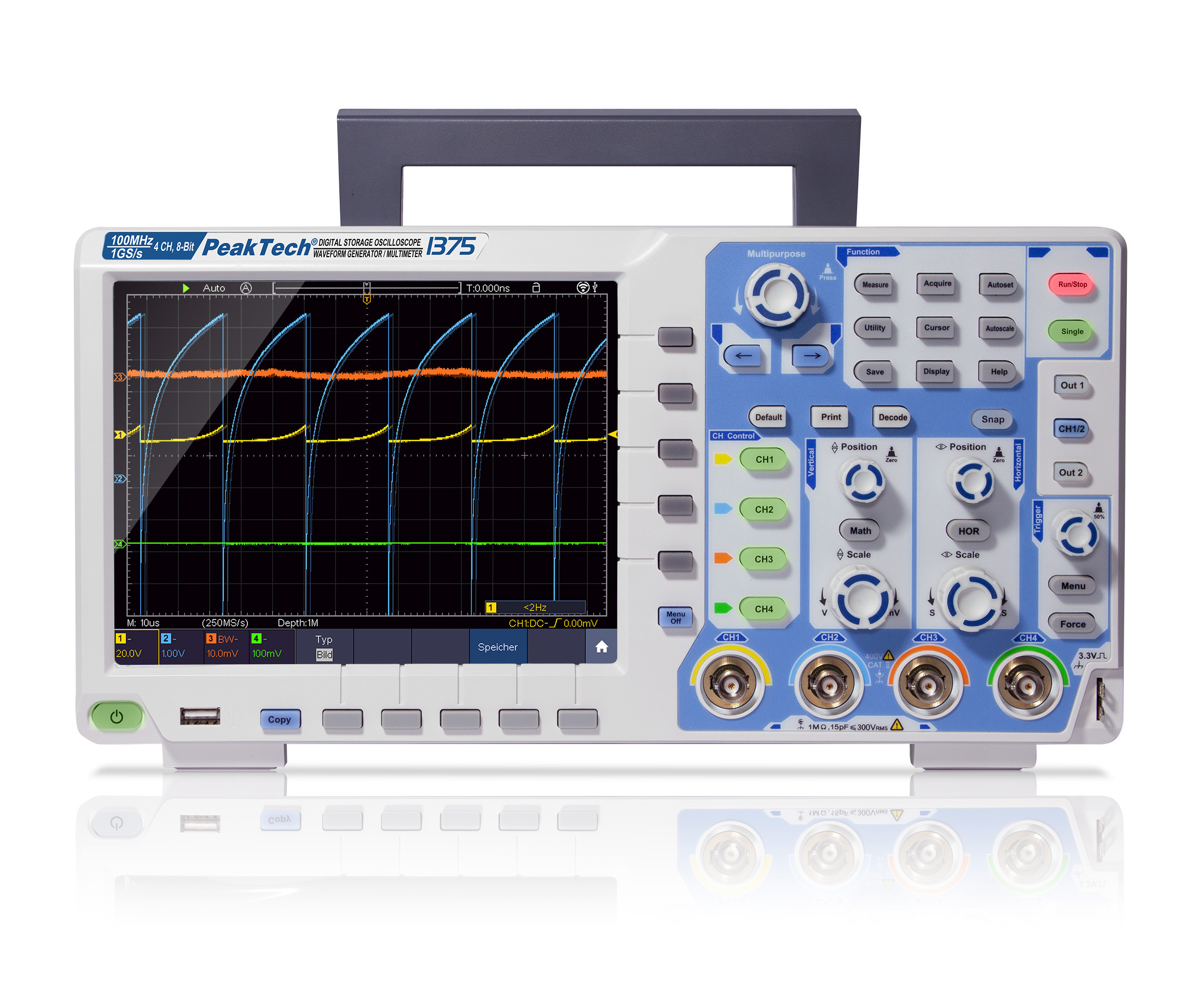

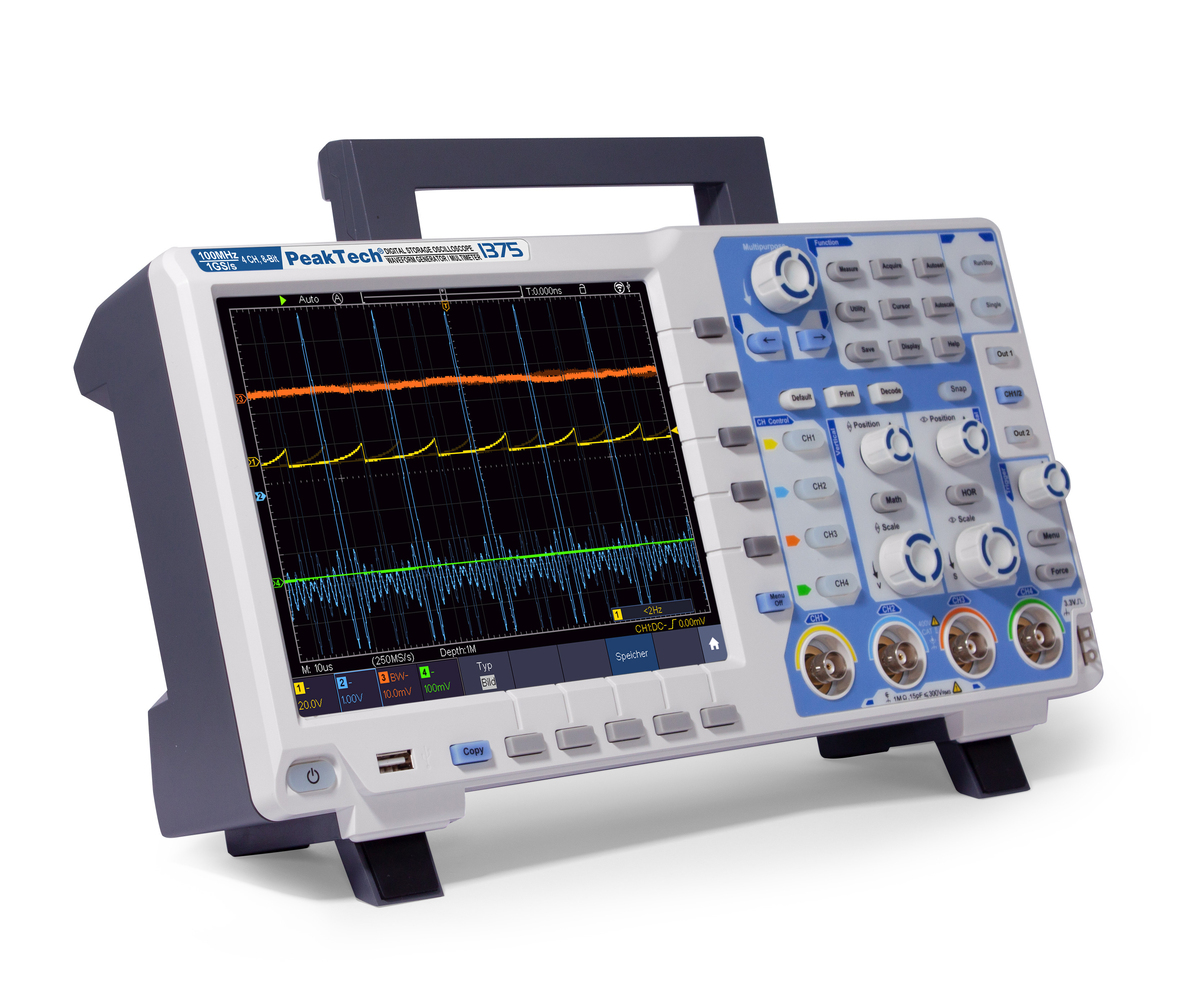

«PeakTech® P 1375» 100 MHz / 4 CH, 1 GS/s touchscreen oscilloscope

PDF Datasheet
Product number: P 1375
EAN: 4250569404436
Product information "«PeakTech® P 1375» 100 MHz / 4 CH, 1 GS/s touchscreen oscilloscope"
The PeakTech 1375 is a 100 MHz 4-channel digital storage oscilloscope of the latest generation with a high-resolution TFT touchscreen and extensive additional functions. It has a sampling rate of up to 1 GS / s and convinces with its high quality and easy handling with the best price / performance ratio. The many functions can be controlled using the function keys and rotary controls or via a comfortable touchscreen operation. With its integrated 2-channel 25 MHz arbitrary waveform generator and the 4000 counts multimeter for voltage, current and resistance measurements, this all-in-one device can be used as a mobile workplace in the laboratory, service and industry. The integrated decoders for CAN bus, RS-232, I2C and SPI enable analysis of bus signals.
Sampling 1 CH: 1 GS/s
Sampling 2 CH: 500 MS/s
Sampling 4 CH: 250 MS/s
USB:
Bandwidth: 100 MHz
Battery: Li-Po 13200 mAh (optional)
Channels: 4 CH
Display Type: Touchscreen TFT
Hor. scale max.: 1000 s/div
Hor. scale min.: 1 ns/div
LAN:
Mains voltage: 110/240 V AC; 50/60 Hz
Memory depth: 40.000.000 Points
Resolution: 800 x 600 Pixel
Rise Time: < 1.7 ns
Screen size (TFT): 20 cm (8")
VGA:
Vert. resolution: 8 Bit
Vert. scale max.: 10 V/div
Vert. scale min.: 2 mV/div
WiFi:
Integr. AWG:
Integr. DMM:
  • 4-channel oscilloscope with 60 MHz analog bandwidth at max. 1 GS / s sampling rate
  • 20 cm (8 “) TFT touchscreen for user-friendly operation
  • Integrated 25 MHz / 2 CH arbitrary waveform generator
  • Integrated digital multimeter with 4000 counts
  • WiFi, LAN and USB device connection for real-time data transmission
  • USB host connection for external USB data carriers
  • CAN bus, RS-232, I2C, SPI decoder with event table
  • Recording length of max. 40 million points

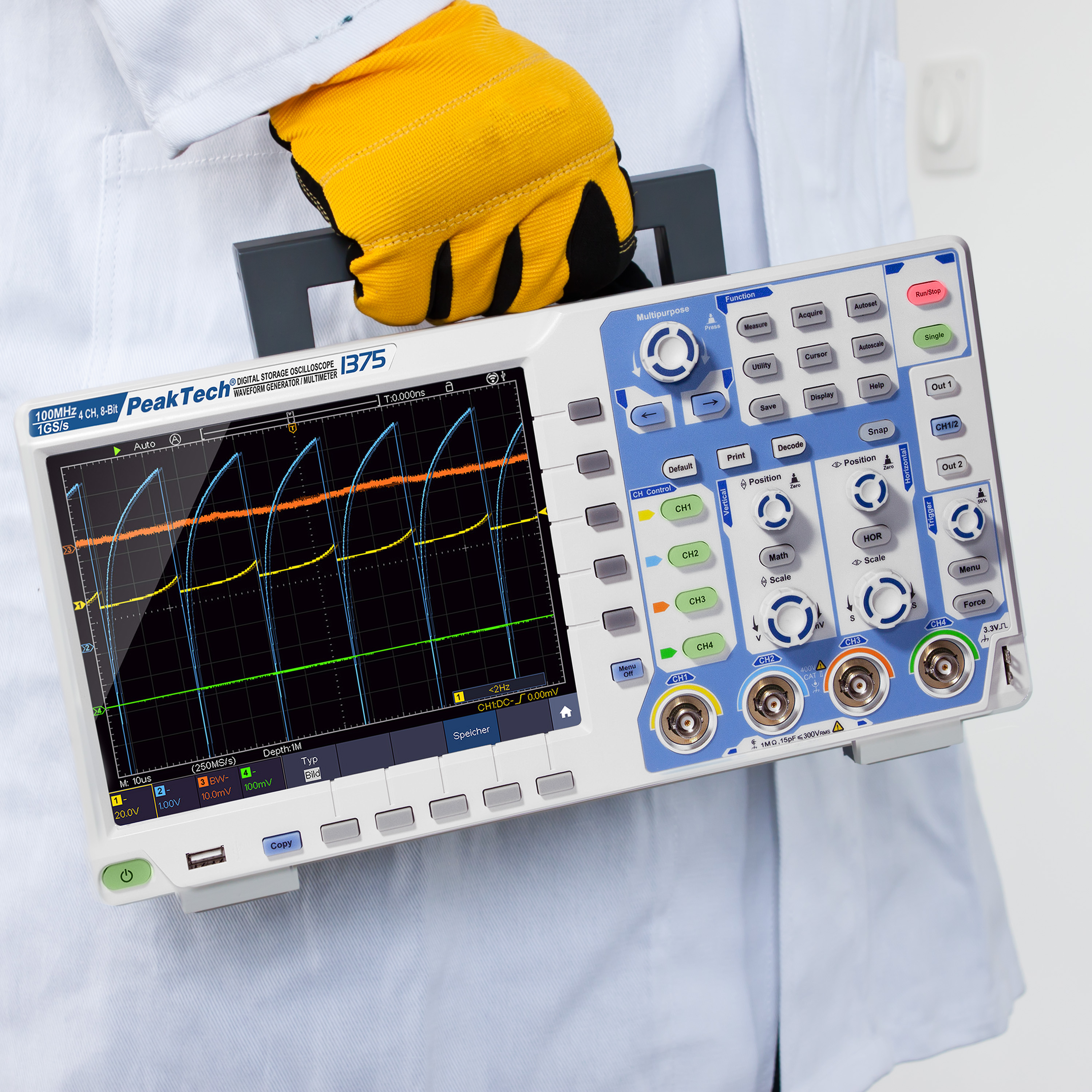

  • Optional battery: "Akku 6" model
  • Safety: EN 61010-1; CAT II 400 V

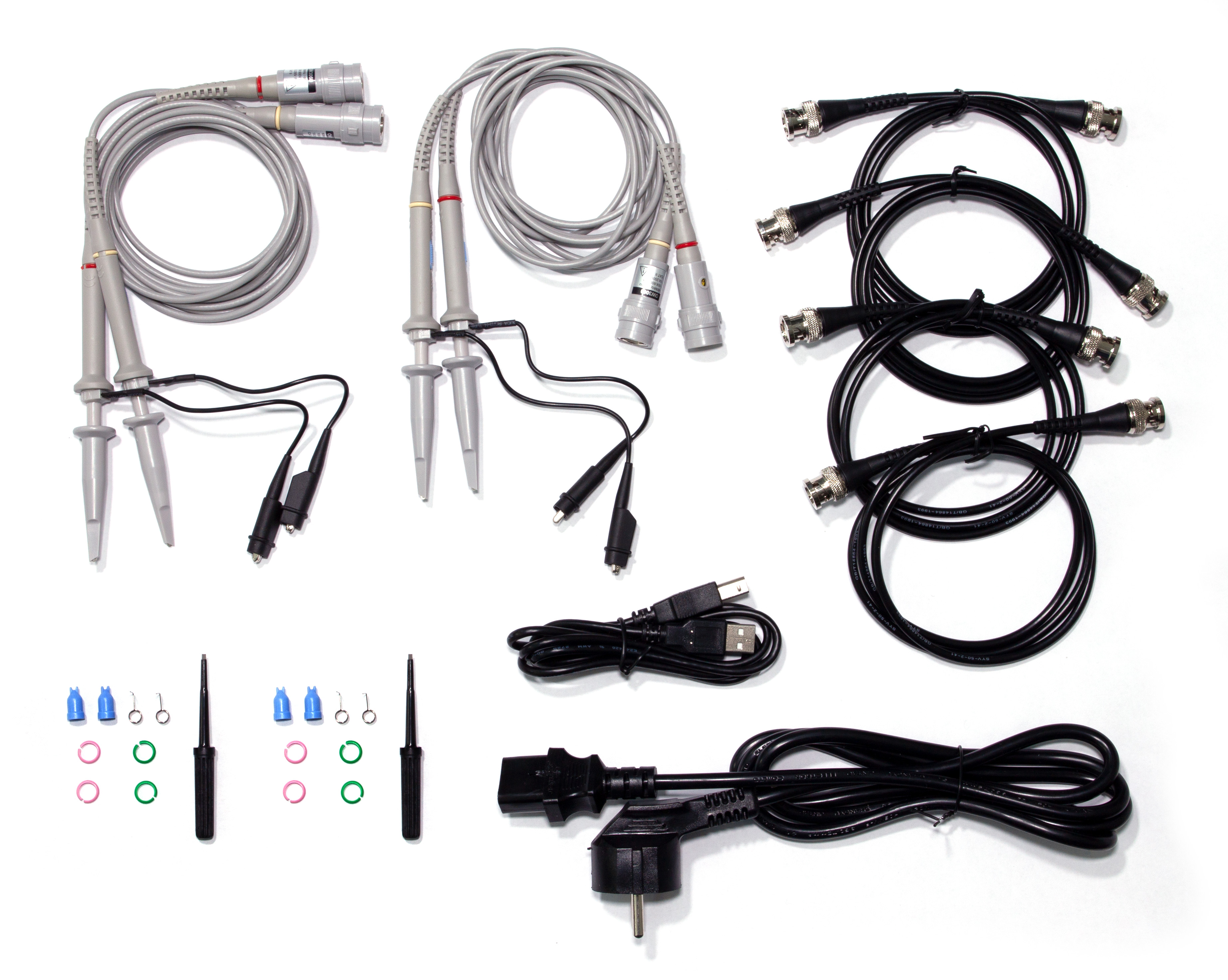

  • Accessories: USB cable, software CD for Windows, power cable, 4 probes, BNC cable, carrying case and manual

Zubehör / Accessories:

"PeakTech® AKKU 6" Li-Po battery 3.7 V - 13200 mA/h for PeakTech 1360
Lithium-polymer and lithium-ion batteries are manufactured using the latest technology and have a high charging capacity, very low self-discharge, a very low memory effect and a high number of charging cycles. Charging takes place directly in the device, so that no external charging station is required.

€87.90*
