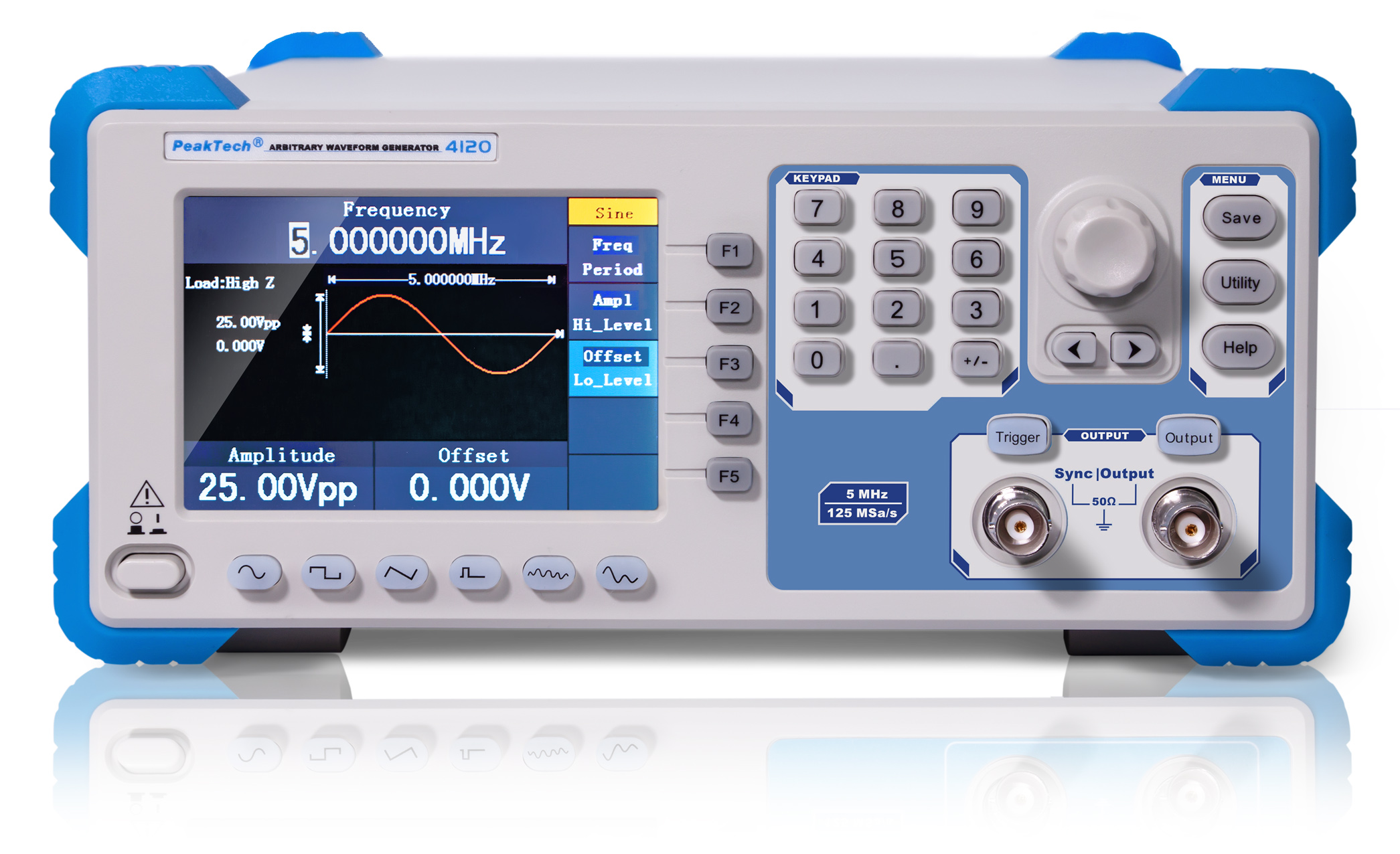

«PeakTech® P 4120» 1CH arbitrary function generator, 1 µHz - 5 MHz

€299.00*

Product number: P 4120
EAN: 4250569404252
Product information "«PeakTech® P 4120» 1CH arbitrary function generator, 1 µHz - 5 MHz"
This 1-channel arbitrary waveform generator with graphical user interface has excellent technical properties and a variety of functions. Particularly noteworthy is the easy operation via the various menu buttons, the multitude of integrated waveforms, the simple setting of new waveforms via the internal editor and the excellent price / performance ratio. This makes this generator perfect for almost all tasks in education, research and development.
USB:
Amplitude: 0 - 25 Vpp
Bandwidth: 5 MHz
Channels: 1 CH
Display Type: Color-TFT
Freq. resolution: 1 µHz
  • Large 10 cm (4 “) TFT digital display
  • Graphical menu navigation with many functions
  • 1uHz frequency resolution for the entire bandwidth
  • High sampling rate of 125 MS/s
  • 14-bit vertical waveform resolution
  • Integrated waveform editor (2 to 8000 points)
  • 6 standard waveforms (sine, square, triangle, DC etc.)
  • 45 arbitrary waveforms (Hamming, Gaussian, Trapez etc.)
  • SCPI and LabView support
  • USB interface for data transfer
  • Remote control and waveform editing software
  • Safety: EN 61010-1
  • Accessories: power cord, USB interface cable, software for Windows, BNC cable and manual on CD
