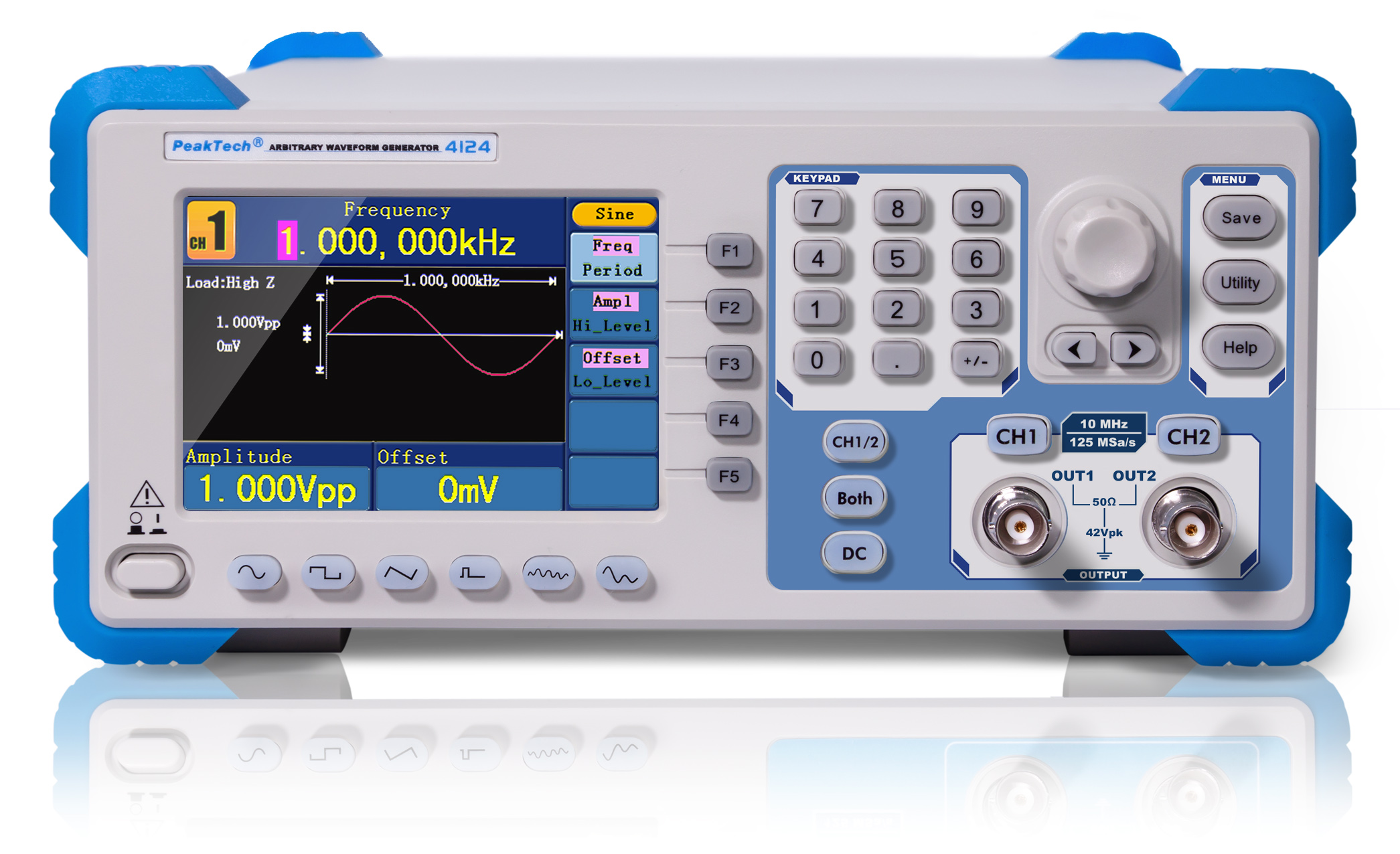

«PeakTech® P 4124» 2CH arbitrary function generator, 1 µHz – 10 MHz

PDF Datasheet
Product number: P 4124
EAN: 4250569404276
Product information "«PeakTech® P 4124» 2CH arbitrary function generator, 1 µHz – 10 MHz"
This 2-channel arbitrary waveform generator with a graphical user interface has excellent technical properties and a variety of functions. Particularly noteworthy is the easy operation via the various menu buttons, the multitude of integrated waveforms, the simple setting of new waveforms via the internal editor and the excellent price / performance ratio. This makes this generator perfect for almost all tasks in education, research and development.
USB:
Amplitude: 0 - 20 Vpp
Bandwidth: 10 MHz
Channels: 2 CH
Display Type: Color-TFT
Freq. resolution: 1 µHz
Sampling Rate: 125 MS/s
Sine: 1 µHz - 10 MHz
Square: 1 µHz - 5 MHz
Ramp: 1 µHz - 1 MHz
Pulse: 1 µHz - 5 MHz
Arbitrary: 1 µHz - 10 MHz
  • Large 10 cm (4 “) TFT digital display
  • 2 equivalent output channels with channel coupling mode
  • Graphical menu navigation with many functions
  • 1µHz frequency resolution for the entire bandwidth
  • High sampling rate of 125 MS / s
  • 14-bit vertical waveform resolution
  • Integrated waveform editor (2 to 8000 points)
  • 6 standard waveforms (sine, square, triangle, DC etc.)
  • 45 arbitrary waveforms (Hamming, Gaussian, Trapez etc.)
  • Remote control and waveform editing software
  • Safety: EN 61010-1
  • Accessories: power cord, USB interface cable, software for Windows, BNC cable and manual on CD
