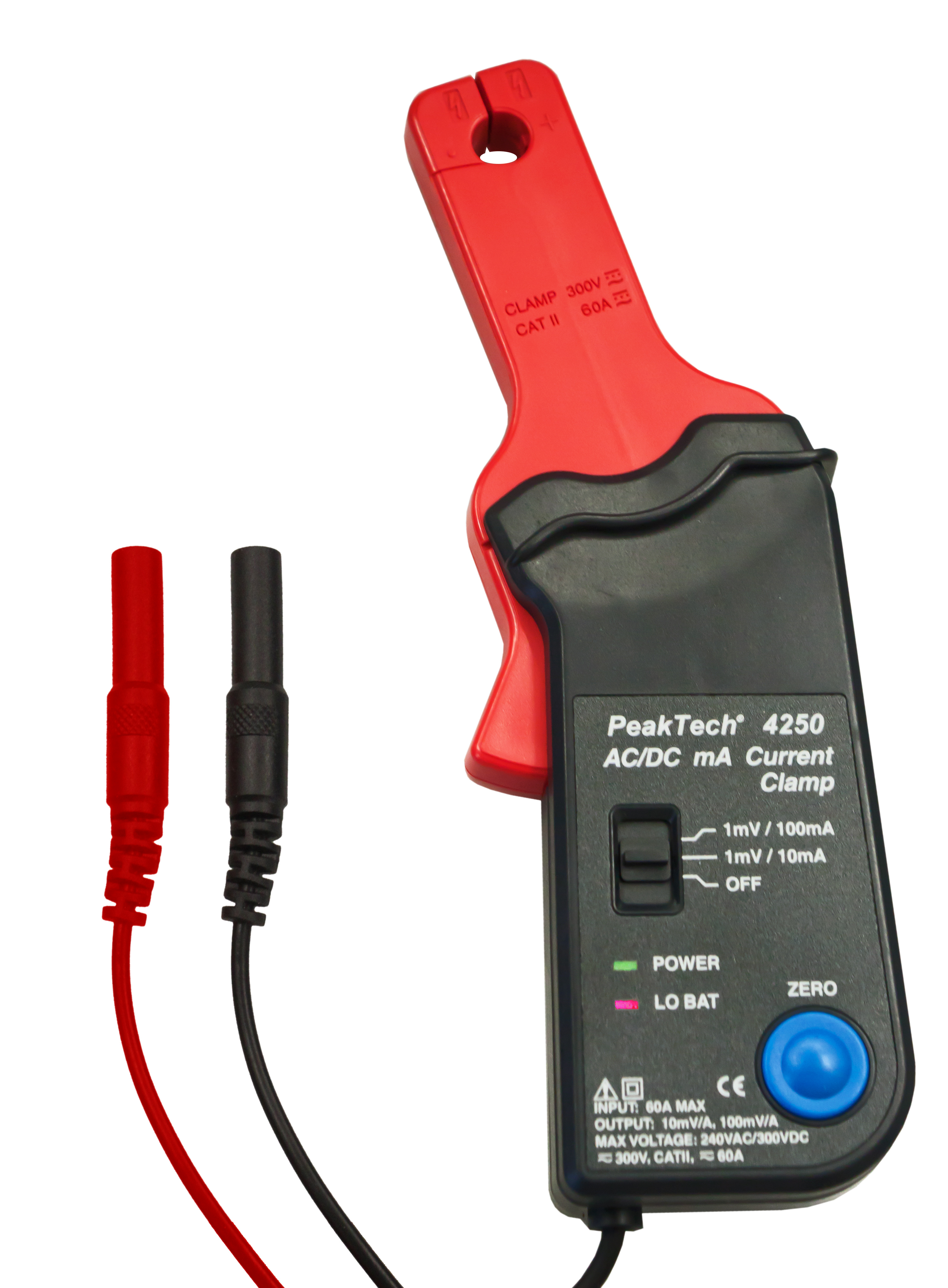

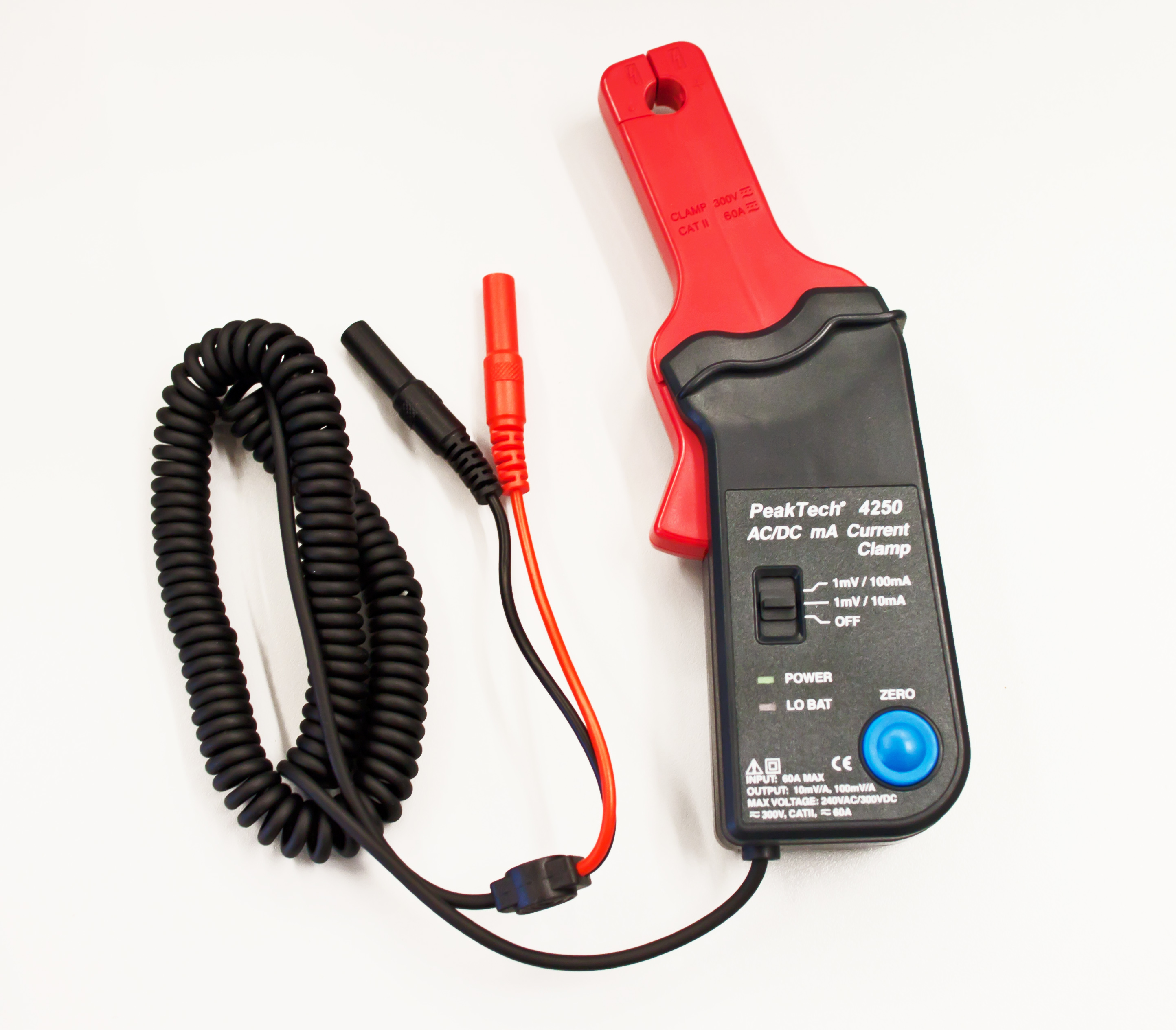

«PeakTech® P 4250» Current Clamp Adapter 60 A AC/DC, with 4mm Plugs

€53.00*

Product number: P 4250
EAN: 4250569401121
Product information "«PeakTech® P 4250» Current Clamp Adapter 60 A AC/DC, with 4mm Plugs"

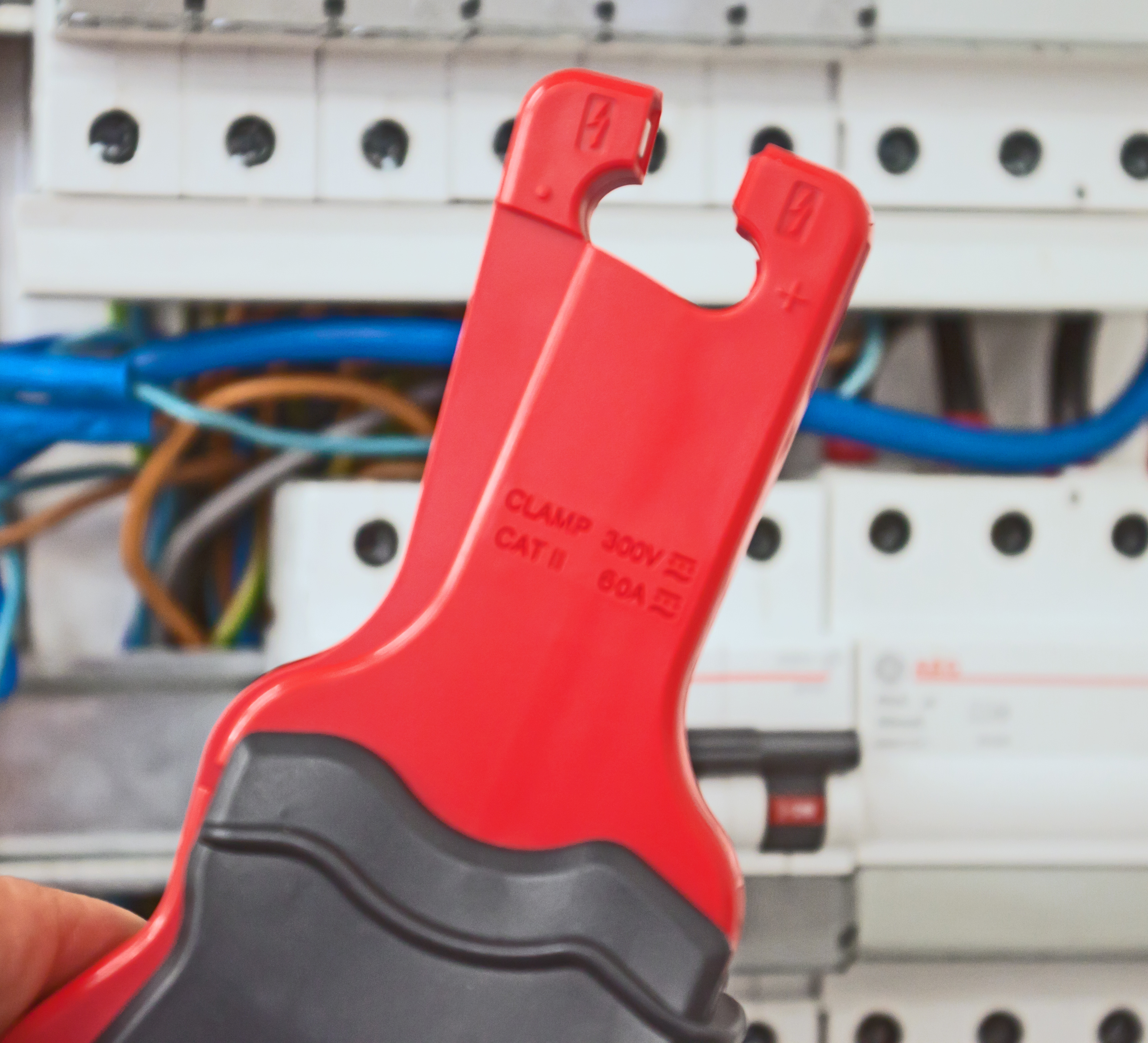

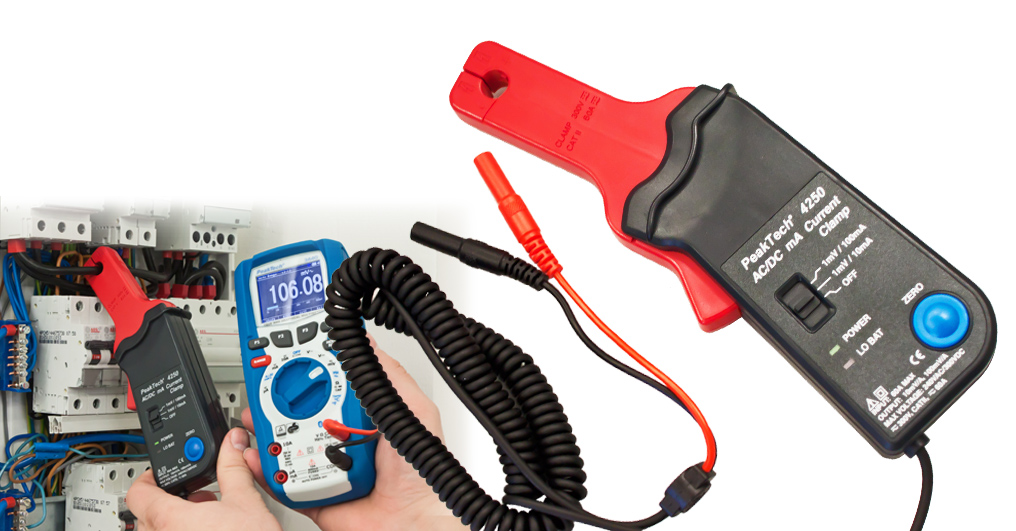

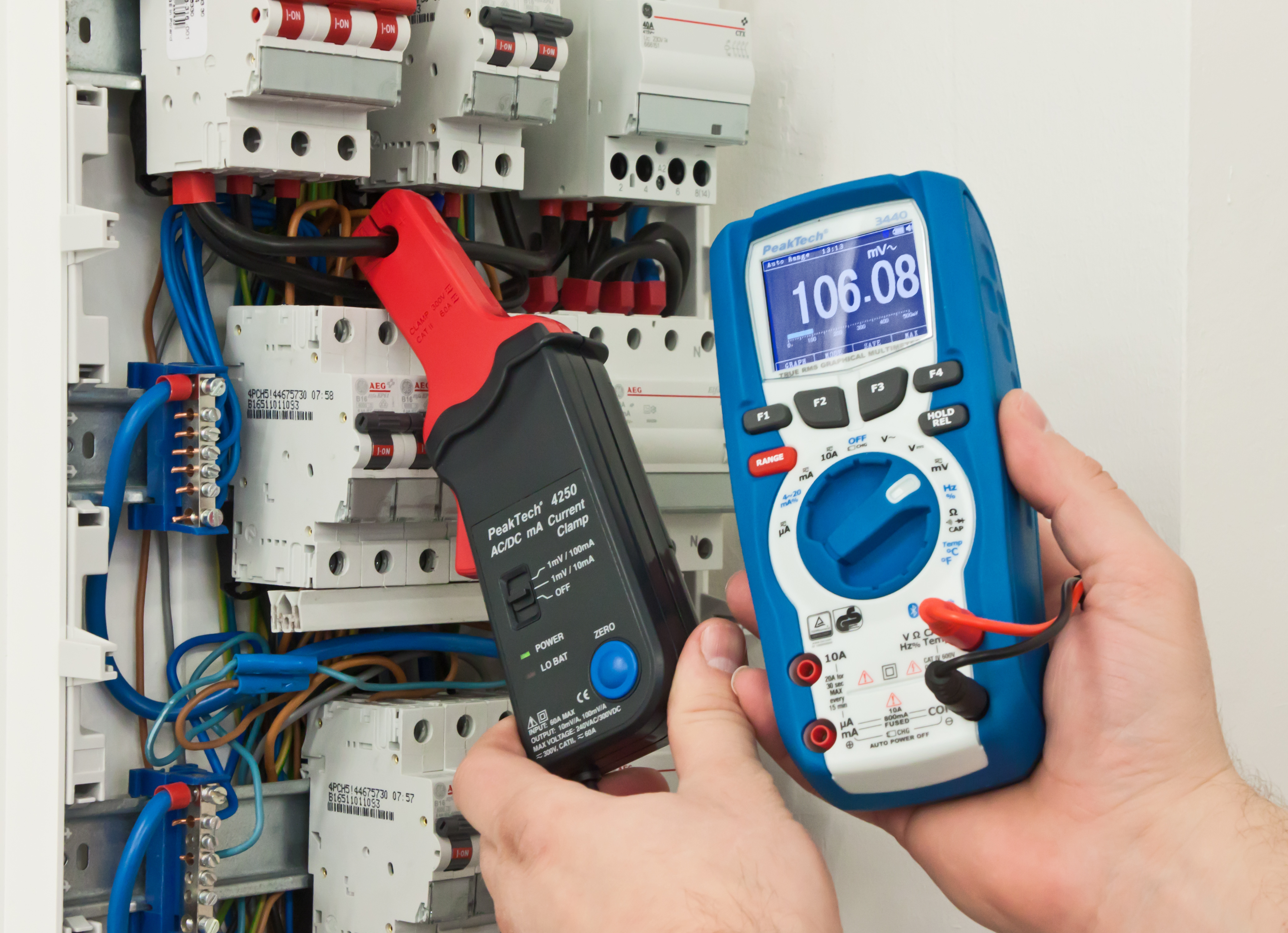

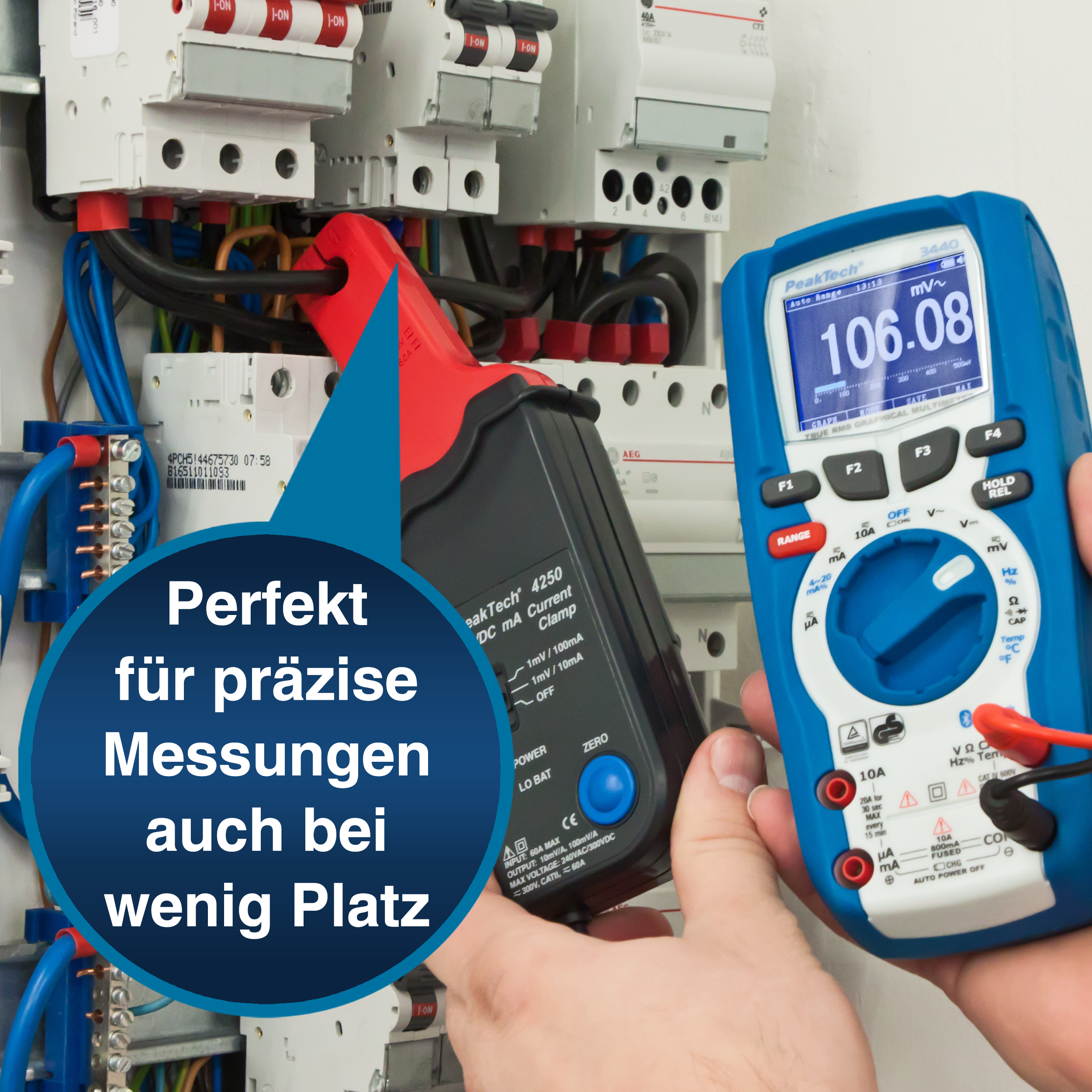

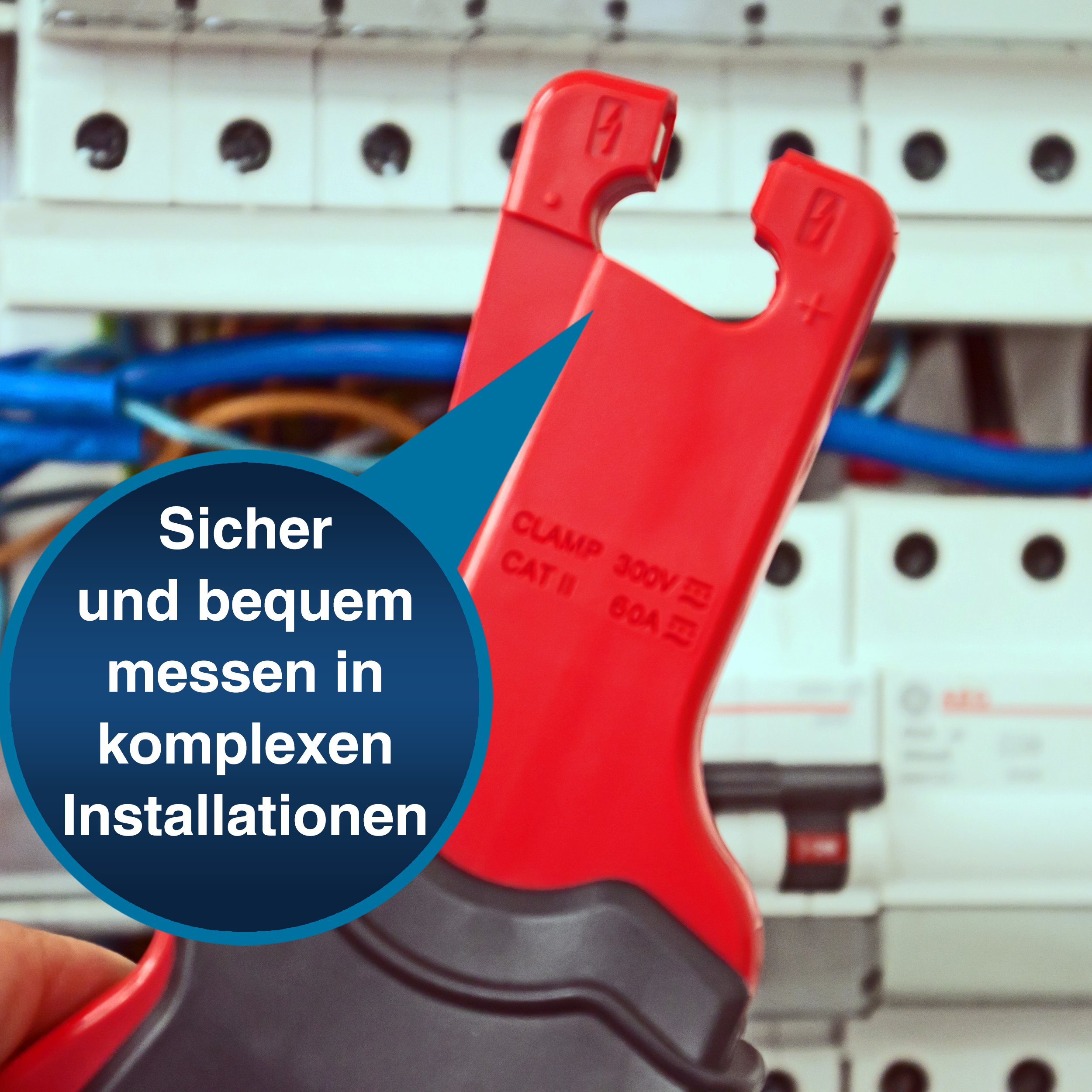

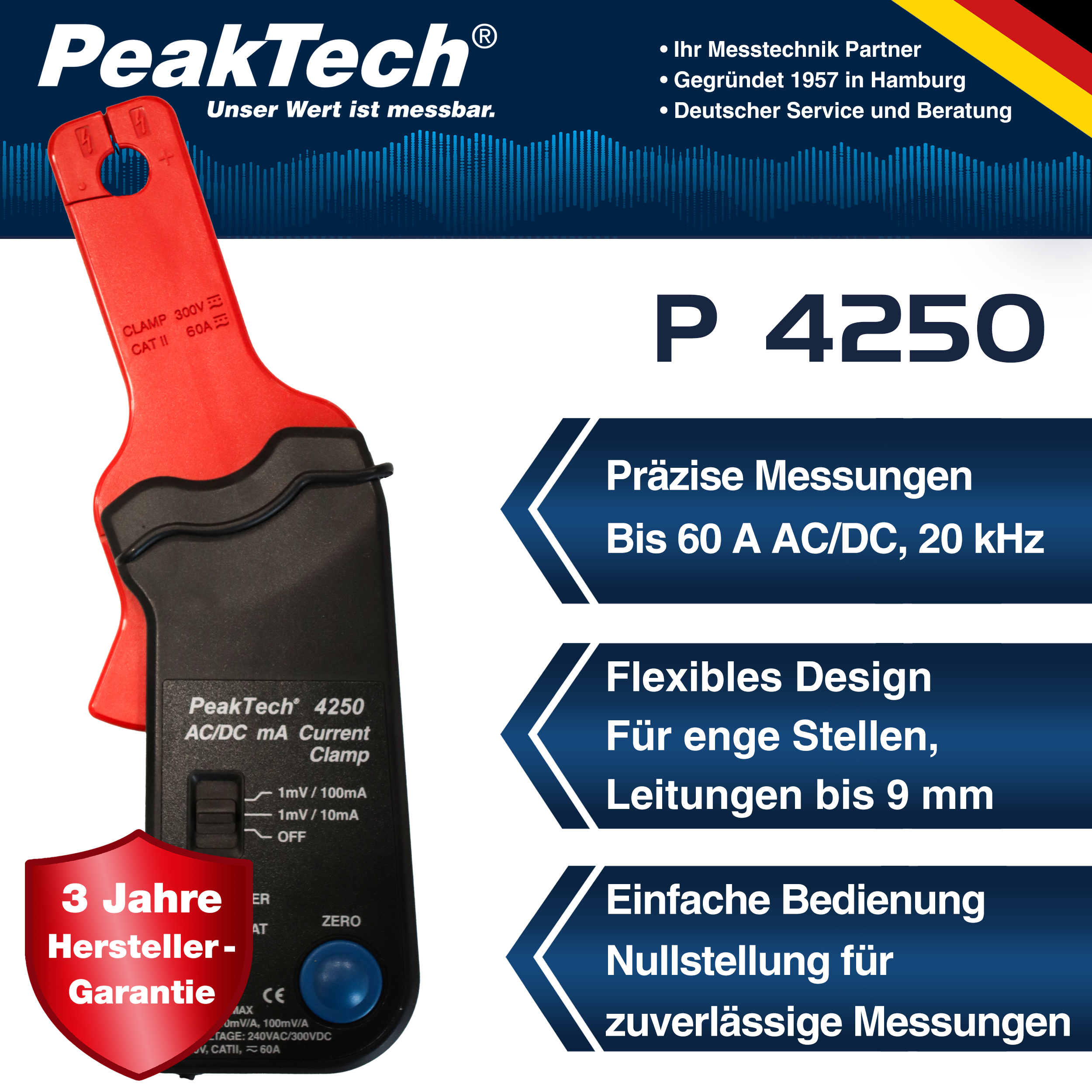

A transducer that enables measurements of low currents up to 60 A AC / DC with a frequency up to 20 kHz in connection with a multimeter. The elongated shape of the measuring clamp enables measurements even under tight conditions. When measuring direct current, an easy-to-use button allows the device to be reset to zero. With the clamp adapter it is also possible to measure and display leakage currents. The current clamp adapter can carry out measurements on cables with a diameter of up to 9 mm.
Input connector: 4 mm plug
A AC max.: 60 A
A DC max.: 60A
  • Input impedance: 1 MΩ

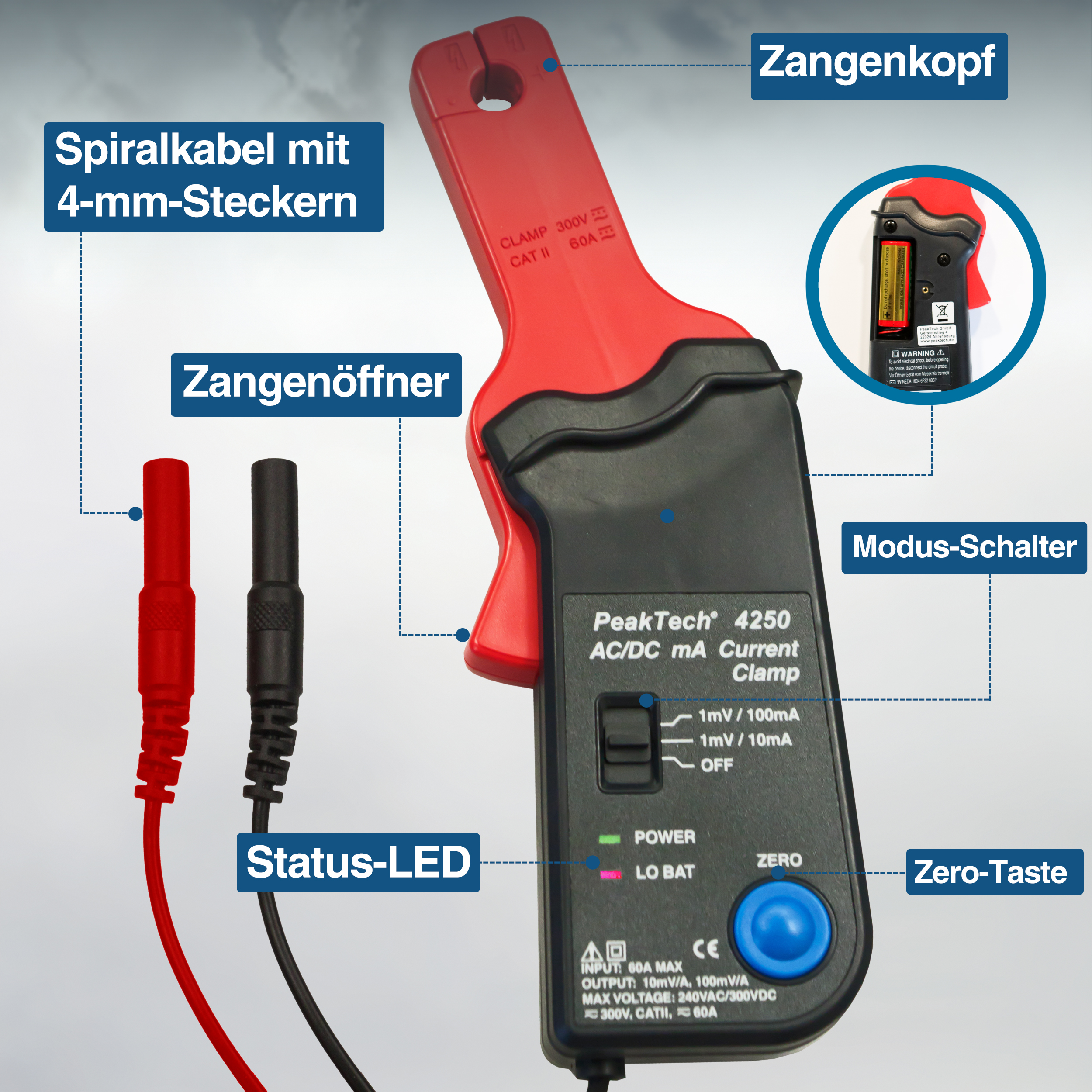

  • Zero adjustment knob for DCA
  • Output 1 mV/10 mA (10:1); 1 mV/100 mA (100:1)
  • Safety: EN 61010-1; CAT II 300 V

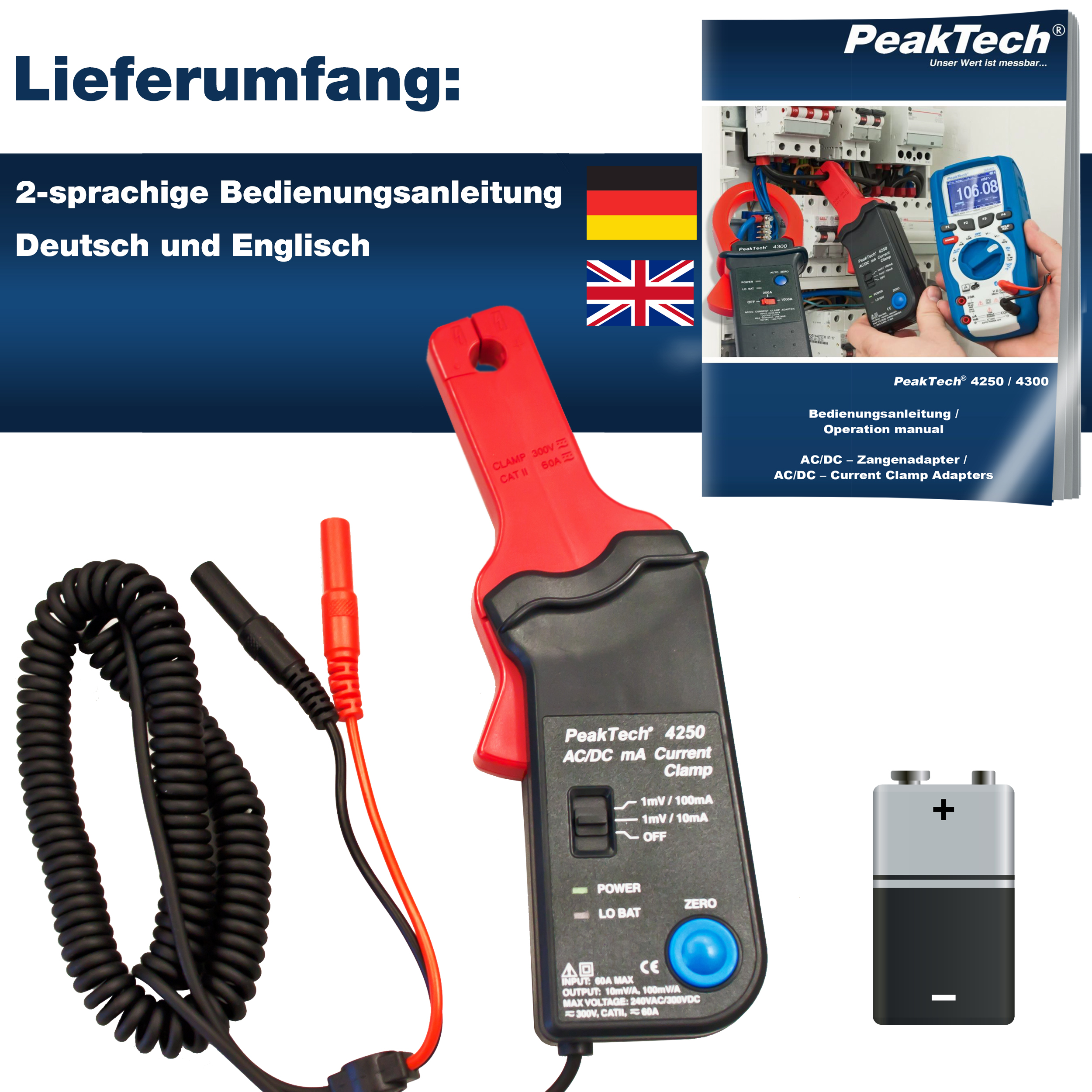

  • Accessories: Battery, operation manual
