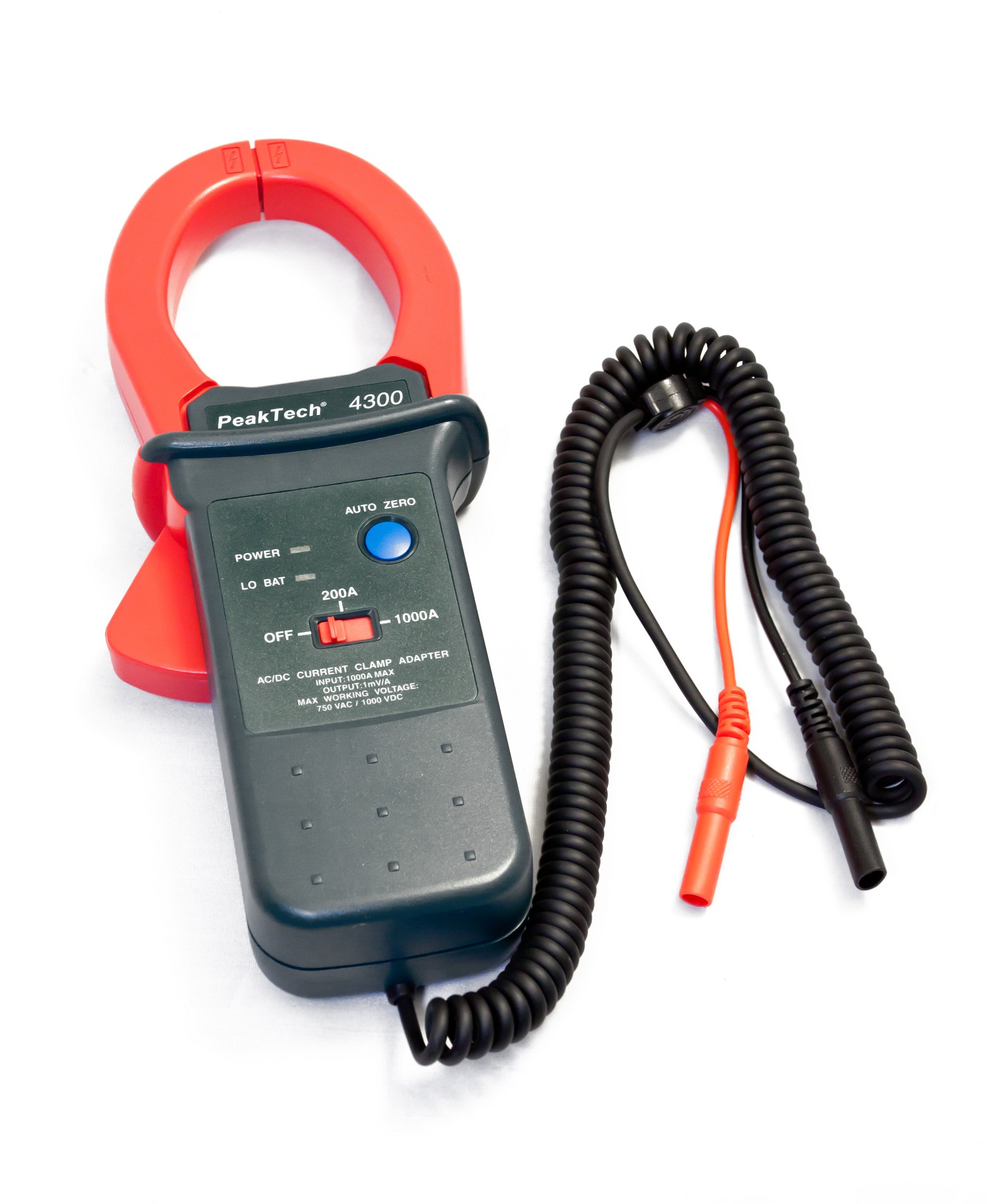

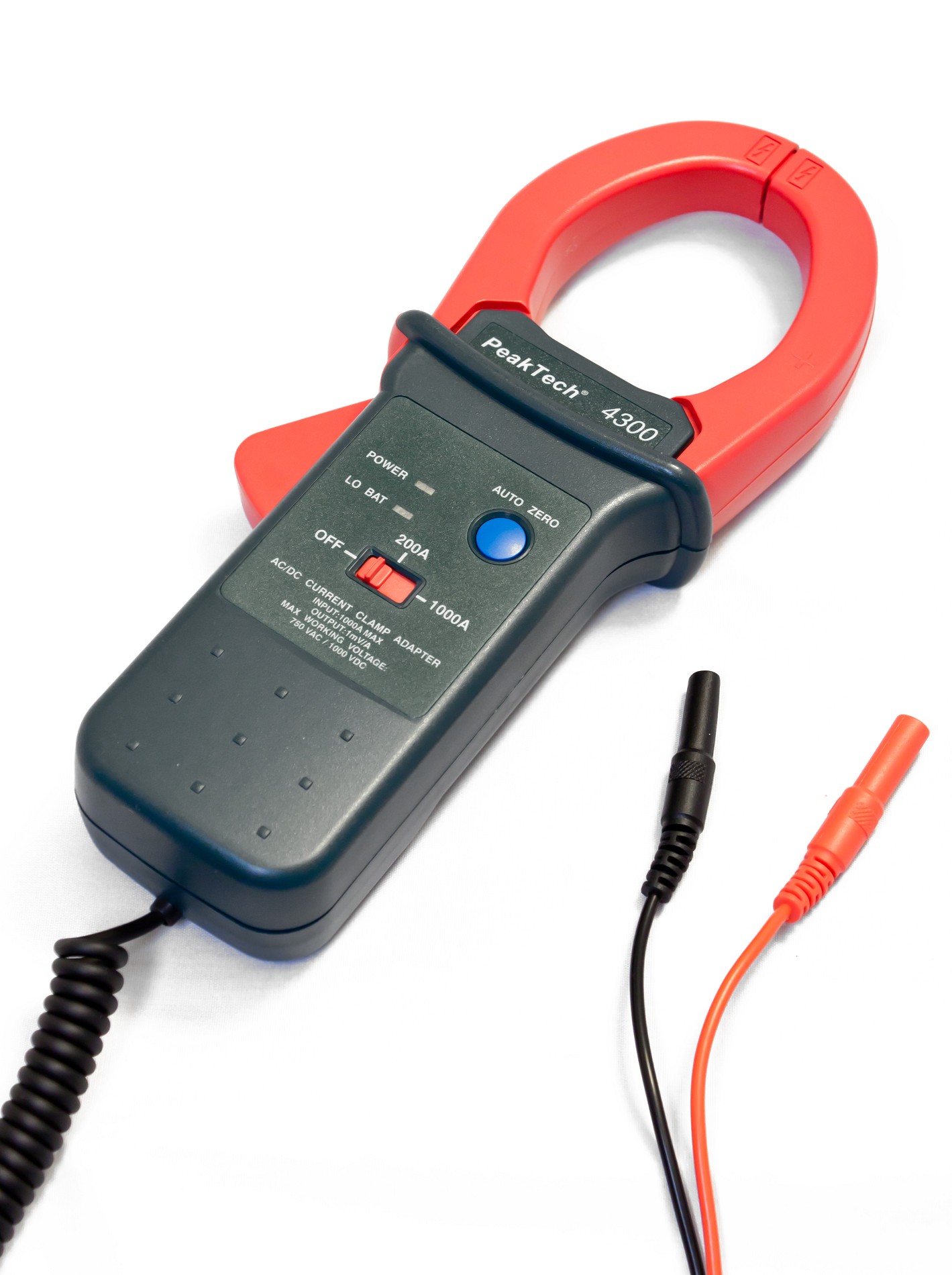

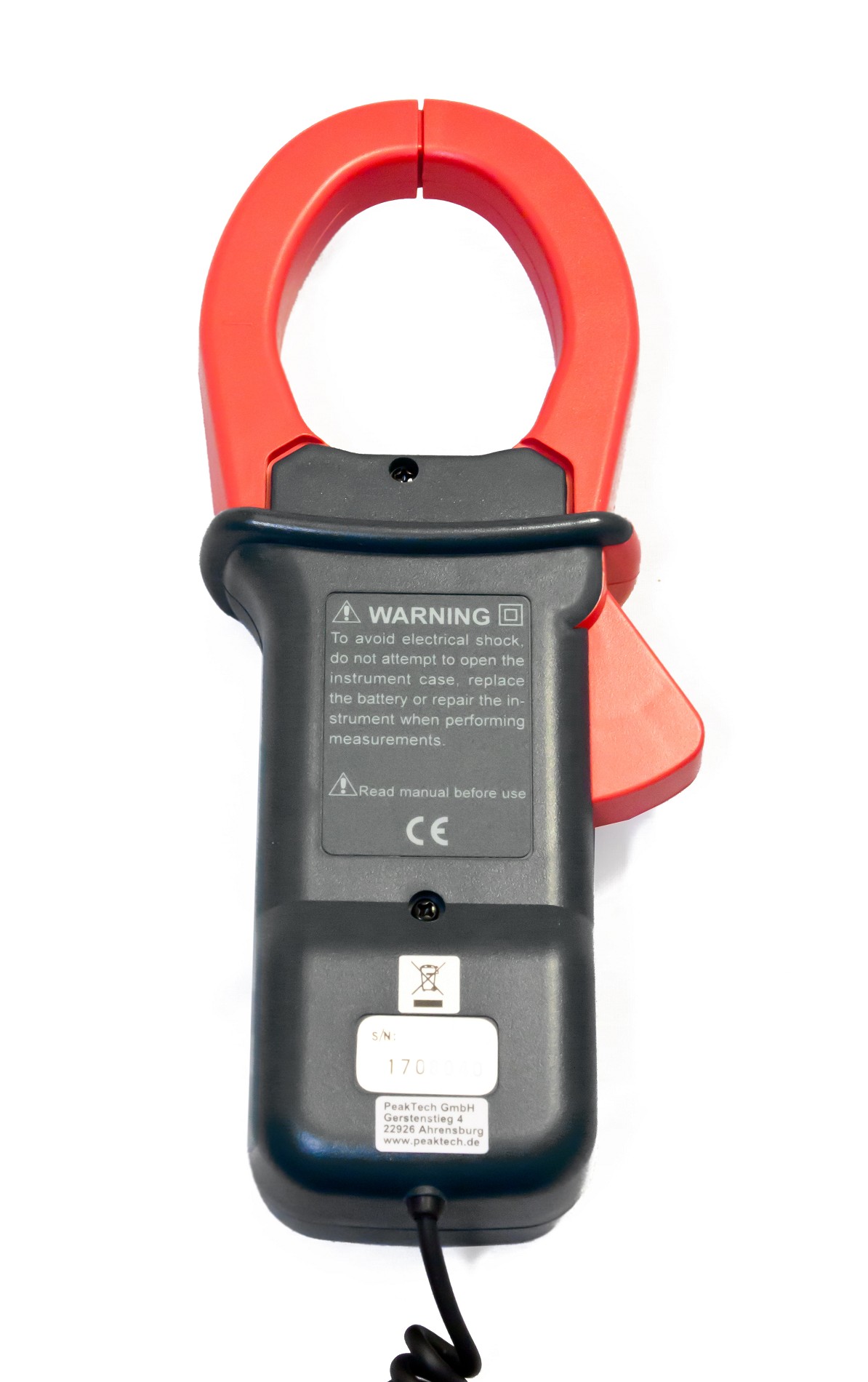

«PeakTech® P 4300» Current Clamp Adapter 1000 A AC/DC, with 4mm Plugs

€62.90*

PDF Datasheet
Product number: P 4300
EAN: 4250569401138
Product information "«PeakTech® P 4300» Current Clamp Adapter 1000 A AC/DC, with 4mm Plugs"
This clamp adapter is a transducer that enables measurements up to 1000 A AC / DC with a frequency up to 400 Hz in connection with a multimeter. With current measurements using a clamp adapter, no switching interruption or removal of the insulation is necessary. The pliers adapter is provided with a hand edge protection, which ensures safe working. With the current clamp adapter, it is possible to carry out measurements on cables with a diameter up to 57 mm. The input resistance of the device is 1MΩ and the output factor is 1mV / A (1000: 1).
Input connector: 4 mm plug
A AC max.: 1000 A
A DC max.: 1000A
  • Output factor: 1mV / A
  • Safety: EN 61010-1, CAT II 1000 V
  • Accessories: Battery and manual
