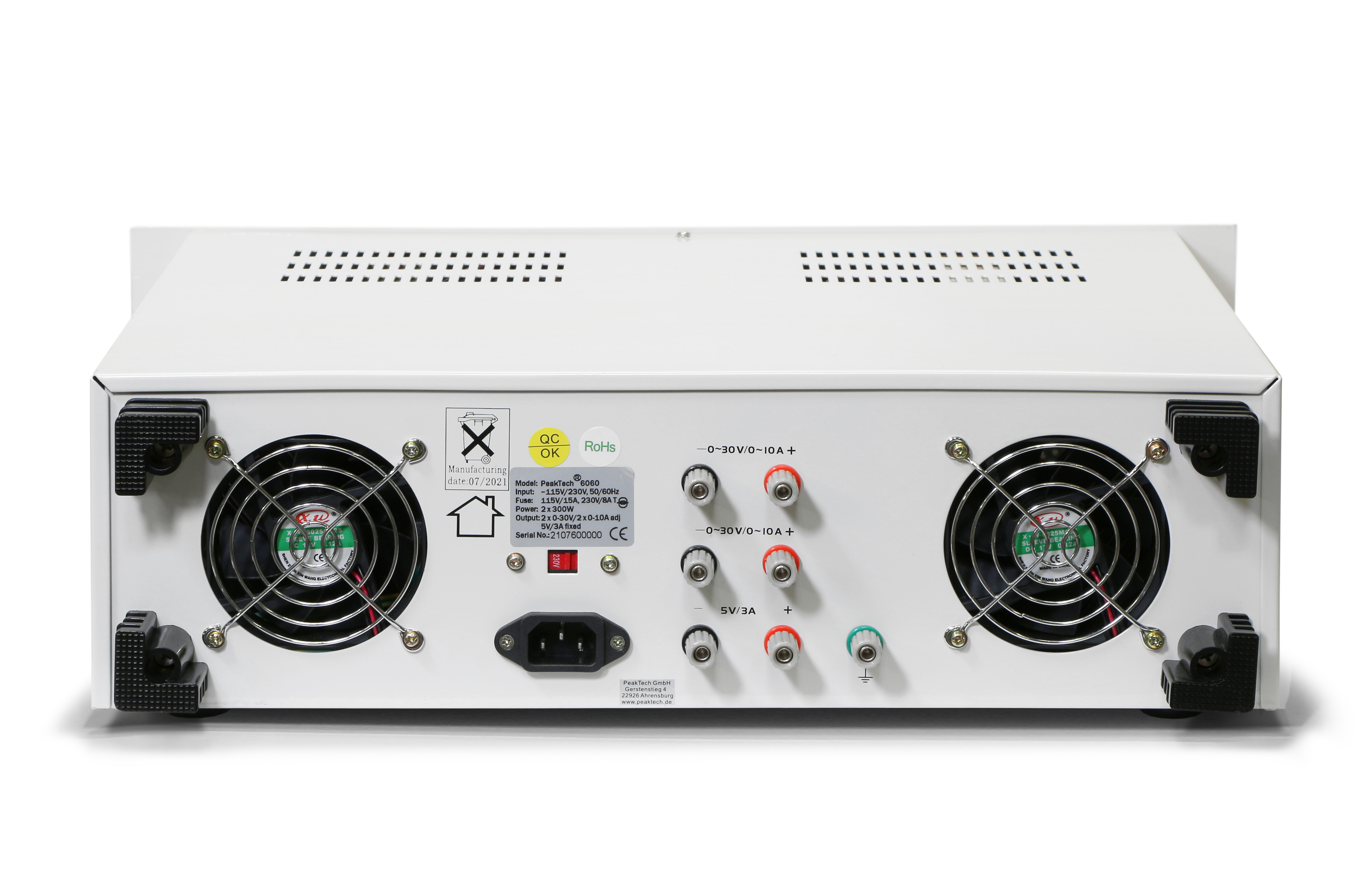

«PeakTech® P 6060» Regulated dual power supply with 3 outputs

€829.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 6060

EAN: 4250569401442

Downloads

Product information "«PeakTech® P 6060» Regulated dual power supply with 3 outputs"

Stabilized double power supply for 19 ”rack installation and also designed as a desktop device in the laboratory, industry and for the training sector. The 3-digit, 14 mm blue LED displays enable quick and precise readings. Furthermore, the device has 2 outputs with continuously variable output voltages or output currents and can be connected in series or parallel. Thus, with outputs connected in series, the max. Output voltage is 60 V DC; with outputs connected in parallel, the max. Output current is 20 A DC.

Auxillary output:	5 V DC
Channels:	2 CH
Cooling:	Active
Display Type:	Segment
Input voltage:	100 - 240 VAC 50/60 Hz
Output Current:	0 - 10 A
Output Voltage:	0 - 30 V DC
SELV:	■

Linear controlled double laboratory power supply
Voltage adjustable from 0 V to 30 V DC
Current adjustable from 0 A to 10 A DC
Series mode up to 60 V DC
Parallel mode up to 20 A DC
5V / 3A fixed value output
Outputs can be switched off
Safety: EN 61010-1
Accessories: power cable and manual
