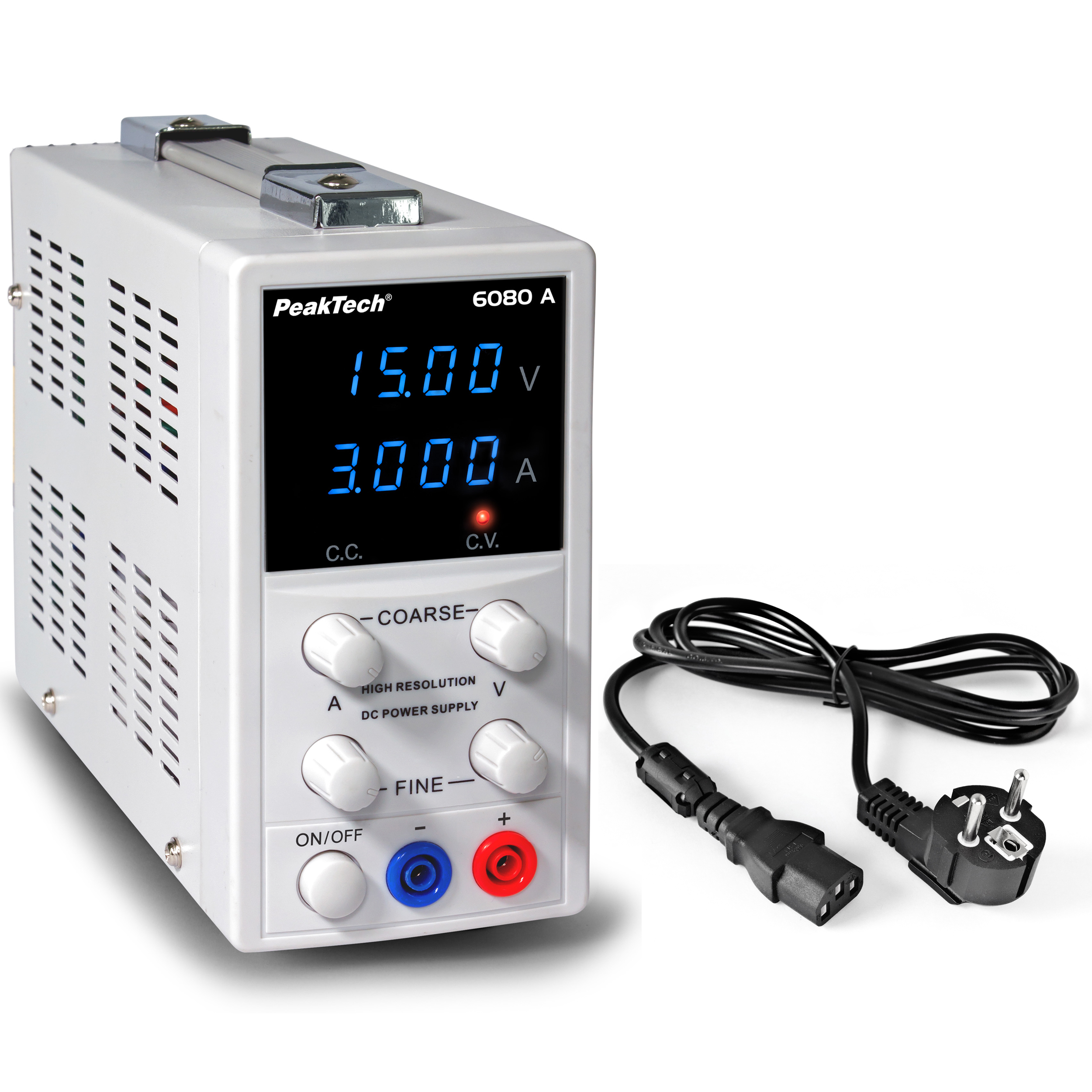

«PeakTech® P 6080 A» Digital Laboratory Power Supply, 0-15 V/0-3 A DC

€69.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 6080 A

EAN: 4250569404764

Downloads

Product information "«PeakTech® P 6080 A» Digital Laboratory Power Supply, 0-15 V/0-3 A DC"

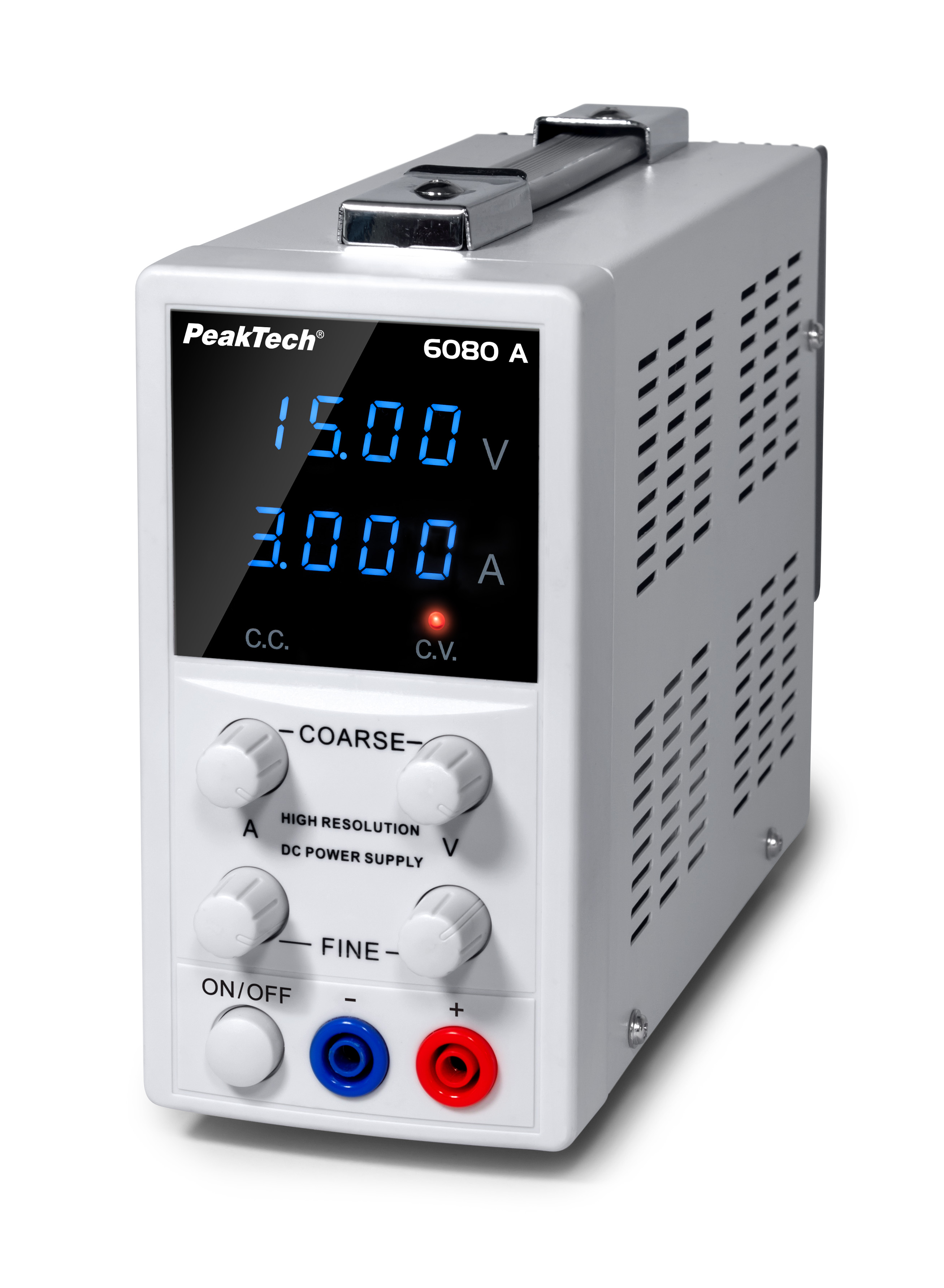

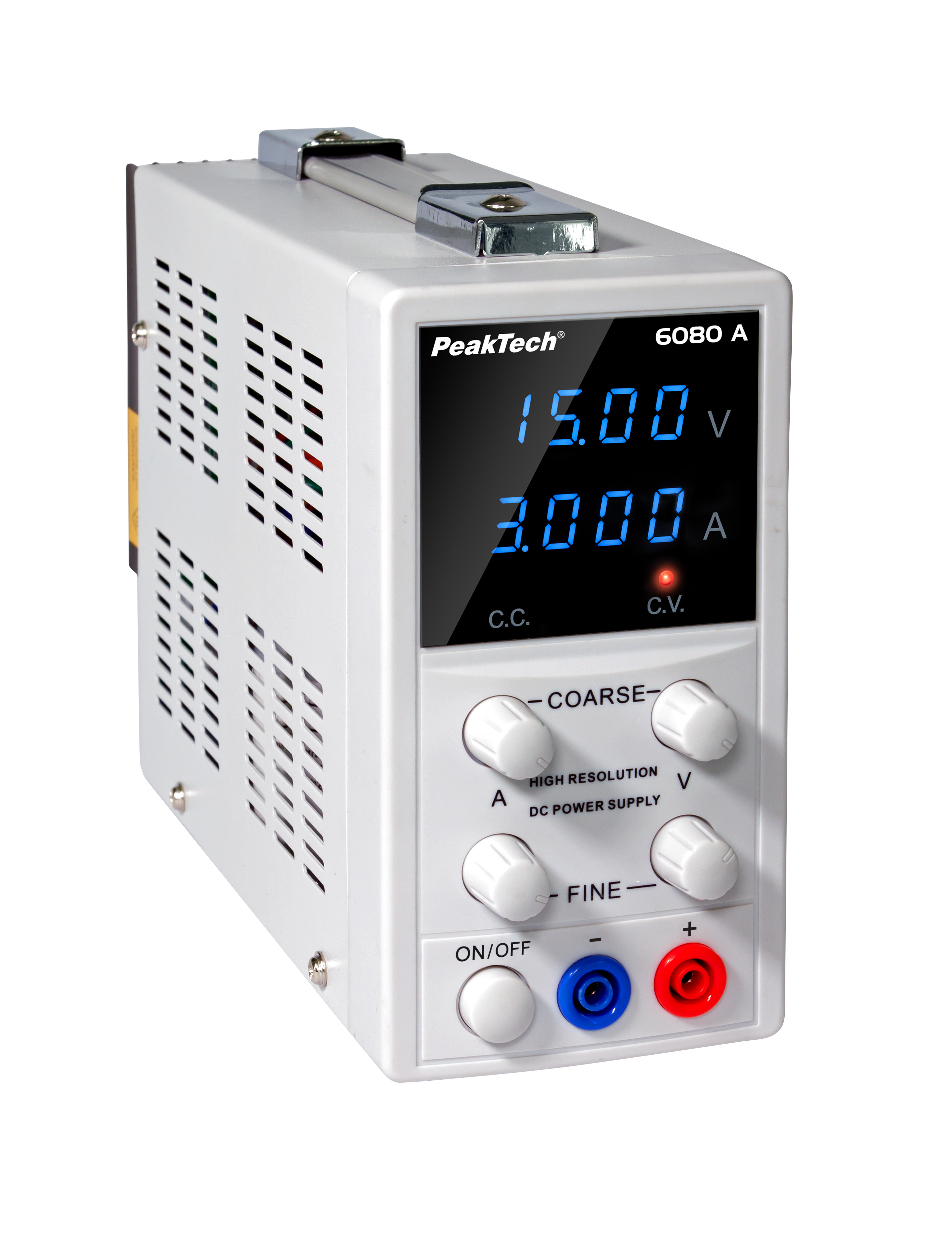

The new PeakTech 6080 A is a linear controlled laboratory power supply with passive cooling and a high resolution digital display (1mA and 10mV). This model has a coarse / fine control via separate potentiometers for precise selection of the current and voltage settings. Due to the linear technology used, this model does not generate any high-frequency interference and a safety transformer according to EN-61558-2-6 is used, which guaranteed a safety extra-low voltage (SELV) output, to ensure the greatest possible user safety. This power supply unit in a modern design was specially designed for the service and training sector and impresses with its excellent price / performance ratio.

Channels:	1 CH
Cooling:	Passive
Display Type:	Segment
Input voltage:	100 - 240 VAC 50/60 Hz
Output Current:	0 - 3 A
Output Voltage:	0 - 15 V DC
SELV:	■

Linear controlled DC laboratory power supply

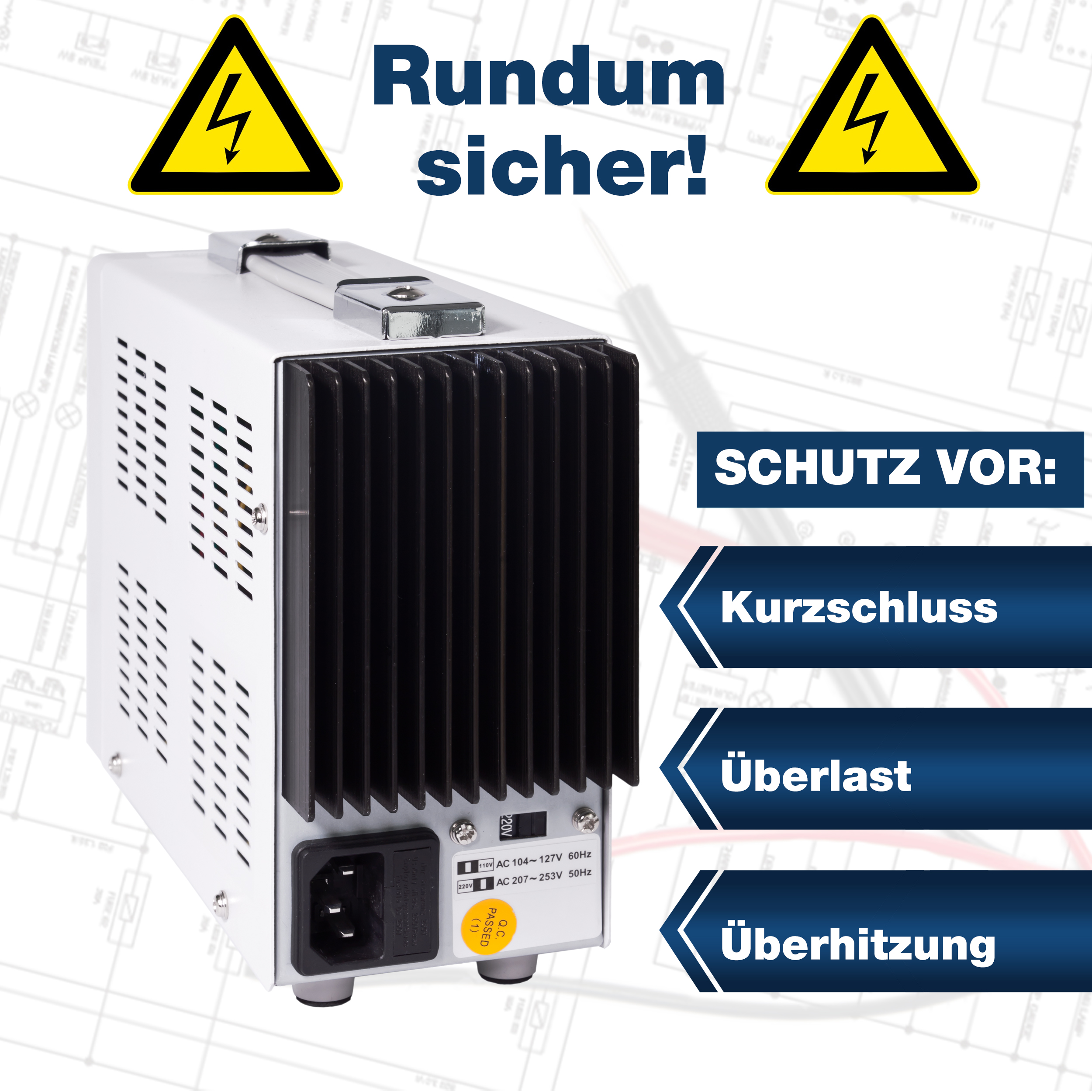

Short-circuit and overload protected

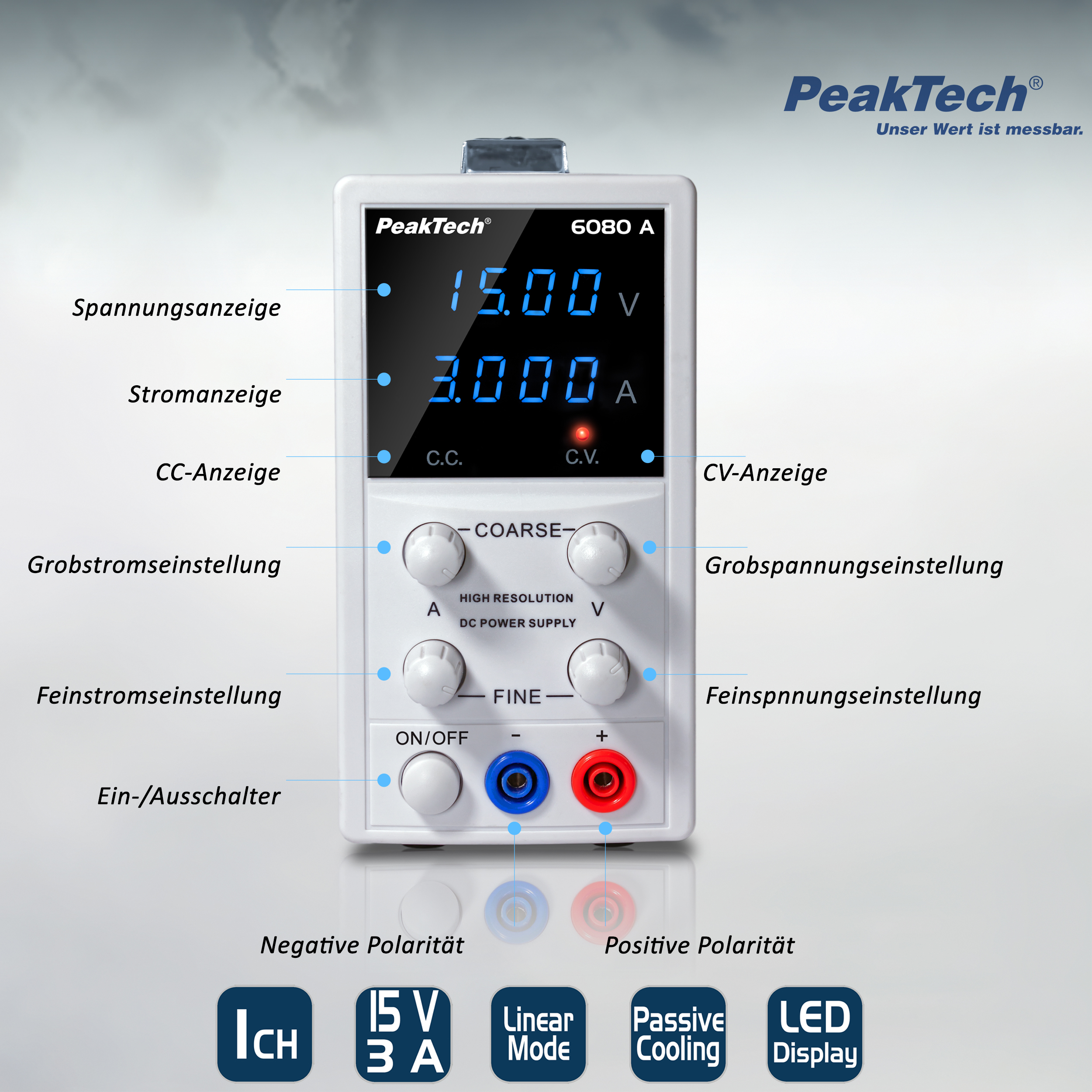

4-digit digital display for current and voltage

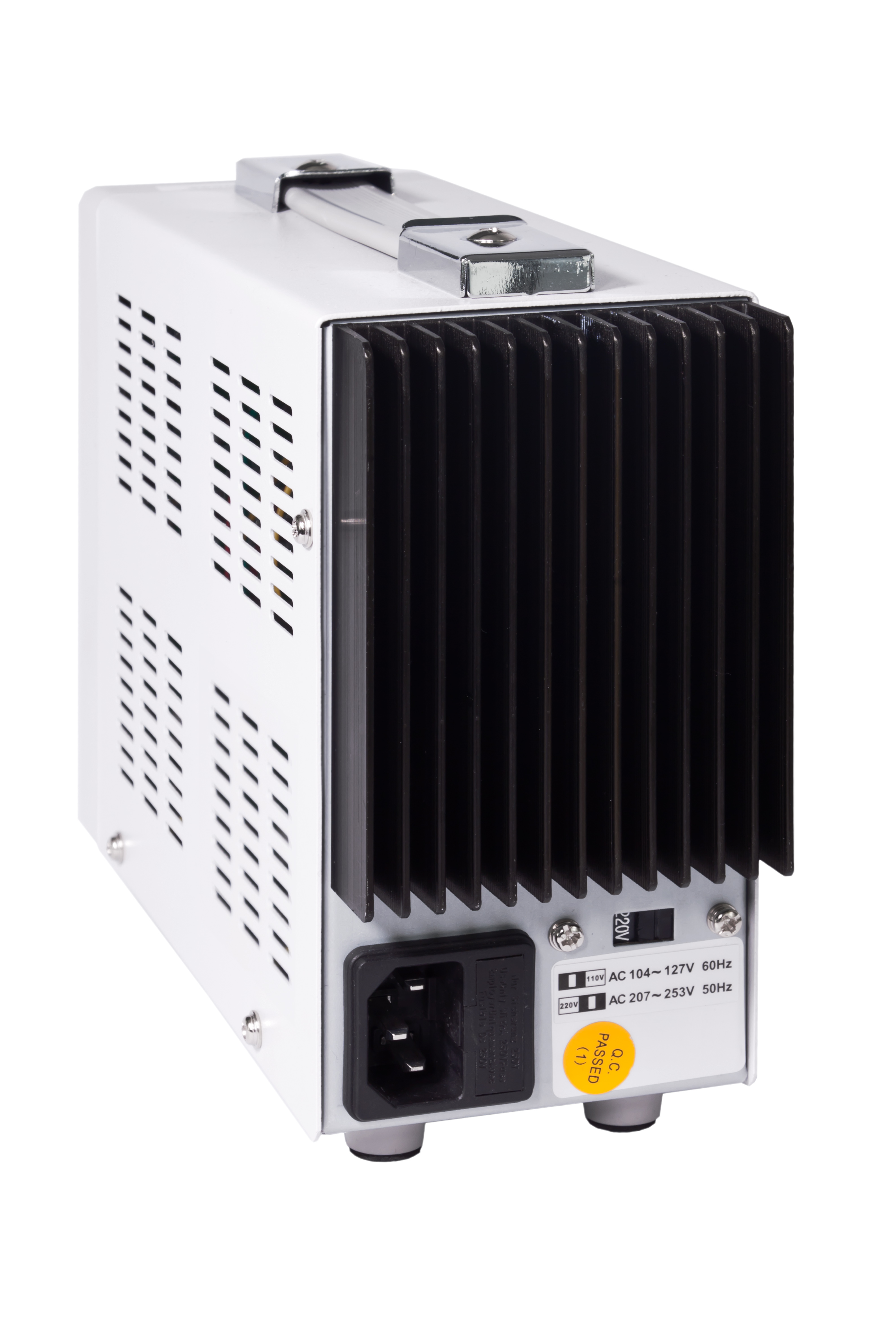

Passive cooling / fanless housing design
Safety: EN-61010-1
Safety Transformer: EN-61558-2-6

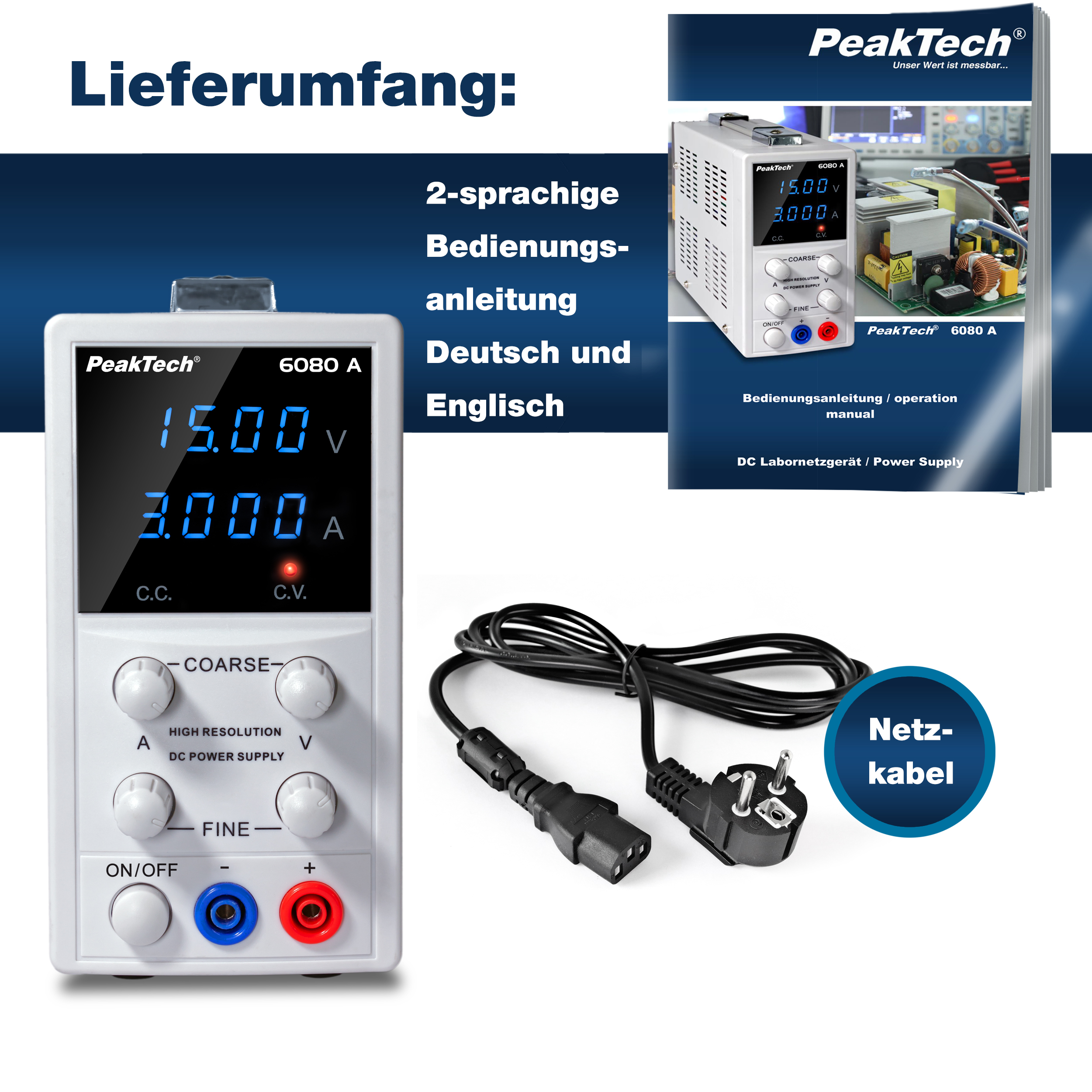

Accessories: power cable and manual
