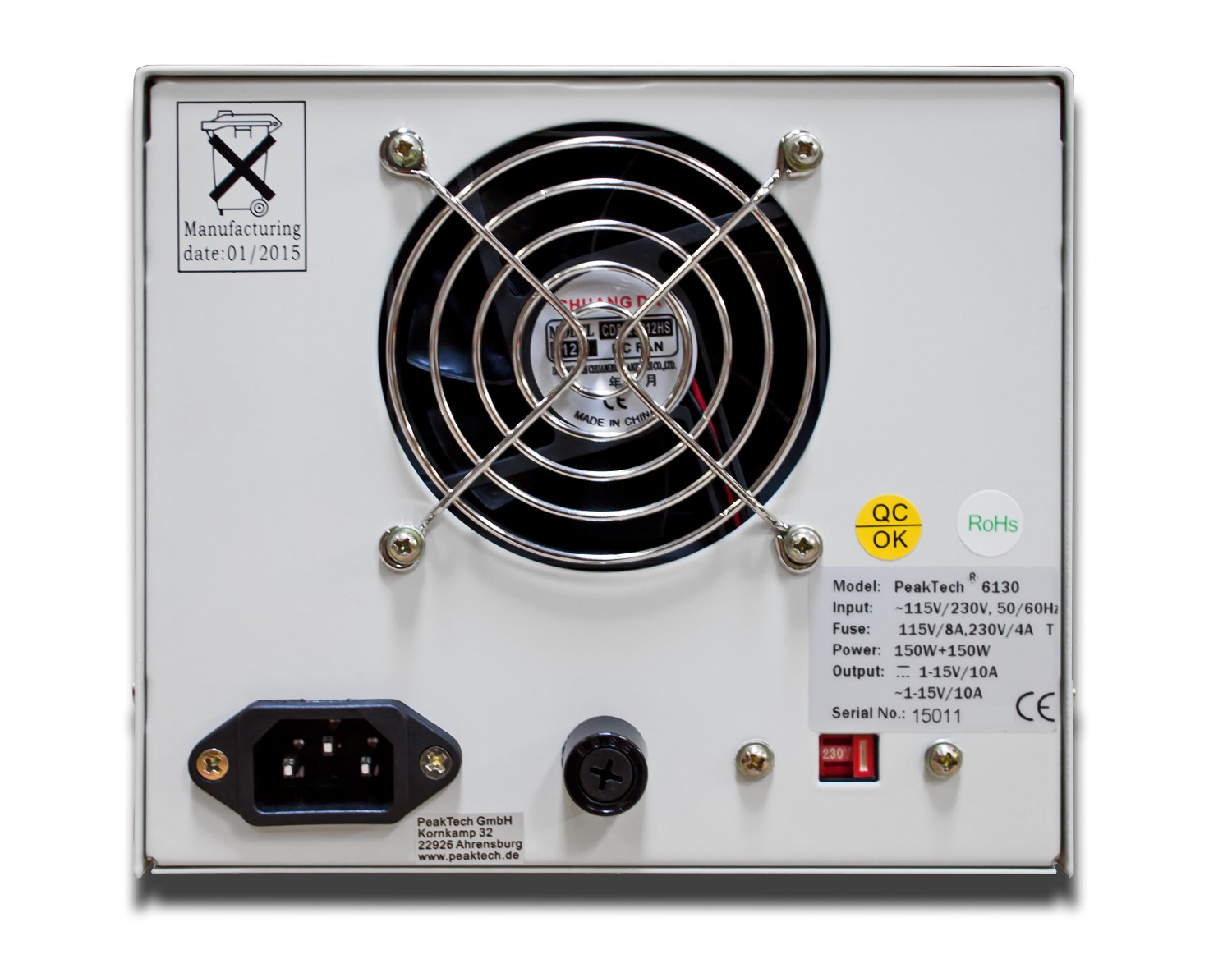

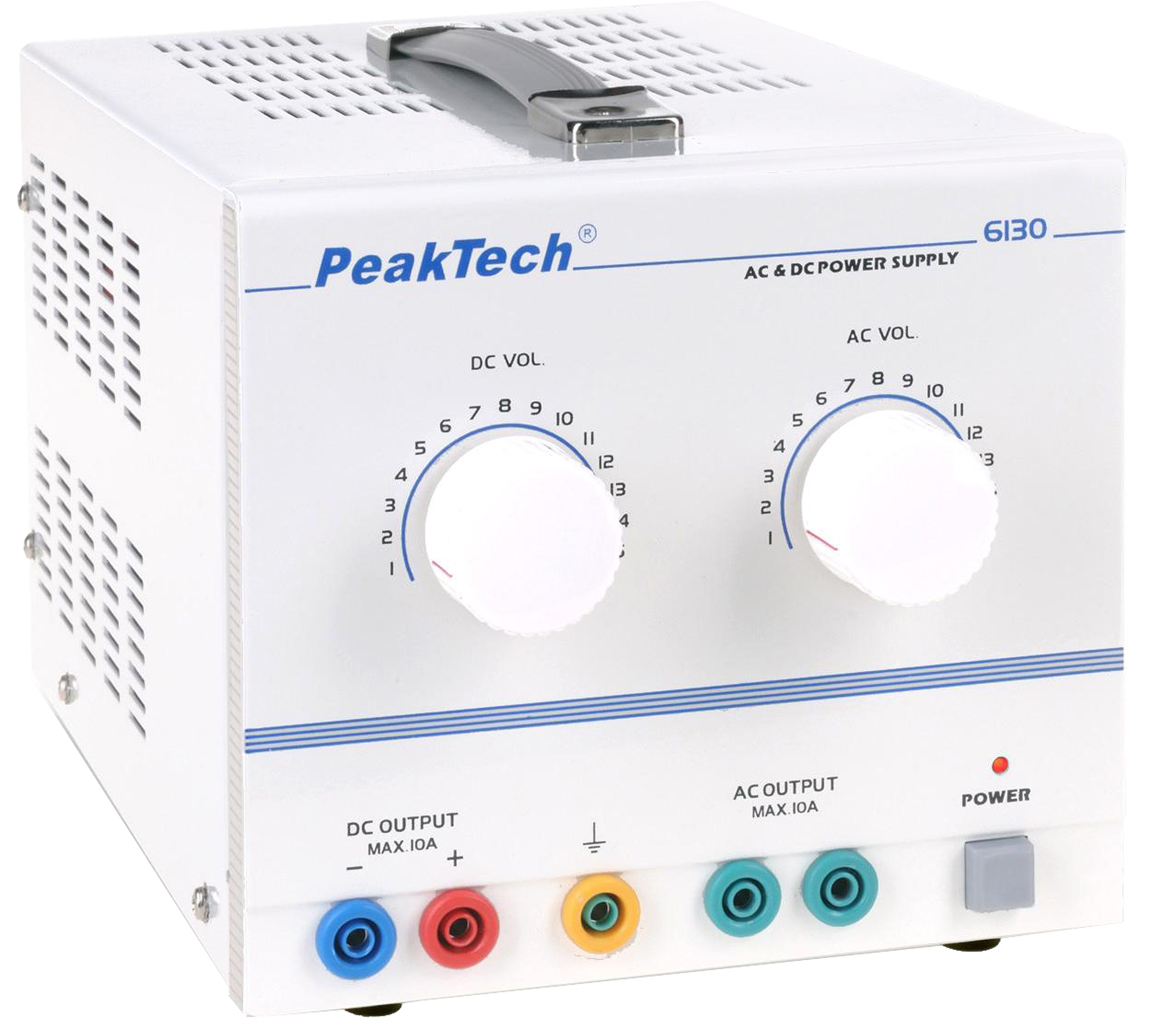

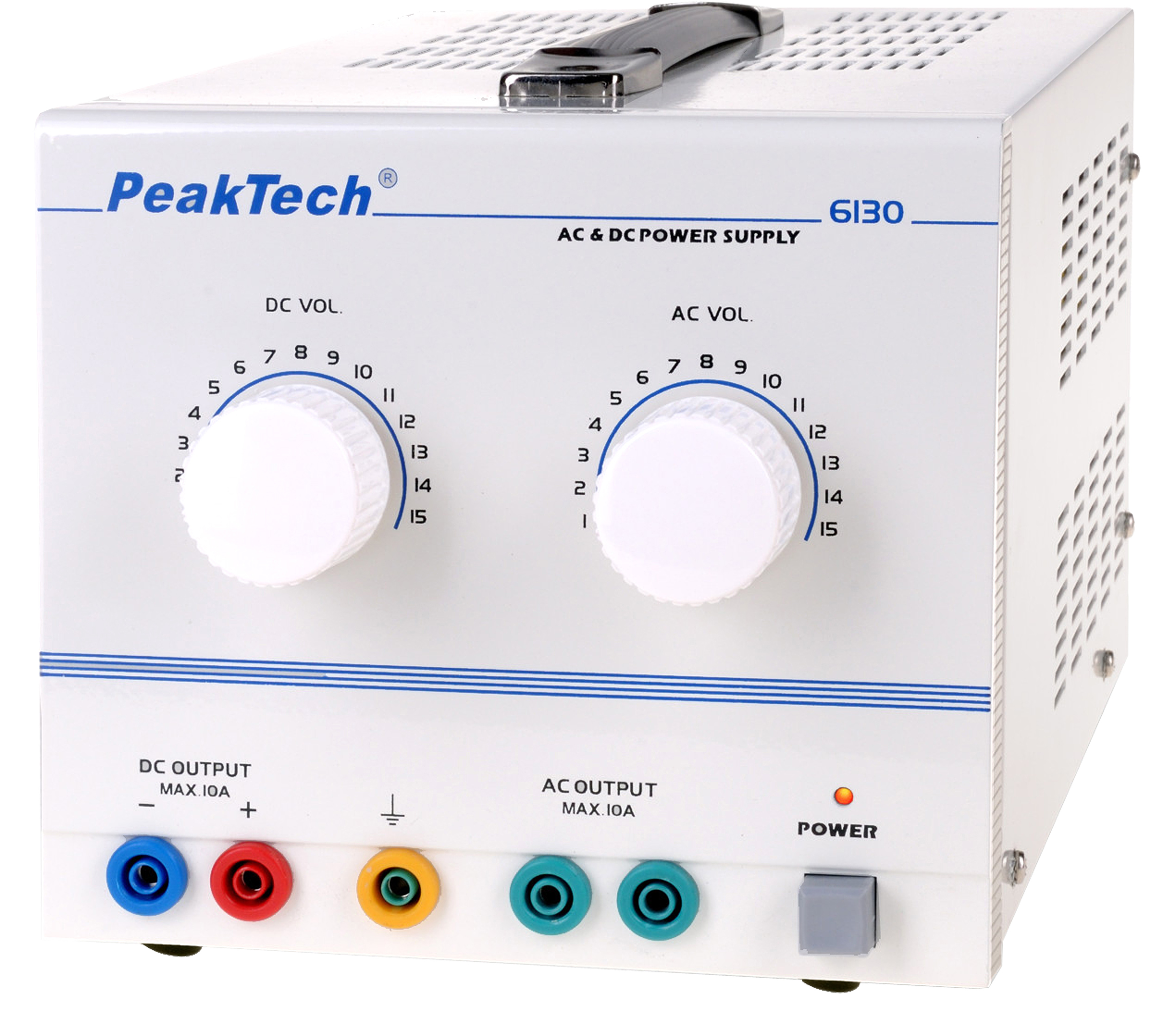

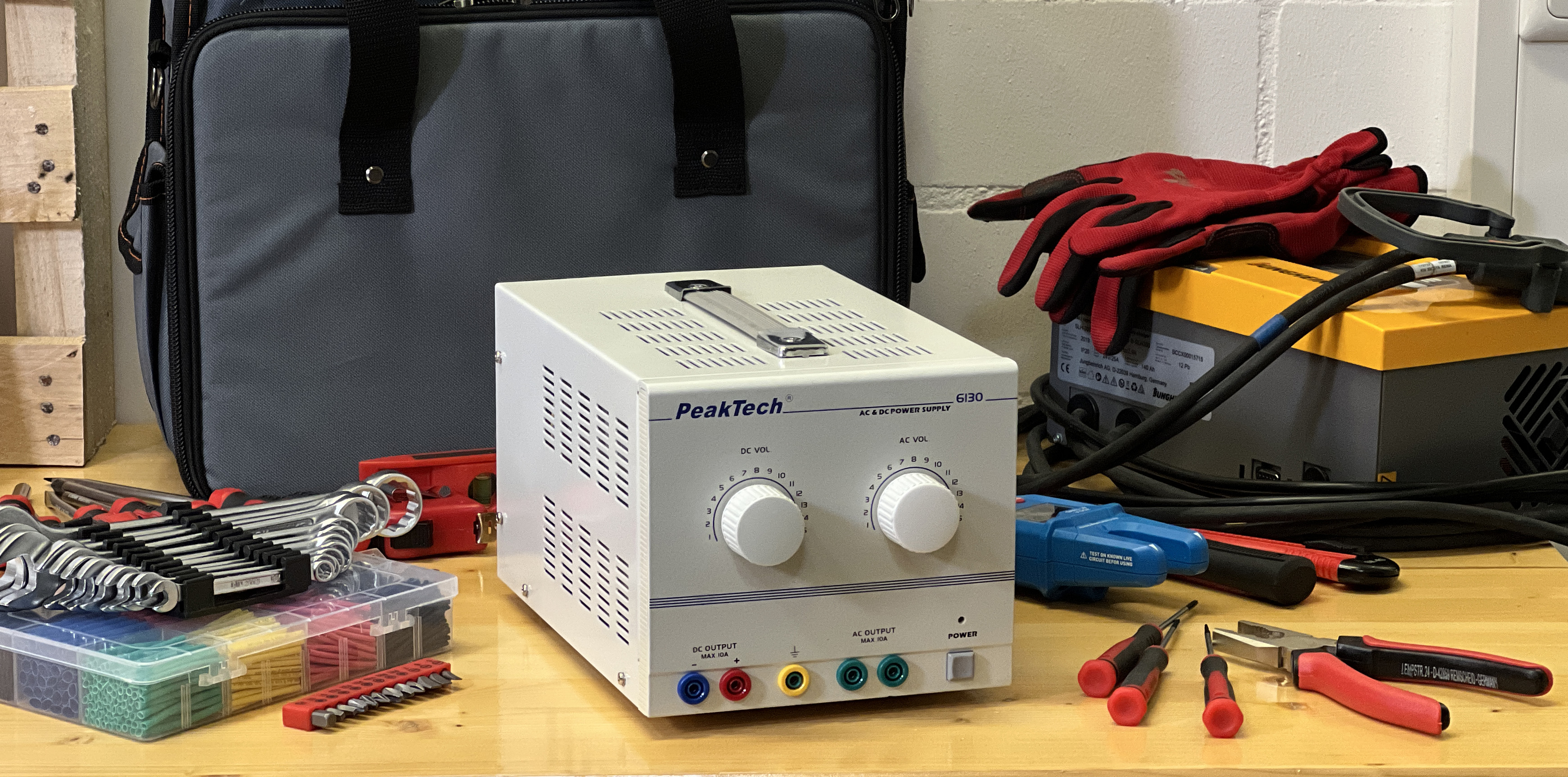

«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A

«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A
PDF Datasheet
Product number: P 6130
EAN: 4250569401534
Product information "«PeakTech® P 6130» AC/DC Laboratory Power Supply 1 - 15 V/10 A"
This laboratory power supply for direct and alternating current/ voltage impresses with its easy and user-friendly operation. With the rotary switch for AC and DC voltage, it is possible to set the required voltage which is needed for the measurement setup. With the main on and off switch, which is integrated in the front of the device, the laboratory power supply can be switched on or off at any time. Thanks to its user-friendly operation, this laboratory power supply is ideal for use in research and development, in technical universities, the electronics industry, and also for the maintenance of small AC circuits, transformers and lights.
Channels: 2 CH
Cooling: Active
Input voltage: 100 - 240 VAC 50/60 Hz
Output Current: 0 - 10 A
Output Voltage: 1 - 15 V AC, 1 - 15 V DC
  • Output voltage in 15 steps adjustable
  • Short circuit protection
  • Safety: EN 61010-1
  • Safety-Transformer: EN 61558 - 2 - 6
  • Accessories: power cable and manual
