«PeakTech® P 6220» Mini power supply, 1,5 - 15 V / 2 A DC

PDF Datasheet
Product number: P 6220
EAN: 4250569406577
Product information "«PeakTech® P 6220» Mini power supply, 1,5 - 15 V / 2 A DC"

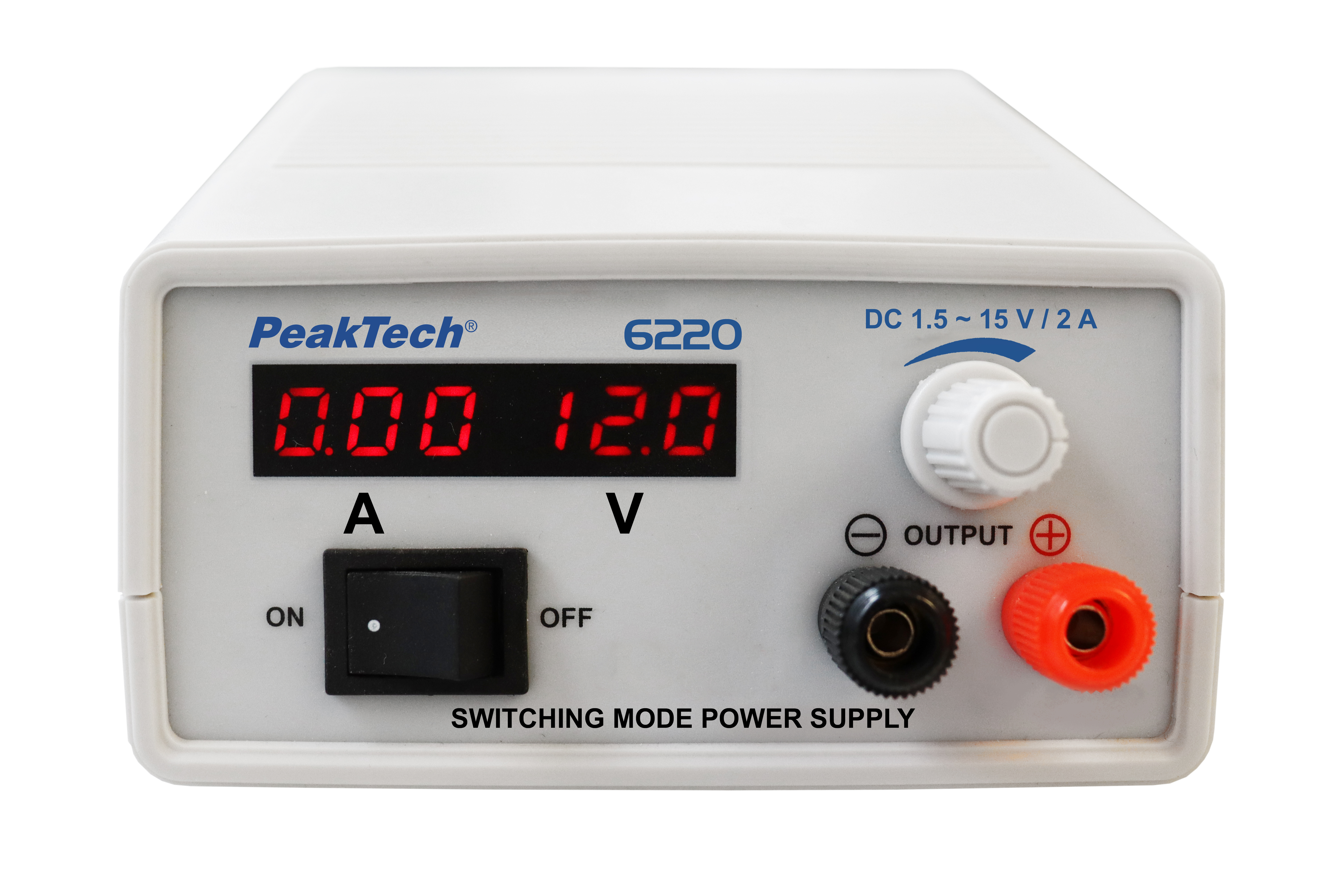

The PeakTech 6220 is a handy and lightweight DC switching power supply, which impresses with its high performance at the best price/performance ratio. The switching power supply technology used ensures high performance with a small size and low weight. The output voltage is continuously regulated via a potentiometer on the front, whereby the current is limited to a maximum of 2A. With the pole terminals with a 4 mm opening, you can easily connect individual wires but also connect 4 mm banana plugs. The mains cable with a Euro plug is firmly connected to the power supply unit, with the device being switched on and off via the front-side power switch. This handy power supply fits on every workbench and can be used universally in the hobby area, service or training.
Channels: 1 CH
Input connector: Europlug Type-F
Input voltage: 100 - 240 VAC 50/60 Hz
Output Connection: Pole terminal (front)
Output Current: 0 - 2 A
Output Voltage: 1.5 - 15 V DC
  • 1.5 - 15 V DC power supply continuously adjustable
  • 2 A DC maximum output current (fixed value)
  • Modern switching power supply technology
  • Stabilized output voltage
  • Passive cooling and fixed power cord (130cm)
  • 4mm binding posts for banana plugs or single wires
  • Safety: EN-61010, protection class II
  • Accessories: User manual
