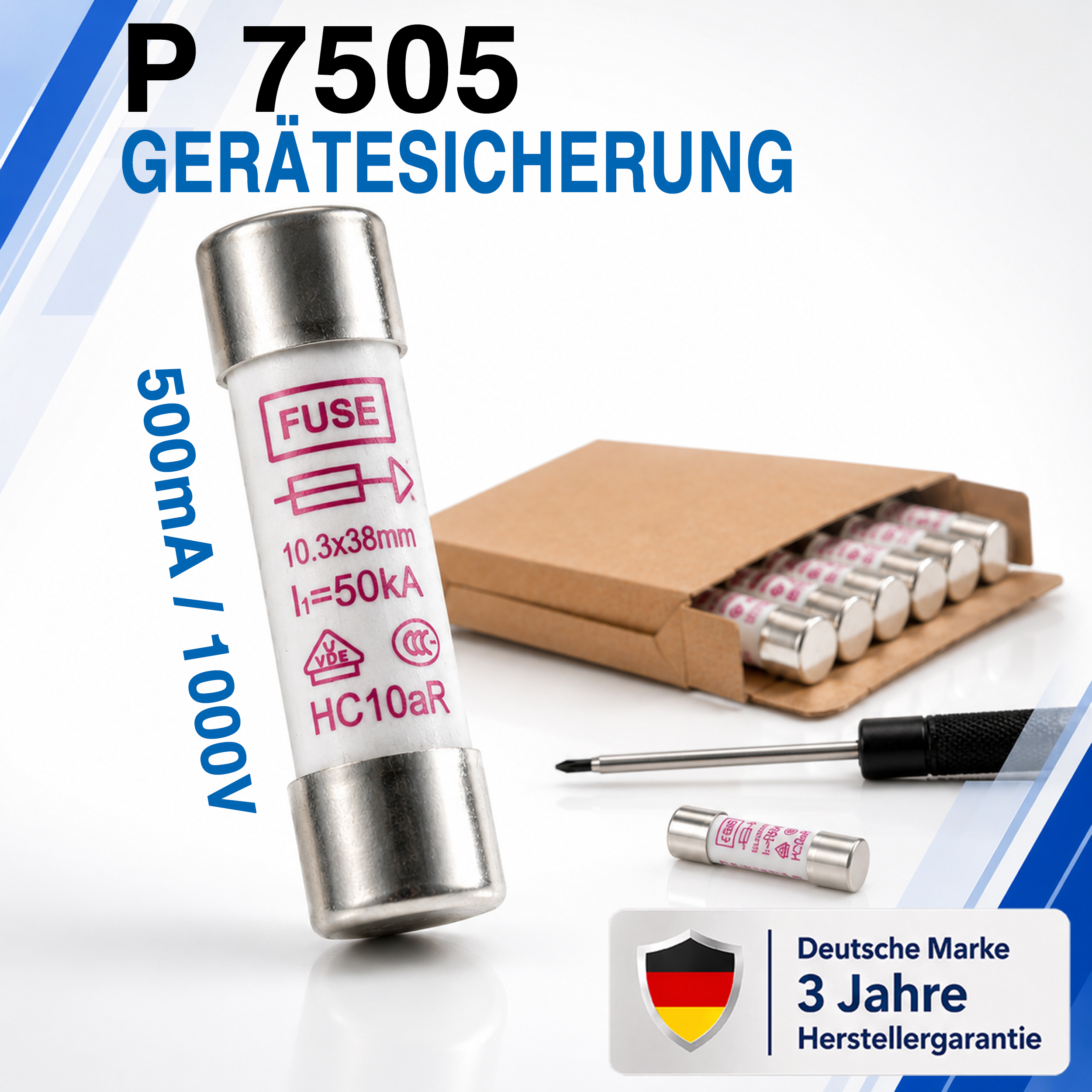

«PeakTech® P 7505» microfuse ~ 0.5 A / 1000 V ~ 10.3 x 38 mm ~ super fast-acting (FF)

PDF Datasheet
Product number: P 7505
EAN: 4250569402760
Product information "«PeakTech® P 7505» microfuse ~ 0.5 A / 1000 V ~ 10.3 x 38 mm ~ super fast-acting (FF)"
This modern device protection fuse with ceramic body offers a much higher protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented, even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user for future measurements.

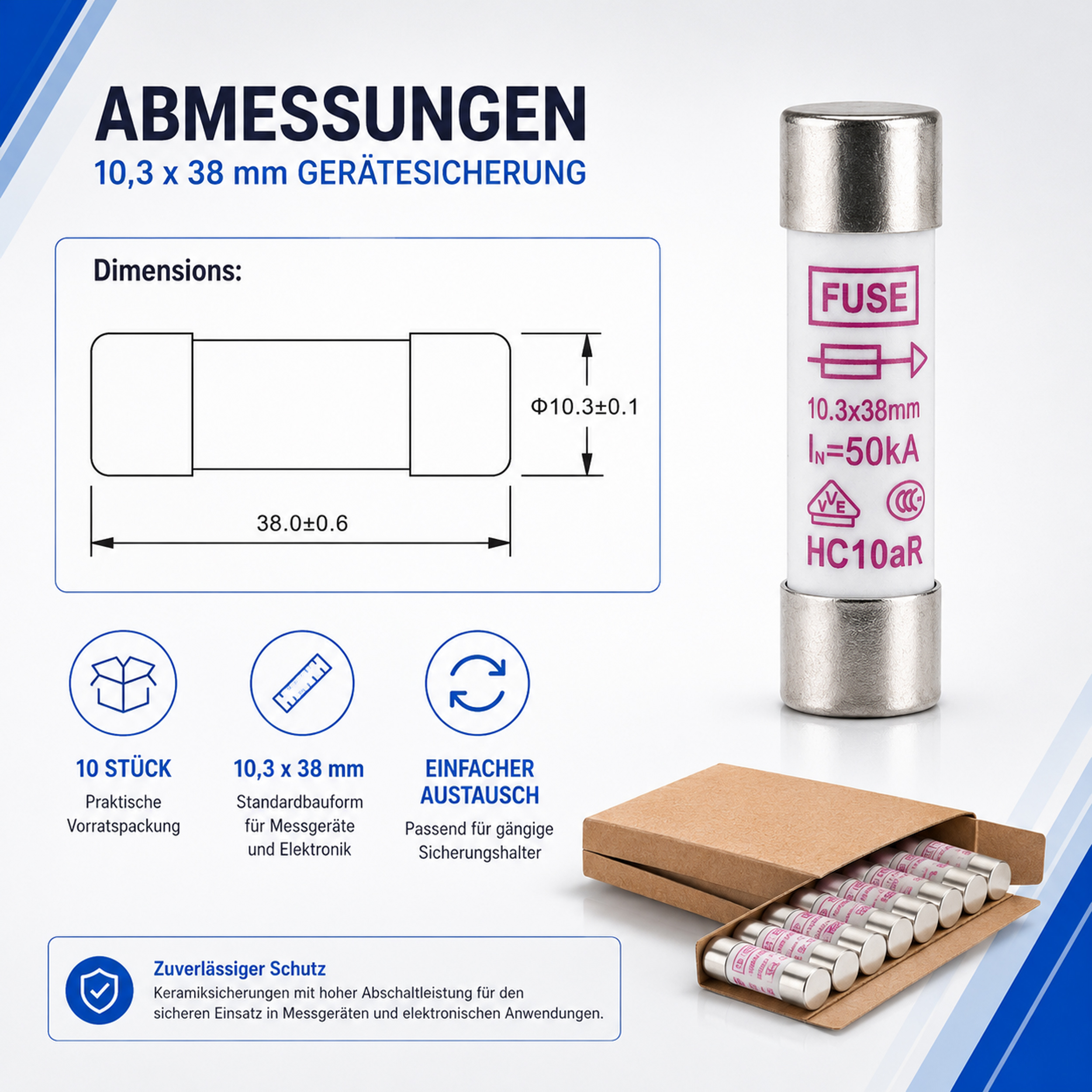

Construction: 10,3x38 mm
Nominal current (A): 0,5 A
Nominal voltage (V): 1000 V
Package unit: 10 Stk.
