«PeakTech® P 1890» Laboratory power supply DC 1 - 20V/ 0-10A with USB

€369.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 1890

EAN: 4250569400391

Downloads

Product information "«PeakTech® P 1890» Laboratory power supply DC 1 - 20V/ 0-10A with USB"

The PeakTech 1890 is a programmable laboratory power supply for a maximum of 20V / 10A DC, i.e. 200 W continuous power. In addition to presets for current and voltage values, time programs with intervals and the number of runs can also be created directly on the device or using the included PC software. For operation with a PC, the switching power supply is equipped with a USB and RS-485 interface. A PC connected to the RS-485 interface enables the control of up to 32 power supplies. A USB interface on the back of the device connects to a Windows PC. The intelligent fan control adjusts the speed of rotation to the respective temperature and output power. The output voltage and current limit can also be set in the open circuit without a connected load. Due to its high reliability and the programming functions, this power supply series is ideal for professional users from industry, control and regulation technology or the electronics laboratory.

USB:	■
Channels:	1 CH
Display Type:	LCD
Input connector:	IEC socket
Input voltage:	100 - 240 VAC 50/60 Hz
Output Connection:	4 mm Plug
Output Current:	0 - 10 A
Output Voltage:	1 - 20 V DC
RS-485:	■

DC laboratory switching power supply with max. 20 V / 10 A
Multi-line LCD display with backlight
4 mm safety sockets for connecting a consumer
USB and RS-485 interface for connection to the PC
Freely adjustable presets for current and voltage values
Freely adjustable time programs and cycle times
Display of setpoint and real value for voltage and current
Watt display for current output power
Short circuit; Overload and overtemperature protection
Safety: EN 61010-1
Accessories: USB cable, RS-485 connector, software CD for Windows, power cord and manual

Zubehör / Accessories:

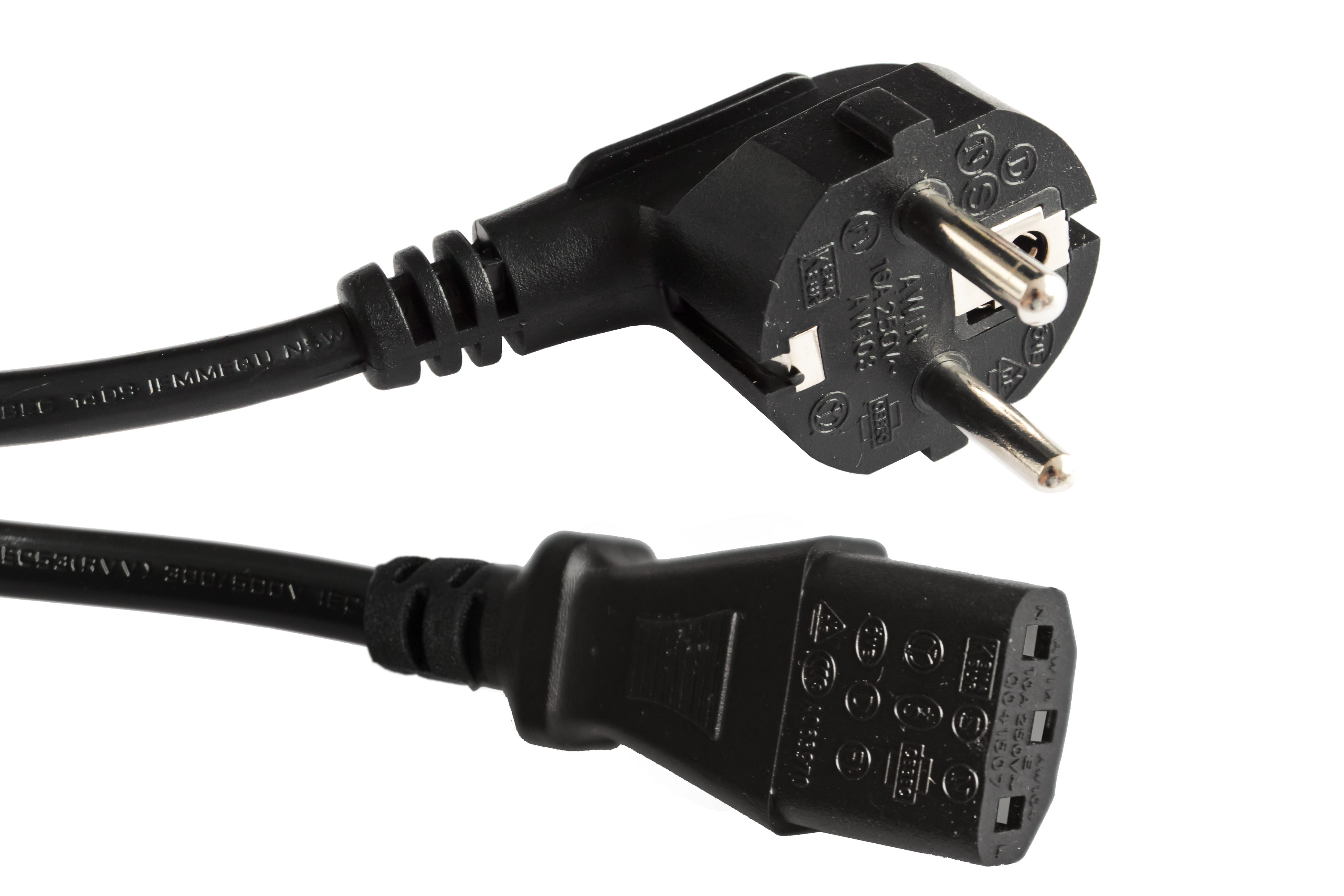

«PeakTech® NK / EU-ST» IEC connection cable Length: 1.5m black 10-16 A / 250 V

Connection cable for devices with EU plug

€4.90*

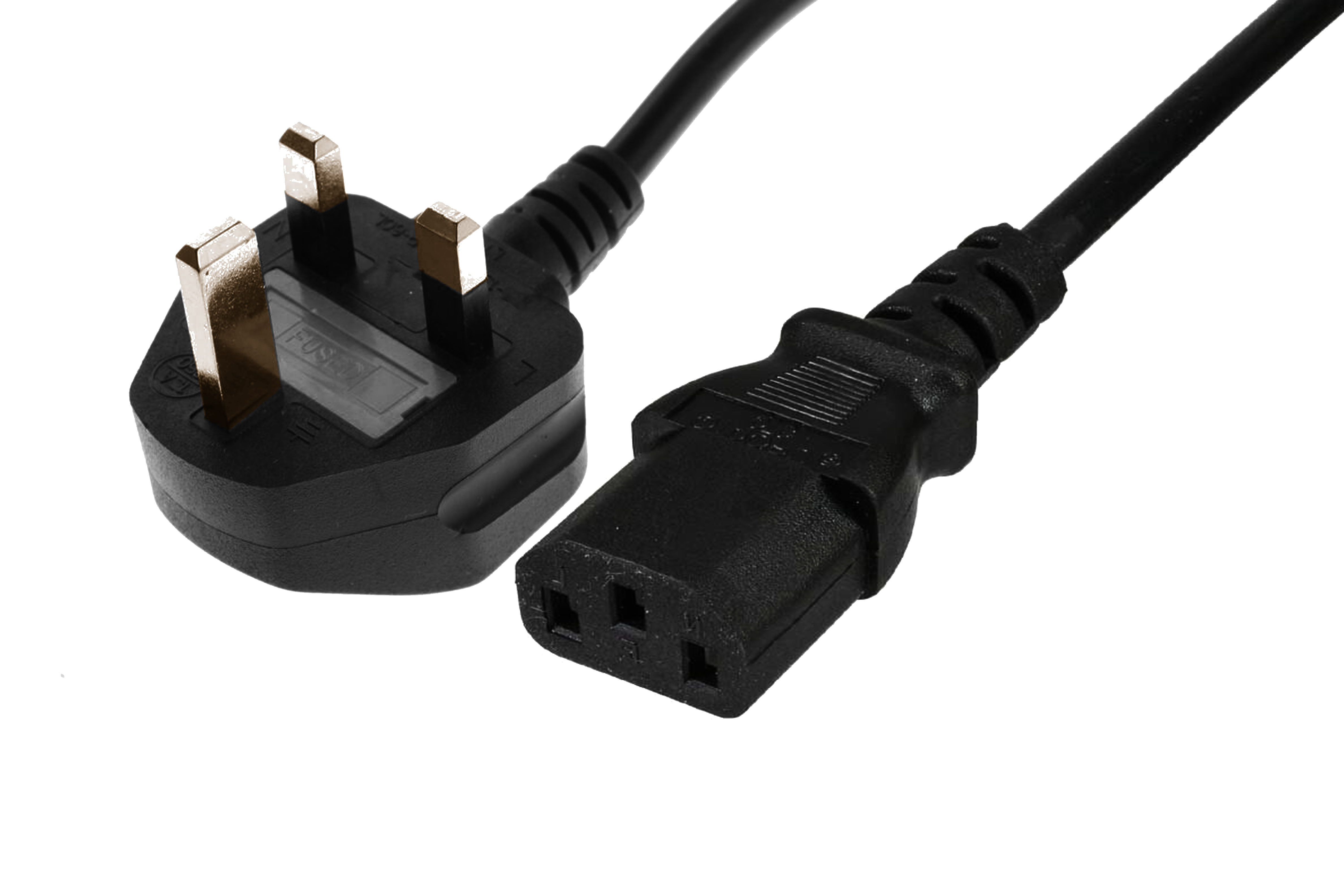

«PeakTech® NK / UK-ST» IEC connection cable, length: 1.8m, UK plug, 250 V / 60 Hz; 5 A

Connection cable for devices with UK plug

€7.90*

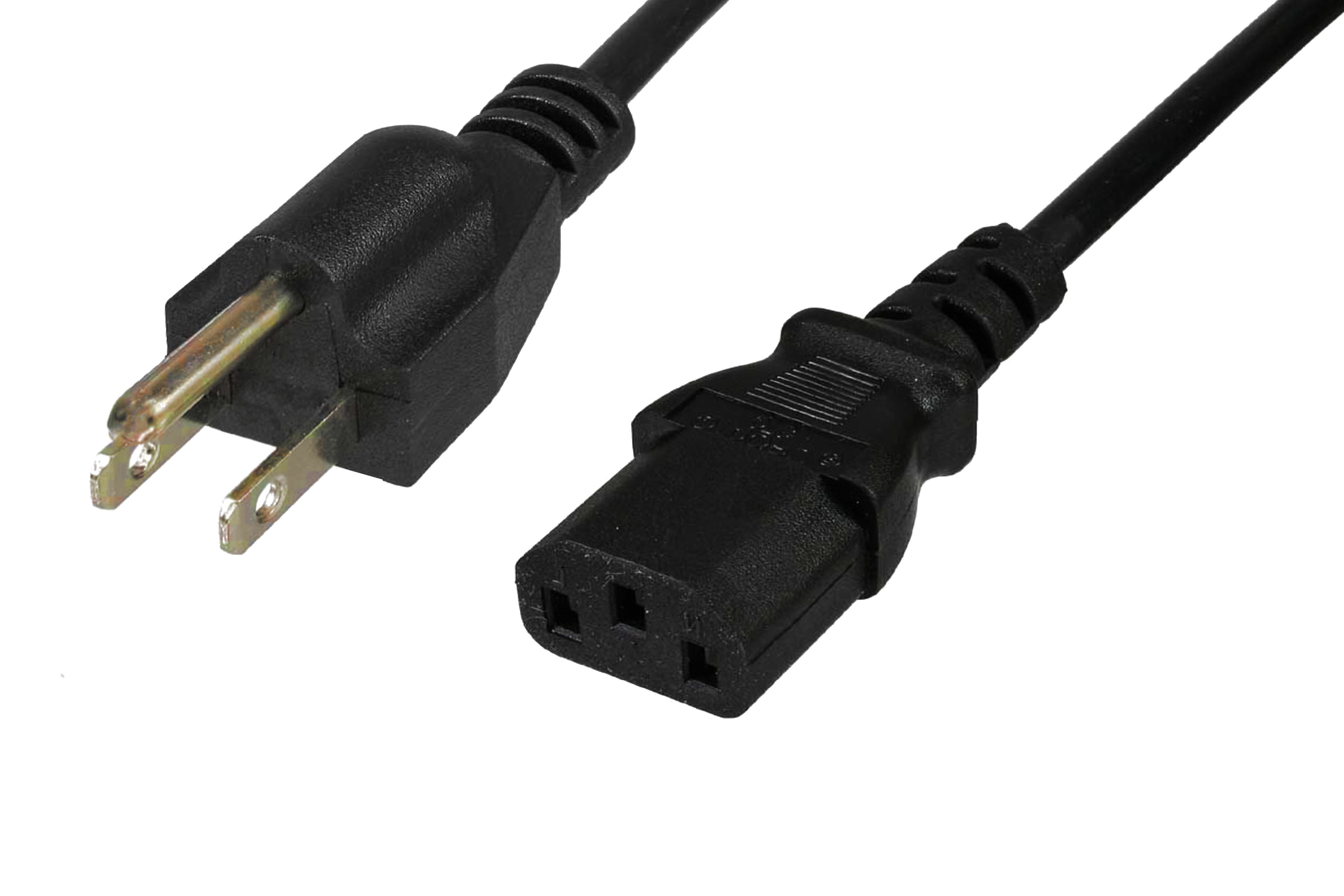

«PeakTech® NK / US-ST» device connection cable according to US standard, type Feller 498 G / C13, 125 V AC / 10A

Connection cable for devices with US plug

€7.90*

«PeakTech® P 7000» Tapping clamps for Digital Multimeter up to 10 A

These measuring accessories with 4 mm sockets can be connected to almost all measuring devices. Thanks to its hook-shaped alligator clips, it is possible to carry out measurements even in hard-to-reach points on a circuit. A maximum of safety is achieved by the double insulation of the lines and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€15.90*

«PeakTech® P 7005» Test Leads for Digital Multimeter with extension

This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. With the extension adapters, it is possible to connect the test leads to other test leads in order to carry out measurements over long distances. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*

«PeakTech® P 7015» Alligator clamps for Digital Multimeter

The alligator clips enable safe measurements even on bare or exposed cables. With their 4 mm sockets, they can be used for almost any multimeter and measuring device. A maximum of safety is achieved by the protection against against accidental contact with conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*

«PeakTech® P 7020» Test Leads for Digital Multimeter

This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. A maximum of safety is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€5.90*

«PeakTech® P 7025» Test Leads for Digital Multimeter with coupling

These test leads with 4 mm sockets have a coupling, which makes it possible to connect other test leads to them. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€5.90*

«PeakTech® P 8200» Measuring Accessories Set

This extensive collection of test accessories for the electronics area provides the best suitable measuring adapter for the desired application for each digital multimeter. In addition, these high quality clips and cables are all manufactured to the latest safety standards and provides a high safety in every application for the user. For the material, a flexible plastic was chosen, which can also withstand the hardest kinds of usage.

€43.90*

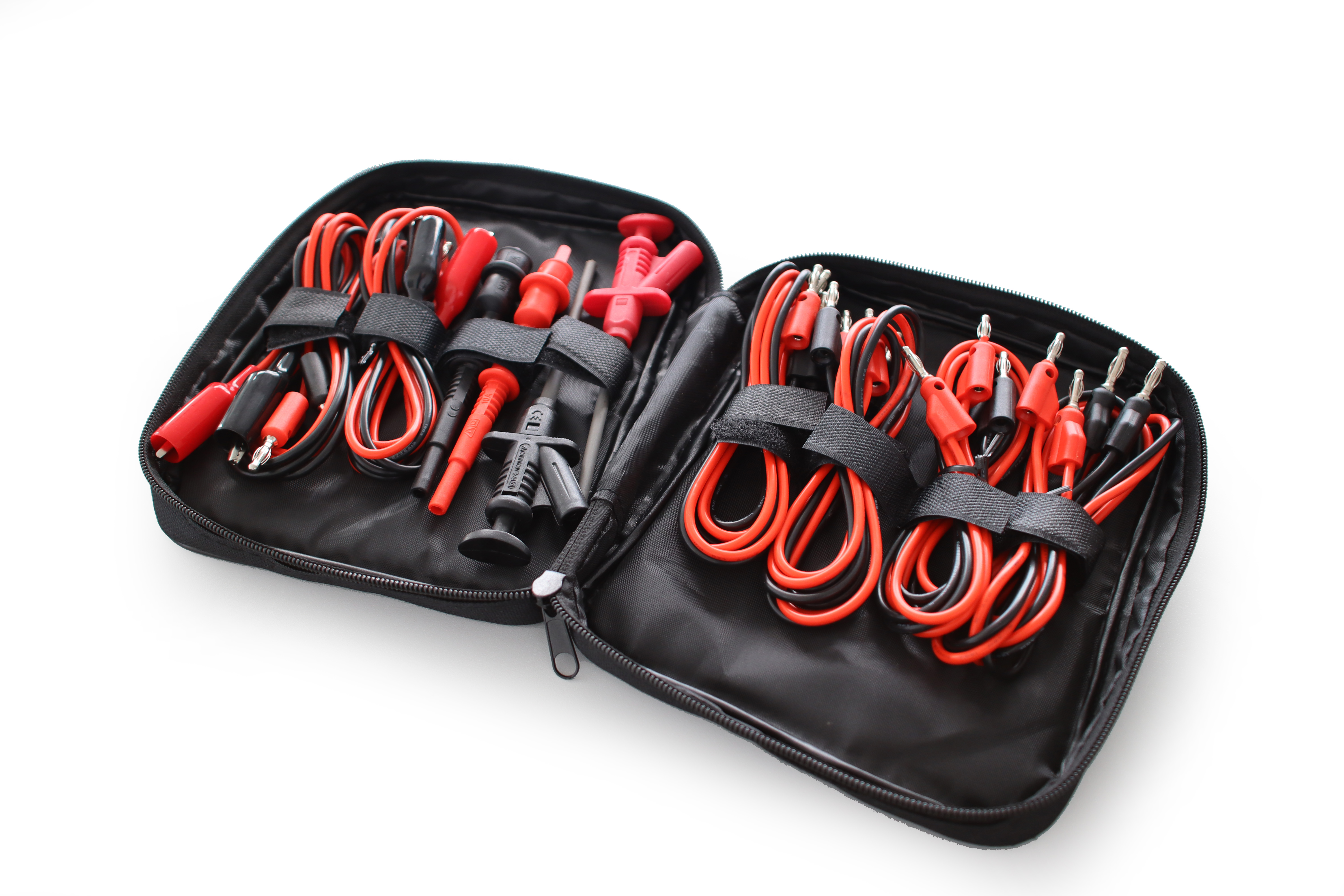

«PeakTech® P 8201» Measuring Accessories Set with 4mm Plugs
