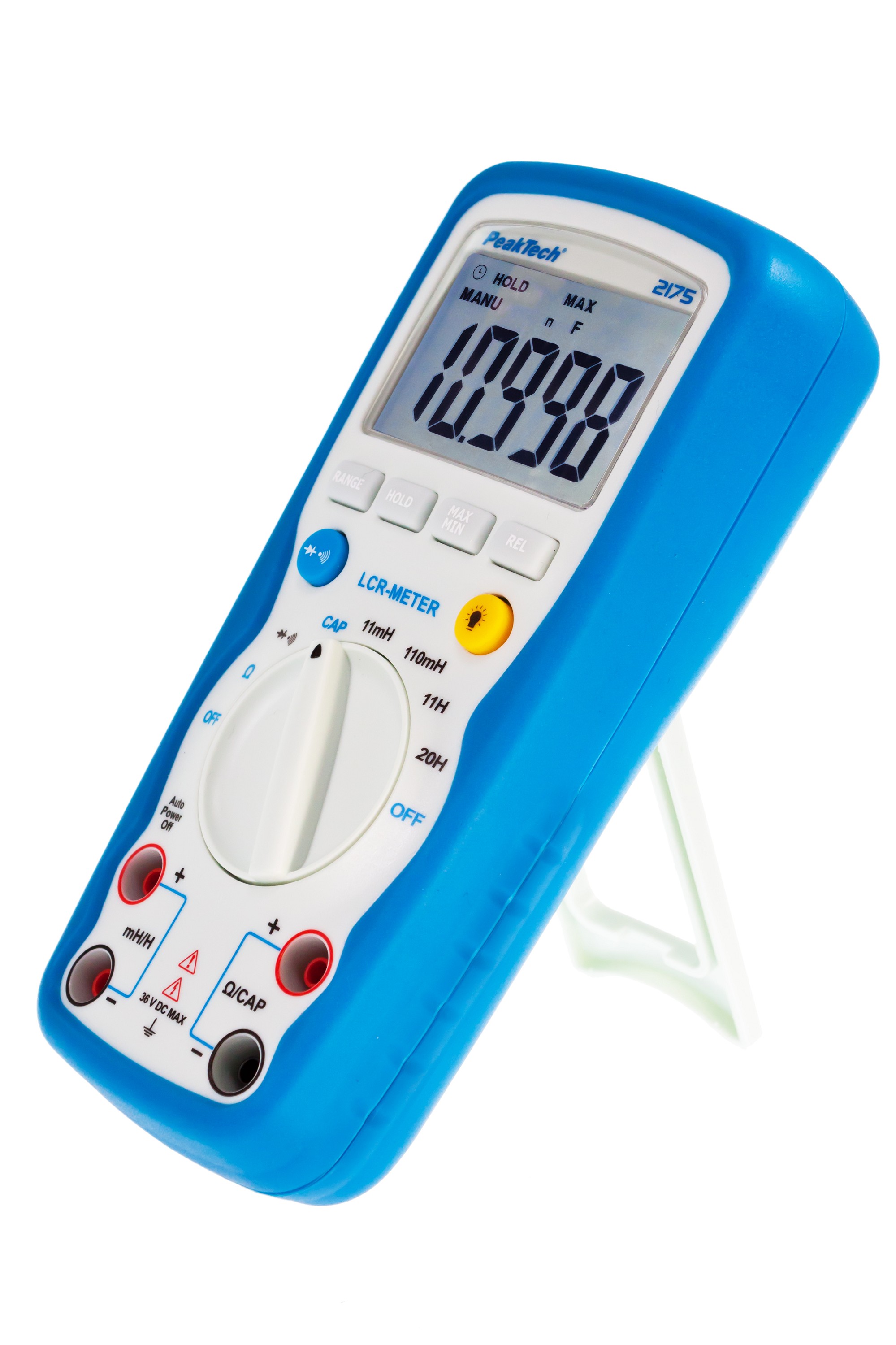

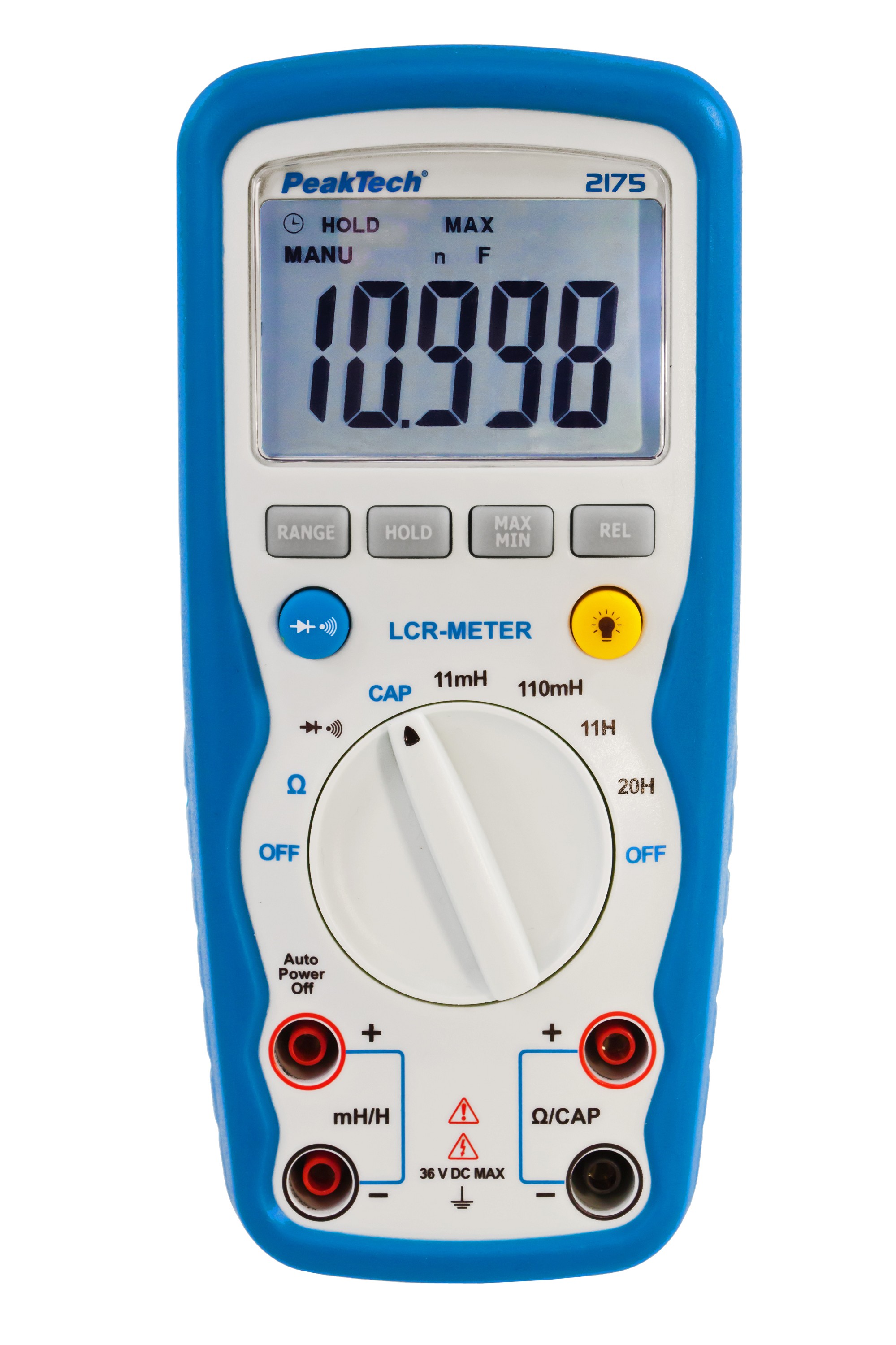

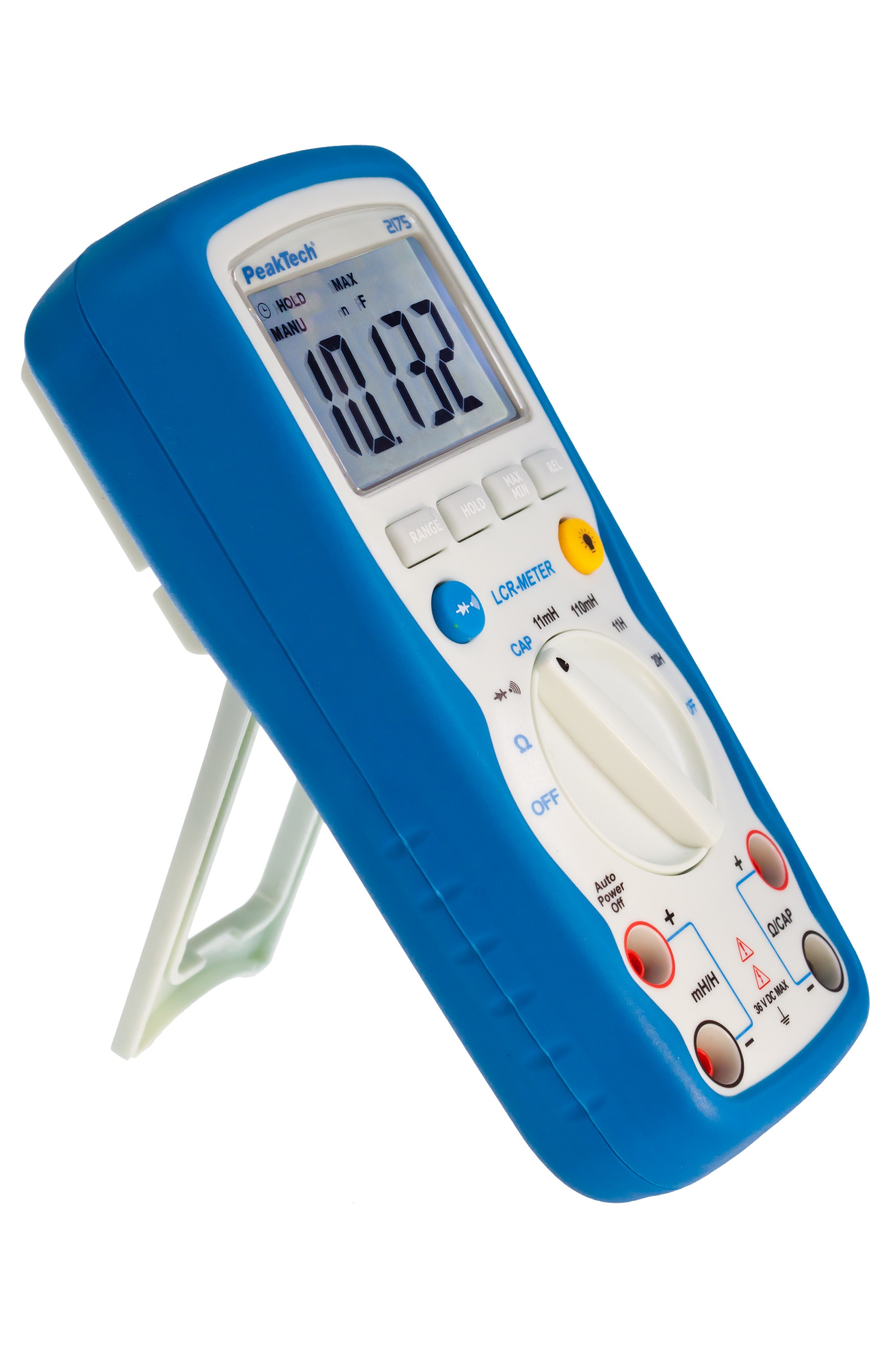

«PeakTech® P 2175» LCR-Meter, 11000 Counts, 20H, 110 mF, 20 MΩ


PDF Datasheet
Product number: P 2175
EAN: 4250569402708
Product information "«PeakTech® P 2175» LCR-Meter, 11000 Counts, 20H, 110 mF, 20 MΩ"
This digital LCR measuring device has a large 4 ½-digit LCD display (max 11000) for quick and precise reading of measured values. The measuring device is equipped with a large measuring range of up to 110 mF, which is used when testing capacitors in the Audio / HiFi or amateur radio area. Inductors (coils) can be measured up to 20 H and resistances up to 20 MΩ. The device also includes a diode and continuity test function. Thanks to its simple operation and technical performance, the PeakTech 2175 is the ideal helper in the service and repair area.
Capacitance max.: 110 mF
Digital counts: 11.000
Display Type: LCD
Inductance max.: 20 H
Ingress protection: IP 67
LCR functions: C, L, R
Range selection: Auto
Test freq.: Non-selectable
OHM max.: 110 MΩ
  • 4 1/2-digit 27 mm LCD display (max. Display: 11000)
  • Backlight illumination and Data-Hold function
  • Large measurement ranges for a various applications
  • Accurate measurements from approx. 0.5Ω, 1nF or 10µH upwards
  • Handy design with non-slip and shockproof housing
  • Minimum and maximum value function
  • Relative value measurement function
  • Diode test and continuity test function
  • Auto-Power-Off function
  • Safety: EN, 61010-1, IP67 dust and waterproof

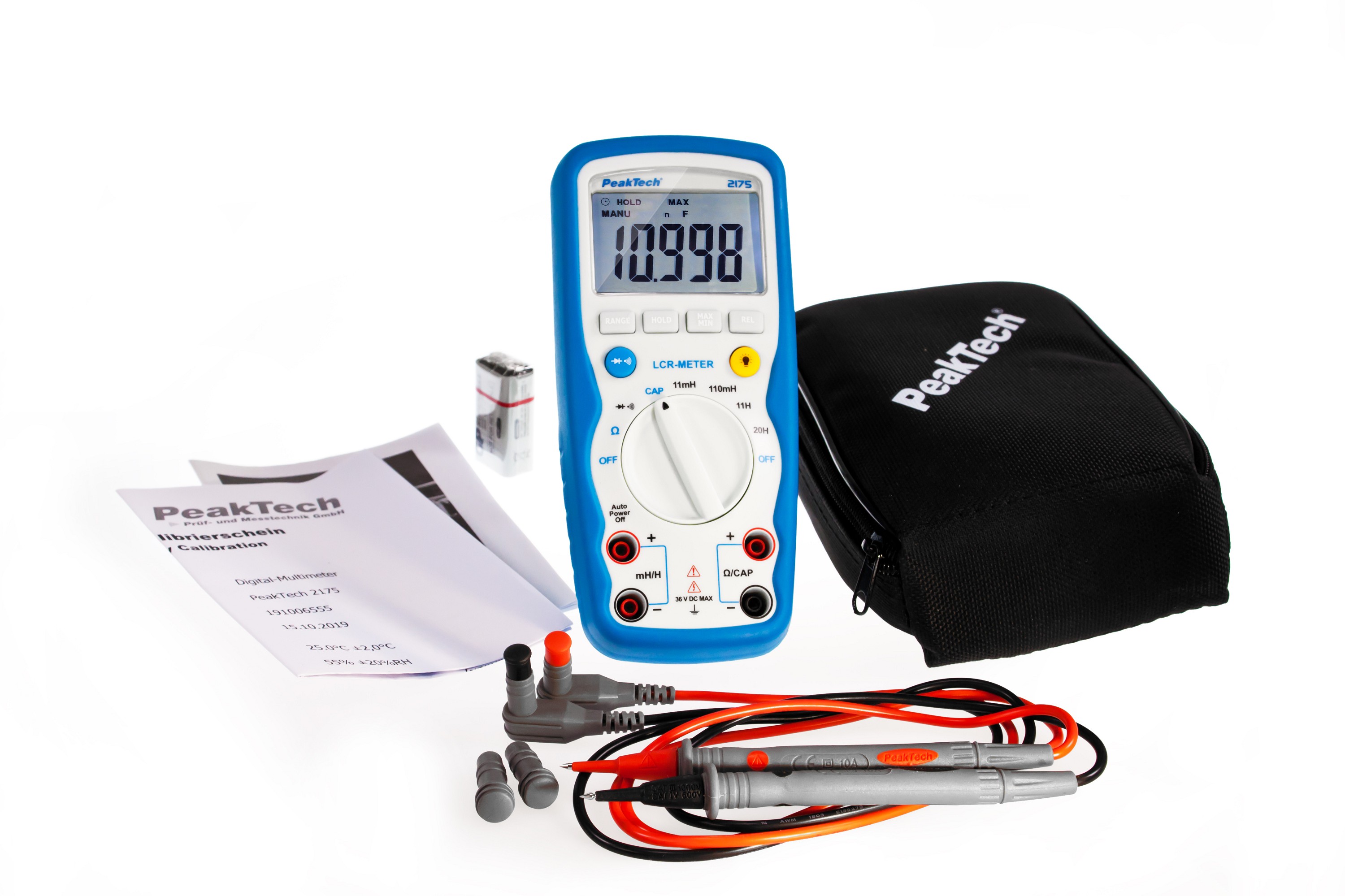

  • Accessories: test leads, bag, battery and manual
