«PeakTech® P 2510» Energy Meter with 0,1 W resolution

PDF Datasheet
Product number: P 2510
EAN: 4250569400469
Product information "«PeakTech® P 2510» Energy Meter with 0,1 W resolution"

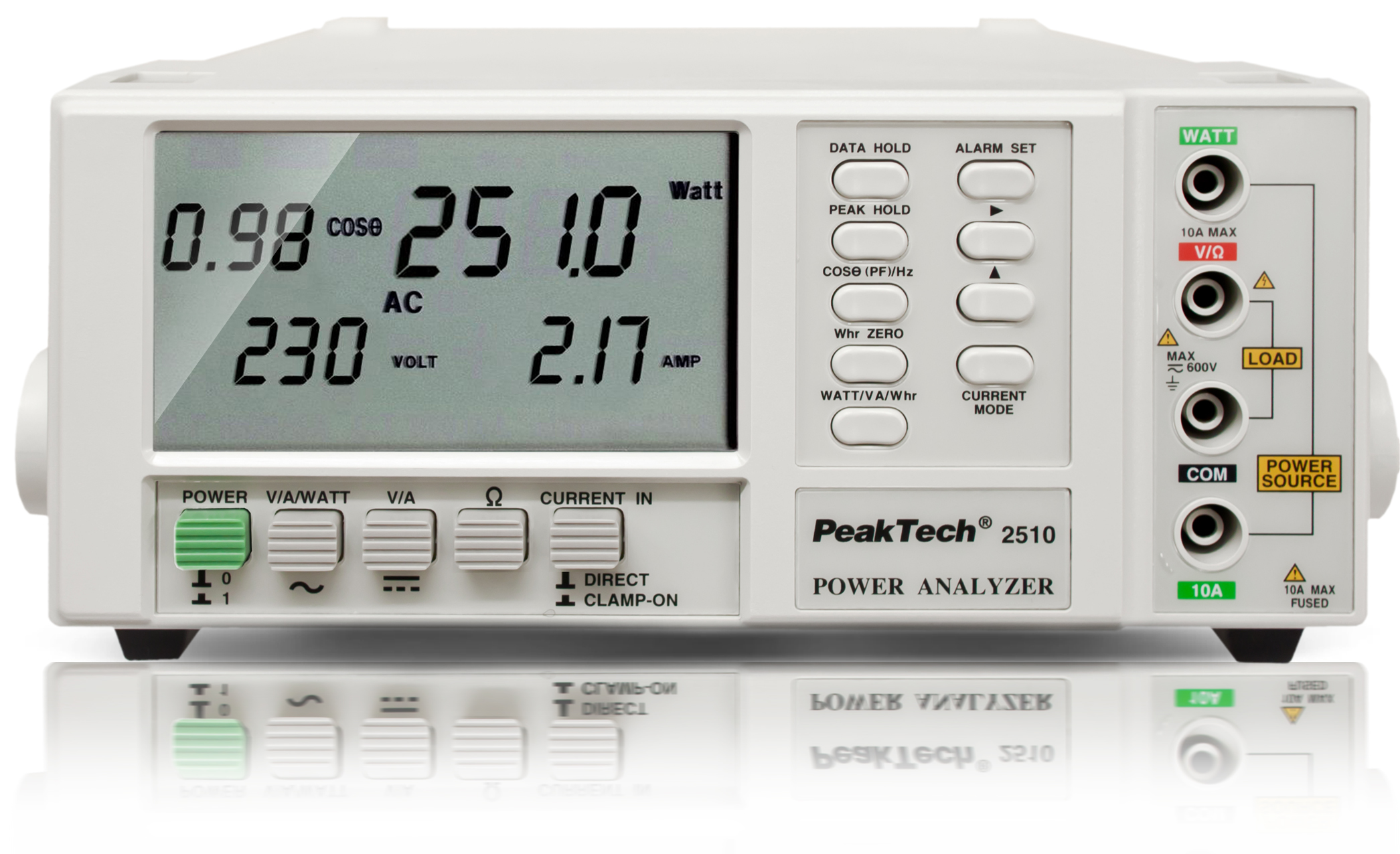

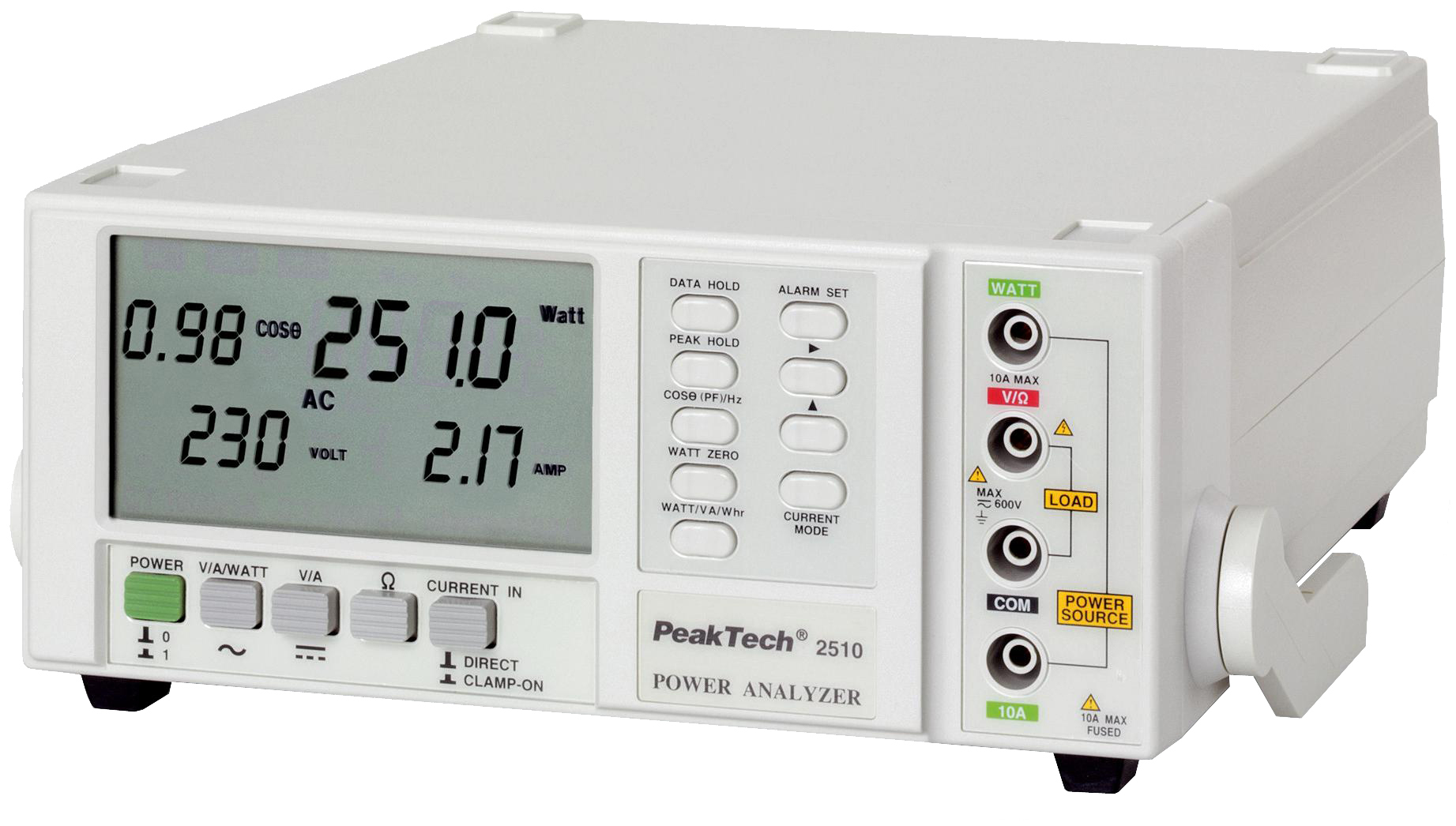

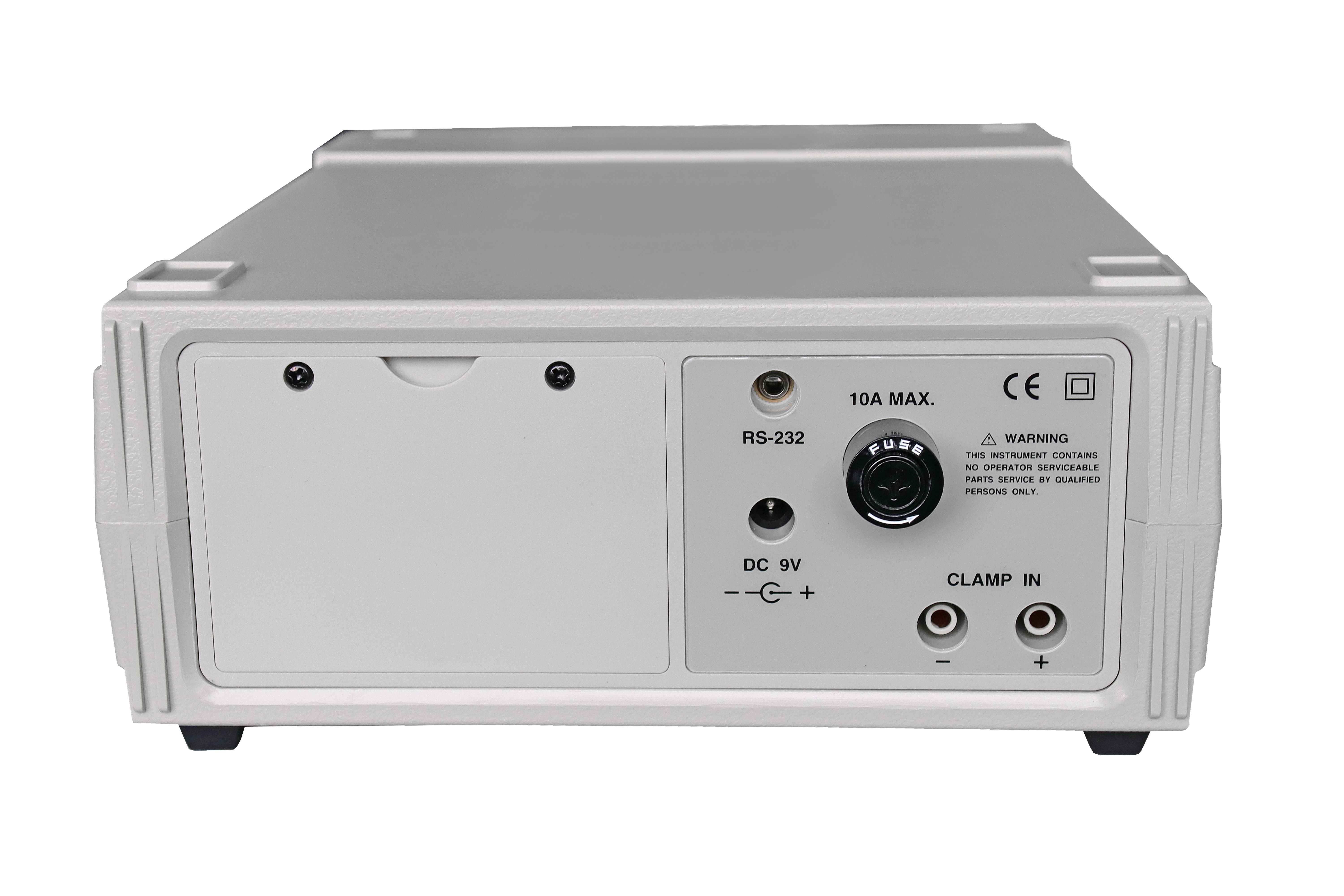

The PeakTech 2510 is a power analyzer with a large LCD display. Measured power can be recorded with the analyzer, but it is also possible to record and display various voltages, currents, power factors and many other variables. Several electrical variables are attracted during a measurement, so it is possible to show the power and the cos φ at the same time. The PeakTech 2510 has an RS-232 interface, whereby the measured data can be transmitted and read out. These and some other functions make the power analyzer the perfect addition to any laboratory.
Display Type: LCD
Over voltage category: CAT II 600 V
Power factor: 0,01 ... 1,00
Power max.: 1000 kw (transducer), 6000 W (direct)
V DC max.: 600V
Wat hours max.: 10000 kWh
A AC max.: 10 A (direkt), 1000 A (Stromwandler)
Hz max.: 1 kHz
OHM max.: 20 kΩ
V AC max.: 600 V
A DC max.: 10A (Direct), 1000A (Transducer)
  • 0.1 watt resolution for high measurement accuracy
  • Current measurement through direct probe connection through inductive clamping or via current transformers
  • Automatic range selection
  • Measured value and peak value hold function
  • Alarm function when the limit values ​​for Hi / Lo are exceeded
  • Operation of the device either on batteries or via AC / DC adapter
  • Safety: EN 61010-1; CAT II 600 V
  • Accessories: software for Windows, RS-232C interface cable, test cable, batteries and manual

Ersatzsicherungen / Fuses:

«PeakTech® P 7719» miniature fuse ~ 10 A / 300 V ~ 6.3 x 32 mm ~ quick acting (F)
Modern device fuses with ceramic bodies offer a significantly higher level of protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user in future measurements.
