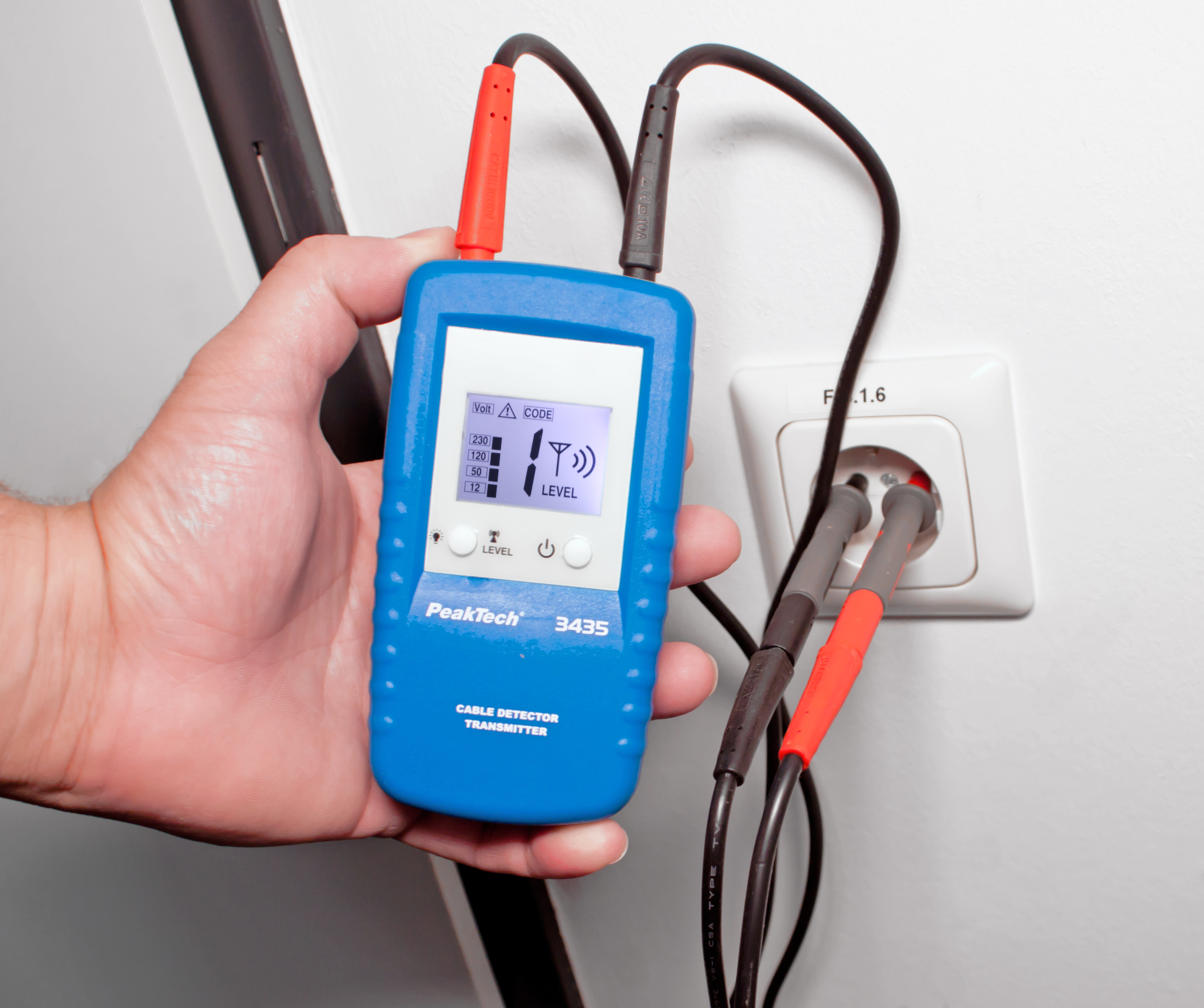

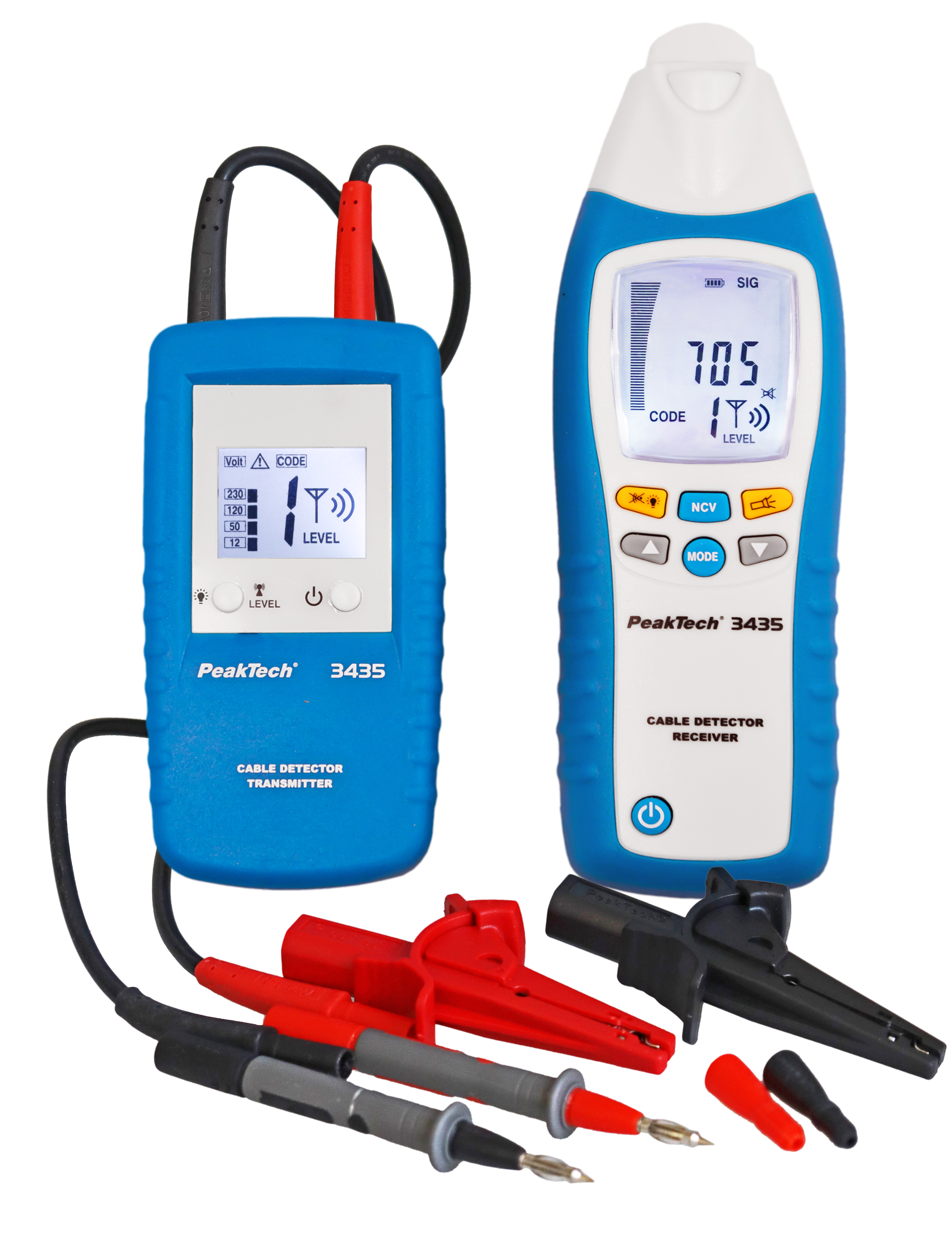

«PeakTech® P 3435» Cable detector - set, transmitter and receiver


PDF Datasheet
Product number: P 3435
EAN: 4250569402425
Product information "«PeakTech® P 3435» Cable detector - set, transmitter and receiver"

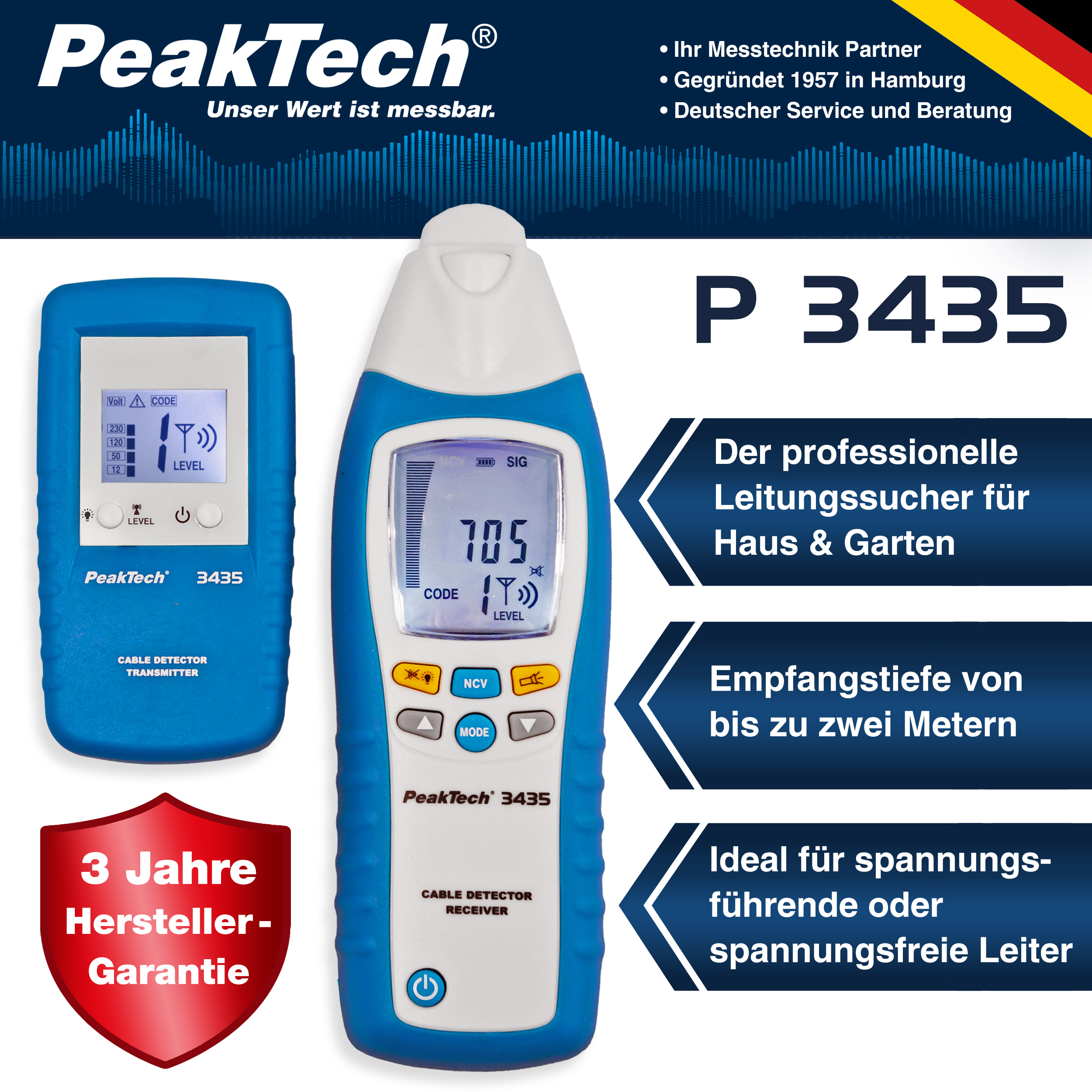

This new cable detector consisting of a transmitter and a receiver is suitable for the search of voltage-free and voltage - carrying lines, as well as line interruptions and line tracking of surface and flush-mounted lines, pipe systems and even lines in the ground. It can also be used to localize circuits in distributors and control cabinets. Thanks to the adjustable transmission channels, up to 7 transmitters can be used simultaneously, which are correctly displayed on the receiver and assigned via the channel number. The high sensitivity of the receiver also allows the tracking of conductors from a distance of up to 2 meters. These powerful features make this device ideal for complex electrical systems, pipe installations and heating systems for testing new installations and also for taking stock of old installations during renovation work.
Display Type: LCD
Live measurement:
Over voltage category: CAT III 300 V
V DC max.: 400V
Volt-free measurement:
V AC max.: 400 V
  • LCD display with backlight and bar graphics

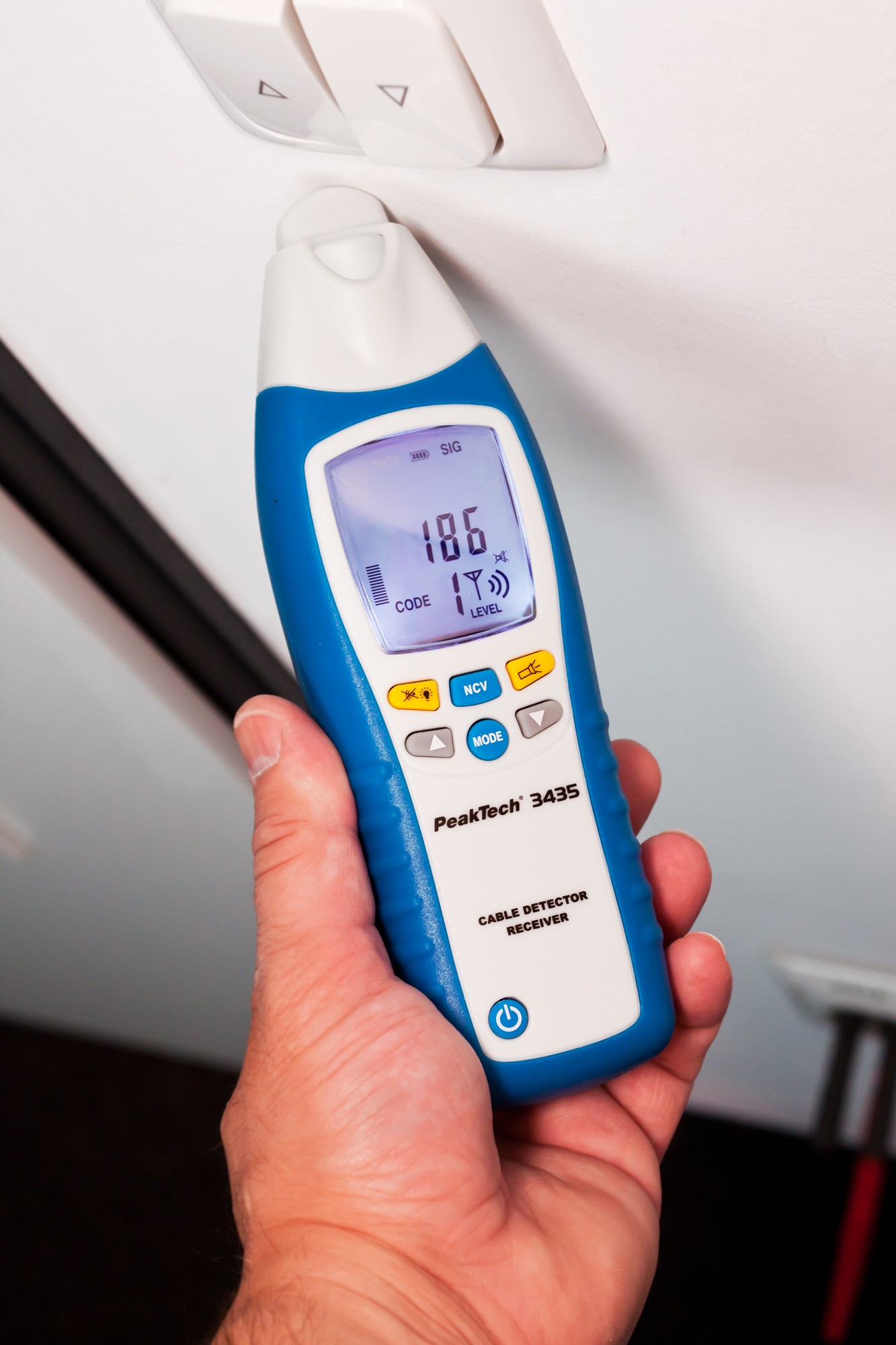

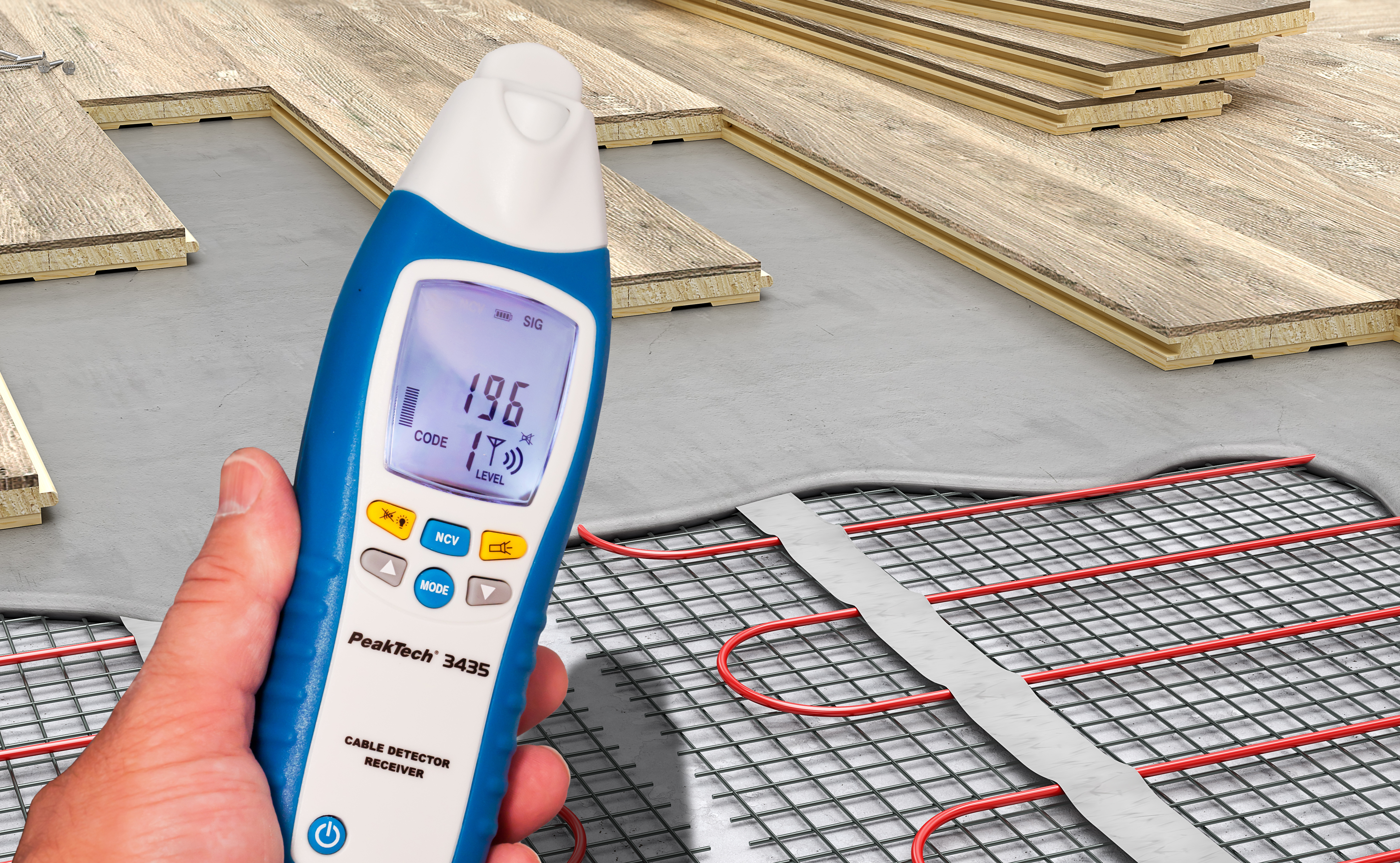

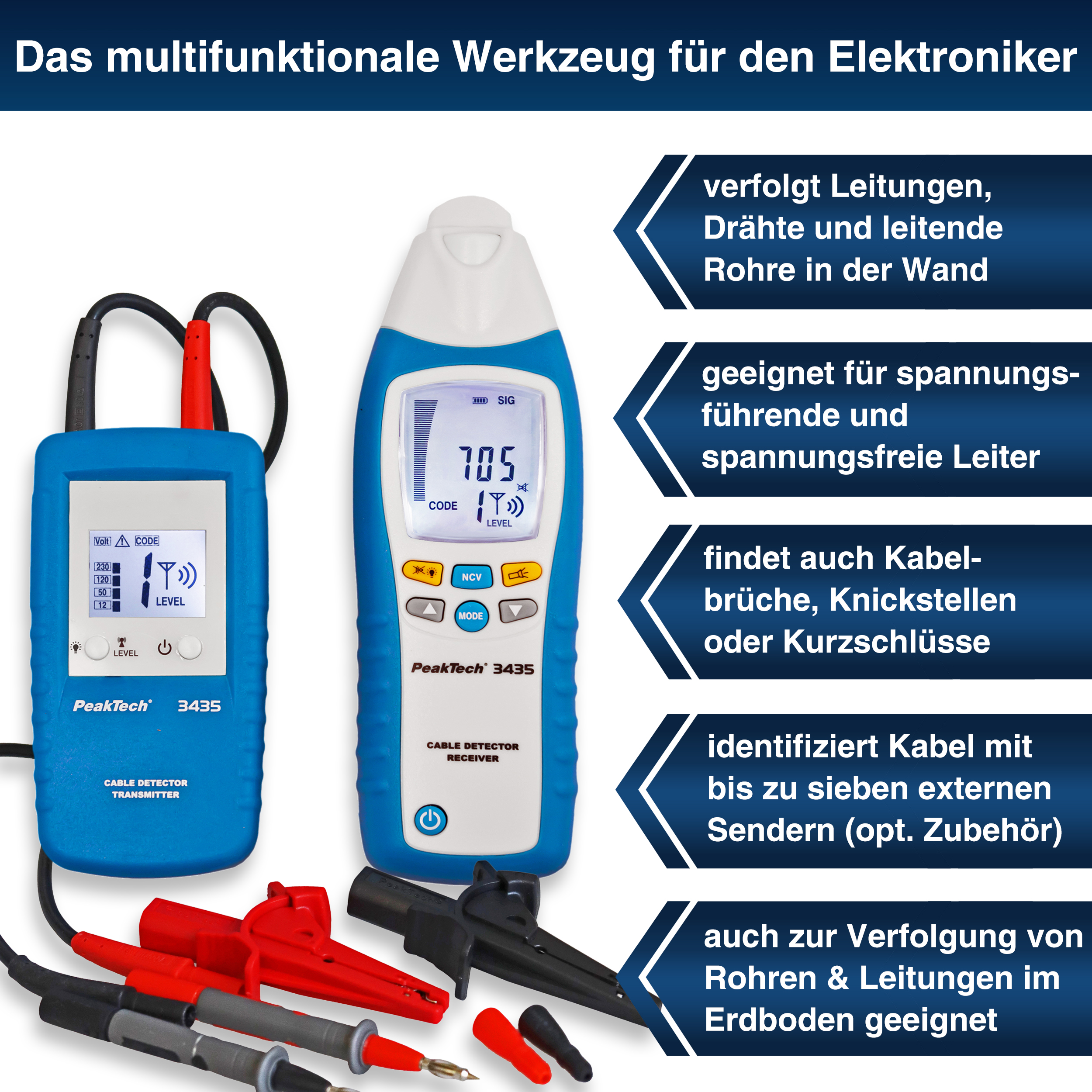

  • Tracking cables in walls, ceilings and floors

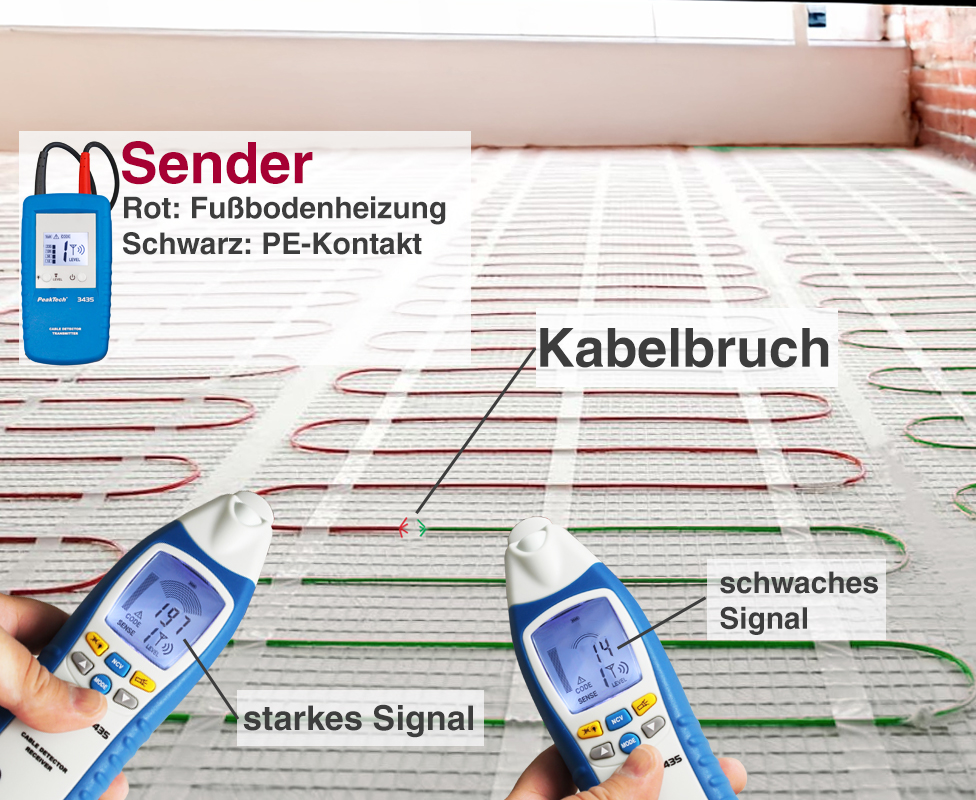

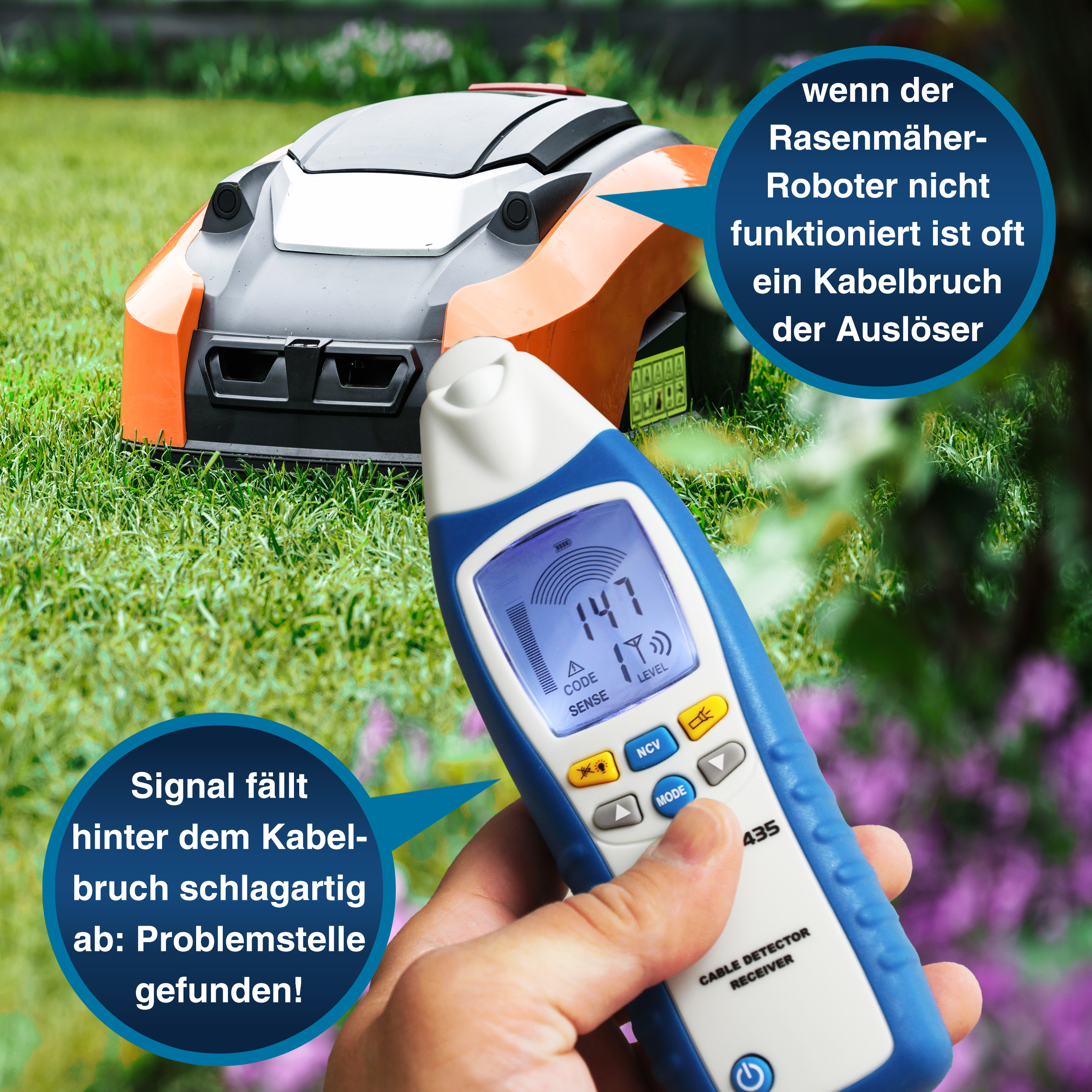

  • Finds line breaks and short circuits

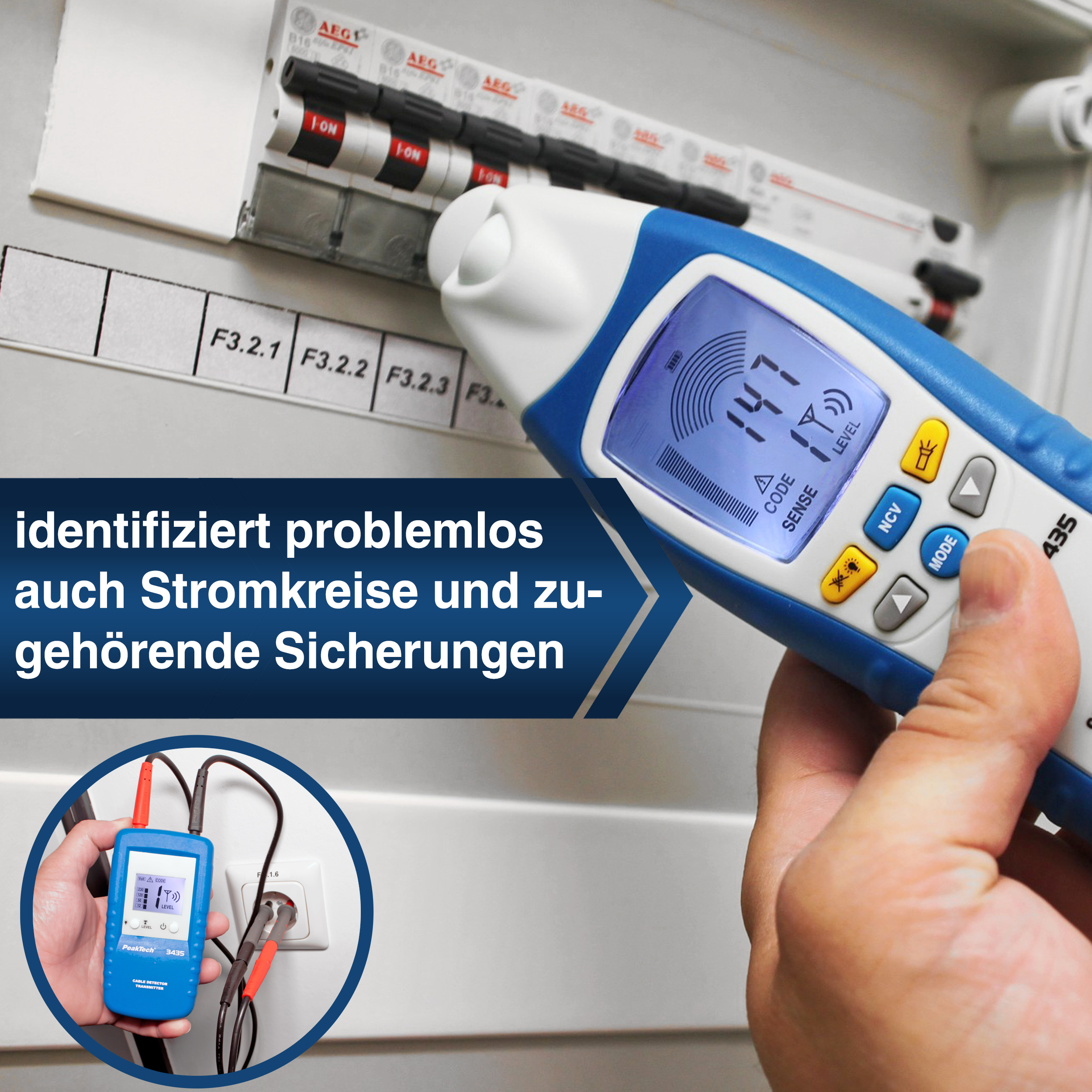

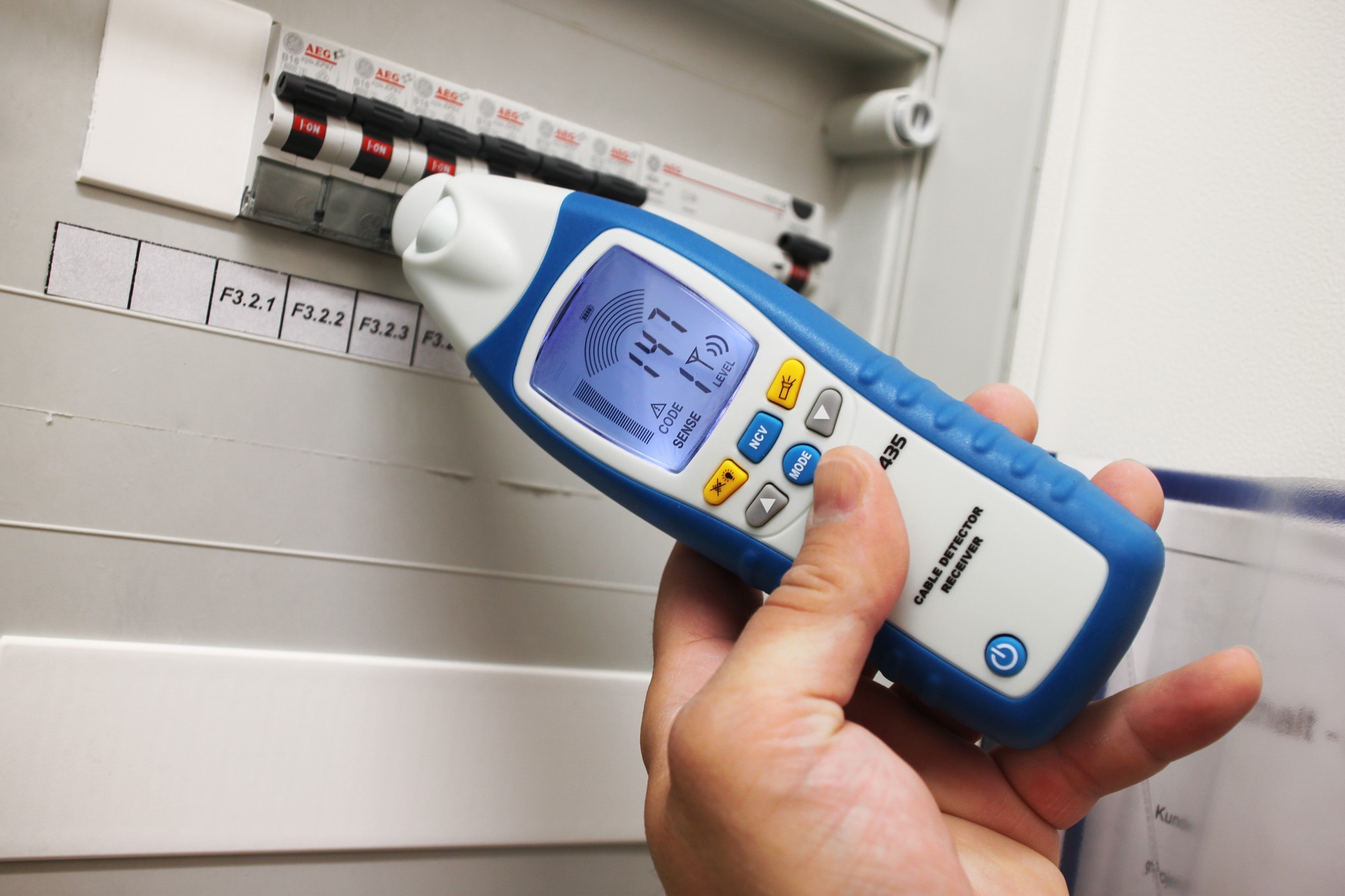

  • Assignment of switches and fuses
  • Tracking of metallic pipe systems
  • Tracking lightning protection and earthing systems
  • For tension-free and live conductors
  • Non-contact voltage tester with bar graph
  • High reception depth up to 2 meters
  • Up to 7 transmitters per receiver possible

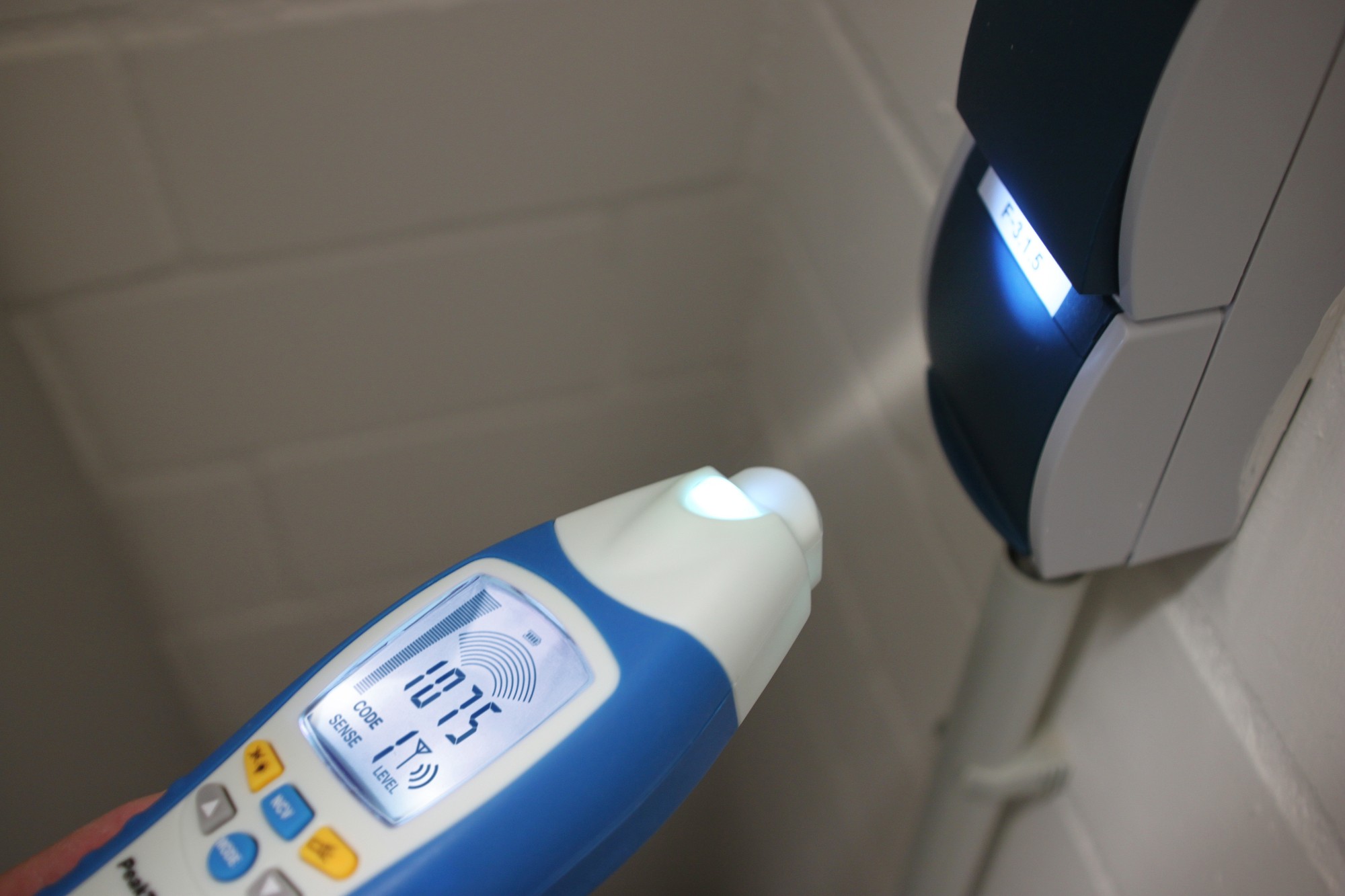

  • Ultra bright LED for measuring station lighting
  • Safety: EN 61010-1, CAT III

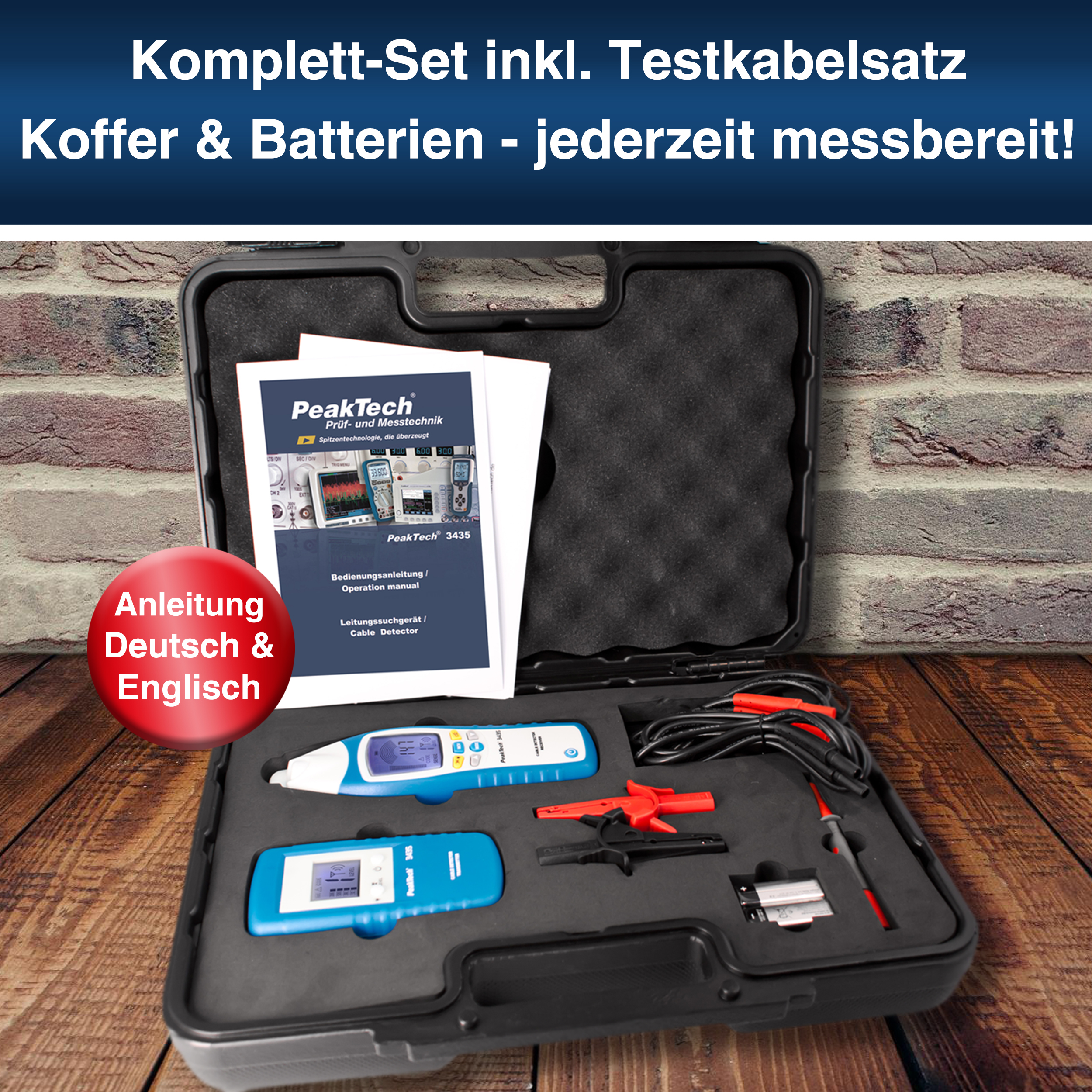

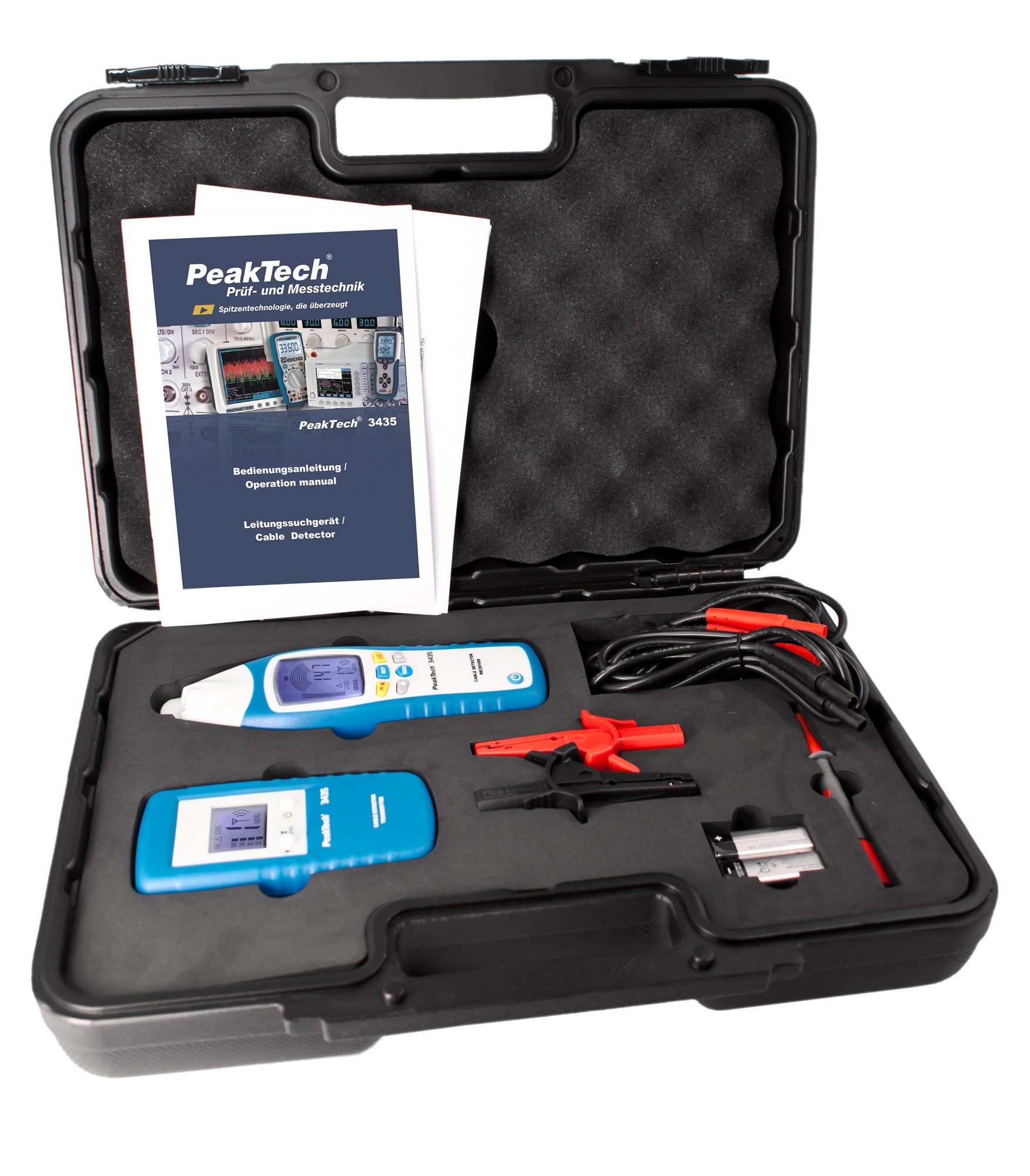

  • Accessories: case, test leads, terminals, test probes, 2 9V batteries and manual

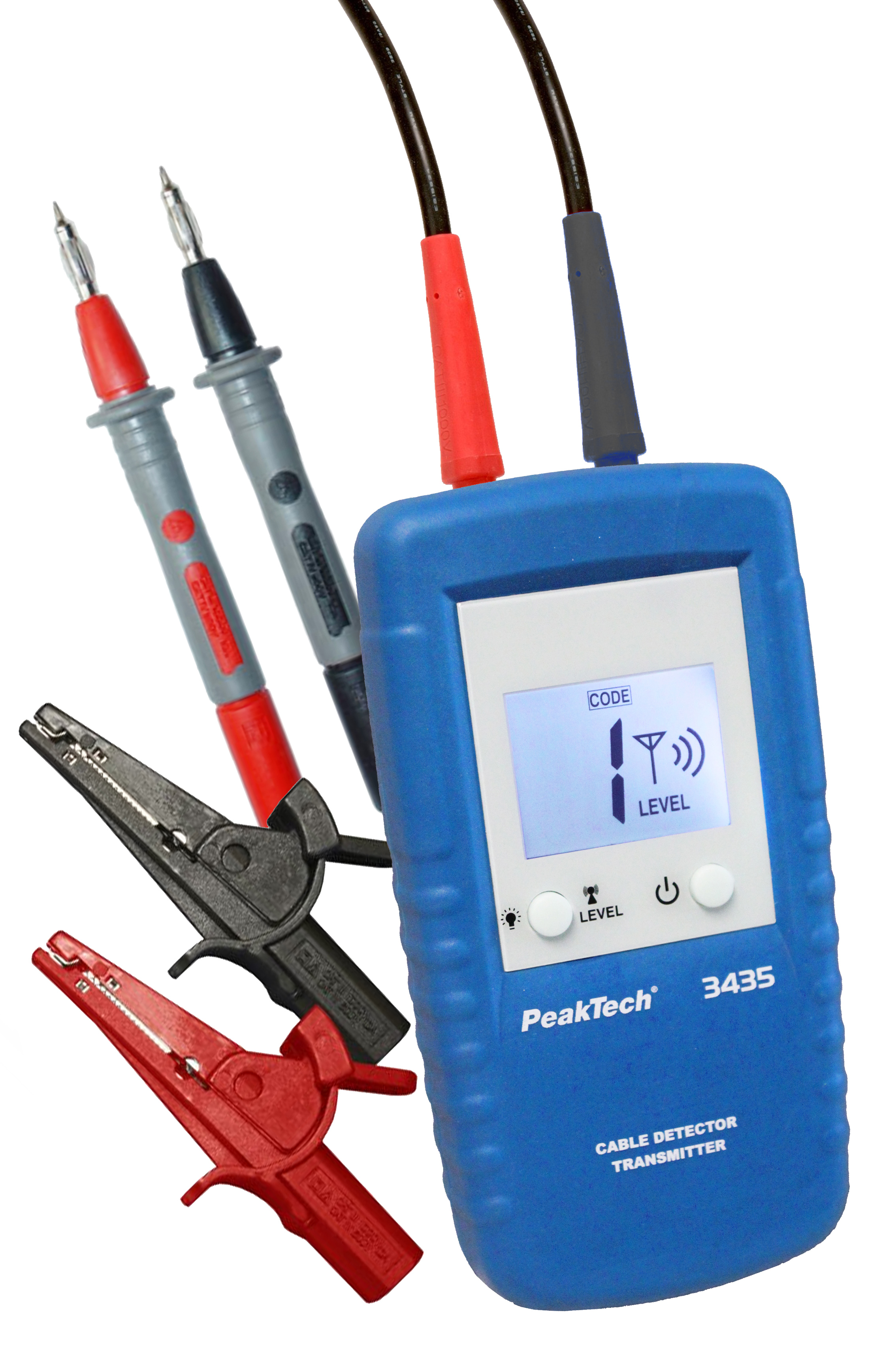

«PeakTech® P 3435 TR» additional transmitter for PeakTech 3435
Additional transmitter for the PeakTech 3435 line finder with display for mains voltage and setting for transmission channel. A maximum of 7 transmitters with their own transmission channel can be used together with a PeakTech 3435.

«PeakTech® P 7610» microfuse ~ 0.5 A / 600 V ~ 6.3 x 32 mm ~ super fast acting (FF)
Modern device fuses with ceramic bodies offer a significantly higher level of protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user in future measurements.
