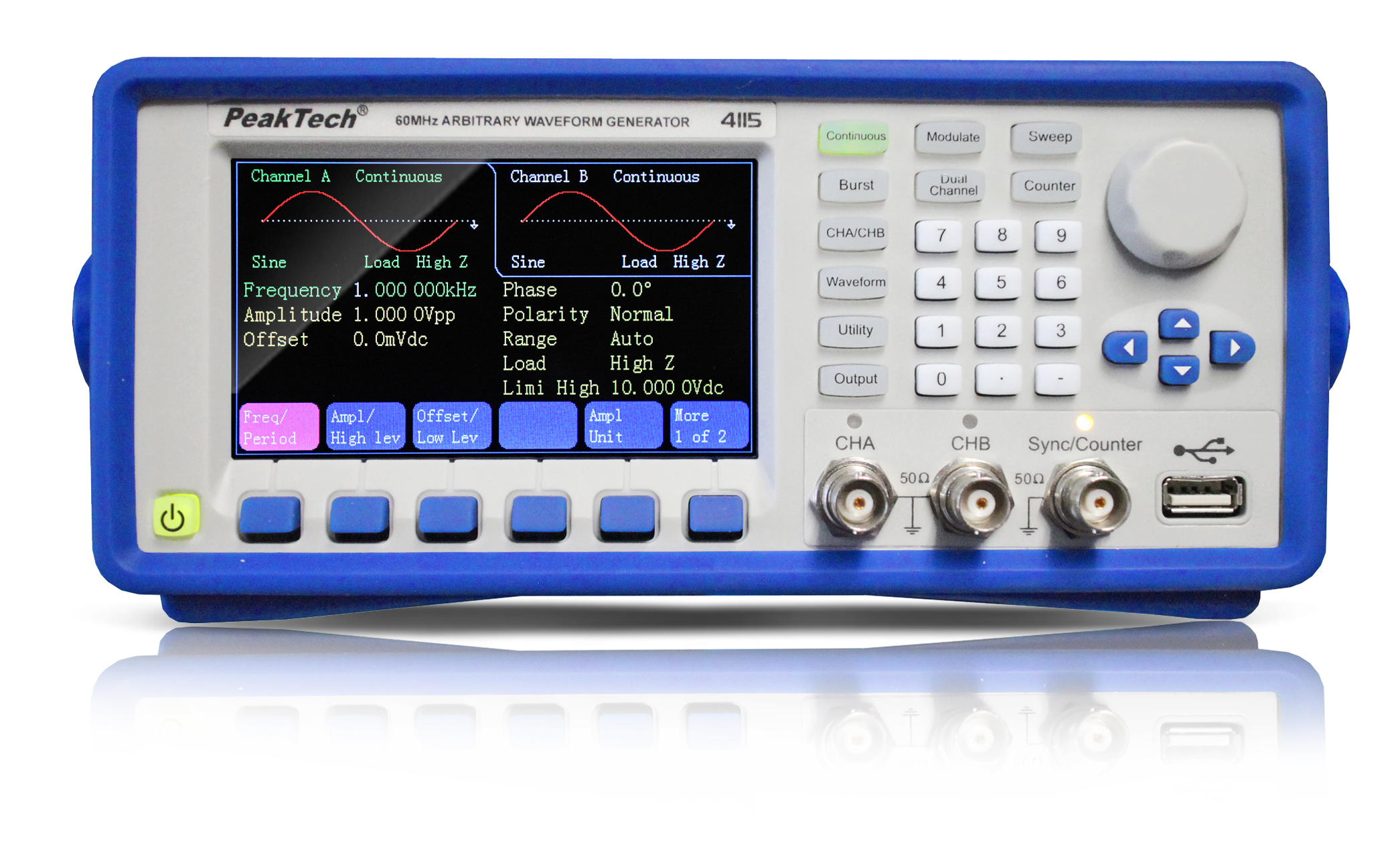

«PeakTech® P 4115» 2CH arbitrary function generator, 1 µHz - 60 MHz


PDF Datasheet
Product number: P 4115
EAN: 4250569402463
Product information "«PeakTech® P 4115» 2CH arbitrary function generator, 1 µHz - 60 MHz"
This high quality arbitrary waveform generator has excellent technical properties and a variety of functions. The two equivalent output channels, the large number of arbitrary waveforms stored and the different types of modulation are particularly noteworthy. It is also possible to couple the waveform generator to the computer and the enclosed software. This enables the possibility to change the various waveforms, but also the types of modulation as you wish. Due to the many options and opportunities which are provided by the PeakTech 4115, this device is perfect for almost all tasks in research, development and training.
Amplitude: 0 - 20 Vpp
Bandwidth: 60 MHz
Channels: 2 CH
Display Type: Color-TFT
Freq. resolution: 1 µHz
Modulation: AM, BPSK, FM, FSK, PM, PSK, PWM, SUM
Power amplifier:
Sampling Rate: 150 MS/s
Sine: 1 µHz - 60 MHz
Square: 1 µHz - 10 MHz
Ramp: 1 µHz - 5 MHz
Pulse: 1 µHz - 10 MHz
Arbitrary: 1 µHz - 5 MHz
  • Large 11cm (4.3 “) TFT digital display
  • 1uHz frequency resolution for the entire bandwidth
  • 150 MSa / s sampling rate at 14 bit vertical resolution
  • 5 standard waveforms (sine, rectangle, triangle etc.)
  • 50 pre-installed arbitrary waveforms
  • 5 custom waveforms, changeable by software
  • 9 types of modulation (AM, FM, PSK, FSK, PM, PWM, SUM, BPSK)
  • Channel coupling, sweep and burst function
  • Integrated 350 MHz frequency counter and 8 W power amplifier
  • Remote control and waveform editing by software
  • Safety: EN 61010-1; CAT II
  • Accessories: power cord, USB interface cable, software for Windows, BNC cable, user manual on CD
