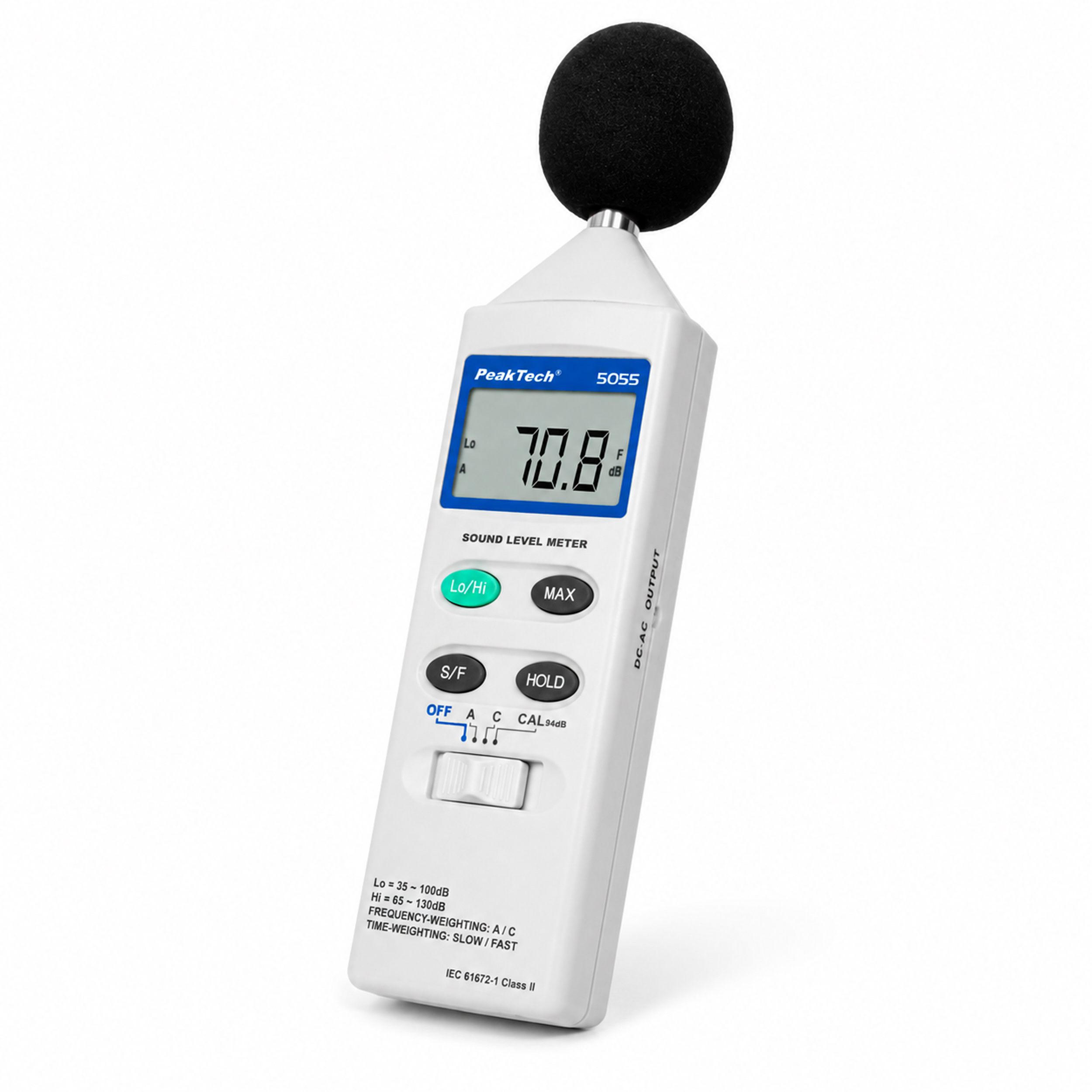

«PeakTech® P 5055» Digital Sound Level Meter, 3 1/2-digit

PDF Datasheet
Product number: P 5055
EAN: 4250569401251
Product information "«PeakTech® P 5055» Digital Sound Level Meter, 3 1/2-digit"

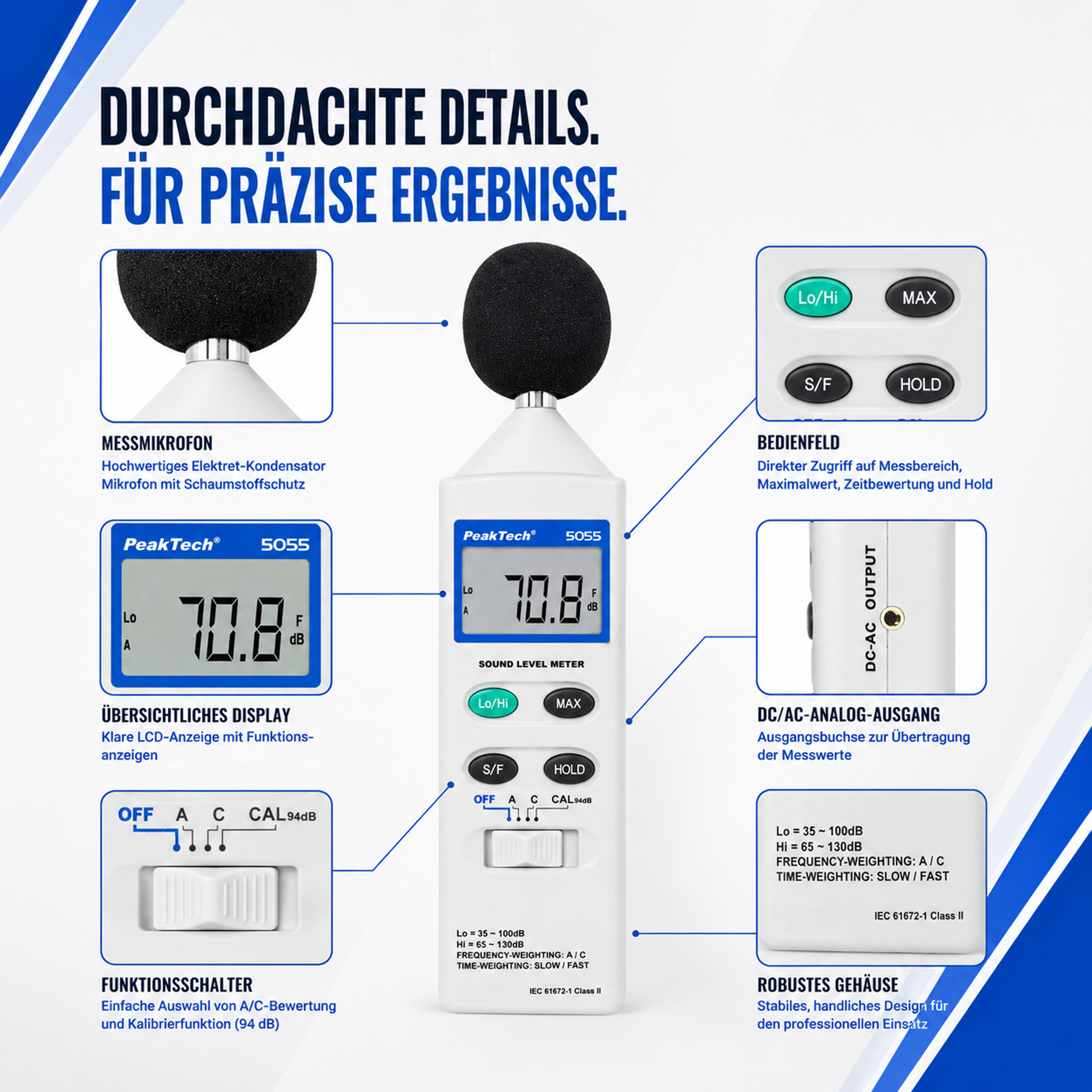

This digital sound level meter with 3 ½-digit 17 mm LCD display and function symbols offers manual range selection in 2 measuring ranges from 35 ... 100 dB and 65 ... 130 dB with a resolution of 0.1 dB. The fast / slow switching as well as the measured value and maximum value holding function and the internal circuit for checking the calibration (94 dB) emphasize the versatility of this device.
Display Type: LCD
Freq. range: 31,5 Hz ... 8 kHz
Sound level: 35 ... 130 dB

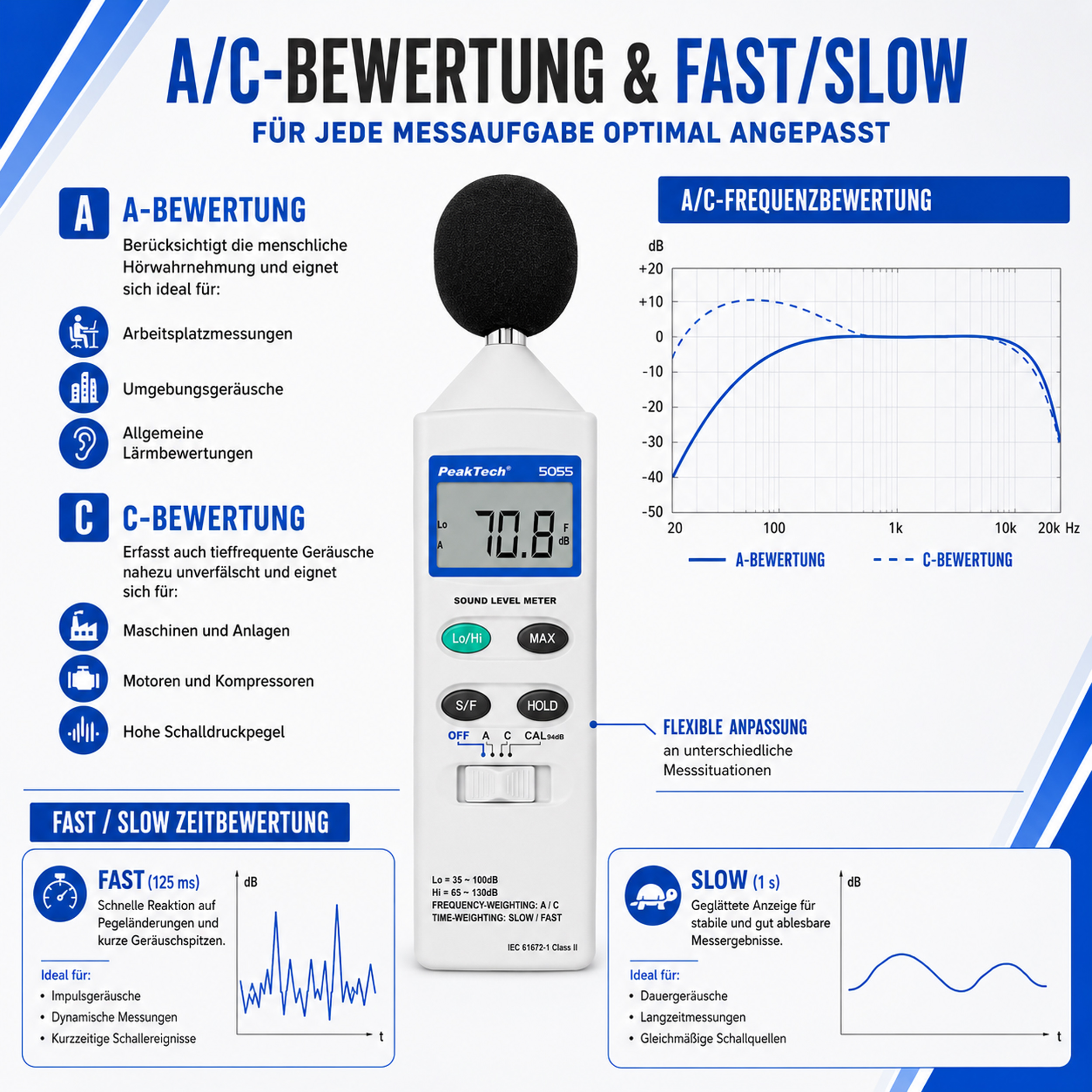

Weighting: A, C

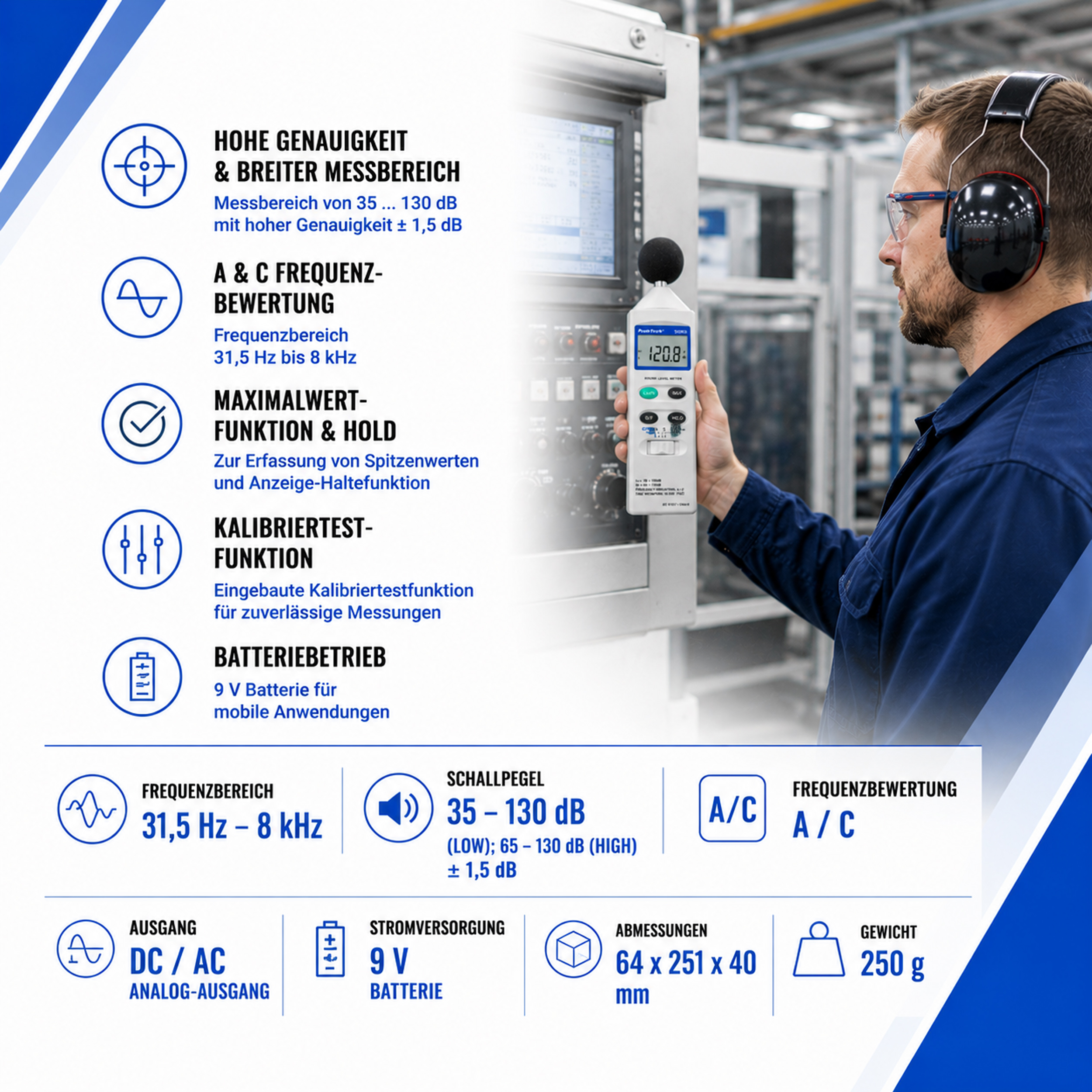

  • High accuracy and wide measuring range
  • DC / AC analog output
  • Maximum value function
  • Built-in calibration test function
  • A and C rating
  • Safety: IEC-61672-1/-2; DIN EN 61672-1:2003-10; DIN EN 61672-2:2004-08
  • Accessories: carrying case, battery and manual
