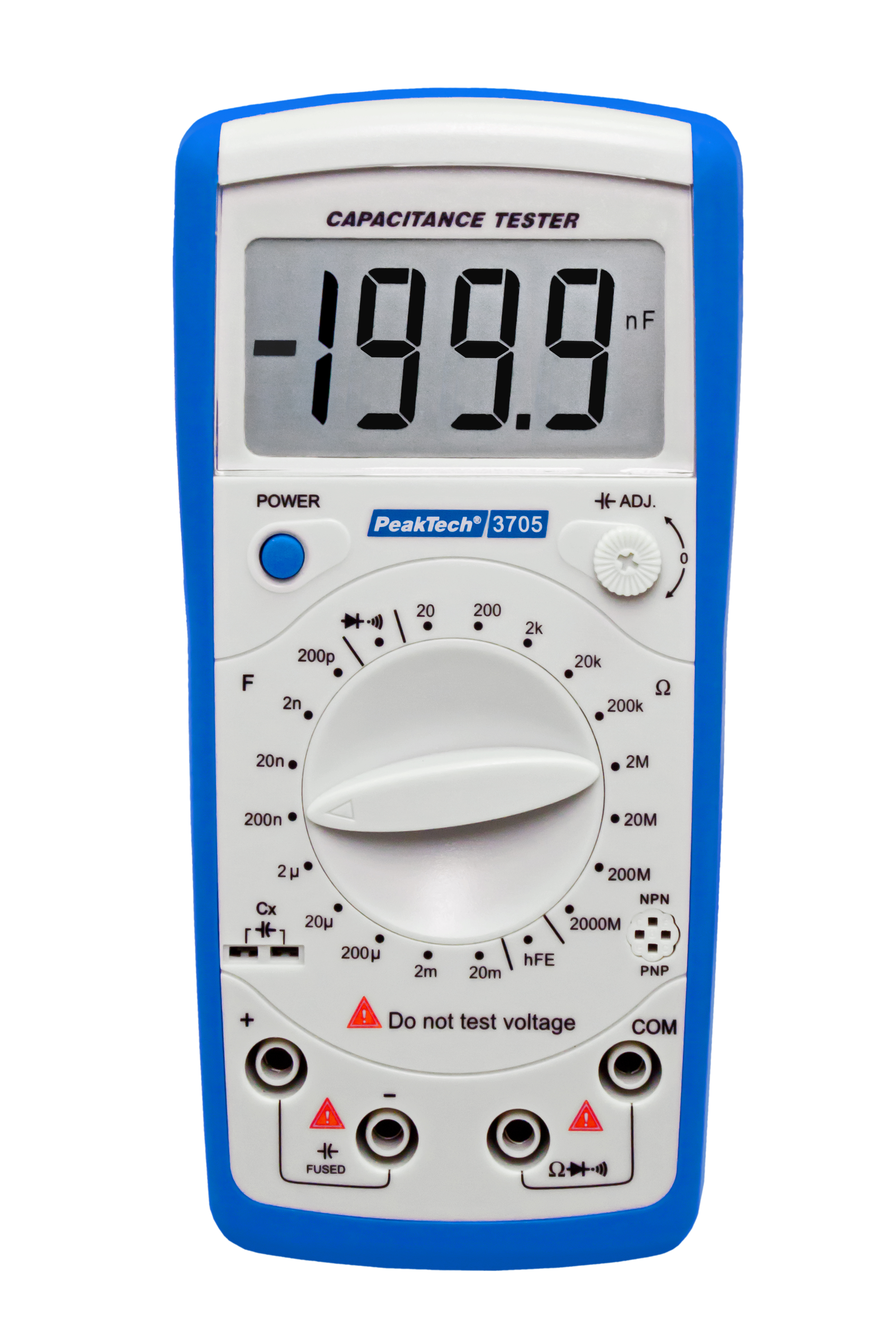

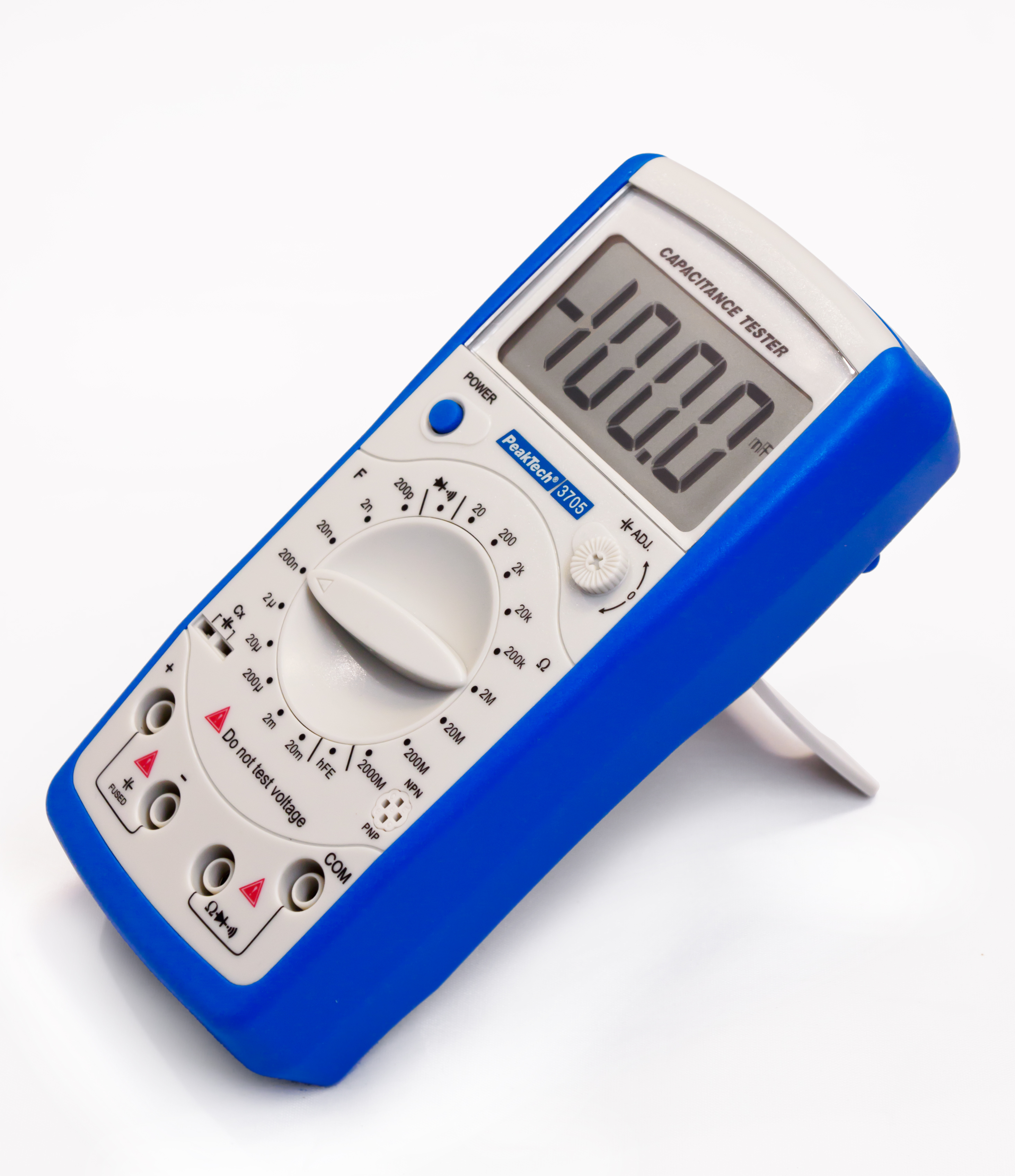

«PeakTech® P 3705» Digital capacitance meter


PDF Datasheet
Product number: P 3705
EAN: 4250569400957
Product information "«PeakTech® P 3705» Digital capacitance meter"

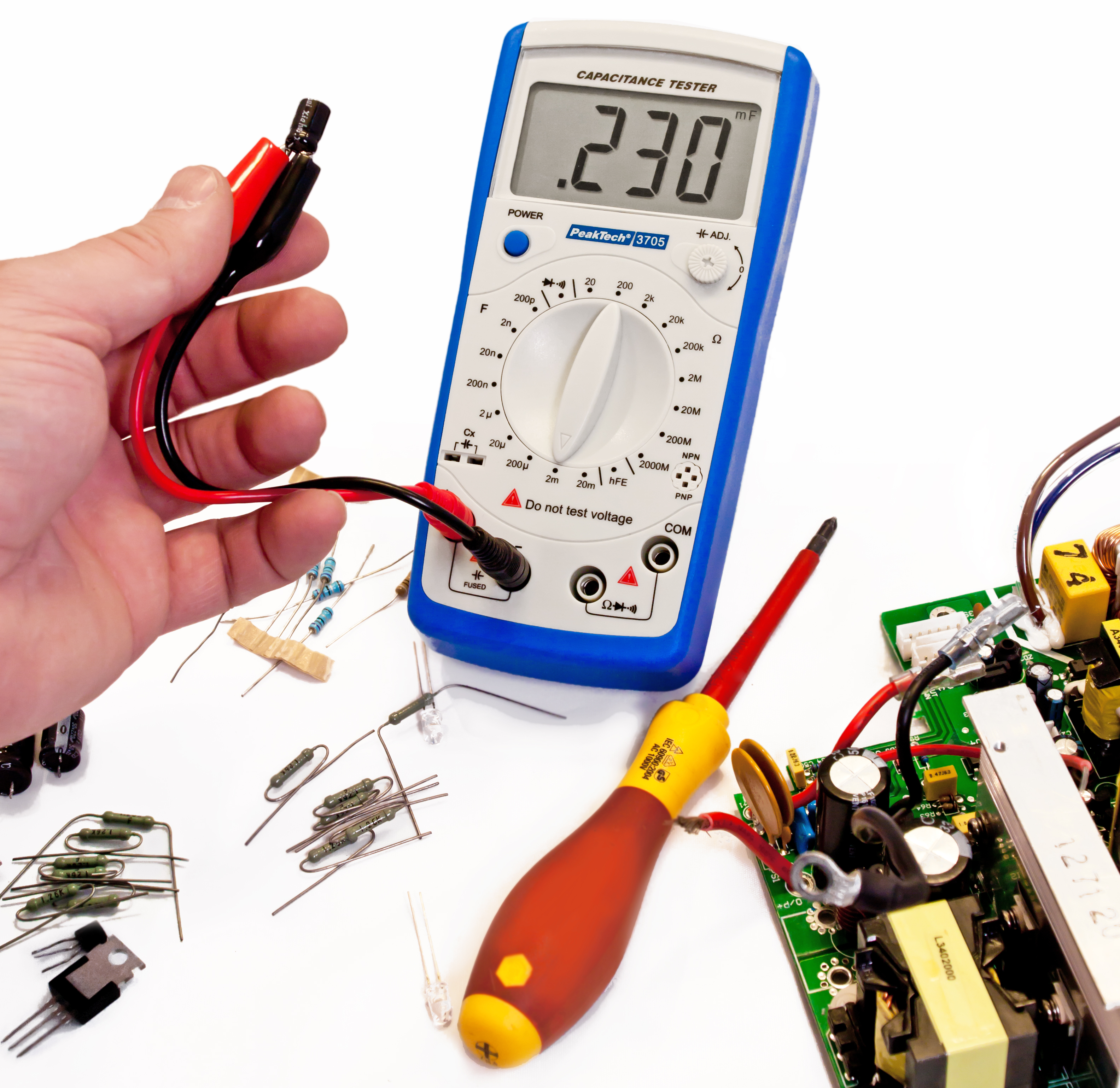

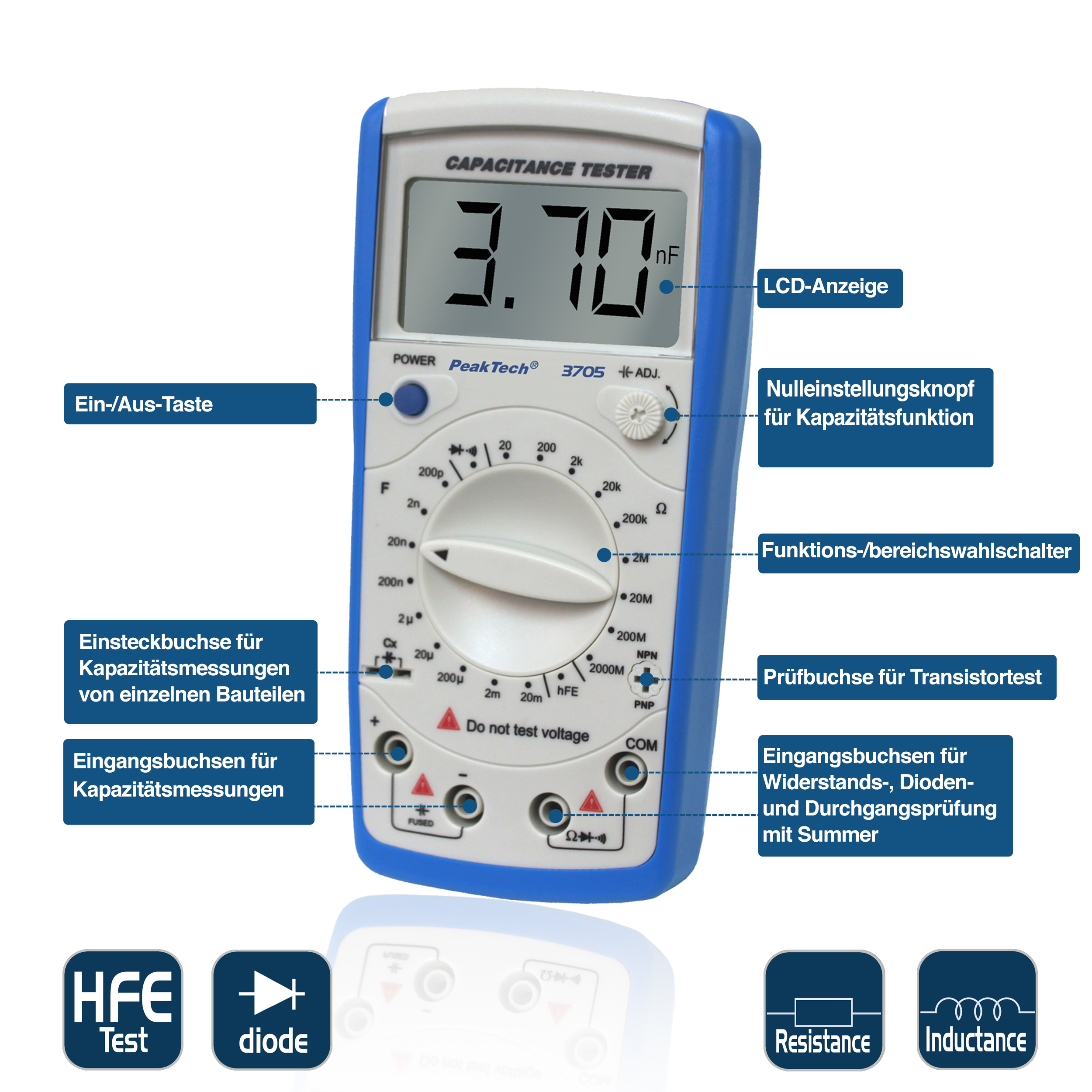

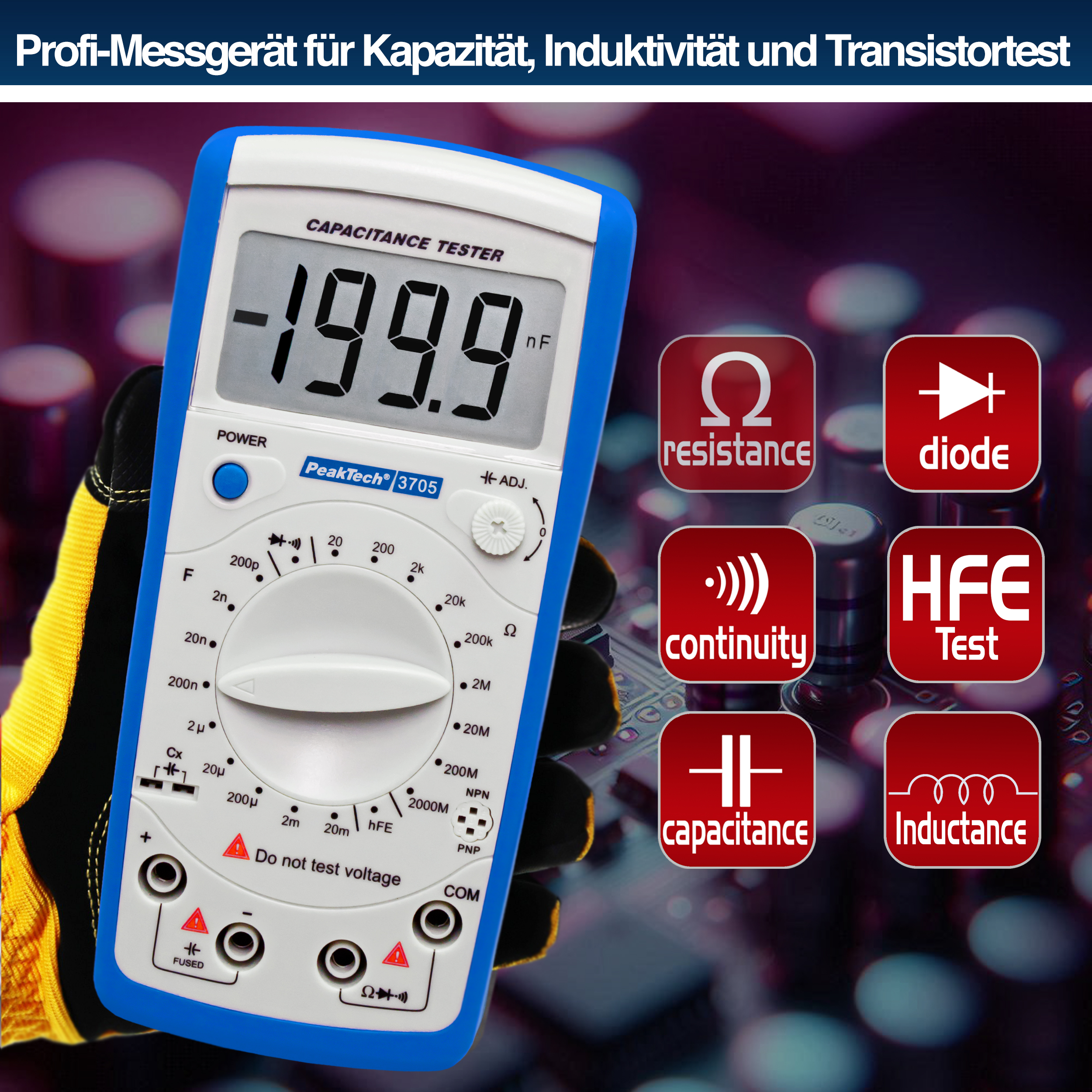

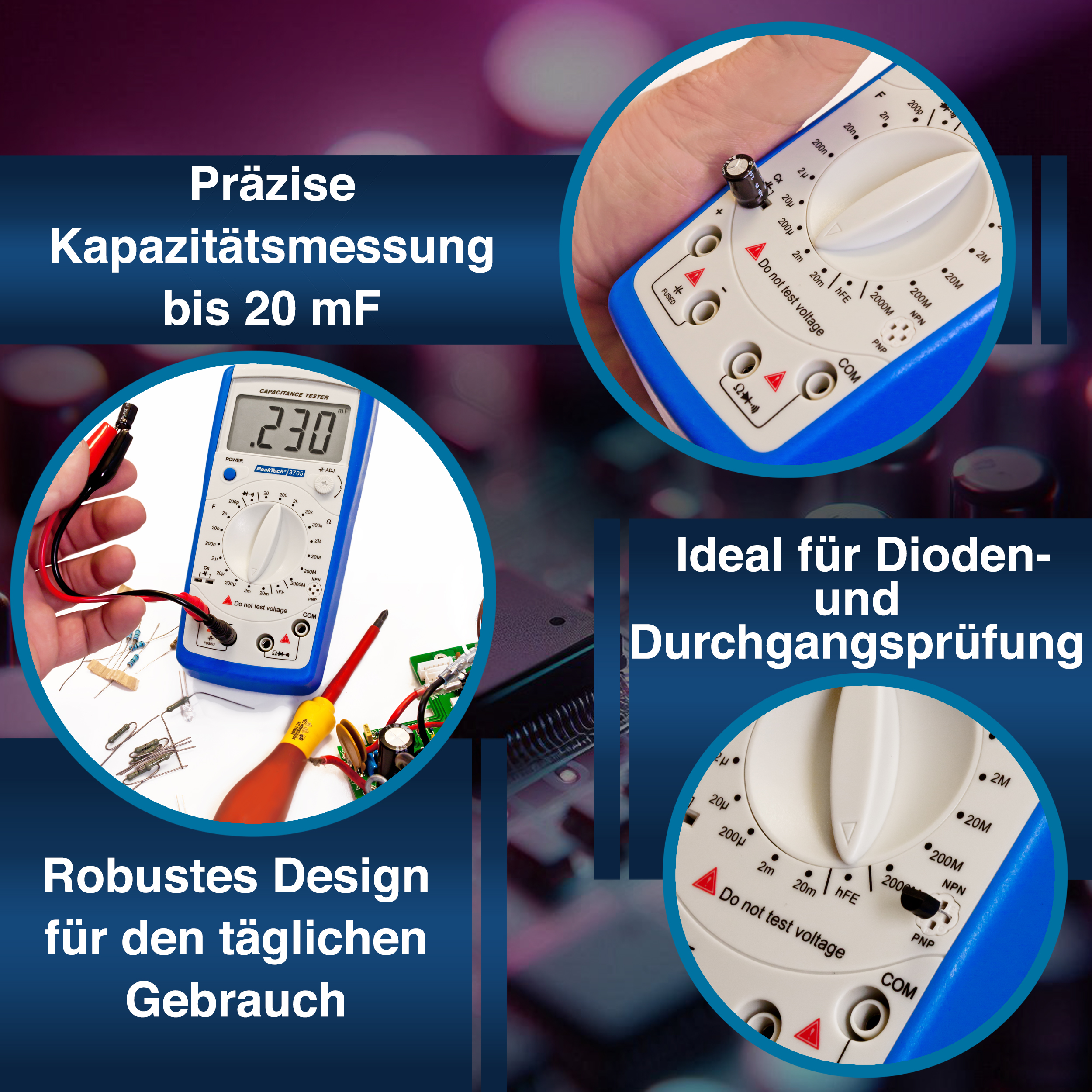

This digital capacitance meter is a reliable hand-held measuring device with a 3 1/2 digit display. To carry out the measurements of capacitance and resistance are the main functions of the PeakTech 3705. Due to the high accuracy of the respective measured quantities, it is possible to determine any capacitance and resistance values ​​with high precision. It is also able to perform diode, continuity and transistor tests. With the rotary switch, which is integrated in the front, the zero point is set before the capacity test in order to obtain precise measurement results. The PeakTech 3705 is the ideal companion for any measurements in areas where the determination of resistance values ​​and capacitors is required.
Capacitance max.: 20 mF
Digital counts: 2.000
Display Type: LCD
LCR functions: C, R
Range selection: Manual
Test freq.: Non-selectable
OHM max.: 2000 MΩ
  • Diode and continuity test

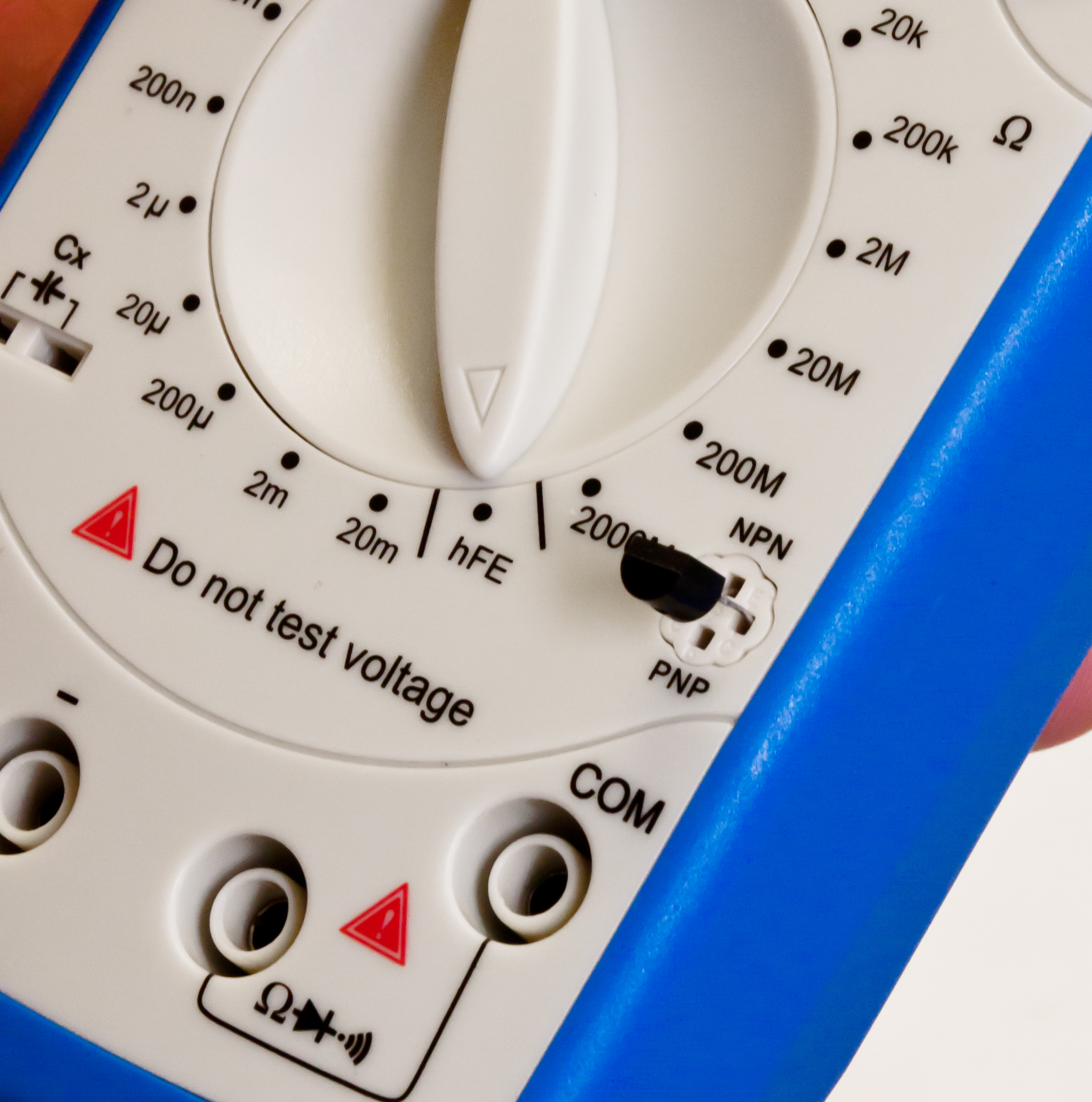

  • hFE test
  • High accuracy when measuring capacitance and resistance
  • Safety: EN 61010-1; CAT II

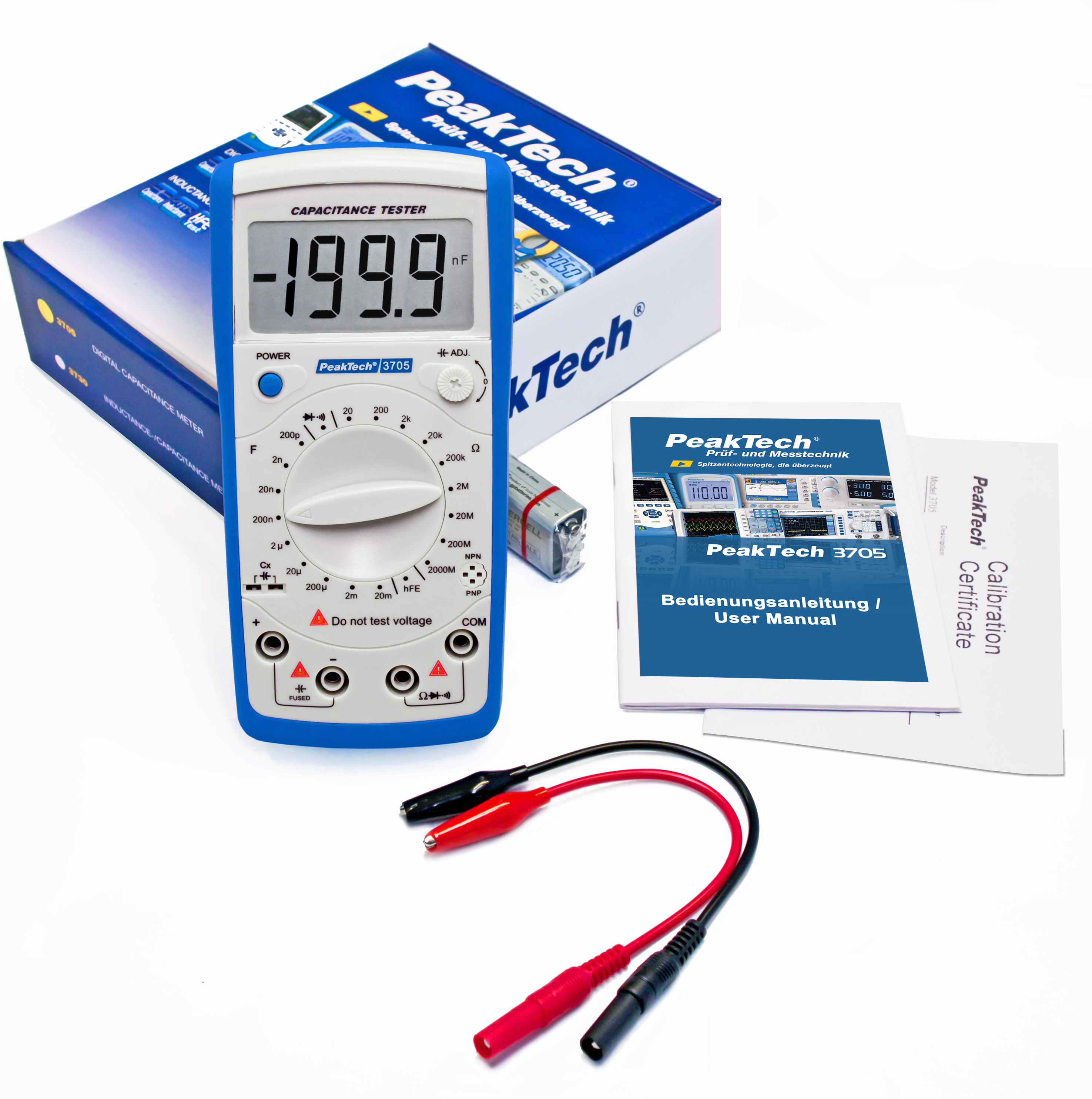

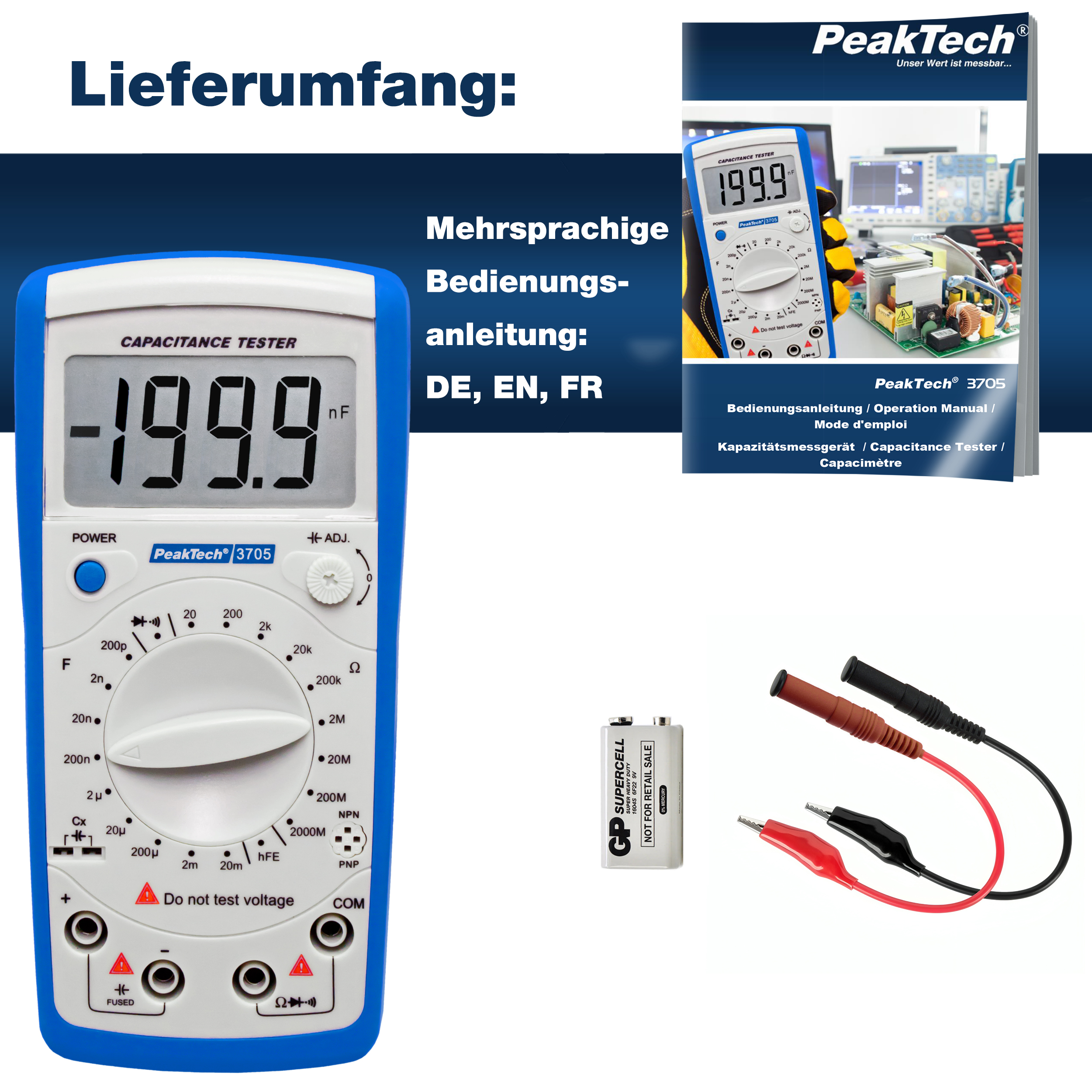

  • Accessories: holster, test leads, battery, instruction manual
