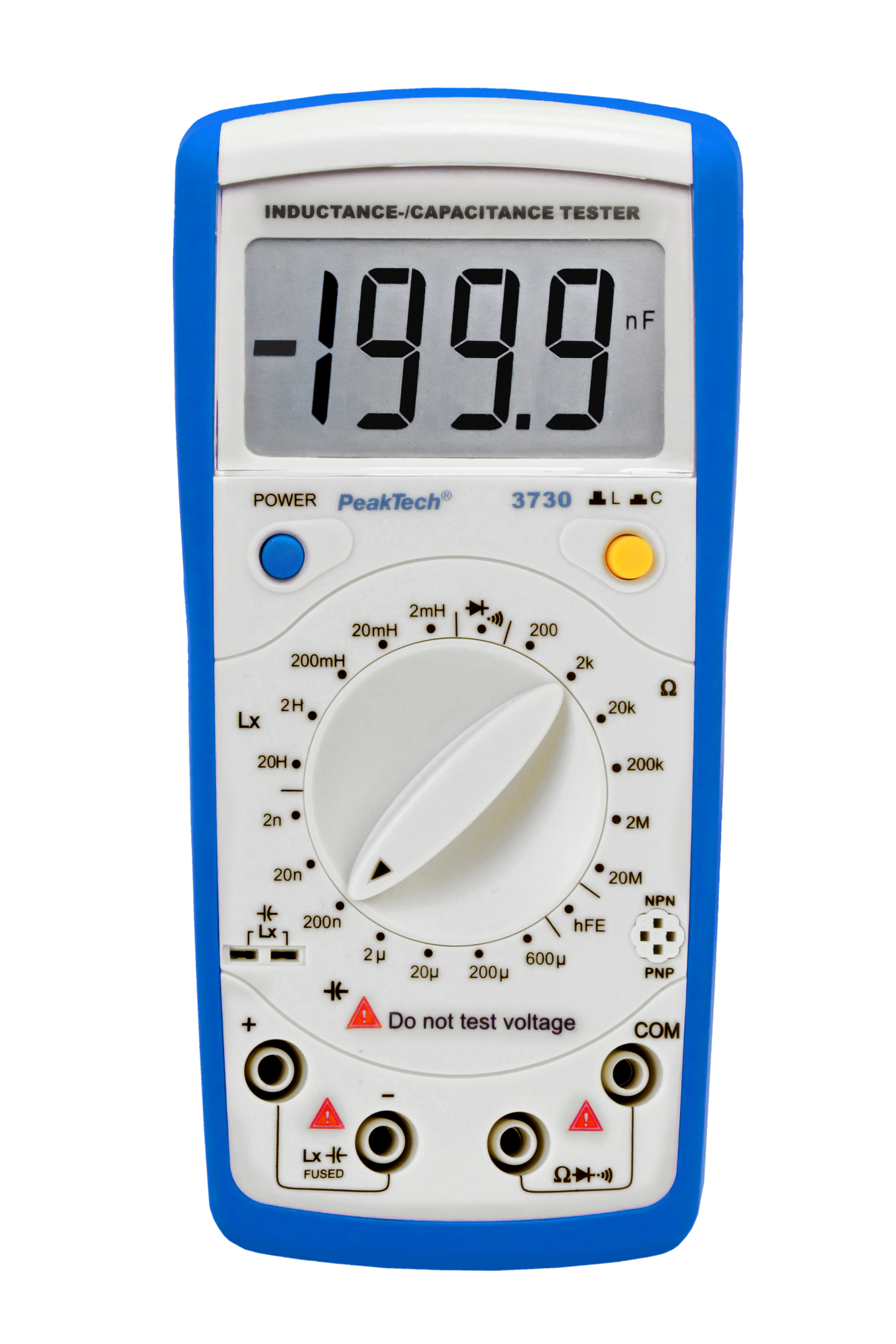

«PeakTech® P 3730» Inductance / capacitance meter

PDF Datasheet
Product number: P 3730
EAN: 4250569400988
Product information "«PeakTech® P 3730» Inductance / capacitance meter"
The PeakTech 3730 is suitable for testing capacitors in the range 2 nF to 200 µF, coils from 2 mH to 20 H and resistors from 200 Ω to 20 MΩ. The 3 ½ digit, 21 mm LCD display (max 1999) enables the user to read the values ​​quickly and precisely. Furthermore, this combination device also has a diode test, continuity test and transistor test function. The capacitors to be measured can be plugged directly into the terminal socket or with the test leads which are provided.
Capacitance max.: 200 µF
Digital counts: 2.000
Display Type: LCD
Inductance max.: 20 H
LCR functions: C, L, R
Range selection: Manual
Test freq.: Non-selectable
hFE:
OHM max.: 20 MΩ
  • hFE test
  • Diode and continuity test
  • Battery status indicator
  • Accessories: holster, test leads, battery and manual
