«PeakTech® P 8005» Professional Sound Level Meter with Datalogger
Product information "«PeakTech® P 8005» Professional Sound Level Meter with Datalogger"

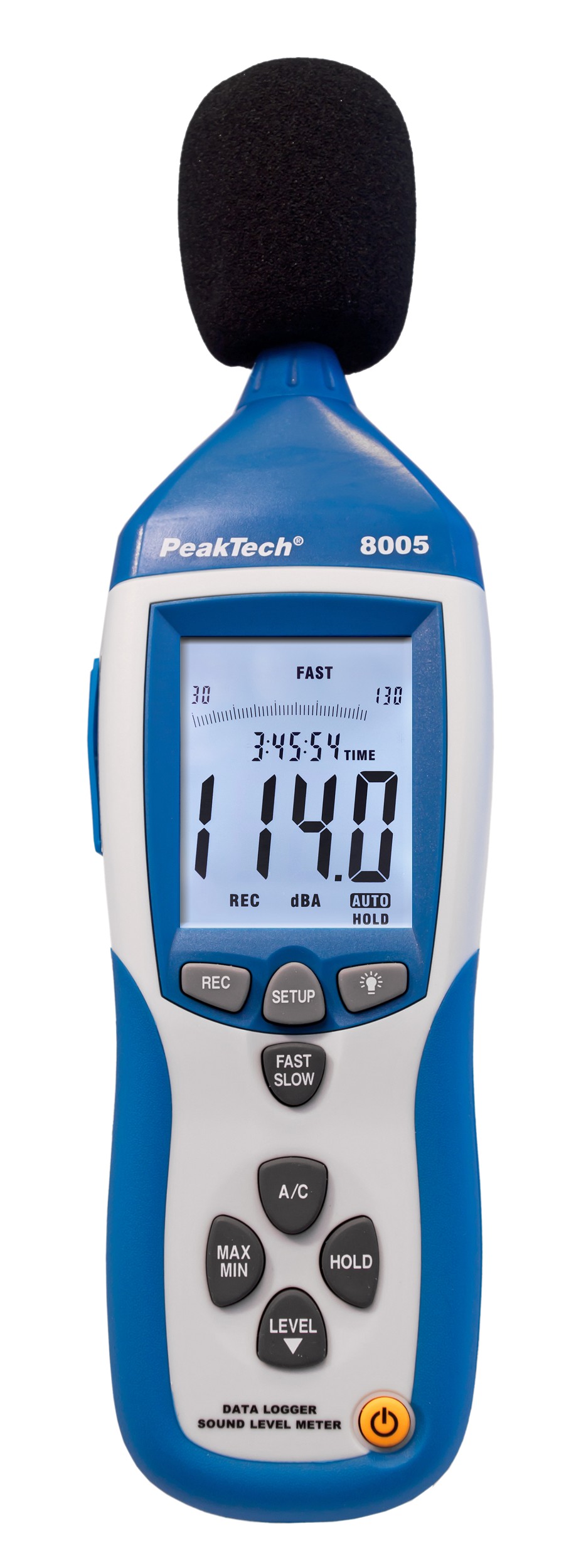

This digital sound level meter with 4-digit 20 mm LCD multifunction display (58 x 44 mm), data logger, bar graph and backlight is designed for noise projects, quality control and all kinds of measurements of ambient sound, as well as for sound measurement in factories, schools, offices, in traffic , Household and much more used. In addition, the PeakTech 8005 has a USB interface, which makes it possible, carrying out long - term measurements. The AC adapter for the power supply and the tripod for stable measured values are valuable support for these applications. The device offers the choice between manual and automatic range selection in 4 measuring ranges from 30 .. 130 dB with a resolution of 0.1 dB; Switch between fast and slow according to the rating data and the choice between A and C rating.

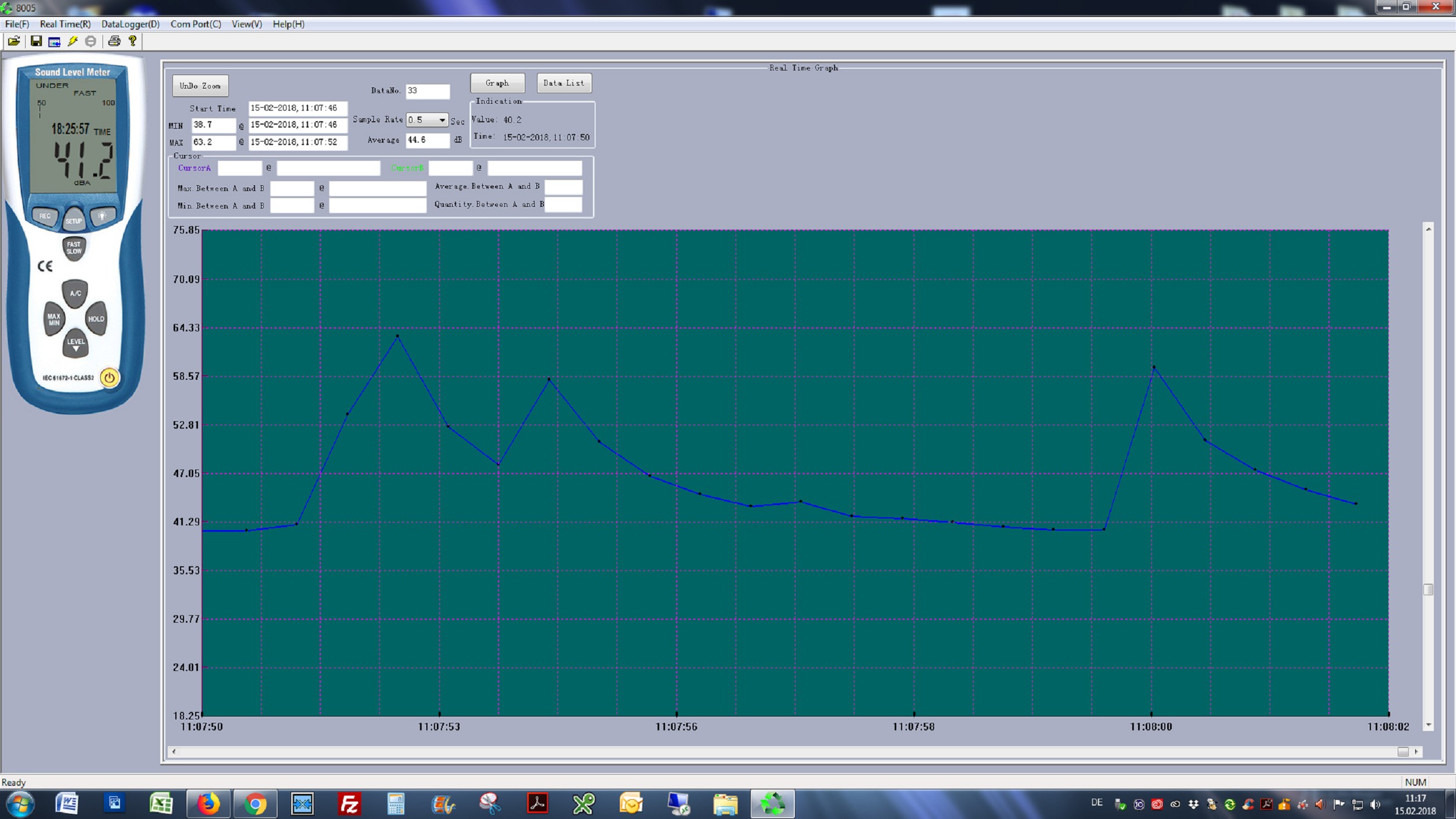

Software: DMM Tool compatible - download in the service area
Software: DMM Tool compatible - download in the service area
| USB: | ■ |
|---|---|
| Backlight: | ■ |
| Display Type: | LCD |
| Freq. range: | 31,5 Hz ... 8 kHz |
| Memory (internal): | ■ |
| Software: | ■ |
| Sound level: | 30 ... 130 dB |
| Weighting: | A, C |
- With USB 2.0 interface and datalogger with internal memory for up to 32000 counts / 1x / sec. ~ 1x / min.
- Confirm the IEC-61672-1 class 2 for sound level meters
- MIN- und MAX measurements

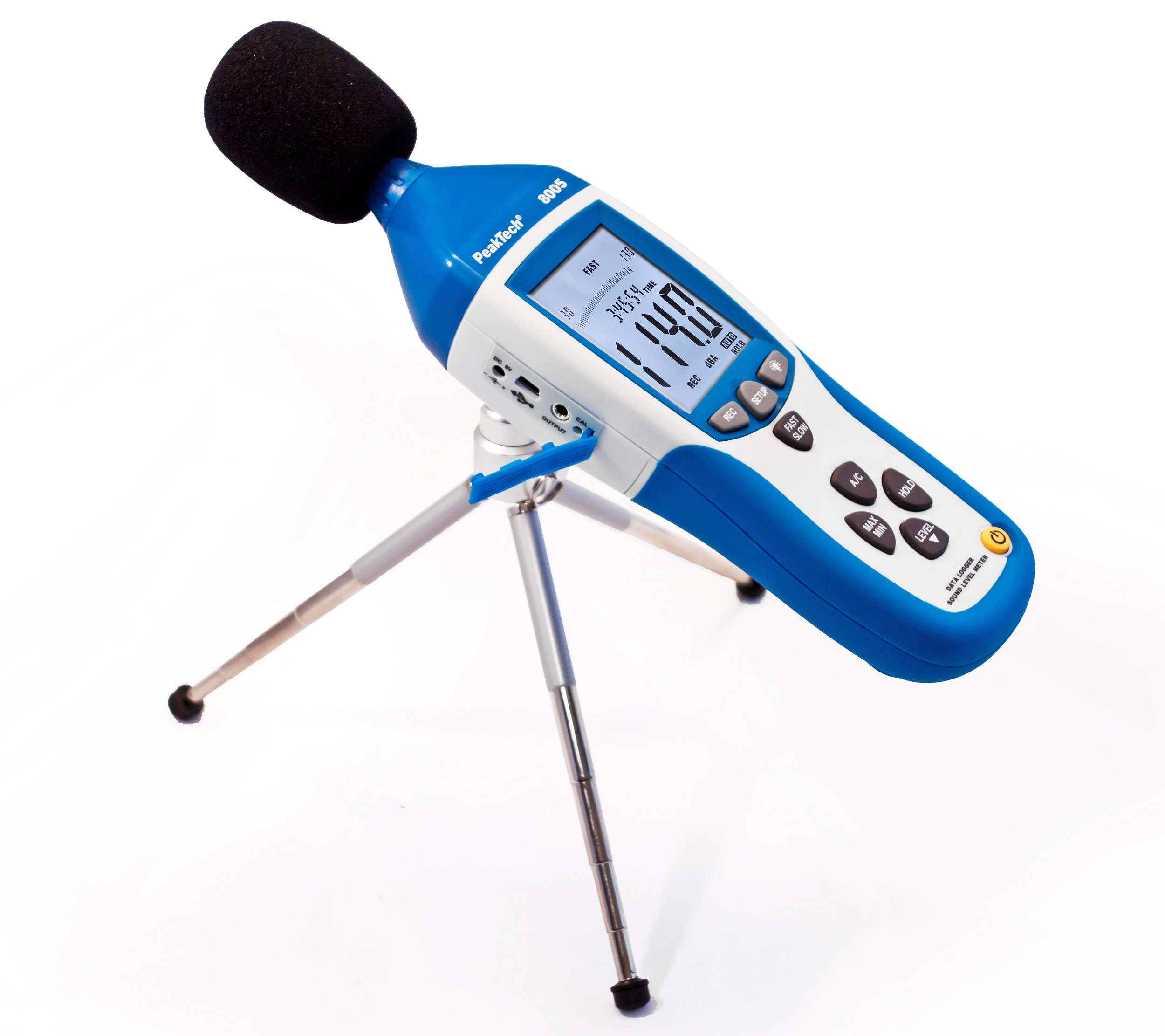

- Tripod socket (1/4")
- Over and under range display
- Analog AC/DC outputs for connection to frequency analyzer or X-Y shaft recorder
- Applied standard: according to EN-61672-1 class 2; IEC-61672-1 type 2, ANSI S1.4 type 2

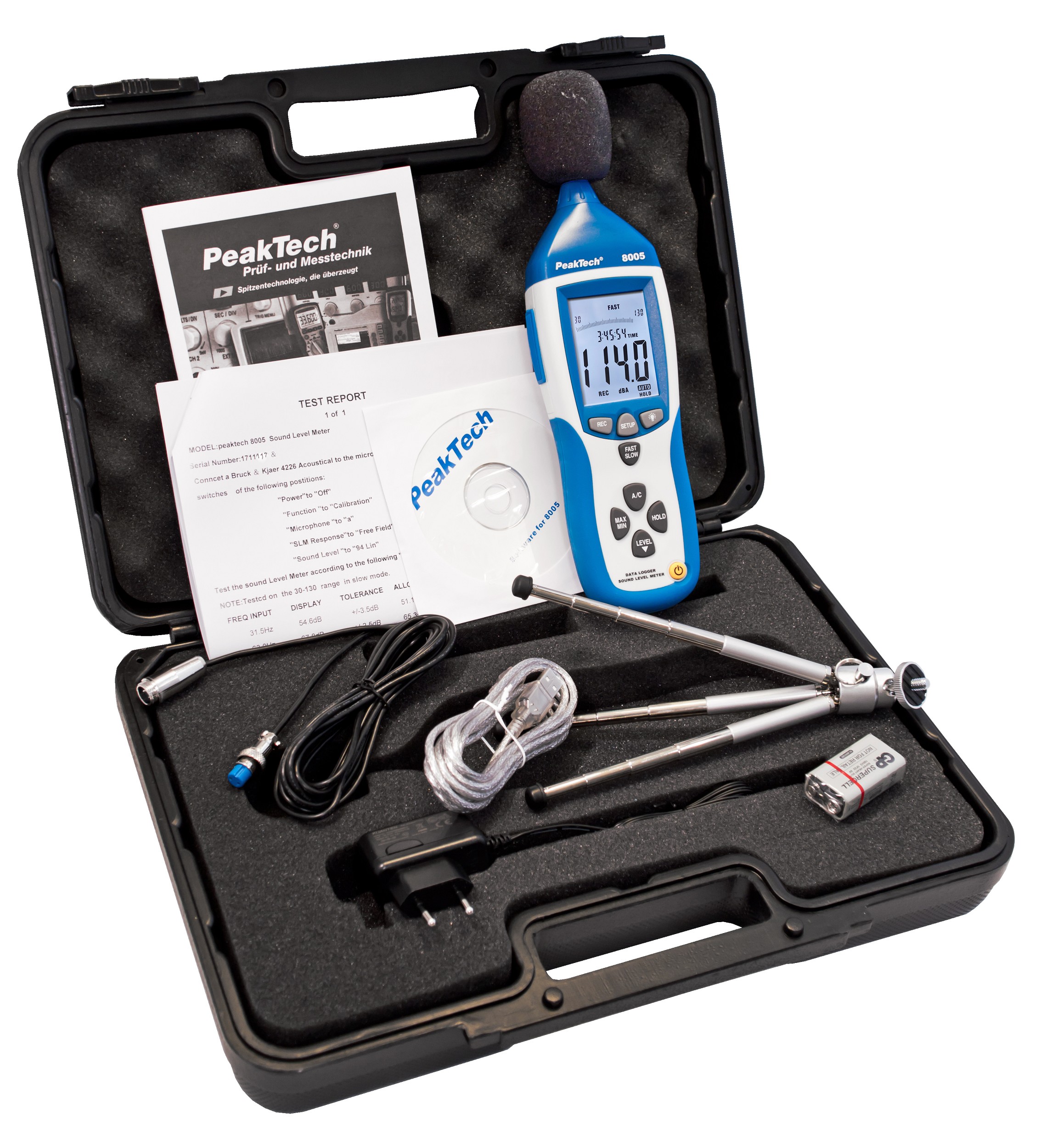

- Accessories: 3m microphone extension cable, case, USB interface cable, software for Windows, tripod, 9V-AC-adapter, 9V-battery and manual
Zubehör / Accessories:
«PeakTech® P 8010» Sound Level Calibrator, 94 dB/114 dB
€129.00*
For sound level measurements in extreme conditions, at high altitudes or high demands on the accuracy of the measurement results, sound level meters should be checked prior to the measurement with a sound level calibrator.
Also for calibration and verification of microphones in audio technology, you need a sound level calibrator, which is designed to produce several sound pressure levels at a fixed frequency characteristic.
This calibrator has two switchable calibration steps. The level “94dB”, which corresponds to a sound pressure of 1 Pascal, and the step “114dB”, which corresponds to a sound pressure of 10 Pascal. These are generated at a 1 kHz sine wave signal, so that all measurements are suitable for appliances with the DIN IEC 60942 Class 2 standard and understandable for every audio engineer.
«PeakTech® P 7851» Tripod for cameras and measurement devices
€65.90*
Many measuring devices, especially those from optical or acoustic measuring technology, have to be placed at a fixed location and precisely aligned for their measuring task. Therefore, these devices have a ¼ inch tripod thread, with which an attachment to a photo tripod is possible.
For this purpose, we now offer two stable and inexpensive tripods with a wide range of functions, such as a 360 ° rotatable panorama head, any adjustable angle of inclination, continuously extendable legs and much more.
The integrated spirit level also serves for precise alignment. All settings can be locked in place so that repeated measurements are always possible without any problems under the same conditions.
The tripod is made out of aluminum and plastic and meet the highest standards of stability and resilience, but are still very easy to carry and stow away in the enclosed carrying bag to save space.
