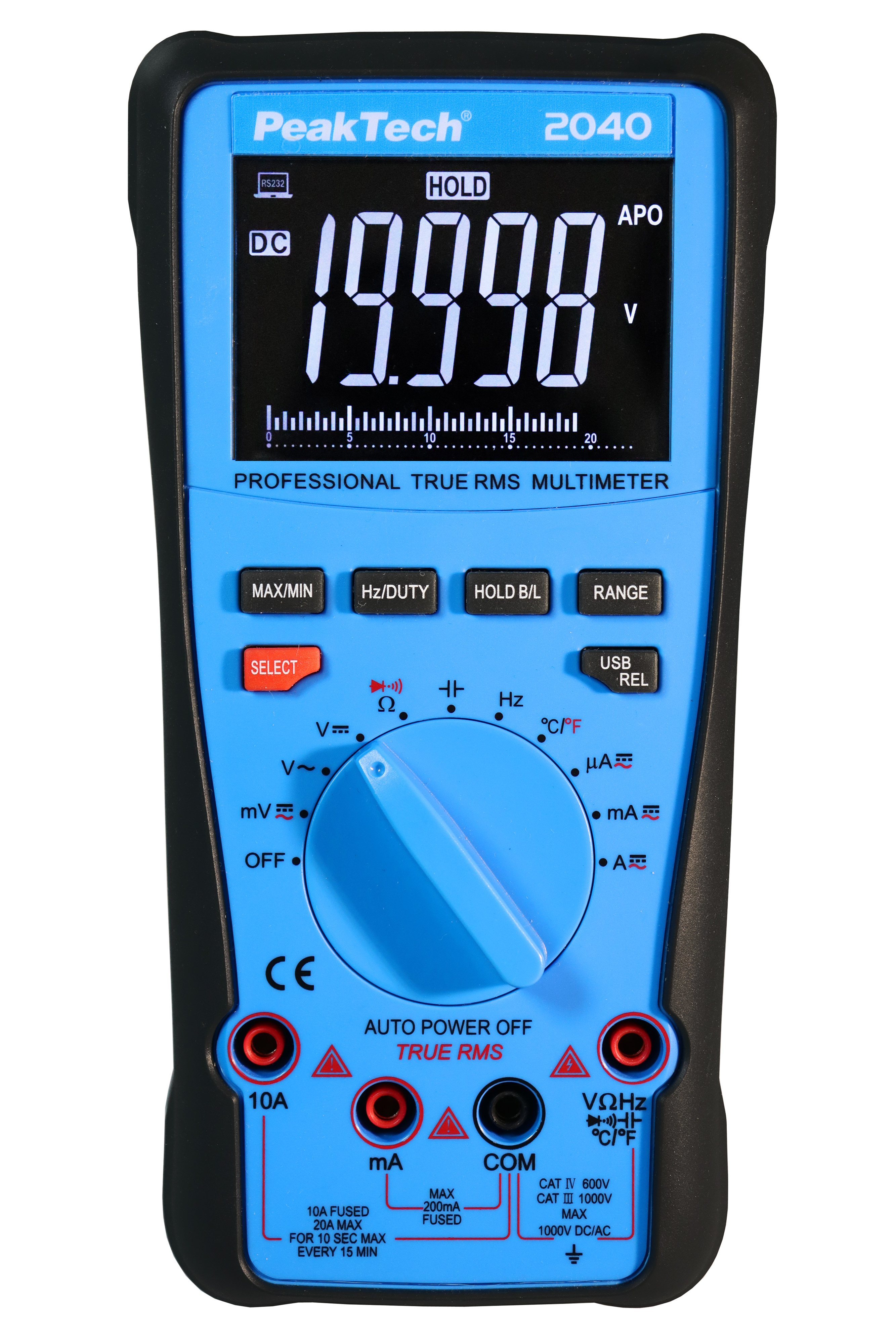

«PeakTech® P 2040» True RMS 1000V Digitalmultimeter 20000 Counts, USB

PDF Datasheet
Product number: P 2040
EAN: 4250569406249
Product information "«PeakTech® P 2040» True RMS 1000V Digitalmultimeter 20000 Counts, USB"
The new PeakTech 2040 was developed for professional use and offers a multitude of measuring functions for electrical measured values for every user from industry, craftsmanship, training and the laboratory. Particularly noteworthy is the integrated data interface, which enables this model to record long-term data with the PC software. It was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with an anthracite-colored rubber coating, a service compartment on the back, through which not only the battery can be replaced, but also the fuses can be exchanged. The device has an inverted LCD display with 20.000 Counts and bar graph. The automatic range selection offers a very user-friendly operation and measured values ​​can be easily read on the permanently illuminated display. It supports measurements for DCV, ACV, DCA, ACA, Ohm, Cap, Hz, °C, °F, diode or continuity test. Due to the high overvoltage category CAT III 1000V, you can use this device safely on electrical installations and systems.
USB:
Basic Accuracy DC: +/- 0,05%
Battery: 9V Block
Capacitance max.: 20 mF
Digital counts: 20.000
Display Type: LCD inverted
Over voltage category: CAT III 1000 V, CAT IV 600 V
Range selection: Auto
True RMS:
V DC max.: 1000V
A AC max.: 20 A
Hz max.: 20 MHz
OHM max.: 200 MΩ
Temp. max.: 1000 °C
Temp. min.: -20 °C
mA DC max.: 200mA
mV DC max.: 200 mV
µA DC max.: 2000 µA
V AC max.: 1000V
mV AC max.: 200 mV
A DC max.: 20A
mA AC max.: 200 mA
µA AC max.: 2000 µA
  • True RMS measurement of ACV & ACA values
  • 4 1/2- digit inverted LCD display with backlight
  • USB- Interface for data recording
  • Measurements up to 1000V and 10A (20A max.) AC / DC
  • Automatic and manual range selection
  • Duty cycle, min/max and relative value function
  • Temperature measurements for type K probes
  • Auto Power Off and battery indication
  • Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V
  • Accessories: Carrying case, test leads, temperature probe, software, USB cable, battery and user manual

Zubehör / Accessories:

«PeakTech® MKS-10» Measuring tip set with 1 mm test tips
This measuring tip set for all standard measuring lines with 4 mm safety sockets was developed in order to be able to measure even small components precisely. This measuring tip set also includes the matching alligator clips, that it is possible to fix the measuring tips to the component to be measured. When using the measuring tips without the alligator clips, an overvoltage category of CAT I 1000 V is guaranteed. By using the alligator clips, it is possible to use the overvoltage category CAT III.

€10.90*
«PeakTech® P 7000» Tapping clamps for Digital Multimeter up to 10 A
These measuring accessories with 4 mm sockets can be connected to almost all measuring devices. Thanks to its hook-shaped alligator clips, it is possible to carry out measurements even in hard-to-reach points on a circuit. A maximum of safety is achieved by the double insulation of the lines and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€15.90*
«PeakTech® P 7005» Test Leads for Digital Multimeter with extension
This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. With the extension adapters, it is possible to connect the test leads to other test leads in order to carry out measurements over long distances. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*
«PeakTech® P 7010» Tapping clamps for Digital Multimeter; 5 A
This measuring accessory with 4 mm sockets can be connected to almost all measuring devices and power supplies. Thanks to the fine alligator clips, even measurements on small components or at hard-to-reach points on circuits are possible. A maximum of security is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€7.90*
«PeakTech® P 7015» Alligator clamps for Digital Multimeter
The alligator clips enable safe measurements even on bare or exposed cables. With their 4 mm sockets, they can be used for almost any multimeter and measuring device. A maximum of safety is achieved by the protection against against accidental contact with conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*
«PeakTech® P 7020» Test Leads for Digital Multimeter
This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. A maximum of safety is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€5.90*
«PeakTech® P 7025» Test Leads for Digital Multimeter with coupling
These test leads with 4 mm sockets have a coupling, which makes it possible to connect other test leads to them. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€5.90*
«PeakTech® P 8200» Measuring Accessories Set
This extensive collection of test accessories for the electronics area provides the best suitable measuring adapter for the desired application for each digital multimeter. In addition, these high quality clips and cables are all manufactured to the latest safety standards and provides a high safety in every application for the user. For the material, a flexible plastic was chosen, which can also withstand the hardest kinds of usage.

€43.90*
«PeakTech® TKS-2» Test Leads with 2 mm probe tip
This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The test probes length of the TKS-2 cables are limited to 2mm for the best possible user safety when used in CAT III and CAT IV environments.

€4.90*
«PeakTech® TKS-4» Test Leads with 4 mm spring-contact probe tip
This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 4mm diameter spring contact test probes of the TKS-4 cables fit exactly into power sockets and are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*
«PeakTech® TKS-8» Test Leads with 2 mm probe tip and sleeves
This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 2mm diameter test probes of the TKS-8 cables are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*

Ersatzsicherungen/Fuses:

«PeakTech® P 7530» microfuse ~ 10 A / 1000 V ~ 10.3 x 38 mm ~ super fast acting (FF)
Modern device fuses with ceramic bodies offer a significantly higher level of protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user in future measurements.

€3.29*
