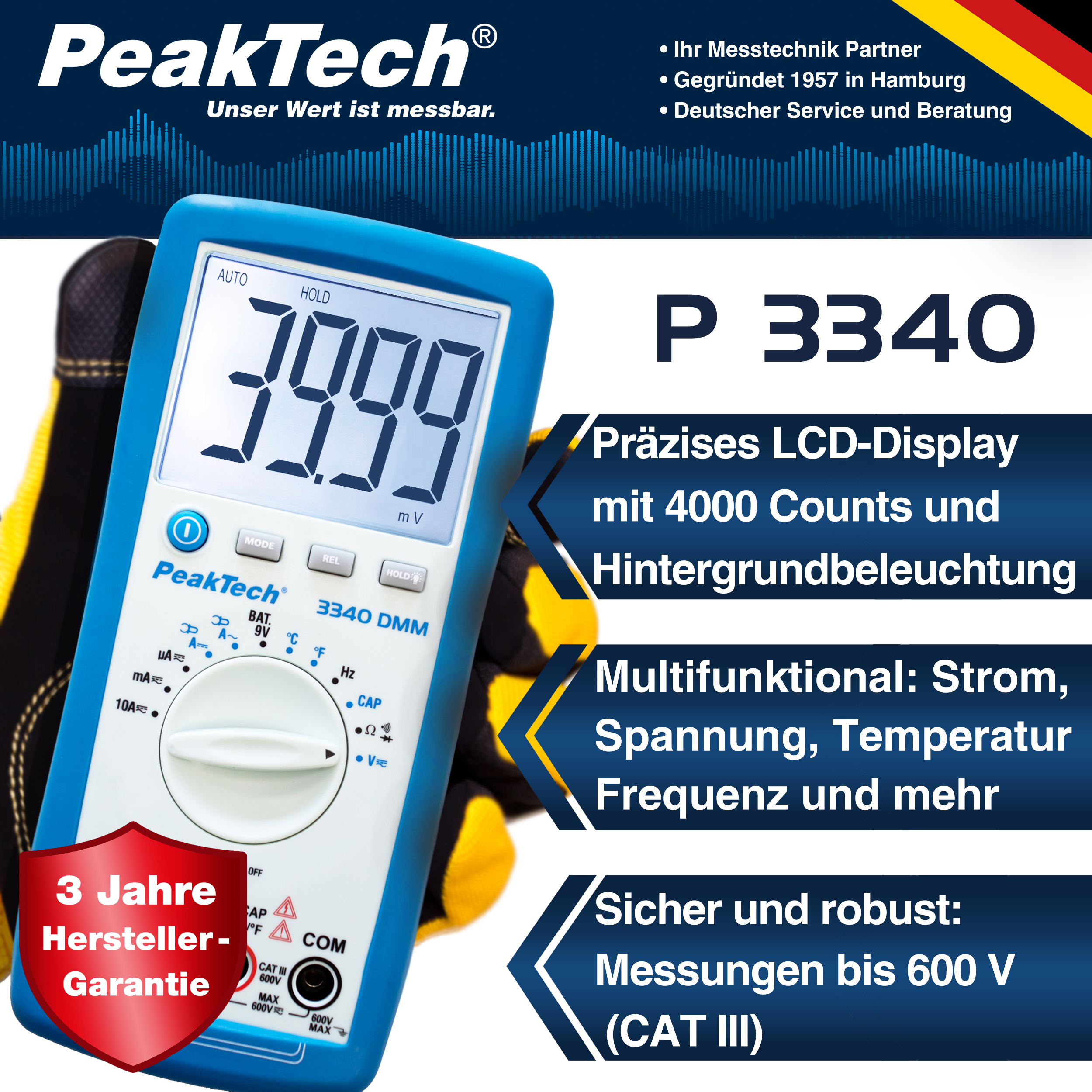

«PeakTech® P 3340» Digital multimeter, 4,000 counts, 600V AC / DC

PDF Datasheet
Product number: P 3340
EAN: 4250569400841
Product information "«PeakTech® P 3340» Digital multimeter, 4,000 counts, 600V AC / DC"

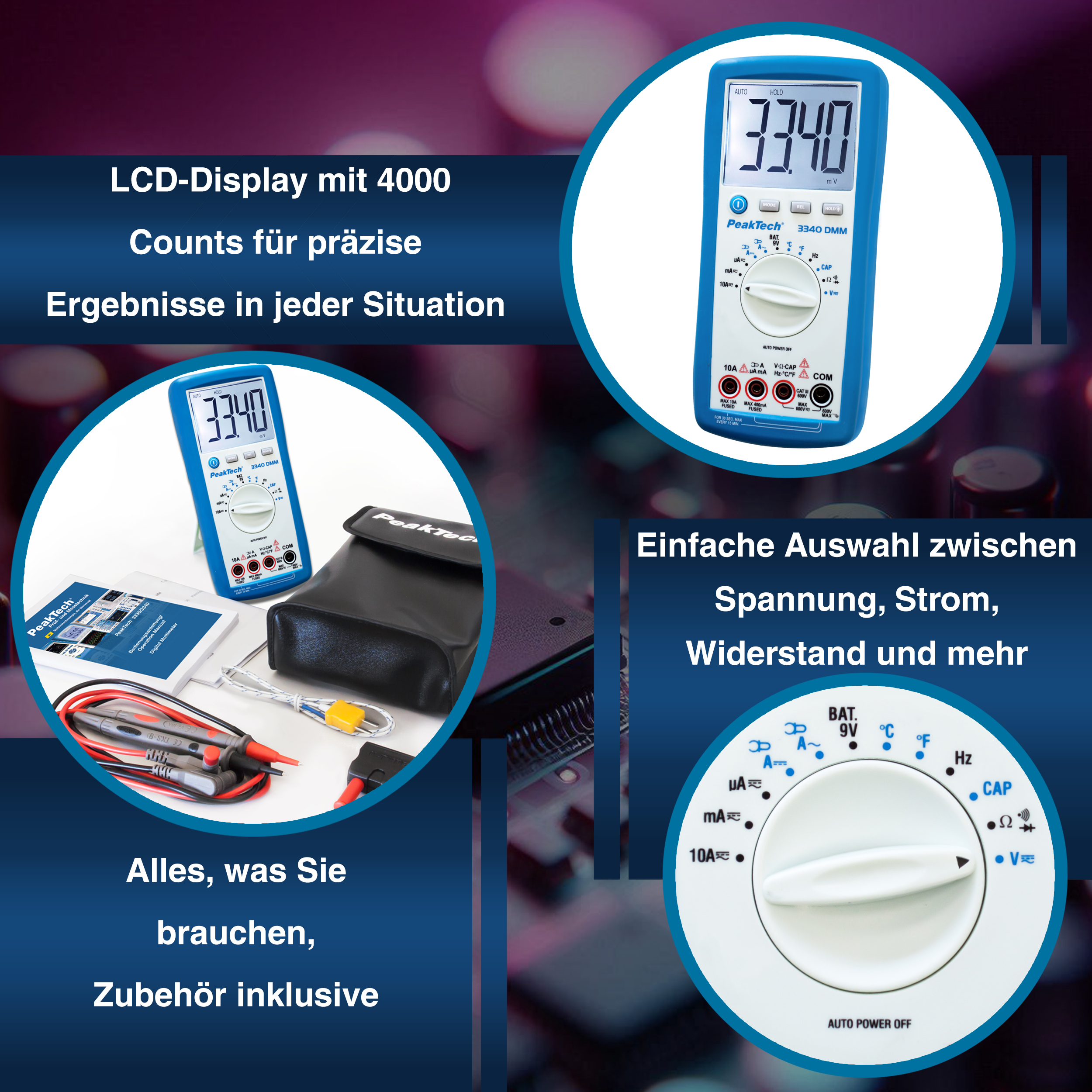

Modern digital multimeter with large, easy-to-read and illuminated LCD display for electronics professionals, service technicians, trainees or hobby users. The automatic measuring range selection ensures user-friendly operation that only the measuring function has to be selected, but not the exact measuring range. In addition to the extensive measurement functions for voltage, current, capacitance, frequency, temperature and resistance, this model has a continuity test with an acoustic signal and the possibility to carry out diode tests.
Basic Accuracy DC: +/- 0,5%
Capacitance max.: 100 mF
Digital counts: 4.000
Display Type: LCD
OHM resolution min.: 0,1 Ω
Over voltage category: CAT III 600 V
Range selection: Auto
V AC resolution min.: 100 mV
V DC Resolution min.: 0,1 mV
V DC max.: 600V
A AC max.: 10A, 20 A
Hz max.: 5 MHz
OHM max.: 40 MΩ
Temp. max.: 760 °C
Temp. min.: -20 °C
mA DC max.: 400mA
mV DC max.: 400 mV
µA DC max.: 4000 µA
V AC max.: 600 V
A DC max.: 10A, 20A
mA AC max.: 400 mA
µA AC max.: 4000 µA

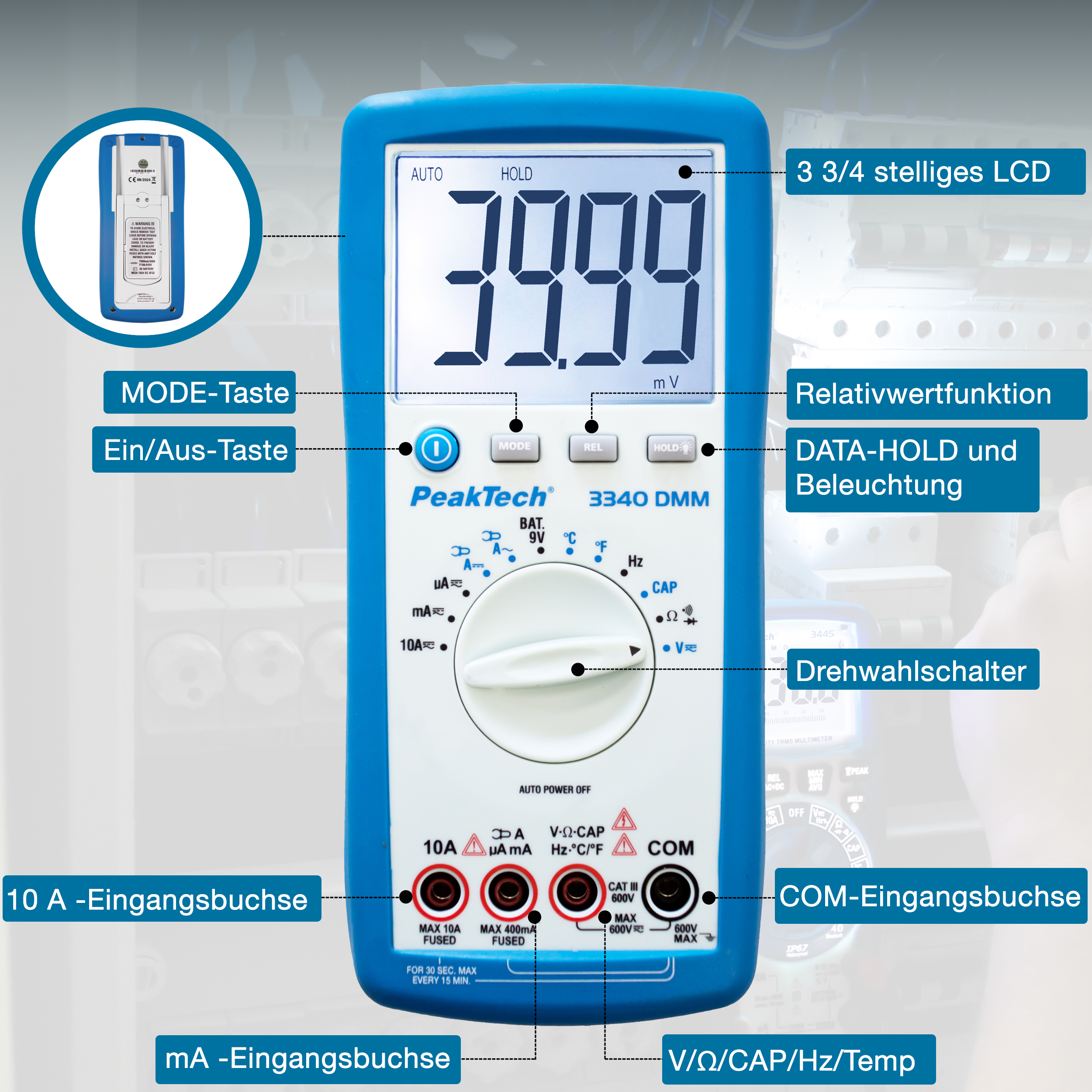

  • 38 mm LCD display, max. 4000
  • Automatic switch-off; Automatic range selection
  • REL data hold function

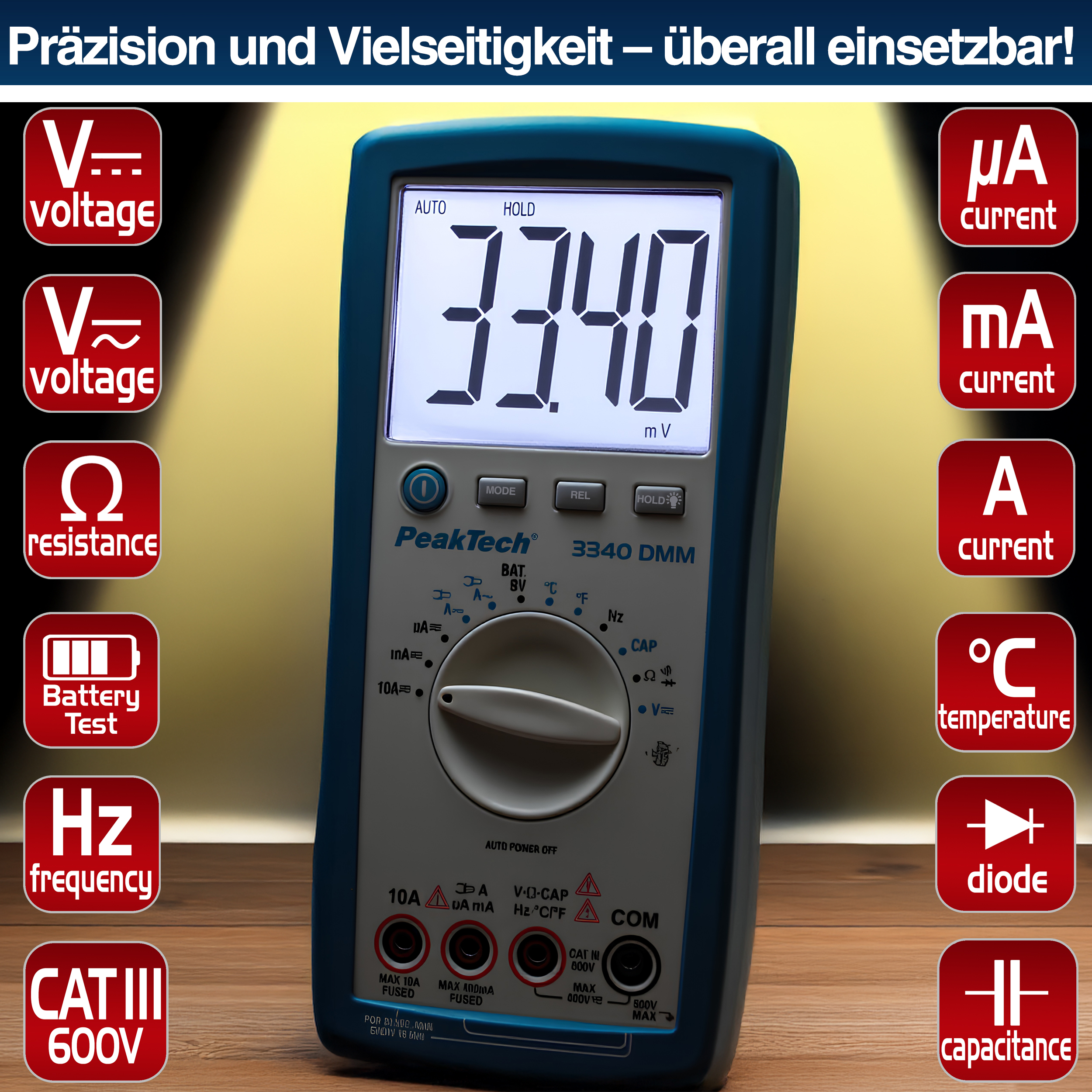

  • Measurements of: DCV, ACV, DCA, ACA, Ohm, CAP, Freq., Temp., Diode, Cont. 9 V Batt.test
  • Temperature measurements via type K sensors up to 760 ° C
  • Safety: EN 61010-1; CAT III 600 V

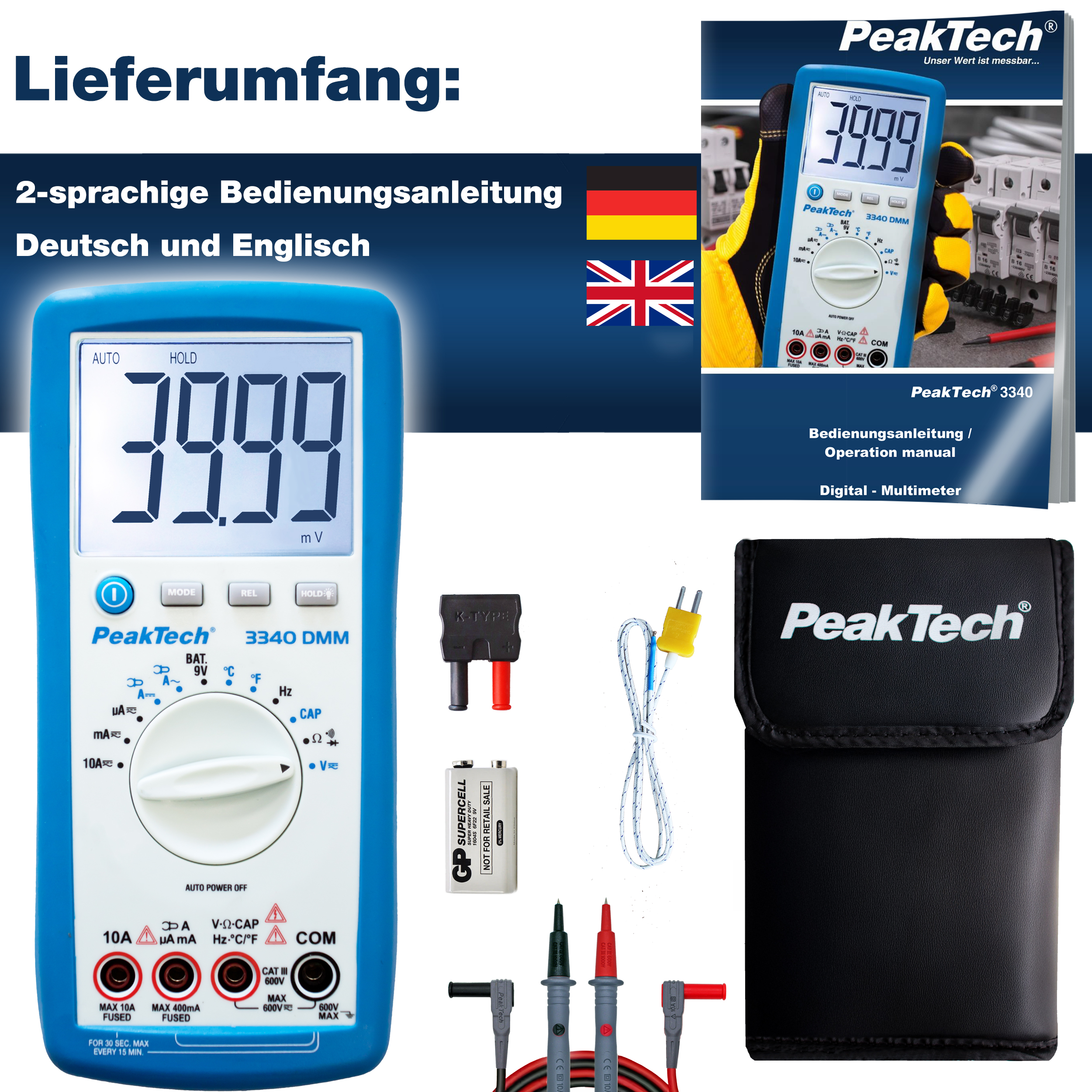

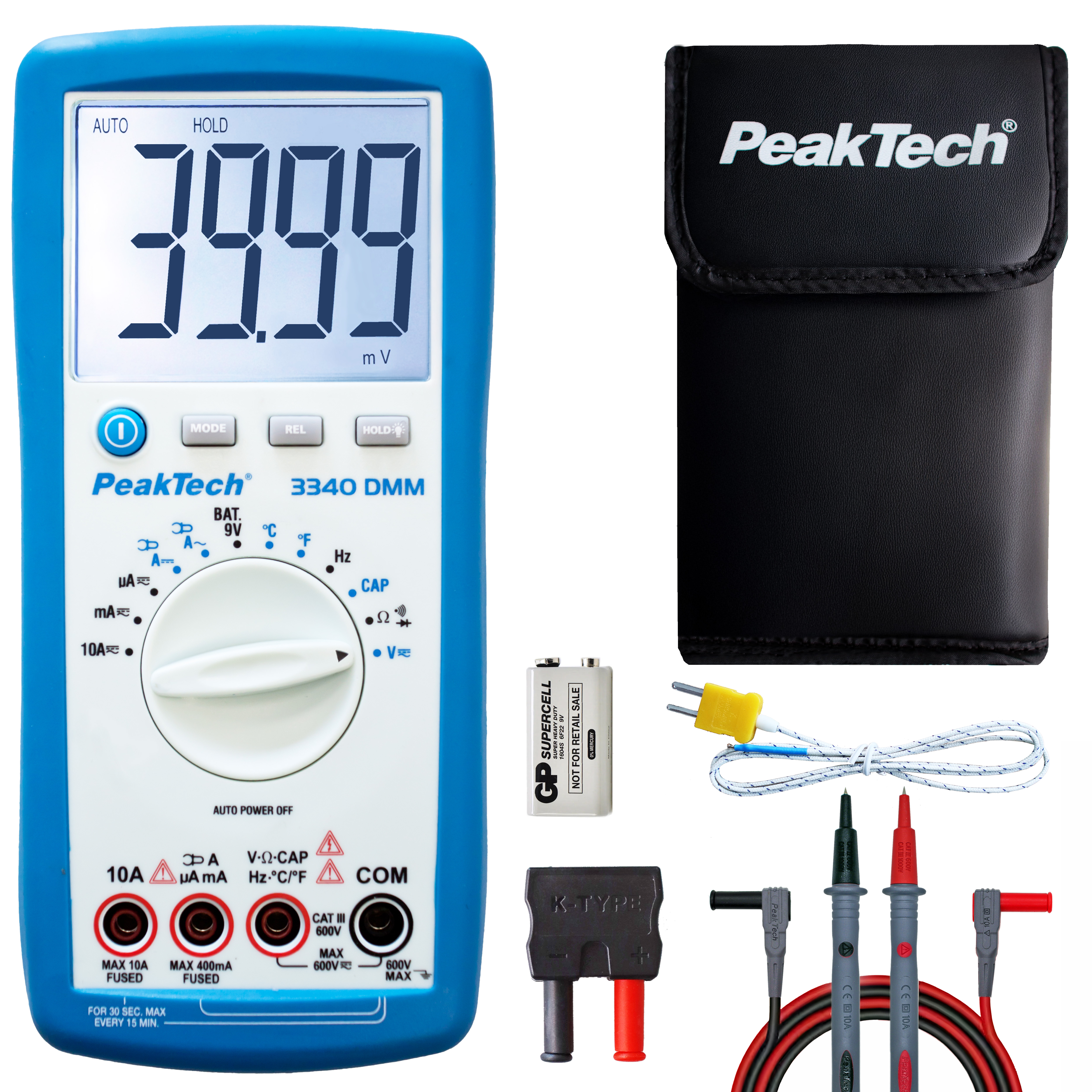

  • Accessories: test cable, type K temperature sensor, battery and manual
