«PeakTech® P 3360» Digital multimeter, 40,000 counts, IP67 & TrueRMS

PDF Datasheet
Product number: P 3360
EAN: 4250569400865
Product information "«PeakTech® P 3360» Digital multimeter, 40,000 counts, IP67 & TrueRMS"

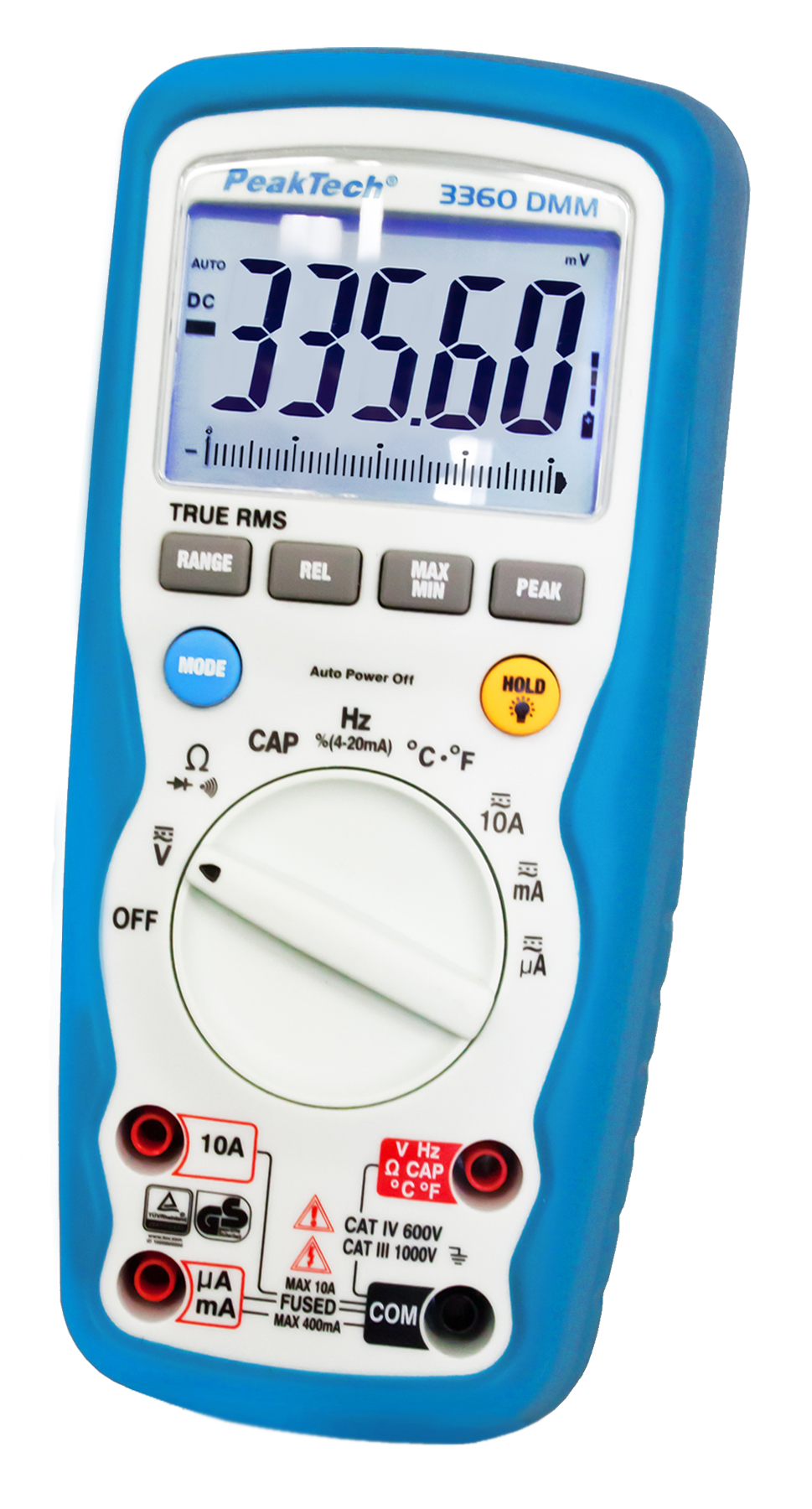

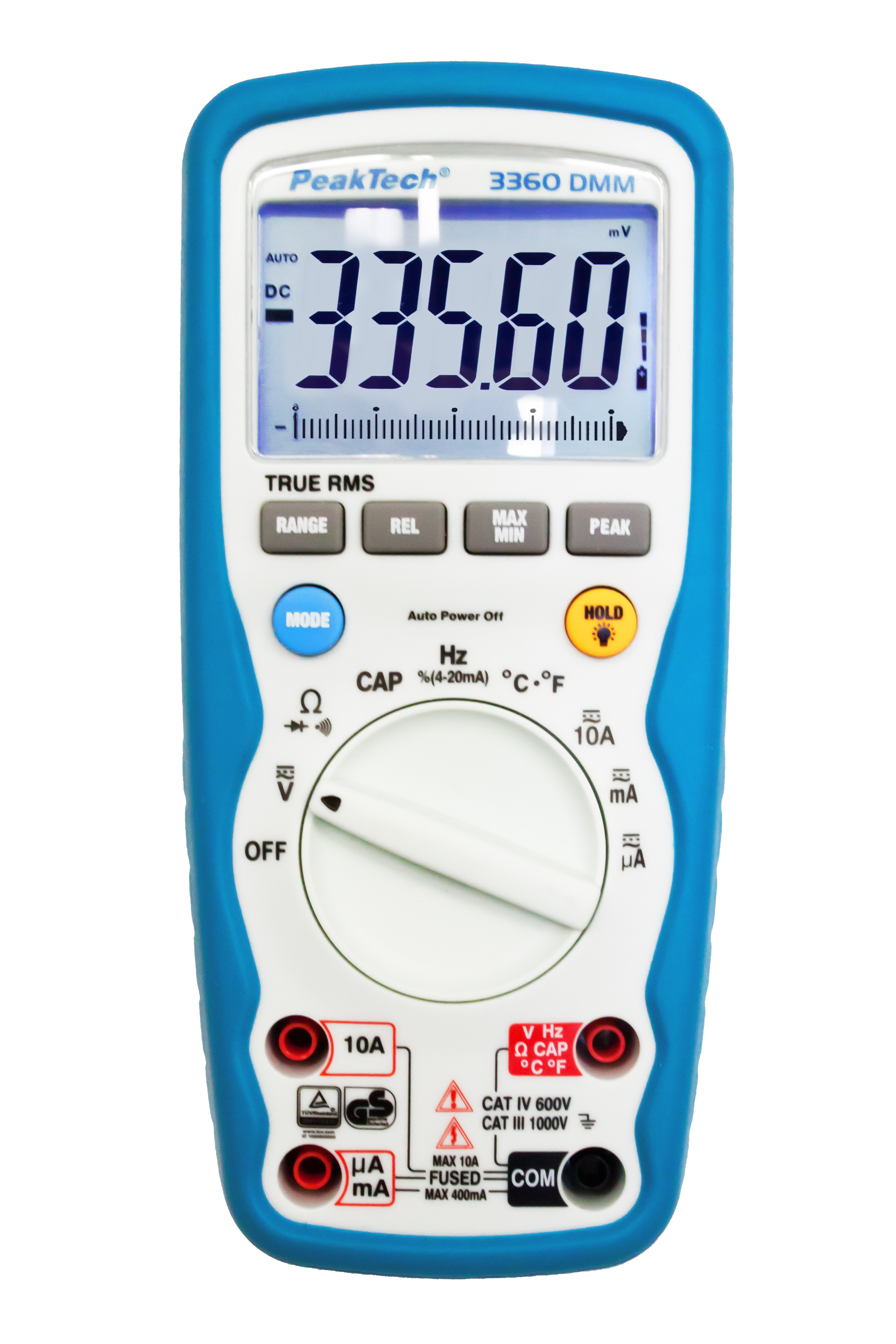

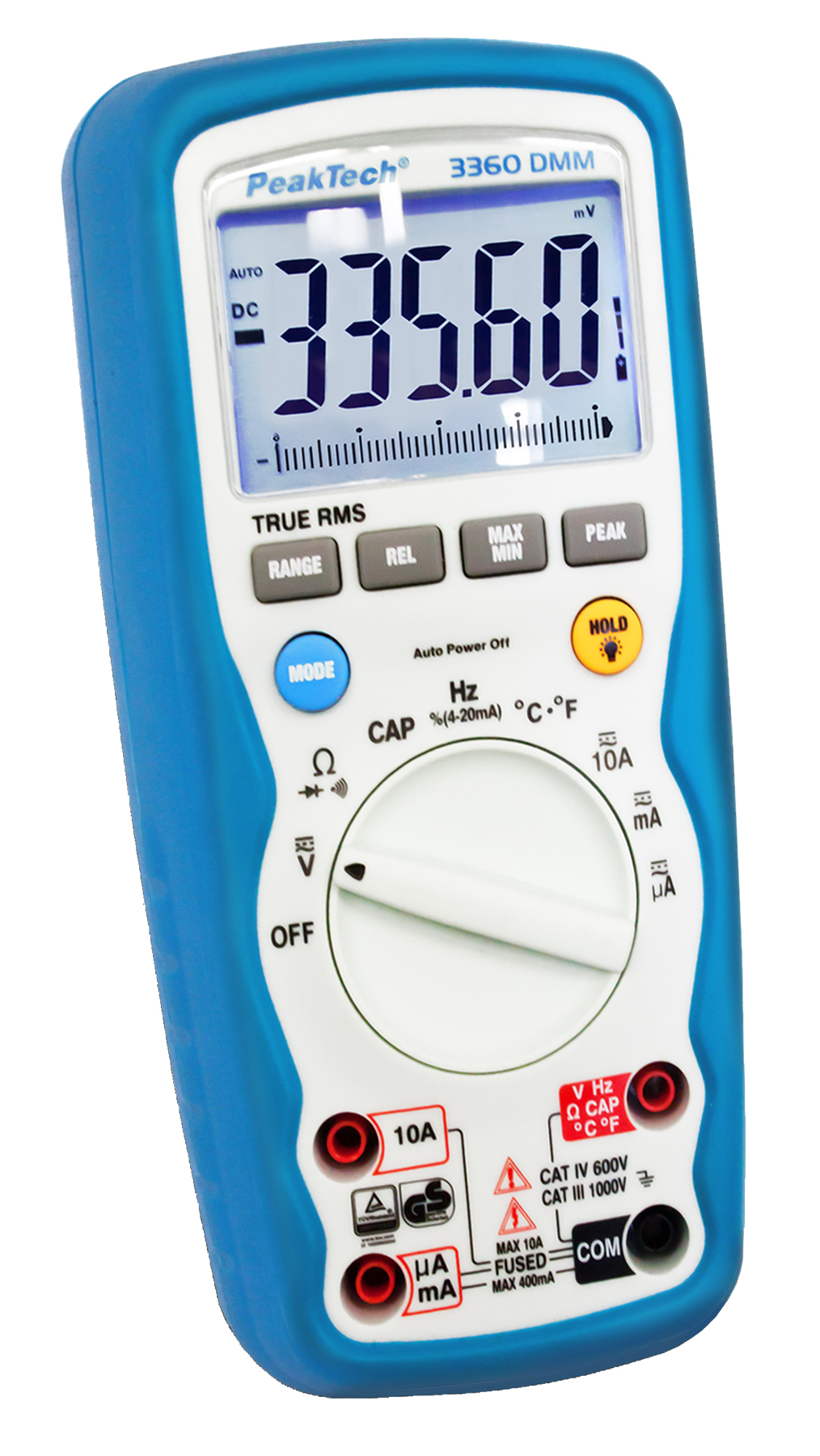

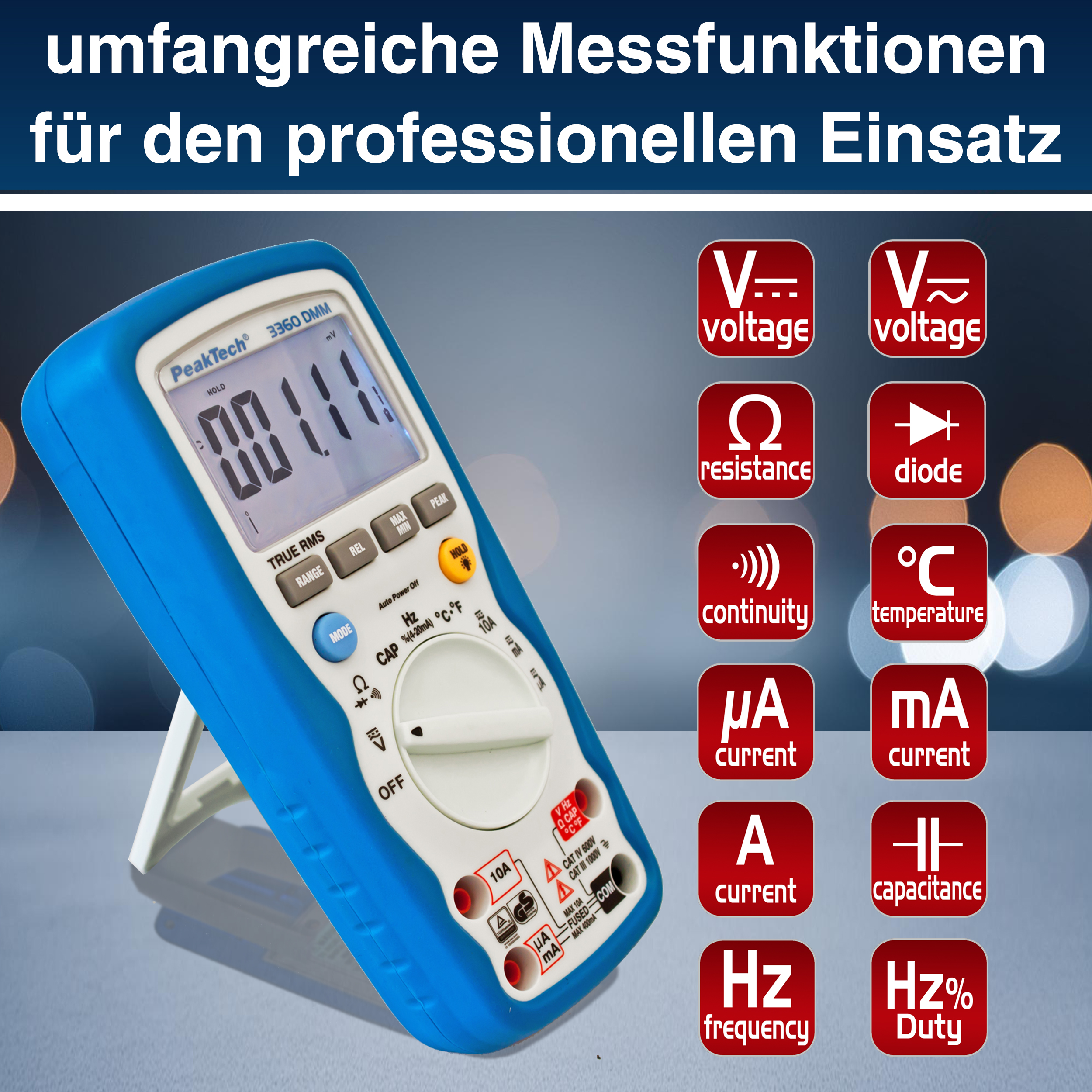

Professional digital multimeter with a large, easy-to-read and illuminated LCD display. This model has a high basic accuracy (0.06%), True RMS measurement for AC voltage & current, maximum / minimum value storage (MAX-MIN) as well as peak value detection and a high resolution with a maximum display of 40,000 counts. The automatic measuring range selection ensures user-friendly operation, only the measuring function has to be selected, but not the exact measuring range. In addition to the extensive measurement functions for voltage, current, capacity, frequency, temperature and resistance, this model has a continuity test with an acoustic signal and a diode test. In addition, the housing has an IP 67 protection class, which means that the device is dust and waterproofed.
Basic Accuracy DC: +/- 0,06%
Battery: 9V Block
Capacitance max.: 40 mF
Digital counts: 40.000
Display Type: LCD
Ingress protection: IP 67
OHM resolution min.: 0,01 Ω
Over voltage category: CAT III 1000 V, CAT IV 600 V
True RMS:
TÜV/GS:
V AC resolution min.: 0,01 mV
V DC Resolution min.: 0,01 mV
V DC max.: 1000V
A AC max.: 10A, 20 A
Hz max.: 100 MHz
OHM max.: 40 MΩ
Temp. max.: 1000 °C
Temp. min.: -50 °C
mA DC max.: 400mA
mV DC max.: 400 mV
µA DC max.: 4000 µA
V AC max.: 1000V
mV AC max.: 400 mV
A DC max.: 10A, 20A
mA AC max.: 400 mA
µA AC max.: 4000 µA
  • 4 3/4-digit, 20 mm LCD display with backlight
  • IP67 dust and waterproof
  • True RMS measurement
  • Relative value measurement function
  • Continuity test and diode test
  • Minimum, maximum and Data hold
  • Automatic and manual range selection
  • Automatic shutdown
  • Safety: TÜV / GS, EN 61010-1; CAT III 1000V / CAT IV 600V

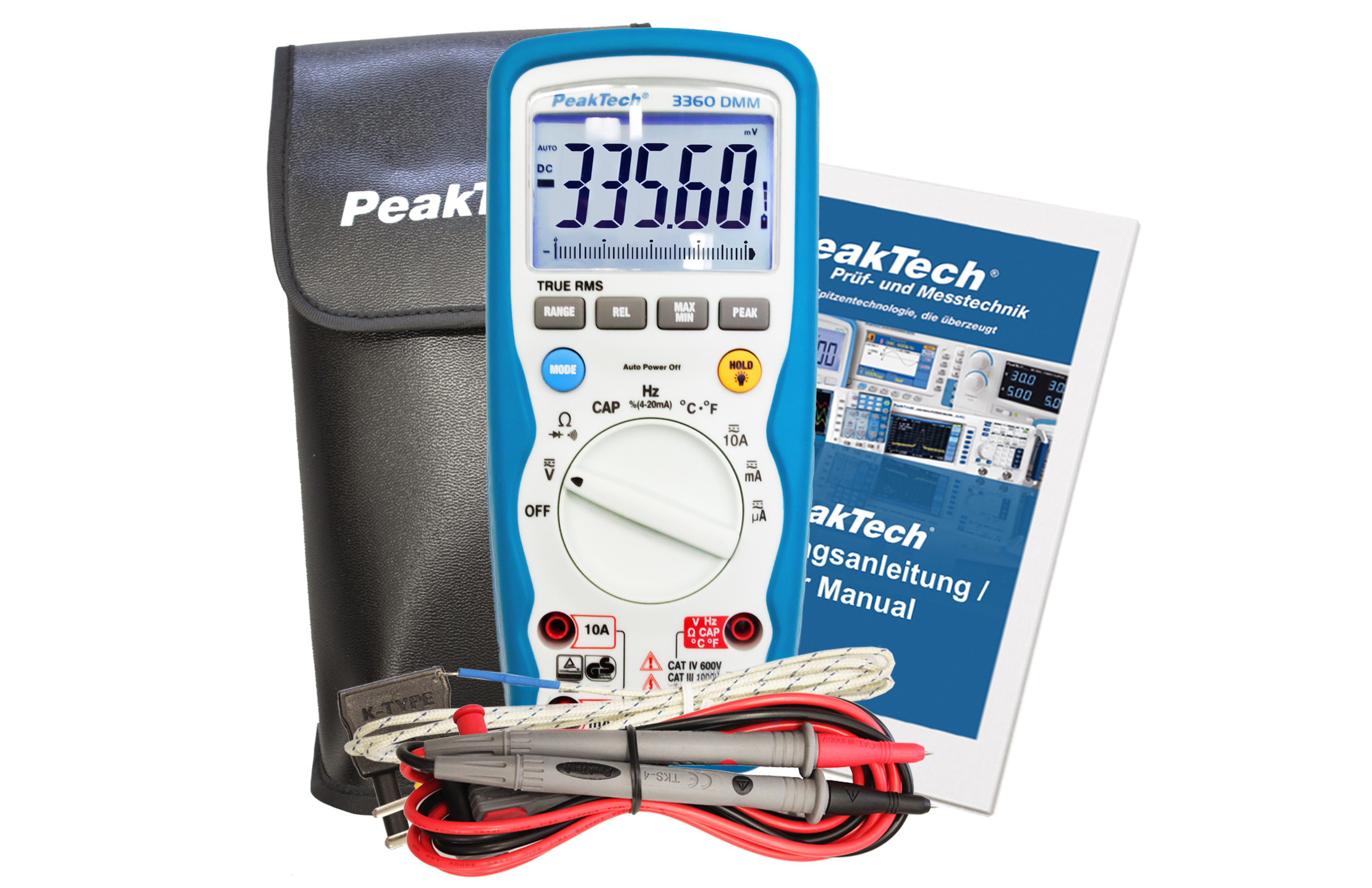

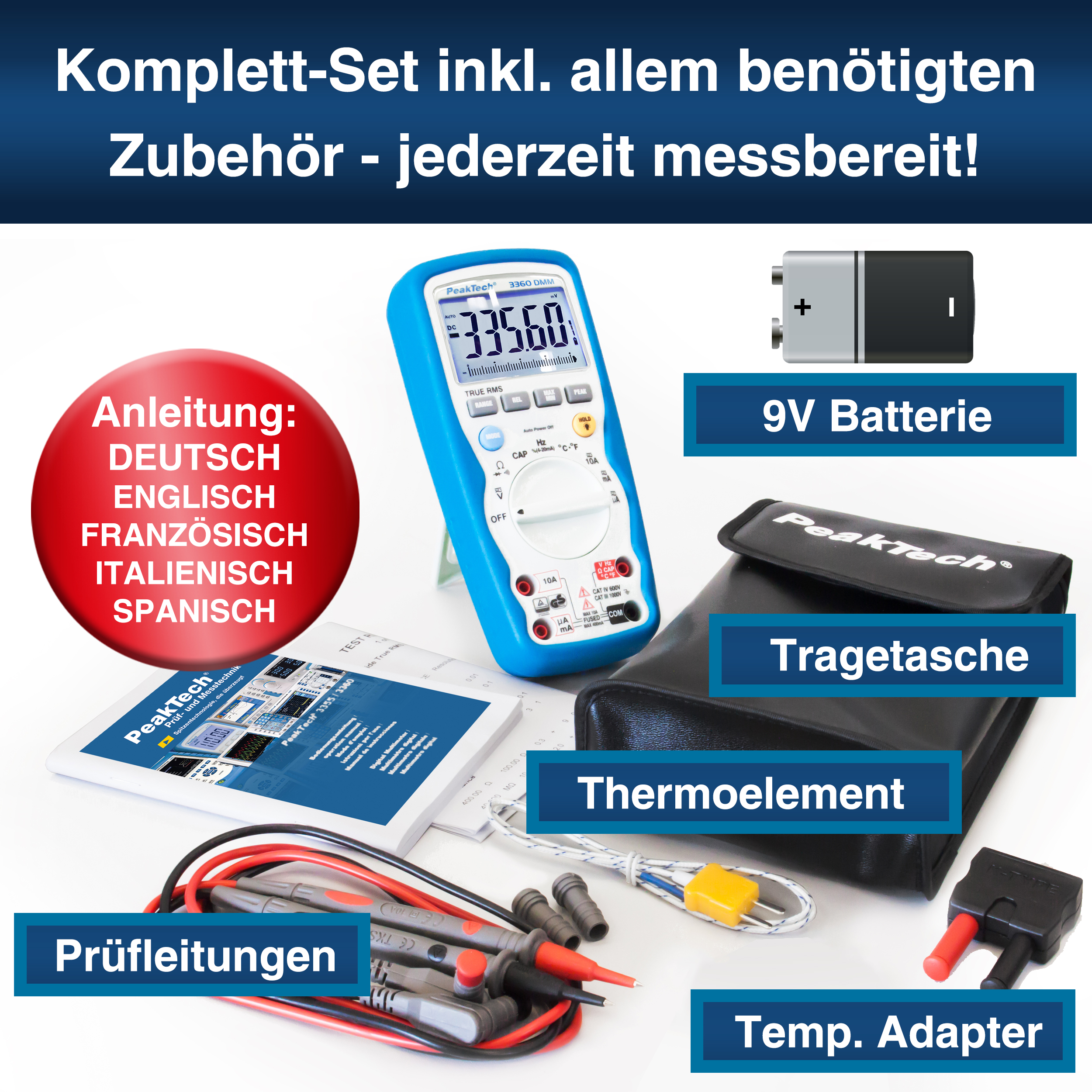

  • Accessories: test leads, type K temperature wire sensor, bag, battery and manual
