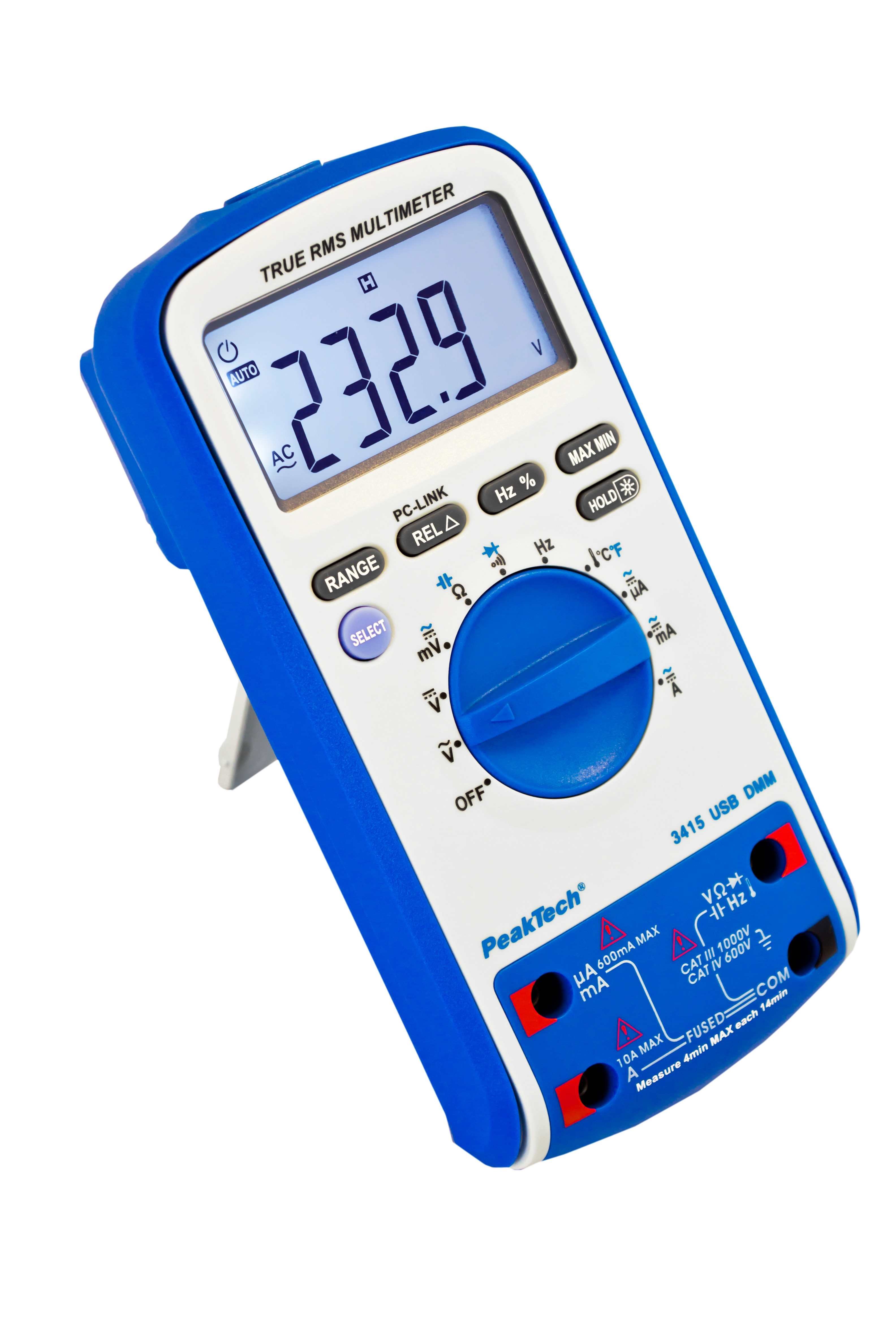

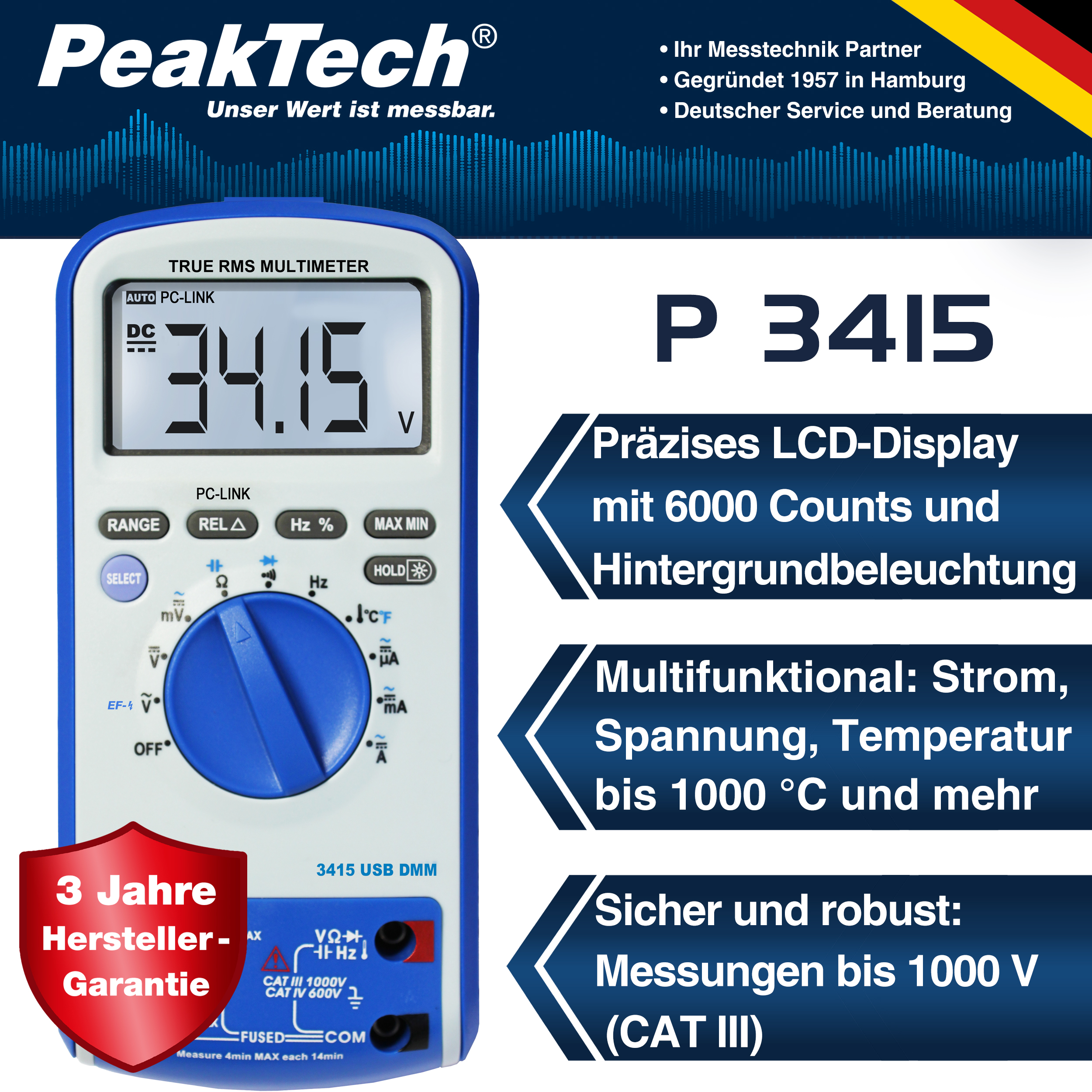

«PeakTech® P 3415» Digital multimeter, 6,000 counts, TrueRMS & USB

€62.60*

Product number: P 3415
EAN: 4250569400919
Product information "«PeakTech® P 3415» Digital multimeter, 6,000 counts, TrueRMS & USB"

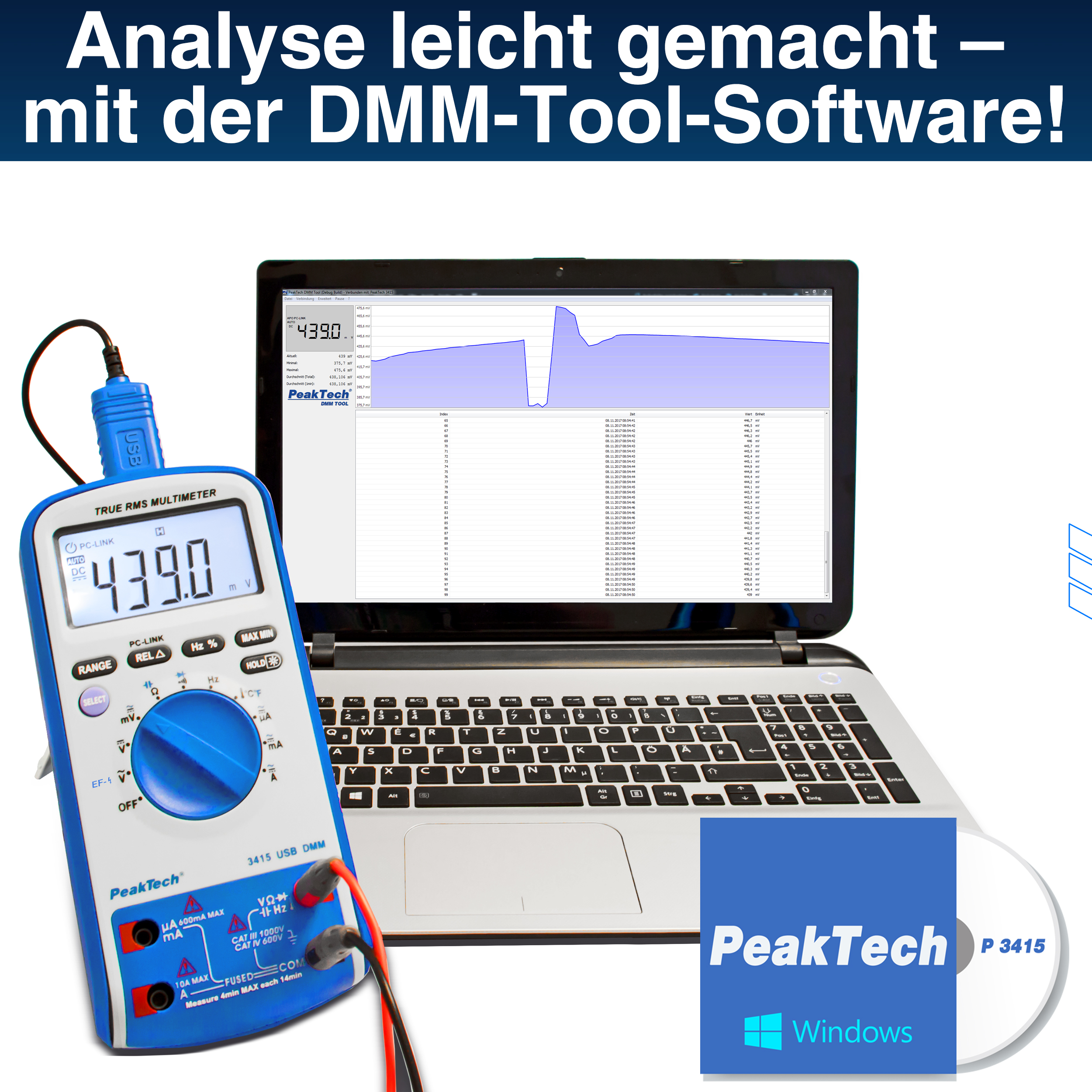

The PeakTech 3415 is a handy and safe multimeter with a USB interface. It offers measurement functions for direct and alternating voltage, direct and alternating current measurement, resistance and many other measurement functions. The AC voltage and current measurement are recorded by the integrated real effective value (TrueRMS) function. With the USB interface it is possible to read any measured data and display it with the PeakTech DMM software.
USB:
Basic Accuracy DC: +/- 0,5%
Battery: 9V Block
Capacitance max.: 60 mF
Digital counts: 6.000
Display Type: LCD
NCV:
Over voltage category: CAT III 1000 V, CAT IV 600 V
Range selection: Auto
True RMS:
V DC max.: 1000V
A AC max.: 10A, 20 A
Hz max.: 1000 kHz
OHM max.: 60 MΩ
Temp. max.: 1000 °C
Temp. min.: -55 °C
mA DC max.: 600mA
mV DC max.: 600 mV
µA DC max.: 6000 µA
V AC max.: 750 V
mV AC max.: 600 mV
A DC max.: 10A, 20A
mA AC max.: 600 mA
µA AC max.: 6000 µA

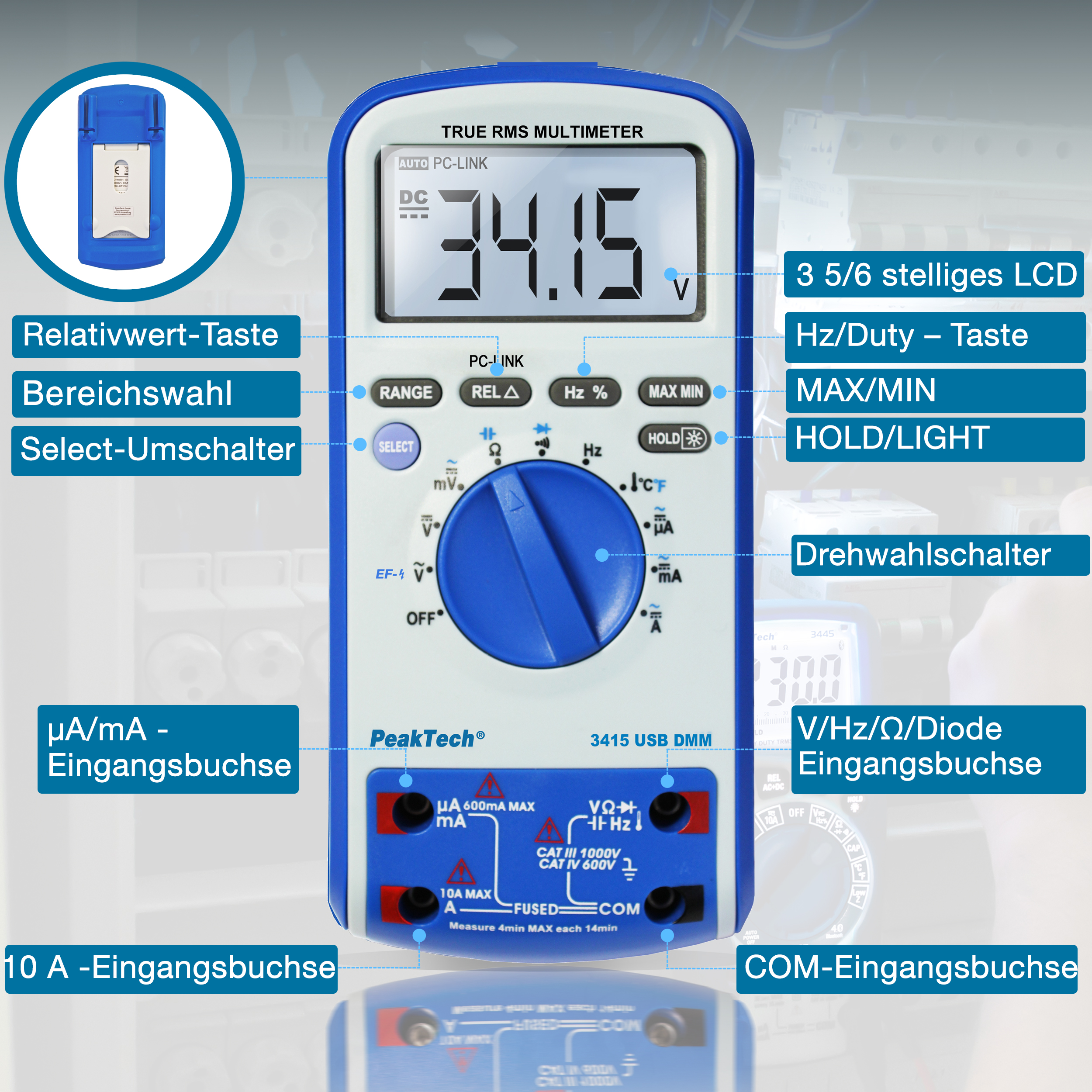

  • 3 5/6 digit backlit LCD display
  • True RMS measurement (True RMS)
  • Temperature measurement up to 1000 ° C
  • Safety: EN 61010-1; CAT III 1000 V / CAT IV 600V

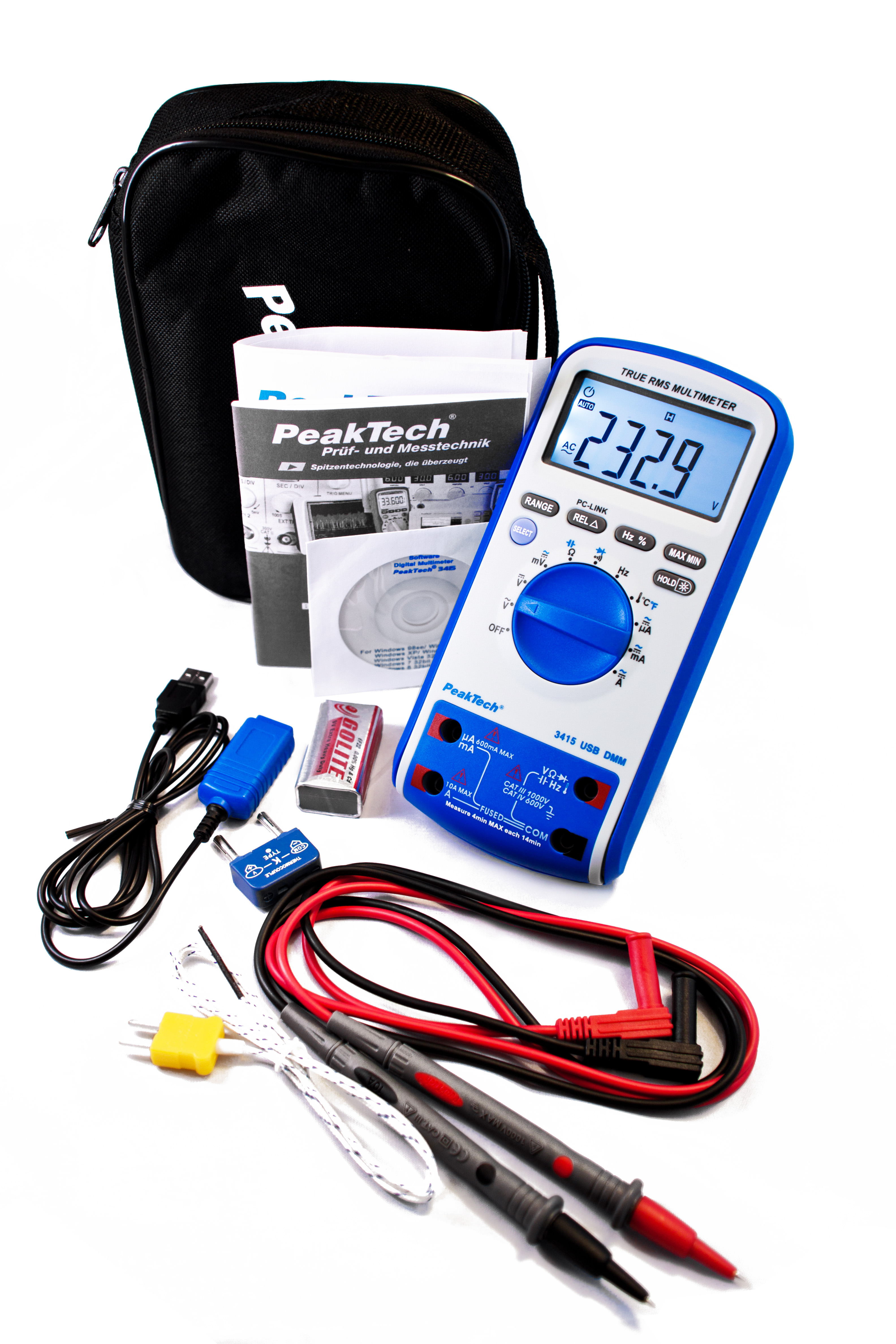

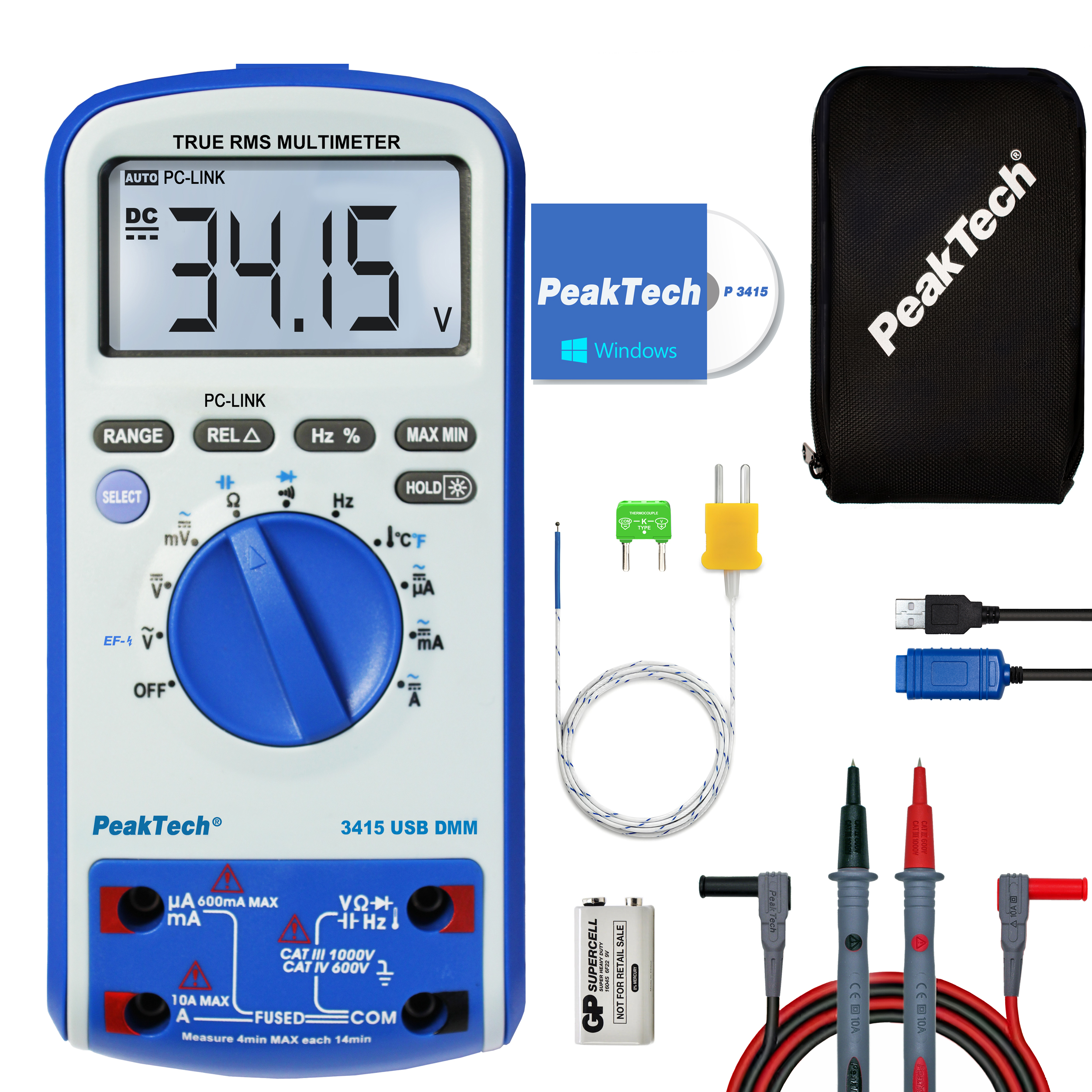

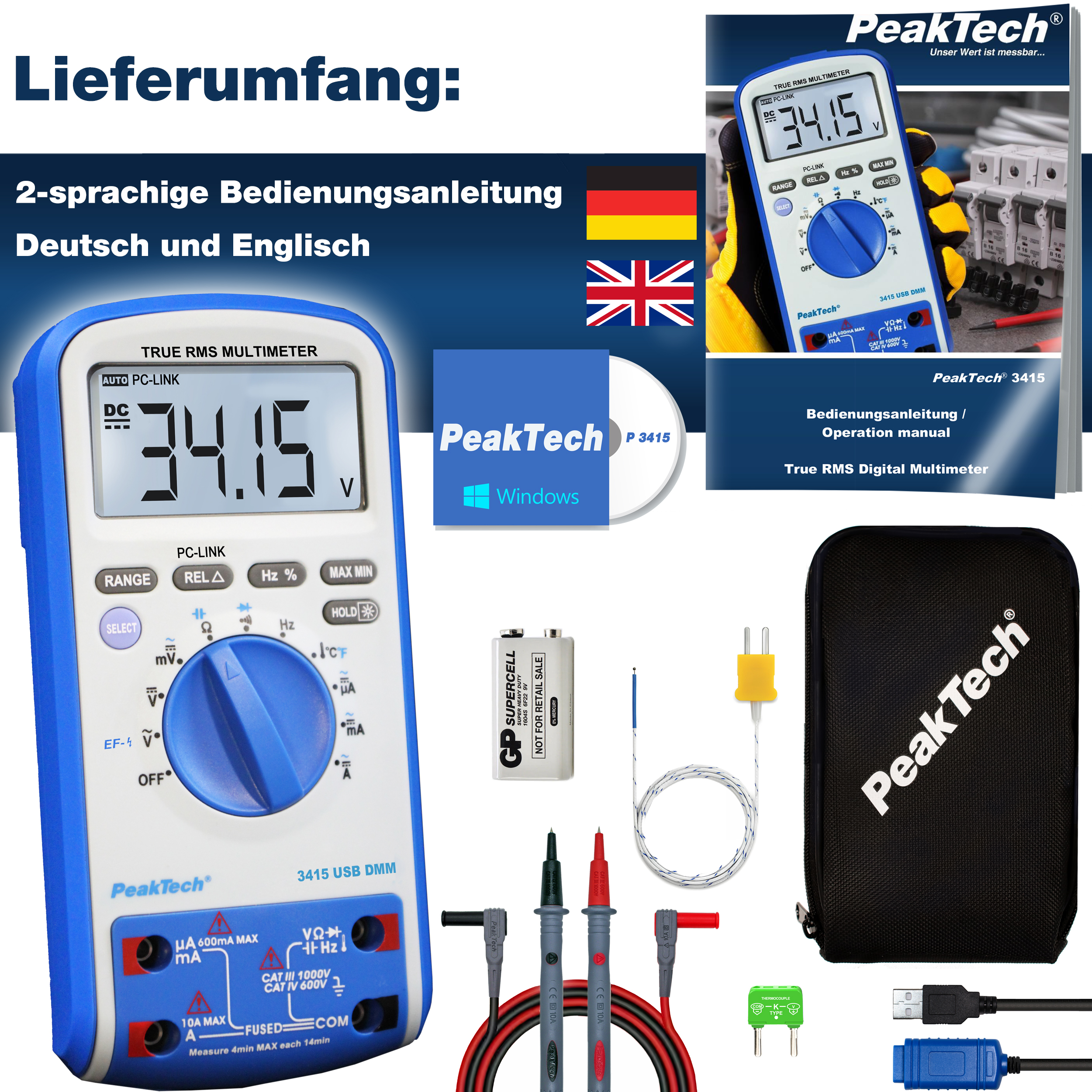

  • Accessories: case, USB interface connection cable, software for Windows 98/2000 / XP / VISTA / 7/8/10, type K temperature wire sensor, temperature adapter, test leads, battery and manual
