The PeakTech 6015 is a linearly regulated, stabilized laboratory power supply with a safety transformer. Its large analog displays enable the set output values to be read quickly and precisely. Due to the simple operation, the safety transformer, the short-circuit strength and the overload protection, the PeakTech 6015 is ideally suited for teaching aids, schools and universities and offers safe use but also a very good price / performance ratio.
Linear controlled, stabilized laboratory power supply. The 3-digit digital display enables a quick and precise reading of the set values. Furthermore, this laboratory power supply has two fixed output sockets that can output a voltage of 5 and 12 volts and a current of 500 milliamps each. The output voltage and the output current of the output sockets can be adjusted and changed at any time by the voltage and current regulator. The on / off switch, which is integrated in the front panel, ensures the safety of the user and the laboratory power supply, because the device can be switched on and off quickly at any time.
Due to the short-circuit and overload protection, the PeakTech 6035 is ideal for beginners, the hobby handyman, but also for professional use.

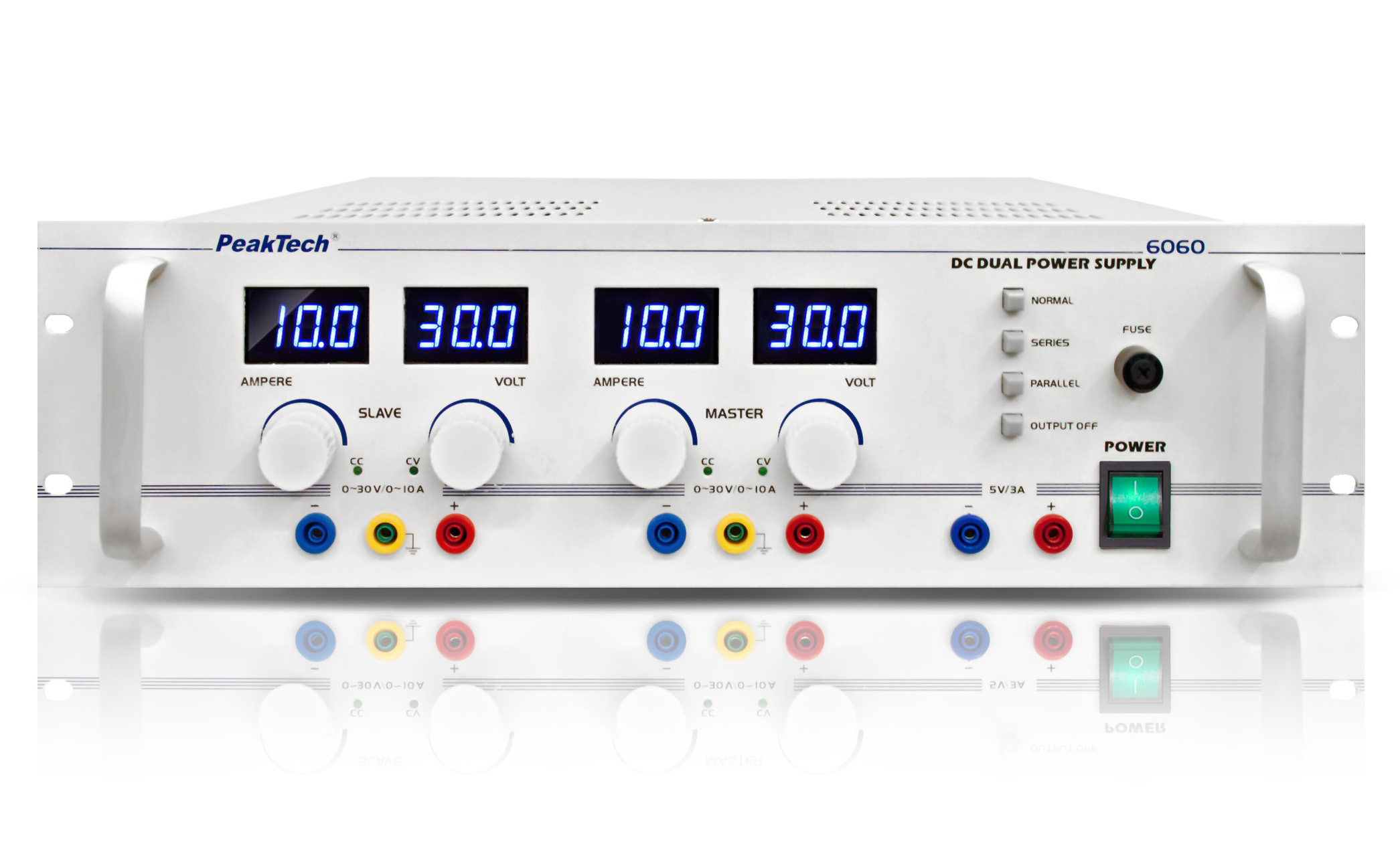

Stabilized double power supply for 19 ”rack installation and also designed as a desktop device in the laboratory, industry and for the training sector. The 3-digit, 14 mm blue LED displays enable quick and precise readings. Furthermore, the device has 2 outputs with continuously variable output voltages or output currents and can be connected in series or parallel. Thus, with outputs connected in series, the max. Output voltage is 60 V DC; with outputs connected in parallel, the max. Output current is 20 A DC.

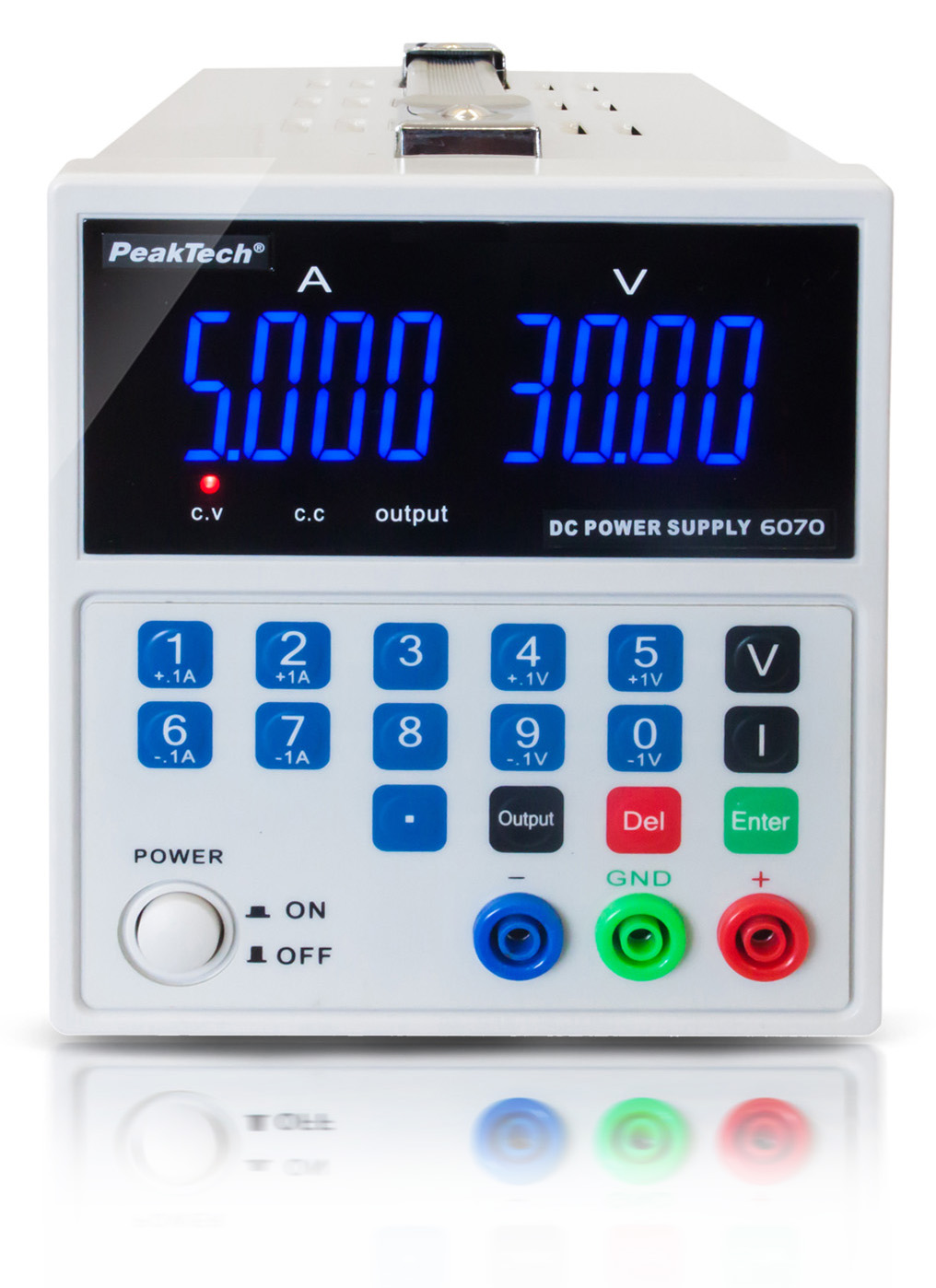

The PeakTech 6070 is a linearly regulated laboratory power supply. All output values of current and voltage can either be set directly by pressing a key or increased and decreased in 0.1V / 0.1A or 1V / 1A steps. In this way, lengthy setting of the desired value using the rotary control can be avoided. It is also possible to activate the integrated key lock, which can be used to secure the device against unauthorized changes to the initial values.
All output values can be read precisely on the large digital display, which is resolved over the entire range with 1mA and 10mV.
The transformer of the laboratory power supply ensures a safe electrical isolation between the primary (input) side and the secondary (output) side.
Due to the many properties of the control and the safe technology, this laboratory power supply is suitable for many areas of application, e.g. in the laboratory, workshop and industry.

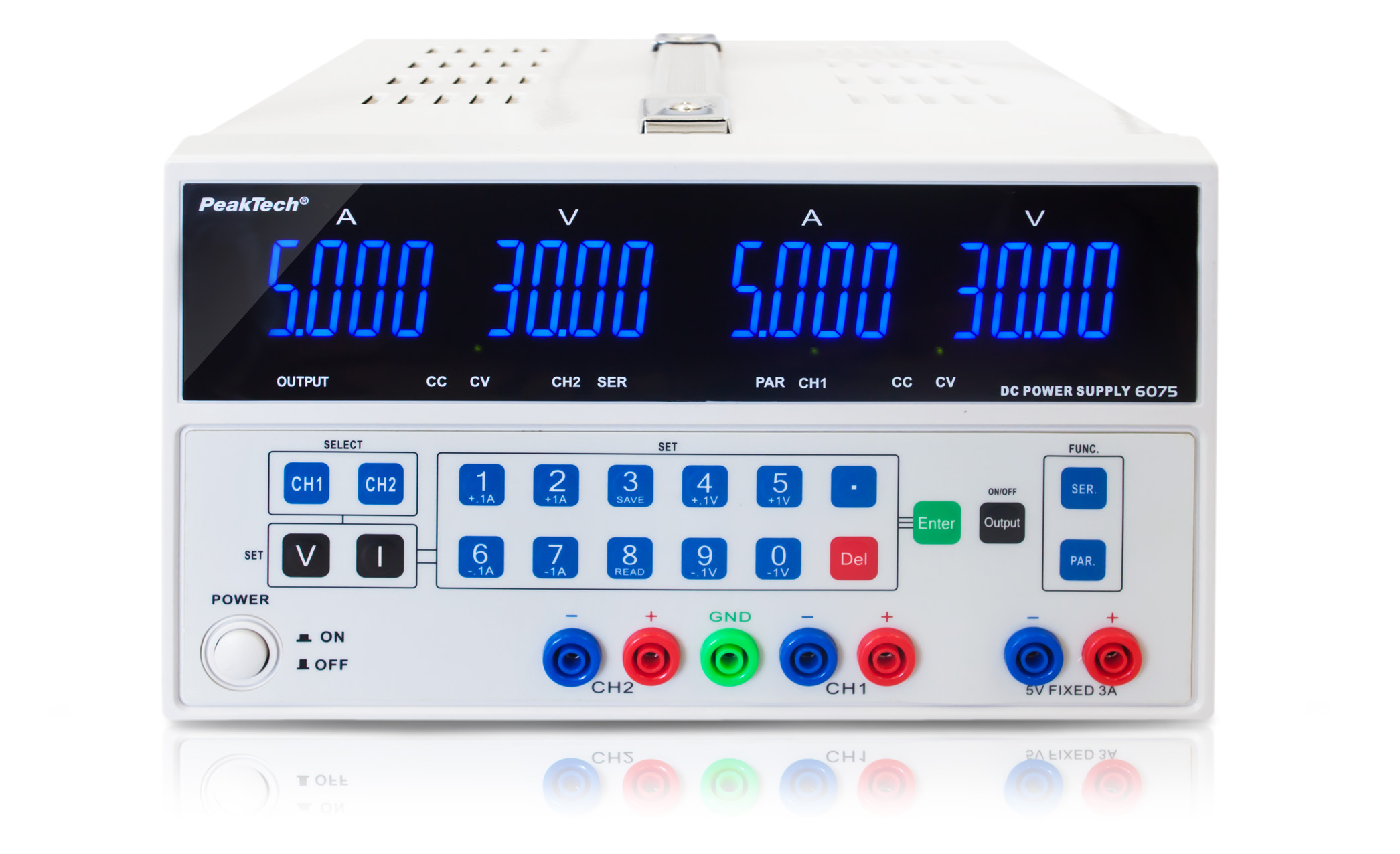

Digitally controlled, high-precision DC power supply with stepless voltage and current settings. The PeakTech 6075 has two adjustable voltage / current outputs, which make it possible to continuously set the desired values between 0 - 30V DC and 0 - 5A DC. Furthermore, a fixed voltage output of 5V / 3A is integrated in the device. With the large and clear display, it is easy to display the set values. Other features of the device are the C.V and C.C function, which is used to set a constant voltage / current.
The output voltage can be fixed by using the keypad, which enables the operator to select quickly and efficiently the values to be set. The flexibility of that device, makes it ideal for almost all areas, e.g. the hobby area, the area of training and also for professional use.

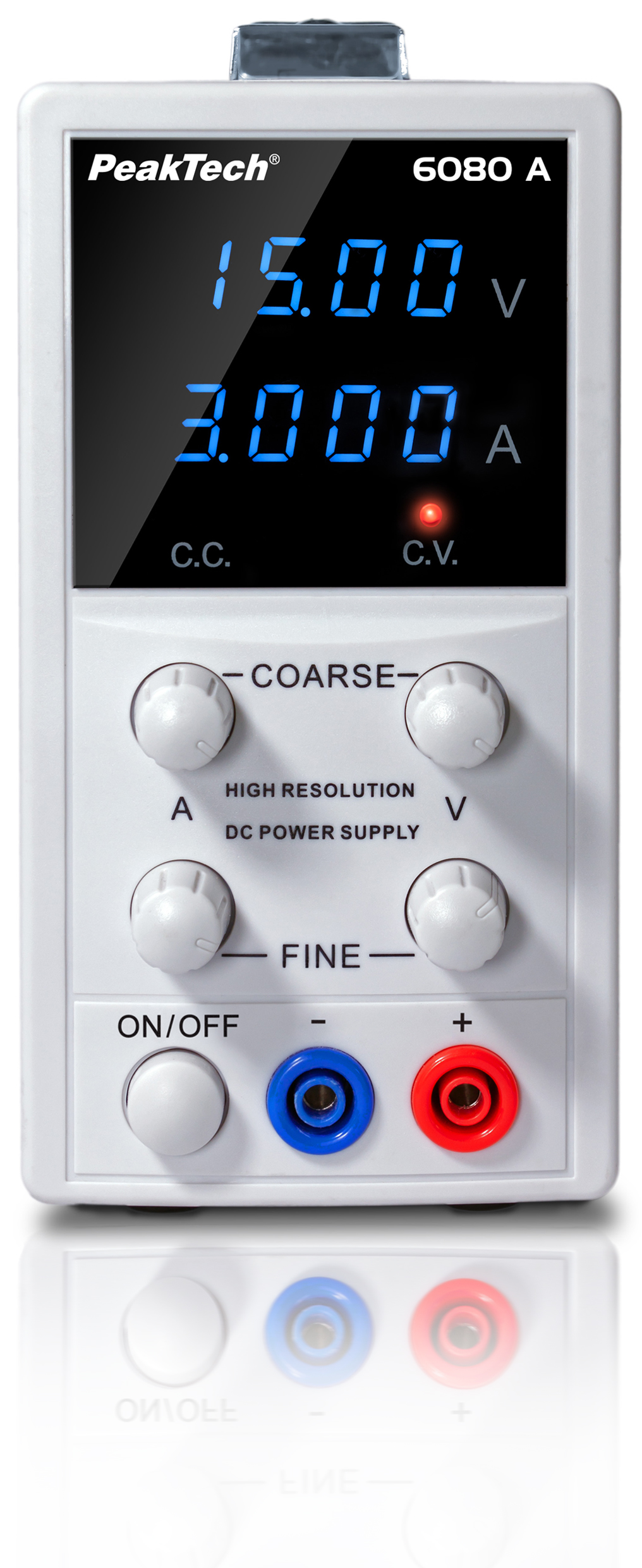

The new PeakTech 6080 A is a linear controlled laboratory power supply with passive cooling and a high resolution digital display (1mA and 10mV). This model has a coarse / fine control via separate potentiometers for precise selection of the current and voltage settings.
Due to the linear technology used, this model does not generate any high-frequency interference and a safety transformer according to EN-61558-2-6 is used, which guaranteed a safety extra-low voltage (SELV) output, to ensure the greatest possible user safety. This power supply unit in a modern design was specially designed for the service and training sector and impresses with its excellent price / performance ratio.
This linearly regulated laboratory power supply with a 3-digit 14 mm blue LED display, is ideal for various applications. Thanks to the infinitely variable voltage output, which is realized by the rotary potentiometer, the operator can change and adapt the voltage/ current values at any time. A distinction is made between coarse and fine settings for the rotary potentiometers, but there is an independent rotary control for each. With the CV and CC function, the user is able to set constant voltages or constant currents.
This linearly controlled laboratory power supply has 3-digit 14 mm blue LED displays, which enable a quick and precise reading. The constant voltage and the constant current can be selected automatically and the current limiting protection can be set as desired. In constant current mode, the output current is infinitely adjustable. This device has 2 outputs with continuously variable output voltages or currents and can be connected in series or parallel. When the power supply is connected in series, the max. Output voltage is 60 V DC, when the outputs are connected in parallel, the max. Output current is 10 A DC.
The PeakTech 6150 has two fixed and one adjustable voltage output. The fixed voltage outputs have an output of 12 volts and 5 volts, which is used for many low-voltage test setups. Both have a maximum current output of 500 mA. The adjustable voltage output has a range from 0 to 30V DC and a maximum rated current of 5 A. The voltage and current values can be infinitely adjusted and set using the rotary control. Not only the main switch but also a separate output switch is integrated in the front of the laboratory power supply, which enables the user to set the voltages and currents before the outputs are switched on.
The PeakTech 6180 power supply unit with color TFT display combines the advantages of a linearly regulated laboratory power supply unit with the remote control options, which until now were mostly reserved for switched-mode power supplies. It is operated via the graphic menu navigation and enables uncomplicated control and programming of the many functions. In addition, the device can be completely remote-controlled using the included PC software. In order to increase the output voltage or output current values, the two independent channels can be connected in series or in parallel. A plus / minus interconnection of the outputs is also possible here. The technology used and the many functions make this device ideal for use in research and development on RF-sensitive components and circuit boards.

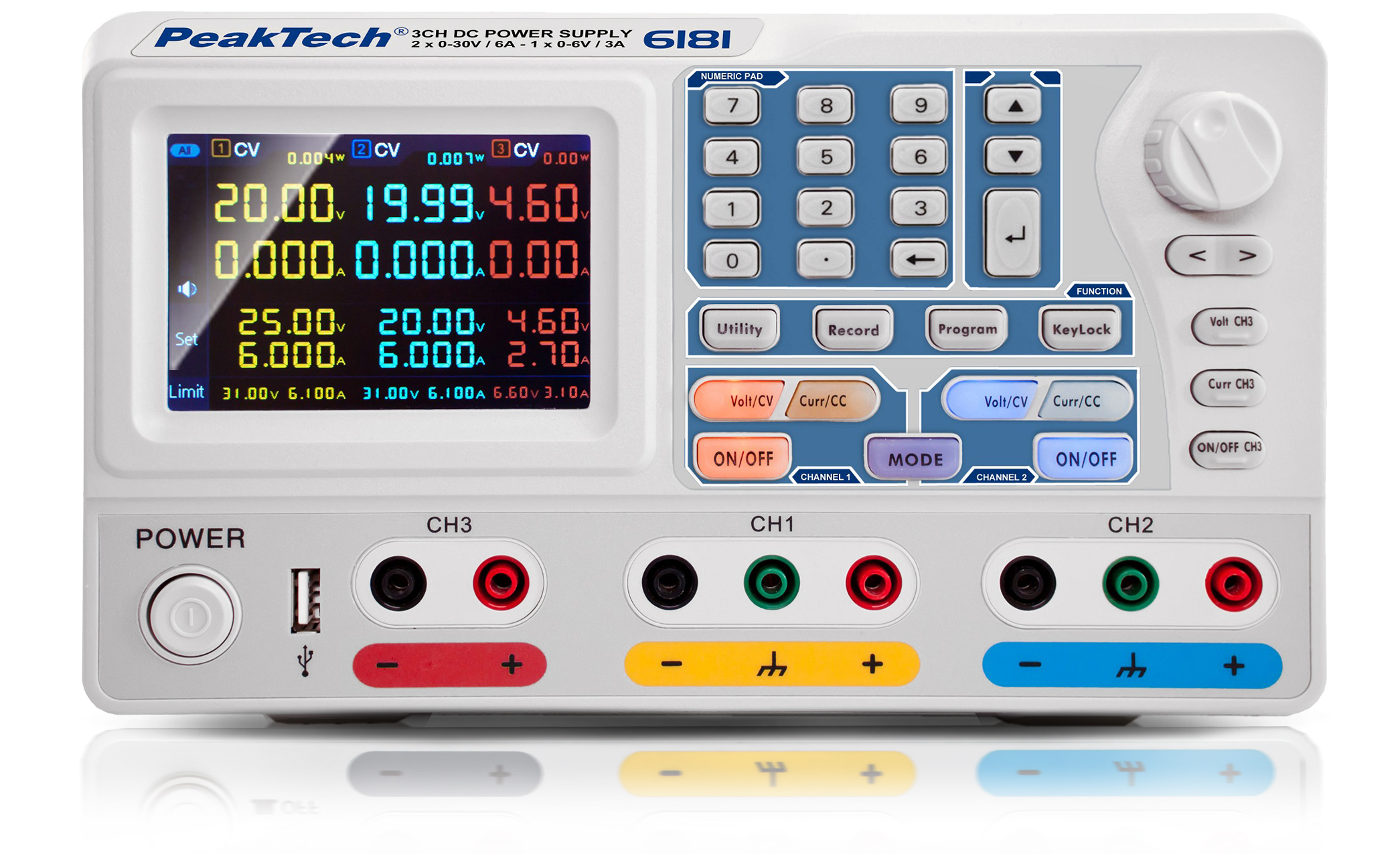

The PeakTech 6181 power supply with color TFT display combines the advantages of a linearly regulated laboratory power supply with the remote control options that were previously reserved for switching power supplies. This power supply is being operated via the graphical menu system and it enables the simple control and programming of its multiple features. In addition, the device can be completely controlled by using the included PC software. It is possible to increase the output voltage or output current values by connecting the two independent channels in series or in parallel. A plus / minus connection of the outputs is also possible. Due to the technology used and the many functions, this device is ideal for use in research and development for high frequency sensitivity components and circuit boards.
The PeakTech 6205 is a laboratory power supply that stands out due to its dual display and with its adjustable / fixed voltage output. The voltage to be released as well as the current can be set with the rotary controls. Furthermore, the rotary controls are divided among themselves in order to be able to make rough but also fine voltage / current changes. The voltage range that can be set with the adjustable voltage output is 0 - 30V DC and the current range is 0 - 5A. The height of the fixed voltage output is 5V DC, a current of an amount of 1A is released. Not only the main switch is integrated in the front of the laboratory power supply, but also the button for switching the adjustable voltage output on and off. If this button has been pressed and the voltage output is activated, this is signaled by an illuminated LED which goes out when switched off. Another interesting feature is the CC and CV function of the laboratory power supply, which allows the device to output a constant voltage or current. The PeakTech 6205 is a solid and good laboratory power supply, which is used in many areas.
The PeakTech 6210 is a laboratory power supply with 4 separate voltage outputs. Two outputs are infinitely variable using the rotary controls, which are attached to the sides of the front. The rotary regulators make it possible to set the voltage and current individually. The device also has the CC and CV function, which is used to set or display constant currents or voltages. The main switch of the laboratory power supply is integrated in the front, as well as the button for switching the output voltage on and off. There is also the option of using the two pushbuttons for switching to normal, serial and parallel, to set the type of interconnection of the mutually independent controllable outputs.
Another special feature that this device brings with it are the two fixed voltage outputs. These outputs deliver a voltage of 5V DC and a current of 1A DC. Due to its versatility, the PeakTech 6210 can be optimally used in many areas of electrical engineering.
The PeakTech 6215 is a laboratory power supply with 4 separate voltage outputs. All four outputs are infinitely variable using the rotary controls, which are attached to the sides of the front. The rotary controls make it possible to freely set the voltage and current for CH1 and CH2. Only the voltages can be set for the channel 3 and 4, because they have fixed current values. The device also has the CC and CV function, which is used to set or display constant currents or voltages. The main switch of the laboratory power supply is integrated in the front, as well as the button for switching the output voltage on and off. The outputs are switched on by using the two pushbuttons on the left and right. There is also the option of using the two pushbuttons for switching to normal, serial and parallel, to set the type of interconnection of the mutually independent controllable outputs.
Due to its versatility, the PeakTech 6215 can be optimally used in many areas of electrical engineering.

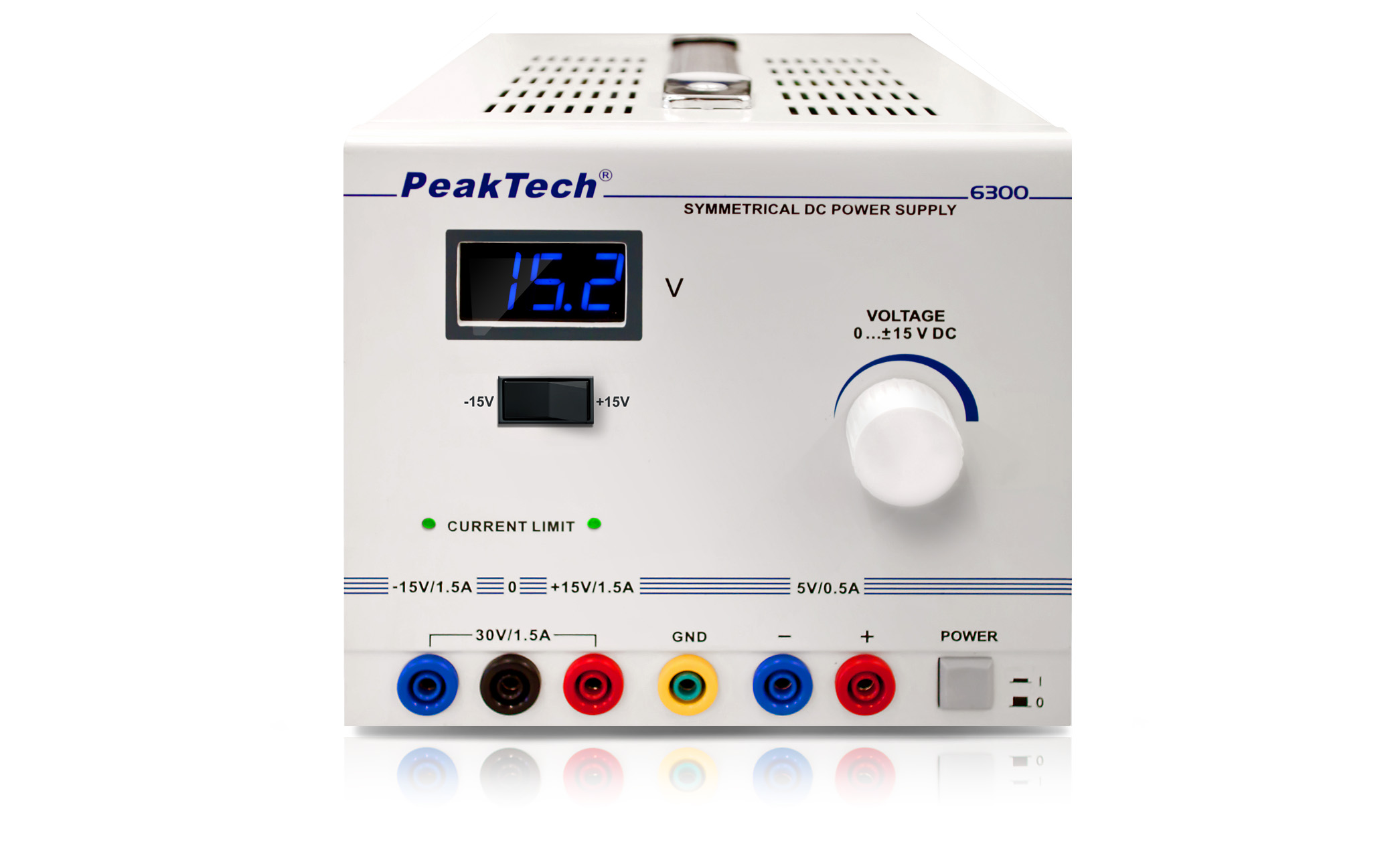

This laboratory power supply for symmetrical output voltage has a stepless voltage regulation. There are three output sockets on the front panel, the middle socket is acting as a center tap (0). A voltage of - 15 to 0V DC can be released from the center tap to the negative socket or a voltage of 0 - 15V DC to the positive socket. If the load is connected between the positive and negative pole, it can be released up to 30 V DC. This device also has a 5 V / 0.5 A DC fixed voltage output.
As a result, this device is ideally suited for use in the training area and it is useful for explaining polarity in the DC area.
